S-48PFB7H5YA

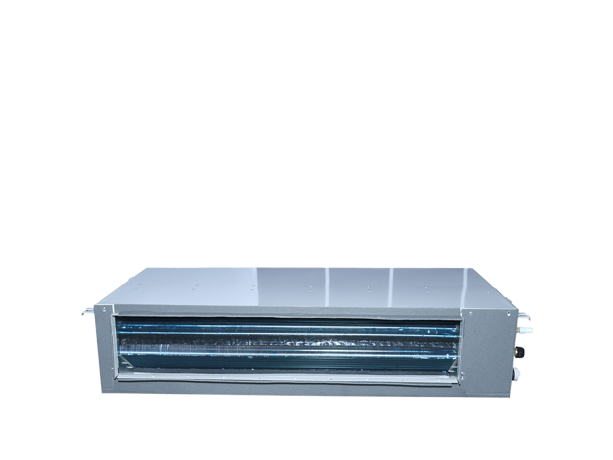

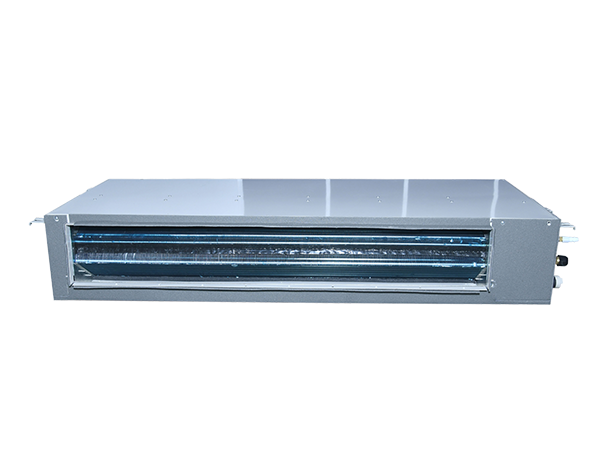

Mid Static Ducted AC (Non-Inverter), Cooling only Concealed Duct
Features
• V-Shaped Evaporator Coil*
• LCD Wireless Remote Controller (Optional)
• Operation Range up to 50°C
• In-built Air Filter
• Pre-Coated IDU Sheet Metal
• LCD Wireless Remote Controller (Optional)
• Operation Range up to 50°C
• In-built Air Filter
• Pre-Coated IDU Sheet Metal
Specs
Model Indoor Unit
-
S-48PFB7H5YA

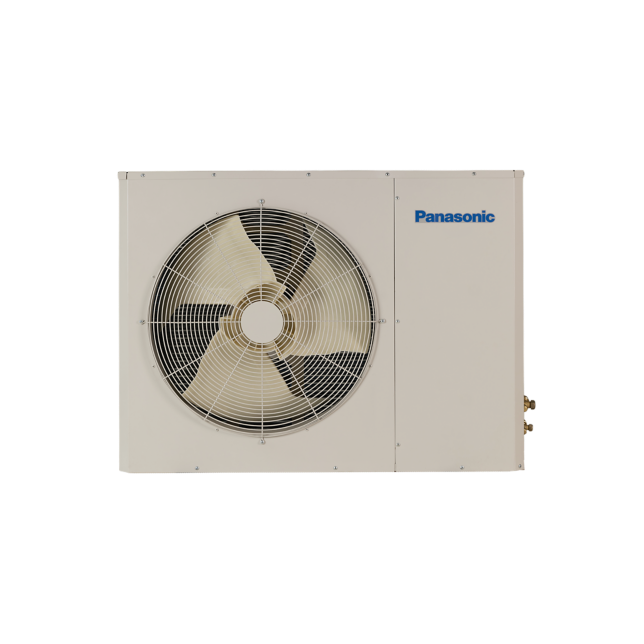

Model Outdoor Unit
-
U-48PNB7H8Y
Capacity Rated
-
Cooling
-
W
-
14000
-
-
Btu/hr
-
47768
-
-
EER/COP
-
W/W
-
3.26
-
Electrical Rating
-
Cooling
-
Running Current (A)
-
8.5
-
-
Power Input (W)
-
4300
-
-
Power Source
-
V/Phase/Hz
-
415V / 3ɸ / 50Hz
-
Indoor Unit
-
Air Volume
-
H/M/L (CMH)
-
2160/1850/1740
-
-
External Static Pressure (Pa)
-
30
-
-
-
Sound Pressure Level
-
H/M/L dB (A)
-
50/48/46
-
-
-
Dimension
-
Indoor LxBxH (cm)
-
121.8 x 62.9 x 31.6
-
-
-
Net Weight
-
Indoor Unit (Kg)
-
40.2
-
-
Outdoor Unit
-
Sound Pressure Level
-
dB(A)
-
64
-
-
-
Dimension
-
LxBxH (cm)
-
103.0 x 38.0 x 78.8
-
-
-
Net Weight
-
Kg
-
67.2
-
-
-
Refrigerant Type
-
R-32
-
Piping Connection
-
Gas (Flare)
-
cm (inches)
-
1.588 (5/8")
-
-
-
Liquid (Flare)
-
cm (inches)
-
0.952 (3/8")
-
-
-
Drain
-
cm
-
2.7
-
-
Ambient Temperature Operating Range
-
°C
-
up to 50°C
-
Standard Remote Controller
-
Wired (Optional Wireless)
Compressor Type
-
Twin Rotary
