S-102PFB5H59

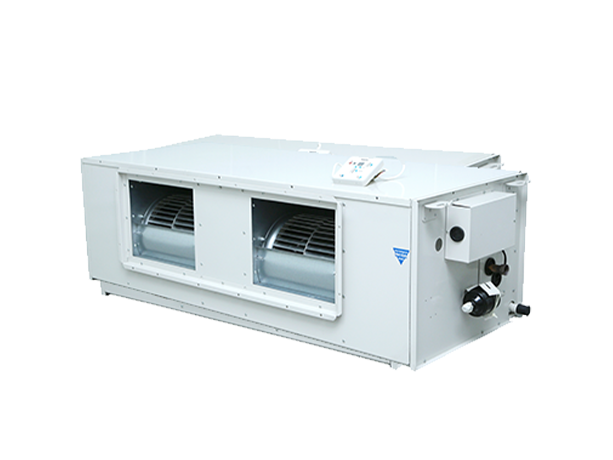

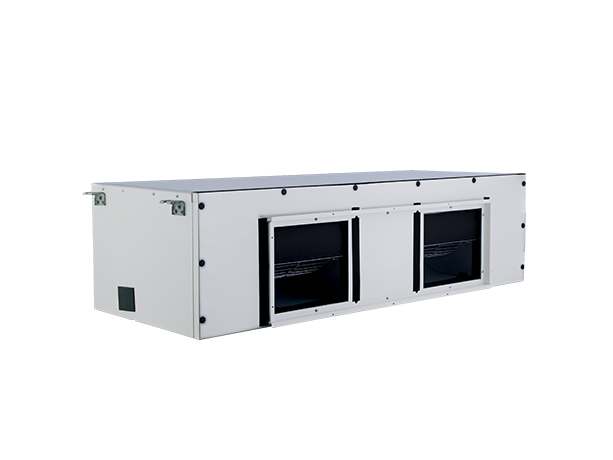

High Static Ducted AC (Non-Inverter, Cooling only)
Concealed Duct High-Static Pressure
Features
• Highly Efficient Scroll Compressor
• 3 Speed Fan Motor
• Maximum Piping Length* 50 Meters
• Inner Groove Copper Tube
• LCD Wireless Remote Controller (Optional)
• Operation Range up to 50℃
• In-built Air Filter
• Pre-Coated IDU Sheet Metal
• High External Static Pressure
• 3 Speed Fan Motor
• Maximum Piping Length* 50 Meters
• Inner Groove Copper Tube
• LCD Wireless Remote Controller (Optional)
• Operation Range up to 50℃
• In-built Air Filter
• Pre-Coated IDU Sheet Metal
• High External Static Pressure
Specs
Model Indoor Unit
-
S-102PFB5H59
Model Outdoor Unit
-
U-102PVB5H89
Capacity Rated (Cooling)
-
W
-
29895
-
-
Btu/hr
-
102000
-
Electrical Rating (Cooling)
-
Running Current (A)
-
20.6
-
-
Power Input (W)
-
11900
-
Power Source
-
V/Phase/Hz
-
415V / 3ɸ / 50Hz
-
Indoor Unit
-
Air Volume
-
H/M/L (CMH)
-
5900/5000/4250
-
-
External Static Pressure (Pa)
-
90
-
-
-
Sound Pressure Level
-
H/M/L dB (A)
-
70/67/63
-
-
-
Dimension
-
Indoor LxBxH (cm)
-
166.0 x 65.1 x 45.1
-
-
-
Net Weight
-
Indoor Unit (Kg)
-
87.0
-
-

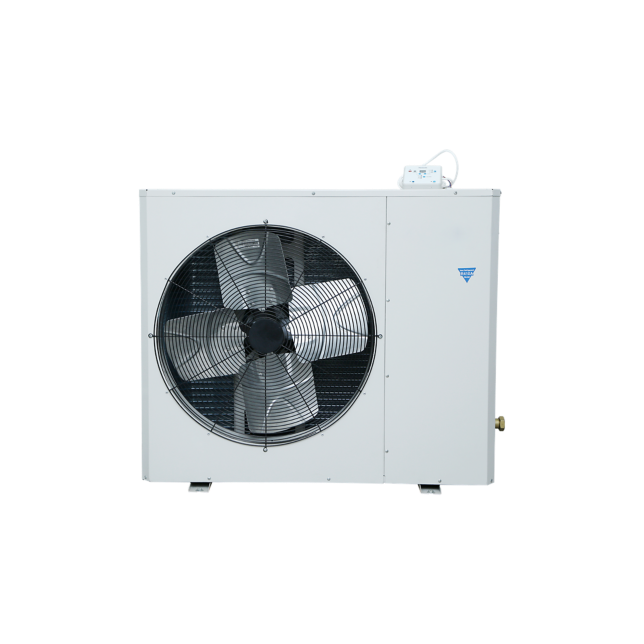

Outdoor Unit
-
Sound Pressure Level
-
dB(A)
-
78
-
-
-
Dimension
-
LxBxH (cm)
-
119.7 x 54.8 x 91.5
-
-
-
Net Weight
-
Kg
-
147.0
-
-
-
Refrigerant Type
-
R-410A
-
Piping Connection
-
Gas (Flare)
-
cm (inches)
-
2.86 (1-1/8'')
-
-
-
Liquid (Flare)
-
cm (inches)
-
1.27 (1/2")
-
-
-
Drain
-
cm
-
2.7
-
-
Ambient Temperature Operating Range
-
°C
-
up to 50°C
-
Standard Remote Controller
-
Wired (Optional Wireless)
Compressor Type
-
Hermetic Scroll
