KX-VDW200SX

Add to WishlistRemove from Wishlist

KX-VDW200SX

Add to WishlistRemove from Wishlist

KX-VDW200SX

Specs

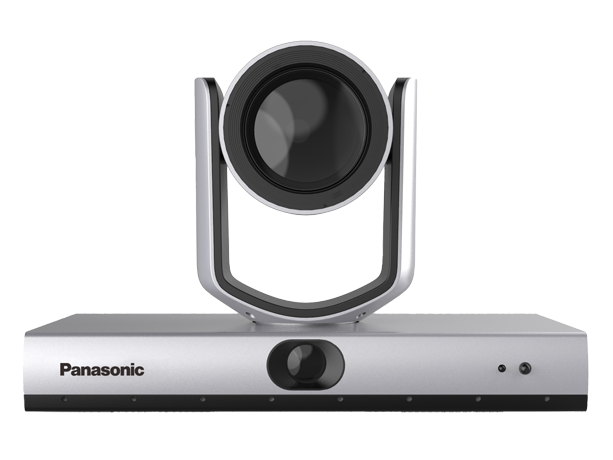

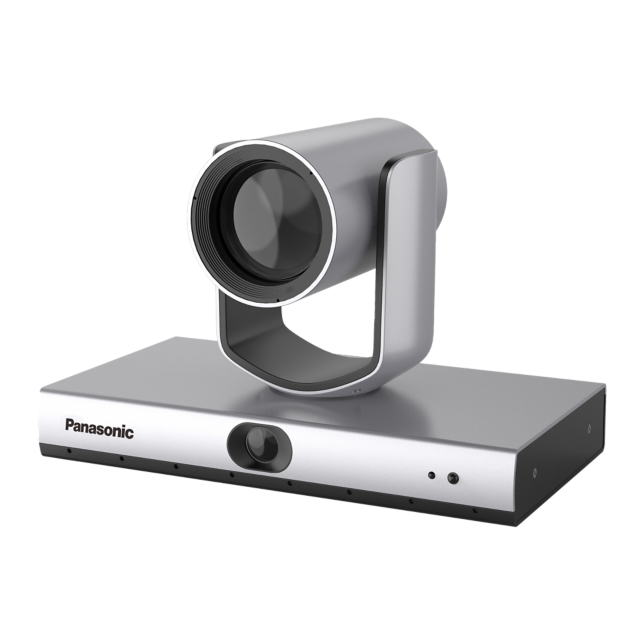

Photo of KX-VDW200SX

Model Name

KX-VDW200SX

Camera

Image Sensor
- 1/2.8”CMOS, 2MP
Focal
- f=3.9mm-46.8mm
Iris
- F1.6-F2.8
Zoom
- Optical:12X, Digital:12X
FOV
- Horizontal72.5°-6.3
Focus
- Auto, Manual, PTZPush, One Push
Shutter Speed
- 1/1~1/10,000s
AGC
- Auto,Manual
White Balance
- Auto, Indoor, Outdoor, OnePush, Manual, AutoTrack, Color Temp
Exposure
- Auto, Manual, Shutter Priority, IrisPriority
SNRatio
- ≥ 50dB
BLC
- Yes

Full View Camera

Image Sensor
- 1/2.5”4K CMOSSensor, 8.57MP
Lens
- 2.8mmfocus,4X digitalzoom
FOV
- 98°
DNR
- 2D/3D
V ideo Adjustment
- Support EPTZ

PTZ

Pan
- -90°~+90°,0.1°~100°/s
Tilt
- -30°~+90°,0.1°~80°/s
Preset Number
- 64

Network

Max Image Size
- 1920×1080@60fps
Video Compression
- H.264/H.265/MJPEG
Audio Compression
- AAC
Protocol
- RTSP, RTMP, RTP, TCP, UDP, ONVIF
Multi-Stream
- Support 1×close-upview, 1×fullview, 1×switching

Interface

SDI
- 1×3G-SDI, VideoFormat: 1080P60/50/30/25, 720P60/50
HDMI
- 1×HDMI, VideoFormat: SameasSDI
USB
- 1×USB2.0 , supportUVC/UAC
Audio Input
- 2×3.5mm LINEIN, including one channel echo cancellation reference audio input
Network Interface
- 1x10M/100M RJ45

General

Control Protocol
- VISCA
Address
- 44348
Power Supply
- DC12V
Power Consumption
- <20W
Working Temperature
- 0°C~+40°C
Storage Temperature
- -20°C~+60°C
Dimension（ L×W×H ）
- 245mm×145mm×165mm Weight
Weight
- ＜ 2KG
