Specs

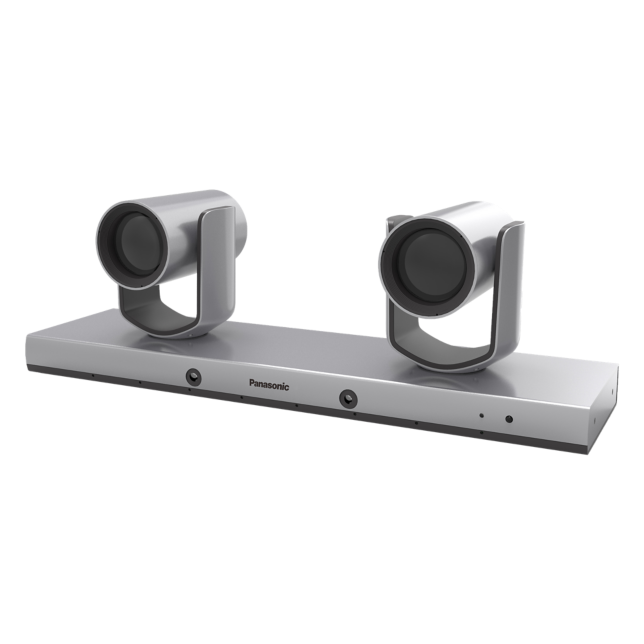

Photo of KX-VD300SX

Model Name

KX-VD300SX

Tracking Camera

Signal Format (SDI)
- 1080P60, 1080P50, 1080P30, 1080P25, 1080I60, 1080I50, 720P60, 720P50
Focal
- f=3.9mm-46.8mm
Iris
- F1.6-F2.8
Zoom
- Optical:12X, Digital:12X
FOV
- Horizontal72.5°-6.3°
Focus
- Auto, Manual, PTZPush, One Push, Manual, Color Temp
Shutter Speed
- 1/1~1/10,000s
AGC
- Auto, Manual
White Balance
- Auto
Exposure
- Auto
SN Ratio
- ≥ 50dB
BLC
- Yes

Full View Camera

Image Sensor
- 1/2.8”CMOS,2.14MP
Lens
- Manual focus
Focal
- 2.4mm
FOV
- Horizontal88°,Vertical52

PTZ

Pan
- -90°~+90°,0.2°~100°/s
Tilt
- -30°~+90°,0.2°~100°/s
Control Interface
- RS-232
Preset Number
- 64

Network

Max Image Size
- 1920×1080@60fps
Video Compression
- H.264/H.265
Audio Compression
- AAC
Protocol
- RTSP, RTMP, RTP, TCP, UDP, ONVIF
Dual Stream
- Yes

Interface

Video Output
- 1×HDMI,1×3G-SDI
Audio Input
- 2x3.5mm Line IN, one way for the echo eli mination reference audio input
Network Interface
- 100MRJ45
USB Interface
- 1×USB2.0 (Reserved)
Control Interface
- 1×RS-232

General

Control Protocol
- VISCA
Address
- 44348
Power Supply
- DC12V
Power Consumption
- <24W
Working Temperature
- 0°C~+40°C
Storage Temperature
- -20°C~+60°C
Dimension（ L×W×H ）
- 500mm×137mm×164mm Weight
Weight
- 3.38KG
