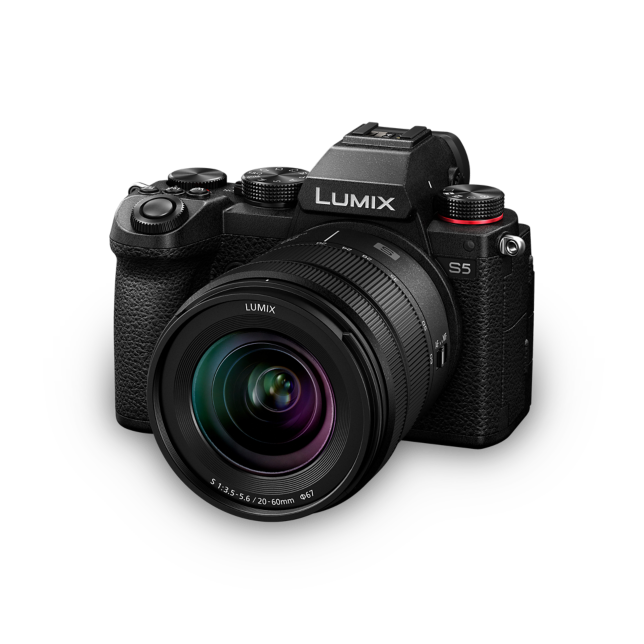

LUMIX S Camera DC-S5K
ANDA TIDAK DAPAT MENAMBAHKAN PRODUK LAIN
Anda sudah mencapai jumlah maksimum produk dalam wishlist
DC-S5K
Moving Images Forward
Fitur
Hybrid Compact Body
Sensor CMOS 24,2MP dengan Teknologi Dual Native ISO
Berbagai Mode Perekaman
HDMI Live Output for Professional Film Creation
4:2:2 10-bit Internal Rec / HDMI Output
14+ stops of V-Log and V-Gamut “VariCam Look”
Autofocus System Featuring AI Technology
Mode Resolusi Tinggi 96MP dengan JPEG
6.5-stop Dual I.S. 2
Dust and Splash-resistant
Fitur Khusus Lainnya
Other Special Features
Dapatkan Inspirasi
Spesifikasi
Ukuran dan Berat
- Tinggi
- 97.1mm
- Lebar
- 132.6mm
- Kedalaman
- 81.9mm
- Berat
- 714g
Semua nilai adalah perkiraan. Berat termasuk kartu SD dan baterai. Lensa tidak termasuk. Dimensi tidak termasuk tonjolan.
- L-Mount
- 24.2 Megapixels
- 4K Video Recording Capability
- 14+ stops V-Log
- 5-Axis Dual I.S. 2 (Image Stabilizer)
- 2360k-dot OLED Live View Finder
- 1840k-dot Free-angle Monitor
- Splash and Dust-resistant
- Wi-Fi
- Bluetooth
A photo/video hybrid mirrorless camera with a compact, lightweight body.
24.2MP full-frame CMOS sensor with Dual Native ISO technology.
4K 60p / 50p 4: 2: 0 10-bit, C4K / 4K 30p / 25p 4: 2: 2 10-bit, 4K 8-bit tanpa batasan waktu perekaman video dan 14+ stop V-Log / V-Gamut.
High-speed, high-precision AF and deep learning technology for human / animal recognition.
TYPE
-
Jenis
-
Kamera DSLM (Digital Single Lens Mirrorless)
-
-
Recording media
-
SD Memory Card / SDHC Memory Card / SDXC Memory Card
Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.
-
-
Lens mount
-
L-Mount
-
IMAGE SENSOR
-
Jenis
-
Sensor CMOS 35mm full-frame (35,6mm x 23,8mm)
-
-
Camera effective pixels / Total pixels
-
24.20 megapixels / 25.28 megapixels
-
-
Aspect ratio / Color filter
-
3:2 / Primary color filter
-
-
Dust reduction system
-
Tipe pergantian sensor gambar
-
LATITUDE
-
LATITUDE
-
14+ stop (V-Log)
-
STILL IMAGE
-
Recording file format
-
Still image
-
JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
-
-
6K PHOTO** / 4K PHOTO**
-
6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
Extracted still images: JPEG (DCF, Exif 2.31)
-
-
Aspect ratio
-
4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
-
-
-
File size (Pixels)
-
When using full-frame lenses 3:2
-
6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution Mode.
5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
-
-
When using full-frame lenses 4:3
-
5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution Mode.
4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
-
-
When using full-frame lenses 16:9
-
6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution Mode.
3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
-
-
When using full-frame lenses 1:1
-
4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution Mode.
2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
-
-
When using full-frame lenses 65:24
-
6000x2208(L)
-
-
When using full-frame lenses 2:1
-
6000x3000(L)
-
-
When using APS-C/Super 35mm lenses 3:2
-
3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 3504x2336(4K PHOTO)
-
-
When using APS-C/Super 35mm lenses 4:3
-
3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496 (4K PHOTO)
-
-
When using APS-C/Super 35mm lenses 16:9
-
3984x2240(L) / 2880x1624(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
-
-
When using APS-C/Super 35mm lenses 1:1
-
2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880 (4K PHOTO)
-
-
Image quality
-
RAW / RAW+Sangat Bagus / RAW+Standar / Sangat Bagus / Standar
-
-
Color space
-
sRGB, AdobeRGB
-
-
MOTION PICTURE
-
Recording file format
-
MOV: H.264/MPEG-4 AVC, H.265/HEVC (Format audio: LPCM (2ch 48kHz/16-bit))
MP4: H.264/MPEG-4 AVC, H.265/HEVC (Format audio: AAC (2ch))
-
-
Switch NTSC / PAL
-
Ya (NTSC (59,94Hz) / PAL(50,00Hz))
-
-
MOV**
-
NTSC (59.94Hz) Full-frame
-
[C4K] 4096x2160**** 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[C4K] 4096x2160**** 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
-
-
NTSC (59.94Hz) APS-C / Pixel by Pixel
-
[C4K] 4096x2160**** 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[C4K] 4096x2160**** 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[C4K] 4096x2160**** 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
[4K] 3840x2160 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
-
-
PAL (50.00Hz) Full-frame
-
[C4K] 4096x2160**** 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
-
-
PAL (50.00Hz) APS-C / Pixel by Pixel
-
[C4K] 4096x2160**** 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[C4K] 4096x2160**** 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[4K] 3840x2160 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
[4K] 3840x2160 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[4K] 3840x2160 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
[Anamorphic 4K] 3328x2496 (4:3) 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
[Anamorphic 4K] 3328x2496 (4:3) 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
[FHD] 1920x1080 25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
-
-
-
MP4**
-
NTSC (59.94Hz) Full-frame
-
[4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) -
[FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
*Angle of view narrow jika frame rate dengan jumlah bingkai 180 dipilih. Mode AF beralih ke MF bila frame rate diatur ke 150 fps atau lebih.
-
-
NTSC (59.94Hz) APS-C / Pixel by Pixel
-
[4K] 3840x2160 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC) -
[4K] 3840x2160 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[4K] 3840x2160 23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60 fps
-
-
PAL(50.00Hz) Full-frame
-
[4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
PAL(50.00Hz) APS-C / Pixel by Pixel
-
[4K] 3840x2160 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG dapat dipilih.
[4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
-
-
PAL (50.00Hz) Full-frame
-
[FHD] 1920x1080 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
*Angle of view narrows jika frame rate dengan jumlah bingkai 180 dipilih. Mode AF beralih ke MF bila frame rate diatur ke 150 fps atau lebih.
-
-
PAL (50.00Hz) APS-C / Pixel by Pixel
-
[4K] 3840x2160 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60 fps
-
-
SLOW & QUICK
-
[FHD] 1920x1080 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
[FHD] 1920x1080 23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
*Angle of view narrow jika frame rate dengan jumlah bingkai 180 dipilih. Mode AF beralih ke MF bila frame rate diatur ke 150 fps atau lebih.
VIEWFINDER
-
Jenis
-
OLED Live View Finder
-
-
Pixels
-
Approx. 2,36 juta dot
-
-
Field of view / Magnification
-
Approx. 100% / Approx. 0,74x dengan lensa 50 mm pada infinity; -1,0 m-1, bila rasio aspek diatur ke 3:2
-
-
Eye point / Diopter adjustment
-
Approx. 20 mm pada infiniti; -1.0 m-1 / -4.0 - +4,0 (dpt)
-
-
Eye sensor
-
Ya
-
-
Display speed
-
120fps / 60fps
-
-
Display time lag
-
Approx. 0,005 dtk
-
REAR MONITOR
-
Jenis
-
TFT LCD monitor with static touch control
-
-
Monitor size
-
Free-angle, 3.0-inch (7.5cm), 3:2 aspect
-
-
Pixels
-
Approx. 1,84 juta dot
-
-
Field of view
-
Approx. 100%
-
FOCUS
-
Jenis
-
Contrast AF system
-
-
DFD technology
-
Ya
-
-
Focus mode
-
AFS (Single) / AFC (Continuous) / MF
-
-
AF mode
-
Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
(Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.****
-
-
AF detective range
-
EV -6 - 20 (setara F1.4, ISO100, AFS)
-
-
AF custom setting
-
AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
-
-
AF assist lamp
-
Ya
-
-
AF lock
-
Setel tombol Fn dalam menu penyesuaian menjadi kunci AF
-
-
Post Focus / Focus Stacking
-
Ya / Ya
-
-
Lainnya
-
AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control
-
EXPOSURE CONTROL
-
Light metering system
-
1,728-zone multi-pattern sensing system
-
-
Light metering mode
-
Multiple / Center Weighted / Spot / Highlight Weighted
-
-
Metering range
-
EV0-18 (lensa F2.0, setara ISO100)
-
-
Exposure mode
-
Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
-
-
ISO sensitivity (Standard output sensitivity)
-
Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
-
-
Dual Native ISO
-
[Normal]
Native ISO: 100, 640
Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
[V-Log]
Native ISO: 640, 4000
Auto: Auto / 320* / 640-51200 *Extended ISO
[HLG]
Native ISO: 400, 2500
Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
[Cinelike D2 / Cinelike V2]
Native ISO: 200, 1250
Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
-
-
Exposure compensation
-
1/3 EV step ±5EV (±3EV for motion picture)
-
-
AE lock
-
Setel tombol Fn dalam menu penyesuaian menjadi kunci AE
-
IMAGE STABILIZATION SYSTEM
-
IMAGE STABILIZATION SYSTEM
-
Image sensor shift type (5-axis / 5.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]
-
WHITE BALANCE
-
White balance
-
AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
-
-
White balance adjustment
-
Blue/Amber bias, Magenta/Green bias
-
-
Color temperature setting
-
2500-10.000K dalam 100K
-
SHUTTER
-
Jenis
-
Focal-plane shutter
-
-
Shutter speed
-
Still image: Bulb (Maks. 30 menit), 1/8000 - 60
Electronic front curtain shutter: Pijar (Maks. 30 menit), 1/2.000 - 60
Electronic shutter: Bulb (Maks. 60 dtk), 1/8000 - 60
Motion picture: 1/16.000 - 1/25
Creative Video M mode / MF mode: 1/16.000 - 1/2
-
-
Self timer
-
10sec, 3 images / 2sec / 10sec
-
-
Remote control
-
Remote control dengan DMW-RS2 (dijual terpisah)
-
-
Silent mode / Shutter type
-
Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)
-
BRACKET
-
AE bracket
-
3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
-
-
Aperture bracket
-
3, 5 or all positions in 1 EV step
-
-
Focus bracket
-
1 hingga 999 gambar, langkah fokus dapat diatur dalam 10 tingkat
-
-
White balance bracket
-
3 images in blue/amber axis or in magenta/green axis, color temperature setting
-
BURST SHOOTING
-
Burst speed
-
Mechanical shutter / Electronic front curtain shutter
-
AFS/MF: H: 7 fps, M: 5 fps (dengan Live View), L: 2 fps (dengan Live View)
AFC: H: 5 fps (dengan Live View), M: 5 fps (dengan Live View), L: 2 fps (dengan Live View)
-
-
Electronic shutter
-
AFS/MF: H: 7 fps, M: 5 fps (dengan Live View), L: 2 fps (dengan Live View)
AFC: H: 5 fps (dengan Live View), M: 5 fps (dengan Live View), L: 2 fps (dengan Live View)
-
-
-
Number of recordable images
-
RAW / RAW+JPEG: Lebih dari 24 gambar
JPEG: 999 gambar lebih (Bila menggunakan kartu dengan SD Speed Class with "UHS-II UHS Speed Class 3 (U3)” disisipkan ke dalam slot kartu 1.)
* Bila merekam dilakukan dalam kondisi uji yang ditentukan oleh Panasonic.
-
6K PHOTO** / 4K PHOTO**
-
Burst speed
-
6K PHOTO: 30 fps
4K PHOTO: 60 fps, 30 fps
-
-
Exif information
-
Ya (Tiap gambar JPEG dipotong dari file 6K/4K burst sesuai dengan EXIF.)
-
FLASH
-
Flash type
-
TTL External Flash (sold separately)
-
-
Flash mode
-
Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
-
-
Flash synchronization
-
1st Curtain Sync, 2nd Curtain Sync.
-
-
Flash output adjustment
-
1/3EV step ±3EV
-
-
Synchronization speed
-
Kurang dari 1/250 detik *Jumlah panduan berkurang pada 1/250 detik. Hanya bila diatur ke mode M atau mode S.
-
-
Wireless control
-
Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
-
EXTRA TELE CONVERSION
-
EXTRA TELE CONVERSION
-
2.0x (EX S) (Bila menggunakan lensa full-frame), 1.9x (EX S) (Bila menggunakan lensa APS-C / Super 35mm), 1.4x (EX M) *Hanya untuk perekaman still image.
-
PHOTO STYLE
-
Photo Style
-
Standard / Vivid / Natural / L. Classic Neo**** / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S**** / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10
-
-
Picture adjustment
-
Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise**** / Sharpness / Noise Reduction / ISO / WB
*Adjustable settings vary depending on the Photo Style mode.
-
FILTER
-
FILTER
-
Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.
-
MOTION PICTURE FUNCTION
-
Vertical Position Information*
-
ON / Off *Firmware must be updated to version 2.2 or later.
-
FUNCTION BUTTON
-
REC
-
Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Post-Focus / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Sound Rec Level Adj. / Sound Rec Level Limiter / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope**** / Anamorphic Desqueeze Display / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default
-
-
PLAY
-
Perbesar dari AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default
-
LEVEL GAUGE
-
LEVEL GAUGE
-
Ya
-
OSD LANGUAGE
-
OSD LANGUAGE
-
Inggris, Tionghoa (Tradisional), Tionghoa (Sederhana), Thailand, Arab, Farsi, Vietnam, Hindi
-
-
PRINT
-
Kompatibel dengan PictBridge
-
INTERFACE
-
USB
-
SuperSpeed USB 3.1 Gen1 Type-C
-
-
HDMI***
-
Monitor-through
-
Ketika mode selain [C4K/60p]****/[C4K/50p]****/[4K/60p]/[4K/50p] dipilih untuk [Picture Quality]:
4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit
Ketika mode [C4K/60p]****/[C4K/50p]****/[4K/60p]/[4K/50p] dipilih dalam [Rec Quality]:
4:2:2 10bit*, 4:2:0 8bit *Ketika mode 4:2:2 10bit dipilih, tidak mungkin merekam gambar bergerak atau gambar diam pada memory card di unit kamera.
Info Display: ON / OFF (selectable)
HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable)
-
-
-
Playback
-
microHDMI TypeD / VIERA Link, Audio: Stereo
NTSC (59.94Hz): Auto / C4K/60p**** / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
PAL (50.00Hz): Auto / C4K/50p**** / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
-
-
Remote input
-
φ2,5mm
-
-
External microphone / external audio device input
-
φ3,5mm untuk perangkat mikrofon eksternal / audio eksternal
MIC (Plug-in Power) / MIC / LINE dapat dipilih.
Stereo/Lens Auto/Shotgun/Super Shotgun/Manual dapat dipilih bila memasang DMW-MS2 (dijual terpisah).
-
-
Headphone output
-
φ3,5mm
-
-
Microphone
-
Stereo, Wind Noise Canceller: OFF / Rendah* / Standar / Tinggi *Bila menggunakan DMW-MS2 (dijual terpisah).
-
-
XLR microphone
-
Ya dengan DMW-XLR1 (dijual terpisah)
-
-
Speaker
-
Monaural
-
-
SD card slot
-
SD Memory Card, SDHC Memory Card, SDXC Memory Card
Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.
-
WIRELESS
-
Wi-Fi
-
2,4GHz (STA/AP) (IEEE802.11b/g/n)
5GHz (STA) (IEEE 802.11a/n/ac) *5GHz Wi-Fi tidak tersedia di beberapa negara.
1-11 ch
-
-
Bluetooth
-
Bluetooth® v4.2 (Bluetooth Low Energy (BLE))
-
DUST AND SPLASH RESISTANT
-
DUST AND SPLASH RESISTANT*
-
Ya.
*Tahan Debu dan Percikan tidak menjamin bahwa tidak akan terjadi kerusakan jika kamera ini terkena debu dan air langsung.
-
POWER
-
Battery
-
Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
USB power supply, USB power charging
-
-
Battery life (CIPA standard)
-
Approx. 440 gambar (layar belakang), 470 gambar (LVF), 1.500 gambar (mode Hemat Daya LVF*) dengan S-R2060
*Dalam kondisi uji yang ditentukan oleh Panasonic berdasarkan standar CIPA. Saat waktunya masuk ke mode tidak aktif diatur ke 1 detik.
-
-
Continuous recordable time (Motion picture)**
-
MP4 [4K/60p]: Approx. 110 mnt (APS-C, Pixel by Pixel) (LVF), 110 mnt (APS-C, Pixel by Pixel) (layar belakang) *Bila menggunakan S-R2060. Bila baterai terisi penuh.
MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 100 mnt (APS-C, Pixel by Pixel) (LVF), 110 mnt (APS-C, Pixel by Pixel) (layar belakang) *Bila menggunakan S-R2060. Bila baterai terisi penuh.
-
-
Actual recordable time (Motion picture)**
-
MP4 [4K/60p]: Approx. 55 mnt (APS-C, Pixel by Pixel) (LVF), 55 mnt (APS-C, Pixel by Pixer) (layar belakang) *Bila menggunakan S-R2060. Bila baterai terisi penuh.
MOV [4K/60p/4:2:0 10-bit/LongGOP]: Approx. 50 mnt (APS-C, Pixel by Pixel) (LVF), 55 mnt (APS-C, Pixel by Pixel) (layar belakang) *Bila menggunakan S-R2060. Bila baterai terisi penuh.
-
-
Battery grip
-
DMW-BGS5 (dijual terpisah)
-
DIMENSIONS / WEIGHT
-
Dimensions (W x H x D)
-
Approx. 132,6 x 97,1 x 81,9 mm / 5,22 x 3,82 x 3,22 inci (tidak termasuk tonjolan)
-
-
Berat
-
Approx. 714g / 1.58 lb (SD Memory Card x 1, Battery, Body)
Approx. 630g / 1.39 lb (Body only)
-
OPERATING ENVIRONMENT
-
Operating temperature
-
0oC hingga 40oC (32oF hingga 104oF)
-
-
Operating humidity
-
10%RH hingga 80%RH
-
STANDARD ACCESSORIES
-
Software
-
Recording
-
LUMIX Tether
・ Perangkat lunak ini digunakan untuk mengontrol kamera digital Panasonic dari PC. Memungkinkan Anda mengubah berbagai setelan kamera, melakukan perekaman jarak jauh, dan menyimpan gambar yang direkam dari jarak jauh ke komputer. Lihat situs di bawah ini untuk mengunduh dan menginstal perangkat lunak tersebut.
http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (Untuk Windows / Mac)
-
-
Playback / Editing
-
・ Perangkat lunak untuk mengedit dan memutar gambar pada komputer tidak disertakan dengan kamera ini. Untuk melakukannya, PHOTOfunSTUDIO 10.1PE tersedia di situs web Panasonic untuk diunduh menggunakan PC yang terhubung ke internet.
https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html (Untuk Windows)
・ Perangkat lunak untuk memproses file RAW di PC tidak disertakan dengan kamera ini. Untuk melakukannya, SILKYPIX Developer Studio tersedia di situs web Ichikawa Soft Laboratory untuk diunduh menggunakan PC yang terhubung ke Internet.
http://www.isl.co.jp/SILKYPIX/english/p/ (Untuk Windows / Mac)
-
-
-
Standard accessories
-
DC-S5K Kit
Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap
・ Petunjuk Pengoperasian DC-S5 untuk fitur tingkat lanjut tersedia untuk diunduh di Situs Dukungan Pelanggan Panasonic LUMIX menggunakan PC, smartphone, atau tablet yang terhubung ke Internet.
-
INTERCHANGEABLE LENS
-
NAME
-
LUMIX S 20-60mm F3.5-5.6
-
-
Lens Construction
-
11 elements in 9 groups (2 aspherical lenses, 3 ED lenses, 1 UHR lens)
-
-
Mount
-
L-Mount
-
-
Optical Image Stabilizer
-
Tidak
-
-
Focal Length
-
f=20-60mm
-
-
Aperture Type
-
9 diaphragm blades / Circular aperture diaphragm
-
-
Maximum Aperture
-
F3.5 (Lebar) - F5.6 (Tele)
-
-
Minimum Aperture
-
F22
-
-
Closest Focusing Distance
-
0.15m/0.49ft (at focal length 20-26mm) / 0.4m/1.31ft (at focal length 60mm)
-
-
Maximum Magnification
-
0.43x
-
-
Diagonal Angle of View
-
94°(Wide) - 40°(Tele)
-
-
Dust and Splash Resistant
-
Ya*
-
-
Recommended Operating Temperature
-
-10oC hingga 40oC (14oF hingga 104oF)
-
GENERAL
-
Filter Size
-
φ67mm
-
-
Max. Diameter
-
φ77,4mm / 3,05 inci
-
-
Overall Length
-
Approx. 87,2mm / 3,43 inci (dari ujung lensa ke sisi dasar dudukan lensa)
-
-
Berat
-
Approx. 350g / 350,12g (tidak termasuk lens cap, lens rear dan lens hold)
-
-
Standard Accessories
-
Tutup lensa, Tutup belakang lensa, Tudung lensa
-
NOTE
-
NOTE
-
"** Tentang motion picture recording / 6K PHOTO / 4K PHOTO recording
- 6K PHOTO adalah fungsi pemotretan beruntun kecepatan tinggi yang memotong gambar diam dari rekaman video 4: 3 atau 3: 2 dengan perkiraan 18-megapiksel (perkiraan 6000 x 3000 jumlah piksel efektif) yang dikelola oleh gambar 6K.
- Gunakan kartu dengan SD Speed Class dengan "" Class 4 "" atau lebih tinggi saat merekam gambar bergerak dalam [MP4 (di bawah 28Mbps)].
- Gunakan kartu dengan SD Speed Class dengan "" UHS-I / UHS-II UHS Speed Class 3 (U3) "" saat merekam gambar bergerak dengan [MP4] dalam [4K], [MOV], [S&Q], [6K PHOTO] atau [4K PHOTO].
(SD Speed Class adalah standar kecepatan terkait penulisan kontinu.)
- Perekaman berhenti ketika waktu perekaman kontinu melebihi 30 menit dalam [C4K / 60p] [C4K / 50p] [4K / 60p] [4K / 50p] [4K-A / 50p] [C4K / 4: 2: 2 10-bit ] [4K / 4: 2: 2 10-bit] [4K-A / 4: 2: 2 10-bit] [4K / 4: 2: 0 10-bit] [4K-A / 4: 2: 0 10 -bit] [S&Q].
- Perekaman berhenti bila waktu perekaman kontinu melebihi 15 menit di [6K PHOTO] [4K PHOTO].
- Gambar bergerak MP4 dengan [MP4] dalam [4K]:
- Saat menggunakan SDHC memory card: Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 4 GB atau 30 menit, tetapi file gambar bergerak akan dibagi dan direkam / diputar ulang secara terpisah.
- Saat menggunakan SDXC memory card: Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 96 GB atau 3 jam 4 menit, tetapi file gambar bergerak akan dibagi dan direkam / diputar ulang secara terpisah.
- Gambar bergerak MP4 dengan [MP4] dalam [FHD]:
- Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 4 GB atau panjang 30 menit, tetapi file gambar bergerak akan dibagi dan direkam / diputar ulang secara terpisah.
- Film MOV dengan [MOV]
- Saat menggunakan SDHC memory card: Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 4 GB atau 30 menit, tetapi file gambar bergerak akan dibagi dan direkam / diputar ulang secara terpisah.
- Saat menggunakan SDXC memory card: Anda dapat melanjutkan perekaman tanpa gangguan meskipun ukuran file melebihi 96 GB atau 3 jam 4 menit, tetapi file gambar bergerak akan dibagi dan direkam / diputar ulang secara terpisah.
- 4: 2: 2 10-bit recording adalah mode perekaman untuk produksi film dan video perlu diproses di PC.
Video asli tidak dapat diputar di TV standar, perekam Blu-ray Disc ™ dan pemutar Blu-ray Disc ™.
Ini dapat menyebabkan masalah seperti berhenti beroperasi saat diputar di perangkat ini.
- Saat suhu sekitar tinggi atau perekaman berkelanjutan dilakukan, kamera mungkin menghentikan perekaman untuk melindungi dirinya sendiri. Tunggu hingga kamera menjadi dingin.
*** Untuk output video [C4K / 60p] [C4K / 50p] [4K / 60p] [4K / 50p], gunakan kabel HDMI2.0 yang memiliki logo HDMI, dan yang dijelaskan sebagai "" kompatibel dengan 4K "".
**** Firmware harus diperbarui ke versi 2.0. "
-
HDMI RAW DATA OUTPUT**** * Gunakan ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.55 atau lebih tinggi).
-
Rec quality
-
NTSC (59.94Hz) Full-frame
-
[5.9K] 5888x3312 29.97p, 12-bit (LPCM)
[5.9K] 5888x3312 23.98p, 12-bit (LPCM)
-
-
NTSC (59.94Hz) APS-C
-
[4K] 4128x2176 (17:9) 59.94p, 12-bit (LPCM)
[4K] 4128x2176 (17:9) 29.97p, 12-bit (LPCM)
[4K] 4128x2176 (17:9) 23.98p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 29.97p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 23.98p, 12-bit (LPCM)
-
-
PAL (50.00Hz) Full-frame
-
[5.9K] 5888x3312 25.00p, 12-bit (LPCM)
-
-
PAL (50.00Hz) APS-C
-
[4K] 4128x2176 (17:9) 50.00p, 12-bit (LPCM)
[4K] 4128x2176 (17:9) 25.00p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 50.00p, 12-bit (LPCM)
[Anamorphic 3.5K] 3536x2656 (4:3) 25.00p, 12-bit (LPCM)
-
-
-
Audio format
-
LPCM (2ch 48kHz/16-bit)
-
HDMI RAW DATA OUTPUT
-
Compatible external devices
-
ATOMOS Ninja V 4K HDR Monitor-Recorder (AtomosOS 10.55 or higher)* *Firmware must be updated to version 2.0 or later.
Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (version 3.43 or higher)* *Firmware must be updated to version 2.3.
*This does not guarantee all of the capabilities that the compatible external recorder may have.
-
