Product Line-up

VIXELL box

Cooling box｜Type-S

Lightweight and compact type suitable for delivery

Name

Type-S

Model number

AE-V06GXR

Box external dimensions

480×350×355 mm

Box weight

５ kg

Thermal storage unit

Between 15ºC and 25ºC

Model number

AE-V06R5R

Storage box internal dimensions

243×154×129　mm

Cold insulator

Dedicated cold insulator included

Unit weight

7kg

Between 2ºC and 8ºC

Model number

AE-V06C5R

Storage box internal dimensions

300×163×164 mm

Cold insulator

Dedicated cold insulator included

Unit weight

8kg

minus 20ºC or below, minus 15ºC or below

Model number

AE-V06S4R / AE-V06F4R

Storage box internal dimensions

265×130×135 mm

Cold insulator

Dedicated cold insulator included

Unit weight

11kg

The caps of the cold insulator
for F4R and S4R are blue and yellow-green, respectively

Up to -75ºC±15ºC(Dry-ice temperature zone

Model number

AE-V06DXR

Storage box internal dimensions

299×157×211 mm

Dry ice

6kg～14kg (*2)

Unit weight

2kg

Dry ice pellets are also installed inside the storage box
Can store 231×115×40 mm size cases

Storage box
Basket
Cold insulator

Cooling box｜Type-L

Large capacity type convenient for transportation

Name

Type-L

Model number

AE-V12UXR

Box external dimensions

545×495×450 mm

Box weight

7kg

Thermal storage unit

Between 15ºC and 25ºC

Storage box internal dimensions

320×270×220 mm

Cold insulator

Dedicated cold insulator included

Unit weight

11kg

Between 2ºC and 8ºC

Model number

AE-V12C5R

Storage box internal dimensions

336×292×255 mm

Cold insulator

Dedicated cold insulator included

Unit weight

11kg

minus 20ºC or below, minus 15ºC or below

Model number

AE-V12S4R / AE-V12F4R

Storage box internal dimensions

316×269×213​ mm

Cold insulator

Dedicated cold insulator included

Unit weight

16kg

The caps of the cold insulator
for F4R and S4R are blue and yellow-green, respectively

Up to -75ºC±15ºC(Dry-ice temperature zone

Model number

AE-V12DXR​

Storage box internal dimensions

320×270×296 mm

Dry ice

11kg～34kg (*2)

Unit weight

4kg

Dry ice is also installed inside the storage box
Can store 231×231×40 mm size cases

Storage box
Basket
Cold insulator

Inspection unit

Name

Inspection board

Size

556×511×40 ｍｍ

Weight

2.2kg

Product composition

Temperature retention time at each operating temperature range

Tempature Range
[℃]		 Cooling box Thermal storage unit Weight
(cold insulator include) 		(Reference）
Duration ※1
Cold insulator Payload size[mm]
>Width x Depth x Height 		(Reference）
Payload volume
15℃～25℃ Type-S Dedicated cold insulator included 243×154×129 5ℓ 12kg 5Days
Type-L 320×270×220 19ℓ 18kg 5Days
2℃～8℃ Type-S 300×163×164 8ℓ 13kg 5Days
Type-L 336×292×255 25ℓ 18kg 5Days
～-15℃ Type-S 265×130×135 5ℓ 16kg 4Days
Type-L 316×269×209 18ℓ 23kg 4Days
～-20℃ Type-S 265×130×135 5ℓ 16kg 4Days
Type-L 316×269×209 18ℓ 23kg 4Days
Dry ice temperature zone
（-79℃）		 Type-S dry ice(6kg) ※2 299×157×211 10ℓ 13kg 3Days
Type-L dry ice(11kg) ※2 320×270×296 26ℓ 23kg 5Days
Type-S dry ice(14kg) ※2 299×157×211 1ℓ
231×115×40		 21kg 9Days※3
Type-L dry ice(34kg) ※2 320×270×296 2ℓ
231×231×40		 45kg 18Days※3

*1 The number of days for temperature maintenance is the result of our company measurement in which the temperature inside the storage box is measured under the environment of outside temperature of 5 °C in the temperature range from 15 ° C to 25 ° C and under the environment of outside temperature of 30 ° C in the other temperature range. The number of days for temperature maintenance varies depending on the usage environment.

*2 The 75 ° C ± 15 ° C thermal storage unit does not come with dry ice. ​

*3 The vacuum insulated cooling box Type-L (AE-V 12 UXR) houses a dry ice thermal storage unit (AE-V 12 DXR) and total 34 kg of dry ice is filled in the gap between cooling box and storage box as well as inside storage box. Including only a simulated product of size 231 x 231 x 40 mm, measure the number of days the temperature is maintained at 30 ° C and -75 ° C ± 15 ° C. The vacuum insulated cold storage box Type-S (AE-V06GXR) houses a dry ice temperature zone heat storage unit (AE-V06DXR) and fills the gap between the cooling box and storage box as well as inside storage box with total 14 kg of dry ice. Including only a simulated product of size 231 x 115 x 40 mm, measure the number of days the temperature is maintained at 30 ° C and -75 ° C ± 15 ° C.

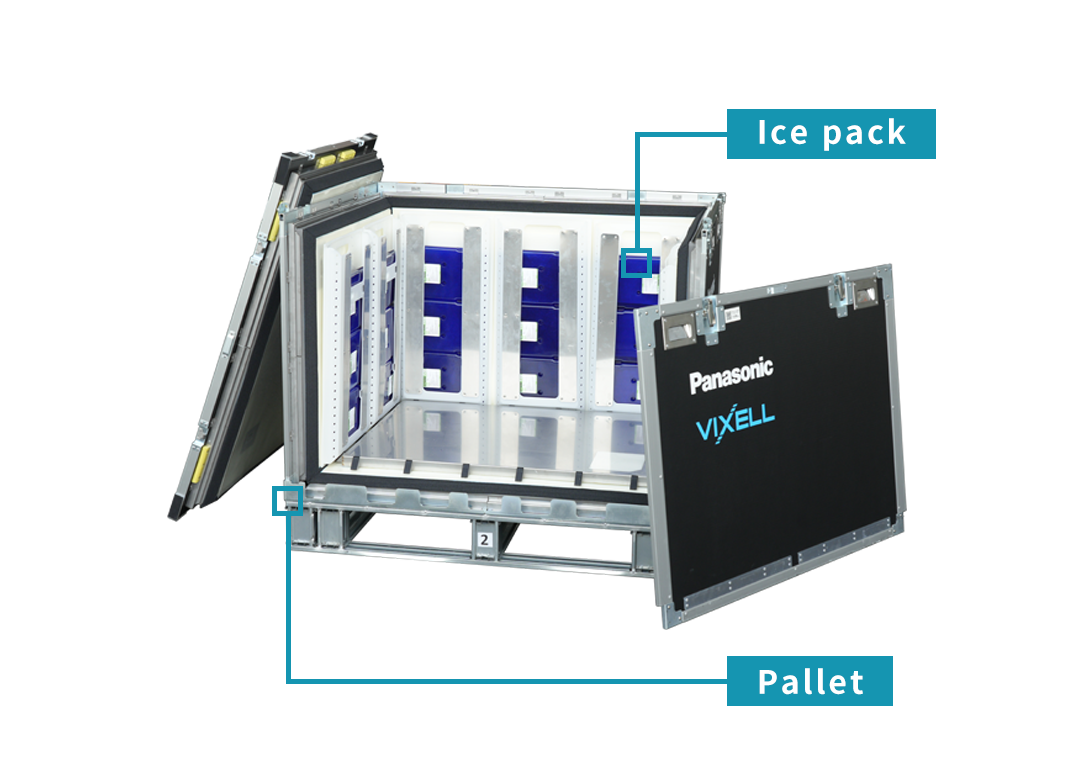

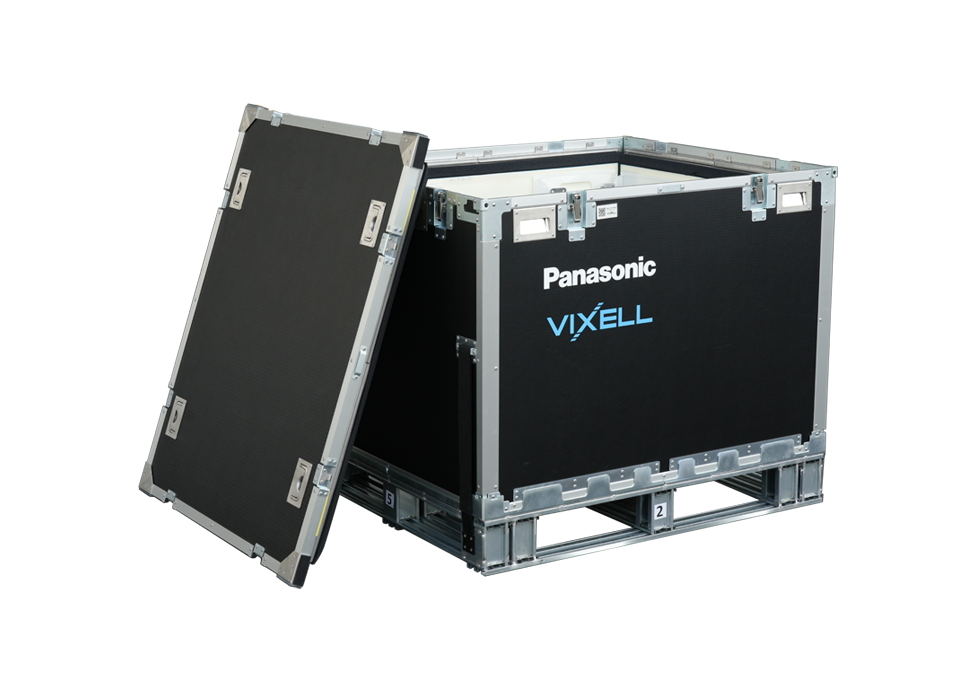

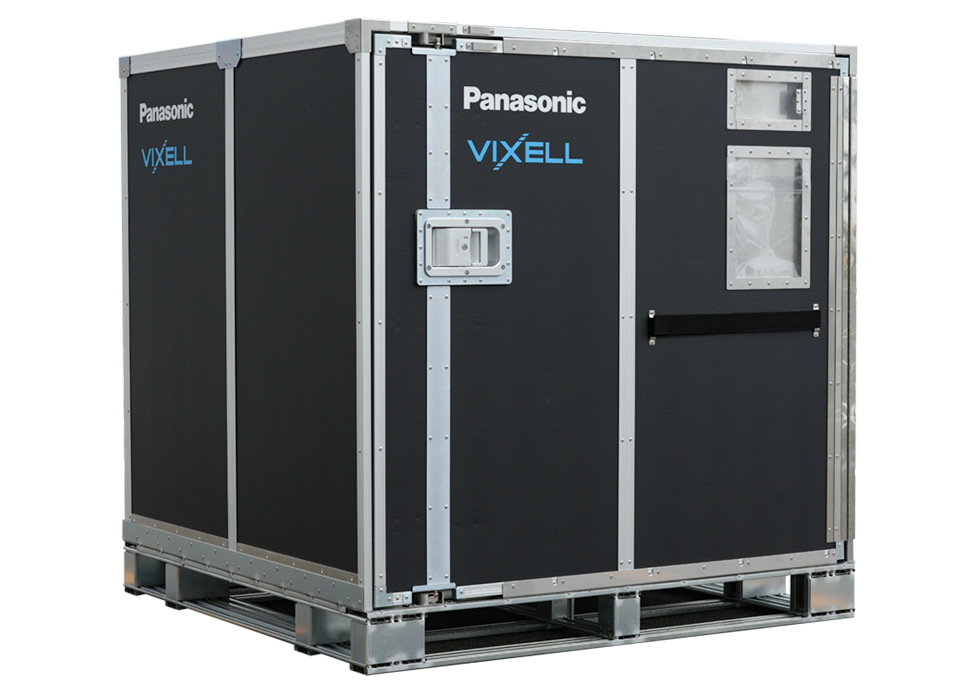

VIXELL Pallet

Suitable for large-volume transportation

Model number

AE-VU0GPR

Box external dimensions

1,210×1,005×1,019mm

Box weight

122kg

Thermal storage unit

Between 2ºC and 8ºC

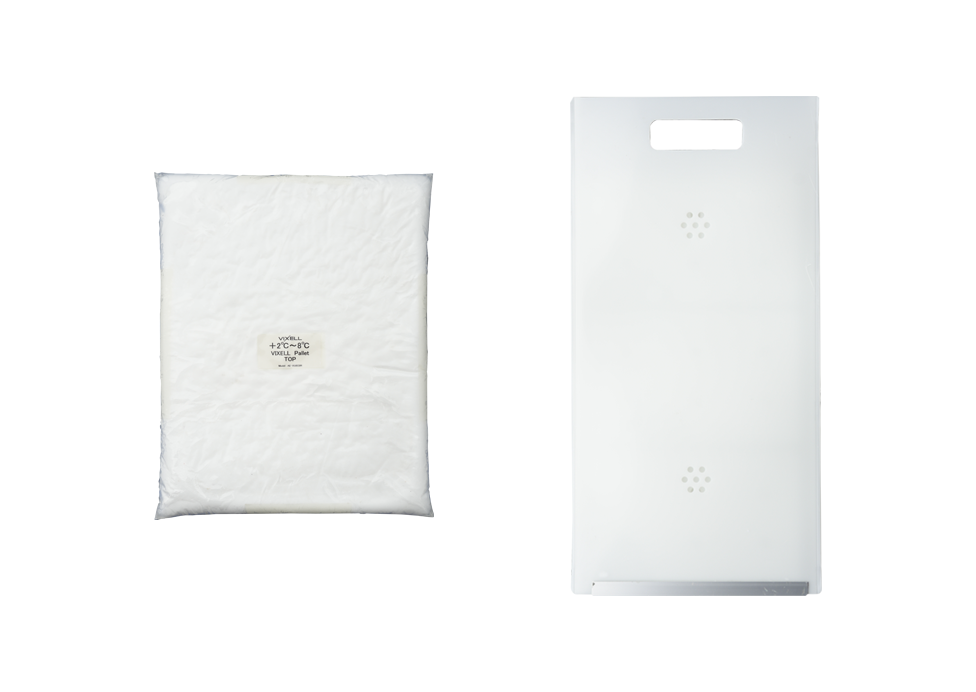

Model number

AE-VU0C0R

Unit Storage box internal dimensions

930×735×608mm

Cold insulator

Dedicated cold insulator included

Unit weight

76kg

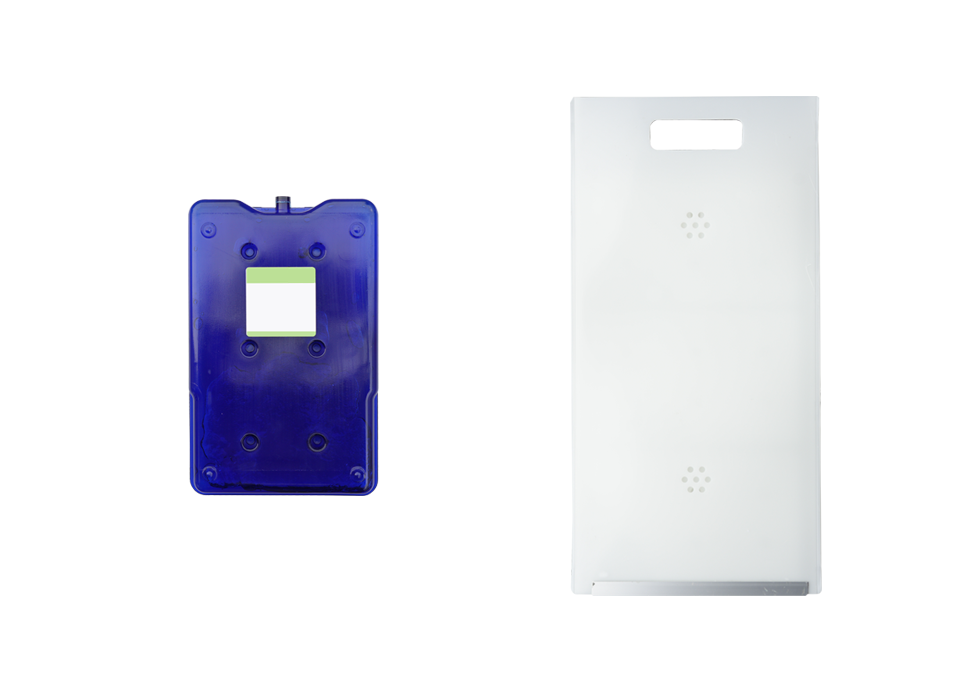

Model number

AE-VU0B3R

Unit Storage box internal dimensions

930×735×608mm

Cold insulator

Dedicated cold insulator included

Unit weight

61kg

Temperature retention time at each operating temperature range

Tempature Range Thermal storage unit Weight
（cold insulator Housing）		 （Reference）
Number of days to maintain temperature※1
Model number Cold insulator Storage box inner dimensions[mm]
>Width × Depth × height		 （Reference）
Housing
2℃～8℃ AE-VU0C0R Dedicated cold insulator included 930×735×608 416ℓ 76kg 10days
AE-VU0B3R 930×735×608 416ℓ 61kg 3days

*1 The number of days of temperature retention is based on our measurement of the temperature inside the storage box under an ambient temperature of 30°C. The number of days for temperature maintenance varies depending on the usage environment.
