LUMIX GH6 -kamera DC-GH6

Lisää toiveluetteloonPoista toiveluettelosta

DC-GH6

Uusi luovuuden ulottuvuus

Peilitön hybridikamera, jossa on uusi 25,2 megapikselin Live MOS -kenno, 4:2:2 10-bittinen C4K/4K 60p/50p -videotallennus ja rajaton tallennusaika.*

*Taatussa käyttöympäristössä. Akkukäytössä. Tallennusaika määräytyy akun ja tallennuslaitteen kapasiteetin perusteella.

Lisää toiveluetteloonPoista toiveluettelosta

DC-GH6

Ominaisuudet

Laiteohjelmistoversio 2.0 / 2.2 / 2.3

RAW-videotietojen lähtö

Laiteohjelmistopäivitys mahdollistaa myös RAW-videotietojen lähettämisen HDMI:llä niiden tallentamiseksi ProRes RAW -muodossa ATOMOS NINJA V+- ja NINJA V HDR -näyttötallentimiin.* Blackmagic RAW voidaan myös kuvata Video Assist 12G HDR:llä.**

*Laiteohjelmistoversio 2.0 tai uudempi. ･Katso ATOMOS-verkkosivuilta tietoa ATOMOS Ninja V+- tai ATOMOS Ninja V -laitteiden vastaavasta laiteohjelmistoversiosta. ･ProRes RAW -yhteensopiva ohjelmisto tarvitaan ATOMOS Ninja V+- tai ATOMOS Ninja V -laitteilla kuvattujen RAW-videoiden editointiin. Käytä seuraavilla asiakastukisivustoilla saatavana olevaa LUT-taulukkoa (Look up table) saman väriluokittelun tekemiseksi kuin V-Log/V-Gamut
https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Kaikkia toimintoja ei välttämättä ole käytettävissä tilanteen mukaan. **Laiteohjelmistoversio 2.3 tai uudempi. ･DaVinci Resolve tai DaVinci Resolve Studio tarvitaan Blackmagic RAW -tietojen toistamiseen ja DaVinci Resolve Studio editoimiseen. ･Katso Blackmagic Design -verkkosivuilta tietoa Blackmagic Video Assist 5” 12G HDR- ja Blackmagic Video Assist 7” 12G HDR -laitteiden vastaavasta laiteohjelmistoversiosta. ･Kaikkia toimintoja ei välttämättä ole käytettävissä tilanteen mukaan. ･Kun kuvataan laadultaan 4K 120p/100p:n tai 5.7K 60p/50p:n videota, SSD-tallennukseen suositellaan enintään jatkuvaa bittinopeutta 5:1 ja SD-korttitallennukseen enintään jatkuvaa bittinopeutta 8:1.

Ensimmäisenä LUMIX-kameroissa: videokuvaus Apple ProRes -koodekilla

Käyttämällä CFexpress Type B -korttia (MOV, 5,7K, 5728x3024, 29,97p/25,00p/24,00p) voit kuvata kameralla sisäisesti ProRes 422 HQ- ja ProRes 422 -koodekkien videoita. Nämä ovat alan ammattistandardeja, jotka tuottavat hyvän kuvanlaadun pienellä pakkauksella. Tämä vähentää merkittävästi tietokoneen työkuormitusta jälkikäsittelyssä ja mahdollistaa epälineaarisen editoinnin (NLE) tietoja muuntamatta, mikä sujuvoittaa työnkulkuasi alusta loppuun.
Laiteohjelmiston versio 2.0 tukee seuraavia tiloja: 59,94p/50,00p C4K- (4096x2160) ja FHD-tarkkuudella (1920x1080).

･Apple ja ProRes on Apple Inc. -yhtiön tavaramerkki tai rekisteröity tavaramerkki Yhdysvalloissa ja muissa maissa.

Ensimmäisenä LUMIX-kameroissa: videokuvaus Apple ProRes -koodekilla

Suora tallennus USB-SSD-asemaan

Laiteohjelmistoversio 2.2 tukee tallennusta ja toistoa ulkoisesta SSD-asemasta USB-yhteyden kautta. Lisäksi kyky tallentaa Apple ProRes422 HQ -muodossa (enintään 1,9 Gb/s) ja 4:2:2 10-bittinen All-Intra -muodossa suoraan SSD-asemiin, jotka yhdistävät helpon siirrettävyyden ja suuren kapasiteetin, on parantanut tietojen varmuuskopioinnin ja jälkikäsittelyn tehokkuutta.

･Laiteohjelmistopäivitys versioon 2.3, verkkolaite DMW-AC10 (valinnainen) ja DC-liitin DMW-DCC17 (valinnainen) tarvitaan, jos halutaan kuvata vähintään 61 fps:n HFR/VFR-video USB-SSD:lle. ･Videota ja valokuvaa ei voida tallentaa SD-kortille tai CFexpress-kortille samaan aikaan kun sitä tallennetaan ulkoiselle SSD:lle. ･Käytä enintään 2 teratavun ulkoista SSD:tä, joka on yhteensopiva USB Type-C:n kanssa. Suositellemme käyttämään ulkoista SSD:tä, jonka toimivuuden Panasonic on vahvistanut. Huomaa etukäteen, että tämä ei takaa kaikkien laitteiden toimintaa. ･Uusimmat tiedot ulkoisista SSD-laitteista ovat saatavana seuraavasta tukisivustosta samanaikaisesti laiteohjelmistojulkaisun kanssa:
https://panasonic.jp/support/global/cs/dsc/connect/index.html

10-bittinen 5,7K 50p/60p -tallennus

LUMIX GH6:n tarjoamat kuvaustilat 5,7K (5728x3024) 4:2:0 10-bittinen 60p/50p (17:9) ja 5,8K (5760x4320) 30p/25p/24p 4:2:0 10-bittinen anamorfinen (4:3) toimivat suuremmalla tarkkuudella ja bittinopeudella kuin koskaan aiemmin. Kamera tarjoaa uusinta huippuluokan kuvanlaatua, monipuolisuutta ja ilmaisumahdollisuuksia, joita tarvitaan elokuva-, televisio- ja kaikenlaisessa videotuotannossa.

Rajaton 4:2:2 10-bittisen C4K/4K 60p/50p -videon tallennusaika

GH6 on ensimmäinen LUMIX-kamera, joka tarjoaa 4:2:2 10-bittistä C4K/4K 60p/50p sisäistä tallennusta. Se mahdollistaa rajattoman tallennusajan,* kun sitä käytetään suositellussa käyttölämpötilassa.** Se sopii ihanteellisesti pienille tuotantotiimeille ja vaativiin oloihin, joissa liikkuvuus ja korkea laatu ovat välttämättömiä. Se sallii myös samanaikaisen sisäisen ja ulkoisen tallennuksen HDMI-lähdöstä.

*Taatussa käyttöympäristössä. Akkukäytössä. Tallennusaika määräytyy akun ja tallennuslaitteen kapasiteetin perusteella.
**-10–40 ℃.
･Vastaa tarkkuutta 4K (4096×2160), jonka on määrittänyt Digital Cinema Initiatives (DCI).
･Tähän tarvitaan CFexpress-kortti tai SD-muistikortti, jonka videonopeusluokka on 90.

Rajaton 4:2:2 10-bittisen C4K/4K 60p/50p -videon tallennusaika

7,5-portainen Dual I.S. 2 -kuvanvakain

5-akselinen Dual I.S. 2 -kuvanvakain yhdistää rungon kuvanvakaimen ja objektiivin O.I.S.-kuvanvakauksen ja kykenee siten tarjoamaan 7,5 porrasta korjausta.*

* Perustuu CIPA-standardiin (kierron/kallistuksen suunta: tarkennusetäisyys f=140 mm (35 mm:n kinovastaavuus f=280 mm), kun käytössä on H-FS14140.

HFR/VFR 10-bittinen tallennus

Hidastetun videon suurtarkkuustallennus on saanut viime aikoina suosiota videotuotannossa. Sitä voi nyt tehdä C4K/4K 10-bittisellä 120p/100p HFR (High Frame Rate, suuri kuvanopeus) -video- ja äänitallennuksella. LUMIX GH6 -kamerassa on myös laaja valikoima 10-bittisiä ALL-Intra-tallennustiloja huippuluokan editointiin, joten voit kuvata FHD 240p/200p HFR- ja FHD 240 kuvaa sekunnissa VFR (Variable Frame Rate, vaihteleva kuvanopeus) -videota. VFR-toiminnolla voit tallentaa jopa 12,5 kertaa hidastettua superhidastusvideota (FHD 10-bittinen 24p/300 kuvaa sekunnissa).

･Kennon suurin lähtötaajuus on 60 kuvaa sekunnissa, kun dynaamisen alueen tehostus on päällä.

Uusi Venus Engine -kuvaprosessori

Uusi Venus Engine tarjoaa noin kaksinkertaisen määrän käsittelytehoa aiempaan verrattuna. Se mahdollistaa uuden kennon suuren pikselimäärän nopean käsittelyn sekä suuren tarkkuuden ja suuren bittinopeuden videotallennuksen. Myös kuvan laatua on parannettu valtavasti. Uusi Intelligent Detail Processing tarjoaa entistä suuremman tarkkuuden, ja uusi 2D- ja suuren suorituskyvyn 3D Noise Reduction (videotallennukselle) optimoivat kohinanvaimennuksen. Tuloksena saadaan luonnollisia kolmiulotteiselta vaikuttavia kuvia, joissa on vähän kohinaa suurellakin herkkyydellä. Erittäin tarkka 3D-kaksoisvärienhallinta parantaa väritoistoa (kirkkautta, kylläisyyttä ja värisävyä), minkä ansiosta täyteläinen väritoisto vastaa entistä paremmin alkuperäistä.

Uusi 25,2 MP:n kenno

LUMIX GH6 -kamerassa on ensimmäisenä Micro Four Thirds™ -järjestelmän 25,2 megapikselin Live MOS -vakiokenno. Kennossa ei ole alipäästösuodatinta ei ole, joten se tuottaa ultrarealistisia yksityiskohtia suurella pikselinmäärällä ja tarkkuudella. Suuri lukunopeus mahdollistaa C4K/4K 120p -videotallennuksen ja sarjakuvauksen 75 kuvaa sekunnissa sähköisellä sulkimella, joka samalla minimoi rolling shutter -vääristymän.

･The Micro Four Thirds™ -nimi ja -logot ovat Olympus Corporationin tavaramerkkejä tai rekisteröityjä tavaramerkkejä Yhdysvalloissa, Euroopan unionissa ja muissa maissa ja muilla alueilla.

Inspiroidu

Tiedot

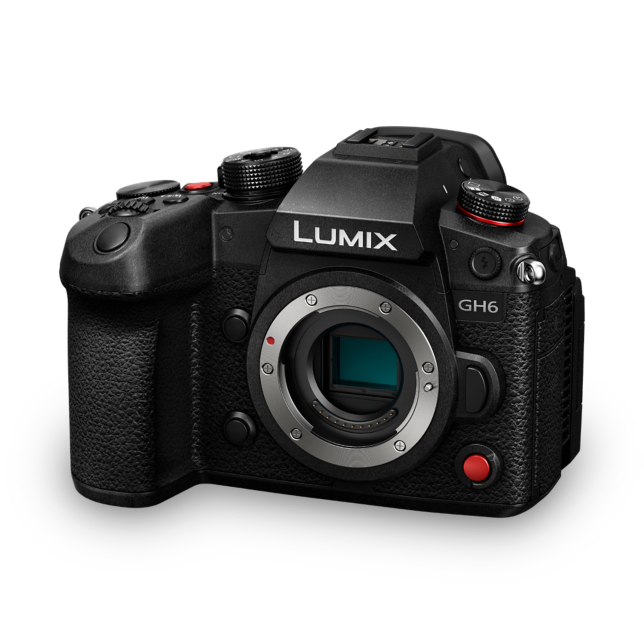

Valokuva LUMIX GH6 -kamera DC-GH6 kamerasta

Koko ja paino

Korkeus: 100.3mm

Leveys: 138.4mm

Syvyys: 99.6mm

Paino: 823g

Kaikki arvot ovat likimääräisiä. Paino SD-kortin ja akun kanssa. Linssit eivät sisälly pakkaukseen. Vain runko 739 g. Mitat eivät sisällä ulkonevia osia.

Micro Four Thirds -järjestelmästandardi
25,2 megapikseliä
C4K/4K 4:2:2 10-bittinen 60p/50p-video
HFR/VFR 10-bittinen video
V-Log
5-akselinen Dual I.S. 2 (kuvanvakain)
1,840 miljoonan pisteen kallistuva ja vapaasti käännettävä näyttö
3 680 000 pisteen OLED Live View -etsin
Roiske-, pöly- ja huurresuojattu
Wi-Fi
Bluetooth

Uusi 25,2 megapikselin Digital Live MOS -kenno

Uusi Venus Engine -kuvaprosessori

4:2:2 10-bittinen C4K/4K 60p/50p -videotallennus ja rajaton tallennusaika

HFR/VFR 10-bittinen videotallennus ja 5,7K 10-bittinen 60p/50p -videotallennus

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- Micro Four Thirds mount

IMAGE SENSOR

Type
- Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels
- 25.21 megapixels / 26.52 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 4:3 / Primary color filter
Dust reduction system
- Image sensor shift type

LATITUDE

Dynamic Range Boost ON: 13+ stops (V-Log)
Dynamic Range Boost OFF: 12+ stops (V-Log)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 2.31), RAW
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1
File size (Pixels)
- 4:3
  - 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 11552x8672(XL)* / 8192x6144(LL)* *High Resolution Mode.
- 3:2
  - 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 11552x7696(XL)* / 8192x5464(LL)* *High Resolution Mode.
- 16:9
  - 5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 11552x6496(XL)* / 8192x4608(LL)* *High Resolution Mode.
- 1:1
  - 4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 8672x8672(XL)* / 6144x6144(LL)* *High Resolution Mode.
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format
- MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  MP4: AAC (2ch 48kHz/16-bit)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- Full / Pixel by Pixel
MOV (*¹) (*²) *HLG is selectable.
- 59.94Hz [5.8K] 5760x4320 (4:3)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 59.94Hz [5.7K] 5728x3024 (17:9)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 59.94Hz [4.4K] 4352x3264 (4:3)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
- 59.94Hz [C4K] 4096x2160
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
- 59.94Hz [4K] 3840x2160
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
- 59.94Hz [FHD] 1920x1080
  - 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
    239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    **Image Area of Video is set to FULL during this recording mode.
- 50.00Hz [5.8K] 5760x4320 (4:3)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 50.00Hz [5.7K] 5728x3024 (17:9)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 50.00Hz [4.4K] 4352x3264 (4:3)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
- 50.00Hz [C4K] 4096x2160
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
- 50.00Hz [4K] 3840x2160
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 600Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
- 50.00Hz [FHD] 1920x1080
  - 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) / 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/**
    200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00i, 100Mbps (4:2:2 10-bit ALL-Intra) / 50Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
    **Image Area of Video is set to FULL during this recording mode.
- 24.00Hz [5.8K] 5760x4320 (4:3)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 24.00Hz [5.7K] 5728x3024 (17:9)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 24.00Hz [4.4K] 4352x3264 (4:3)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
- 24.00Hz [C4K] 4096x2160
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
- 24.00Hz [4K] 3840x2160
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
- 24.00Hz [FHD] 1920x1080
  - 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) / 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) / 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Dynamic Range Boost is set to OFF.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record on a USB-SSD. (*7)
MP4 (*¹)
- 59.94Hz [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    *HLG is selectable.
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    *HLG is selectable.
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 24.00Hz -
  - -
Apple ProRes (*¹) (*²)
- 59.94Hz [5.7K] 5728x3024 (17:9)
  - 29.97p, 1.9Gbps (Apple ProRes 422 HQ) / 1.3Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [C4K] 4096x2160 (*⁵)
  - 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [FHD] 1920x1080 (*⁵)
  - 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [5.7K] 5728x3024 (17:9)
  - 25.00p, 1.6Gbps (Apple ProRes 422 HQ) / 1.1Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [C4K] 4096x2160 (*⁵)
  - 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [FHD] 1920x1080 (*⁵)
  - 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [5.7K] 5728x3024 (17:9)
  - 24.00p, 1.5Gbps (Apple ProRes 422 HQ) / 1.0Gbps (Apple ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [C4K] 4096x2160 (*⁵)
  - 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [FHD] 1920x1080 (*⁵)
  - 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (H.264/MPEG-4 AVC, LPCM)

VARIABLE FRAME RATE

MOV (*¹) *HLG is selectable.
- 59.94Hz [5.7K] 5728x3024 (17:9)
  - 29.97p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 59.94Hz [C4K] 4096x2160
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
- 59.94Hz [4K] 3840x2160
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
- 59.94Hz [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
- 50.00Hz [5.7K] 5728x3024 (17:9)
  - 25.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 50.00Hz [C4K] 4096x2160
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
- 50.00Hz [4K] 3840x2160
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61 fps or higher on a USB-SSD. (*7)
- 50.00Hz [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
- 24.00Hz [5.7K] 5728x3024 (17:9)
  - 24.00p (Maximum output of sensor is 60fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 24.00Hz [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
- 24.00Hz [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)
- 24.00Hz [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    *Maximum output of sensor is 60fps when Dynamic Range Boost is set to ON.
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD. (*7)

EXTERNAL USB-SSD RECORDING (*⁶)

Yes (ON / OFF)

HDMI RAW DATA OUTPUT (*⁵)

Compatible external devices
- ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V"
  *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+ or ATOMOS Ninja V.
  *Recording of some recording qualities is not available with the "Ninja V".
  *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
  *All functions may not be available depending on the situation.

  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (*7)
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data.
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5” 12G HDR and Blackmagic Video Assist 7” 12G HDR.
  *All functions may not be available depending on the situation.
  *When recording in 4K 120p/100p or 5.7K 60p/50p, constant bitrate 5:1 or less is recommended for SSD recording and 8:1 or less for SD card recording.
Rec quality
- NTSC (59.94Hz) [5.8K] 5760x4320 (4:3)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- NTSC (59.94Hz) [5.7K] 5728x3024 (17:9)
  - 59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- NTSC (59.94Hz) [4.4K] 4352x3264 (4:3)
  - 59.94p, 12-bit (LPCM)
- NTSC (59.94Hz) [C4K] 4096x2160 (17:9)
  - 119.88p, 12-bit (LPCM)
    59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- PAL (50.00Hz) [5.8K] 5760x4320 (4:3)
  - 25.00p, 12-bit (LPCM)
- PAL (50.00Hz) [5.7K] 5728x3024 (17:9)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
- PAL (50.00Hz) [4.4K] 4352x3264 (4:3)
  - 50.00p, 12-bit (LPCM)
- PAL (50.00Hz) [C4K] 4096x2160 (17:9)
  - 100.00p, 12-bit (LPCM)
    50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
Audio format
- LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 3.68 million dots
Field of view / Magnification
- Approx. 100% / Approx. 1.52x / 0.76x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m-1 / -4.0 - +3.0 (dpt)
Eye sensor
- Yes

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Tilt free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

FOCUS (*³)

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Automatic Detection can be turned ON to switch between Human/ Face/Eye/ Animal+Human. Except when Pinpoint is set.
AF detective range
- EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Focus ring control
- Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
Others
- AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial
- Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Custom 1, 2, 3, 4 / Intelligent Auto
  *The same exposure operations as P/A/S/M mode is available.
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
Dynamic Range Boost
- ON / OFF
ISO sensitivity (Standard output sensitivity)
- Still image
  - [Normal]
    Auto / 50 (Extended ISO) / 100-25600

    [V-Log]
    Auto / 125 (Extended ISO) / 250-12800

    *Switchable between 1/3 or 1 EV step.
- Motion picture
  - [Normal]
    Dynamic Range Boost OFF (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
    Dynamic Range Boost ON (Creative Video Mode) (Base ISO 800): Auto / 800-12800

    [V-Log]
    Dynamic Range Boost OFF (Base ISO 250): Auto / 125 (Extended ISO) / 250-12800
    Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

    [Hybrid Log Gamma]
    Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
    Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800

    [HDMI RAW Data Output] (*5)
    Dynamic Range Boost OFF (Base ISO 250): Auto / 250-12800
    Dynamic Range Boost ON (Creative Video Mode) (Base ISO 2000): Auto / 2000-12800 (*6)

    *Switchable between 1/3 or 1 EV step.
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

B.I.S. (5-axis / 7.5-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.

Dual I.S. 2 (7.5-stop**)
**Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FS14140 is used.

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
  Motion picture: 1/25,000 - 1/25
  Creative Video M mode / MF mode: 1/25,000 - 1/8
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - H: 14 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
    M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/MF/AFC) (with Live View)
- Electronic shutter
  - SH75: 75 frames/sec (AFS/MF)
    SH60: 60 frames/sec (AFS/MF)
    SH20: 20 frames/sec (AFS/MF)
    H: 14 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
    M: 6 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/MF/AFC) (with Live View)
Number of recordable images
- H/M/L*
  RAW+JPEG: More than 40 images
  RAW: More than 65 images**, More than 50 images***
  JPEG: More than 95 images**, More than 90 images***
  *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
  **When using a card with CFexpress Type B
  ***When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

  SH
  RAW / RAW+JPEG / JPEG: 200 images

TIME LAPSE SHOT

STOP MOTION ANIMATION

FLASH

Flash type
- TTL External Flash (sold separately)
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/250 second
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch
Flash sync socket
- Yes

EXTRA TELE CONVERSION

2.0x (EX S), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Hybrid Log Gamma / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass

MOTION PICTURE FUNCTION

Master pedestal level
- 31 steps
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope
- Selectable
LUT view assist
- Supported file types: .vlt, .cube
  Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Synchro scan
- Yes
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Color bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
Knee control
- Yes (in Like709 mode)
Red REC frame indicator
- ON / OFF

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Dynamic Range Boost / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / Filter Effect / One Push AE / Touch AE / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output (*5) / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control/ Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

Please refer to "OSD" Sheet

PRINT

PictBridge compatible

INTERFACE

USB
- USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*⁴)
- HDMI
  - HDMI TypeA
    Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
    4K/120p / 4K/100p (*7)
    Down Convert: Auto / C4K/4K / 1080p / 1080i / OFF
- Playback
  - 59.94Hz: 8K/30p* / C4K/120p / C4K/60p / C4K/30p / 4K/120p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p** / 480p**
    50.00Hz: 8K/25p* / C4K/100p / C4K/50p / C4K/25p / 4K/100p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p** / 576p**
    24.00Hz: 8K/24p* / C4K/120p / C4K/24p / 4K/120p / 4K/24p / 1080/120p / 1080p
    *Only for still image playback. **Only for playback.
Remote input
- φ2.5mm
Audio
- Build-in microphone
  - Stereo
    Wind Noise Canceller: OFF / Standard / High
- External microphone / External audio device input
  - φ3.5mm for external microphone / external audio device
    MIC (Plug-in Power) / MIC / LINE
    Wind Cut: OFF / Low / Standard / High *When attaching DMW-MS2 (sold separately).
    Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
- XLR microphone
  - Yes with DMW-XLR1 (sold separately)
- 4ch mic input
  - Yes with DMW-XLR1 (sold separately)
- Speaker
  - Monaural
- Headphone output
  - φ3.5mm
Card slot
- Slot 1: CFexpress Card (CFexpress Type B)
  Slot 2: SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

TC IN/OUT
- Yes with BNC Converter Cable (bundled)
Count up
- Rec Run / Free Run
Time code mode
- Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output
- ON / OFF
External TC setting
- TC Synchronization / TC Output Reference

FAN

Auto1 / Auto2 / Fast / Normal / Slow / OFF* *OFF can be set when in iA/P/A/S/M mode.

LAMP

Tally Lamp (front/rear) / Card Access Light / Power Indicator / Charging Light/Network Connection Light

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac)
  Security: WPA/WPA2/WPA3
  Please refer to "Wi-Fi" sheet
Bluetooth
- Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- When using CFexpress Card
  - Approx. 330 images, 750 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
    Approx. 350 images, 800 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
    *Using a Lexar CFexpress Type B card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
- When using SD memory card
  - Approx. 360 images, 850 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
    Approx. 380 images, 900 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
    *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
- When using external USB-SSD (*⁶)
  - Approx. 320 images with H-ES12060 / DMW-BLK22
    Approx. 330 images with H-FS12060 / DMW-BLK22
    *Using a Samsung external SSD (T5_1TB). Under the test conditions specified by Panasonic based on CIPA standard.
Continuous recordable time (Motion picture) (*¹)
- When using CFexpress Card
  - MP4 [4K/60p]: Approx. 80 min with H-ES12060 / H-FS12060
    MP4 [FHD/60p]: Approx. 90 min with H-ES12060 / H-FS12060
- When using SD memory card
  - MP4 [4K/60p]: Approx. 90 min with H-ES12060 / H-FS12060
    MP4 [FHD/60p]: Approx. 100 min with H-ES12060 / H-FS12060
- When using external USB-SSD (*⁶)
  - MP4 [4K/60p]: Approx. 70 min with H-ES12060 / H-FS12060
    MP4 [FHD/60p]: Approx. 80 min with H-ES12060 / H-FS12060
Actual recordable time (Motion picture) (*¹)
- When using CFexpress Card
  - MP4 [4K/60p]: Approx. 40 min with H-ES12060 / H-FS12060
    MP4 [FHD/60p]: Approx. 45 min with H-ES12060 / H-FS12060
- When using SD memory card
  - MP4 [4K/60p]: Approx. 45 min with H-ES12060 / H-FS12060
    MP4 [FHD/60p]: Approx. 50 min with H-ES12060 / H-FS12060
- When using external USB-SSD (*⁶)
  - MP4 [4K/60p]: Approx. 35 min with H-ES12060 / H-FS12060
    MP4 [FHD/60p]: Approx. 40 min with H-ES12060 / H-FS12060

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 138.4 x 100.3 x 99.6 mm / 5.45 x 3.95 x 3.92 inch (excluding protrusions)
Weight
- Approx. 823g / 1.81 lb (SD Memory Card x 1, Battery, Body)
  Approx. 739g / 1.63 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature (*⁵)
- -10°C to 40°C (14°F to 104°F)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- Recording
  - LUMIX Tether
    ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
    http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

    LUMIX Sync
    ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
    https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)
- Playback / Editing
  - ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
    http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-GH6 Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, BNC Converter Cable

  DC-GH6L Kit / DC-GH6M Kit
  Body Cap, Hot Shoe Cover, Eye Cup, Flash Synchro Socket Cap, Shoulder Strap, Battery Pack, Battery Charger, AC Adaptor, USB Connection Cable (A-C), Cable Holder, , BNC Converter Cable, Lens Cap, Lens Hood, Lens Rear Cap

  ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

(*1) About motion picture recording

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbp or less: CFexpress card, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbp or less: CFexpress card, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbp or less: CFexpress card, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbp or less: CFexpress card, SD memory card with Video Speed Class 90
Motion pictures with 800Mbp or more, variable frame rate with ALL-Intra, or Apple ProRes: CFexpress card

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbp or more: the maximum file size is 4 GB

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.7K]: 640GB

- 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC. The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player. It may cause problems such as freezing when played on these devices.

- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).
(*3) About AF
- Continuous AF is not available for High Frame Rate video shooting above 120p (200p or 240p). It will be the AFS operation for 1-Area AF. 200p High Frame Rate video shooting requires a firmware update for the compatible lens.
- Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

(*4) To output motion pictures with 4K or higher,use an Ultra High Speed HDMI cable (Type A–Type A plug, up to 1.5 m (4.9 feet) long).

(*5) Firmware must be updated to version 2.0.

(*6) Firmware must be updated to version 2.2.

(*7) Firmware must be updated to version 2.3.

Avaa uusi sivu tulostusta varten

Vastaavat tuotteet

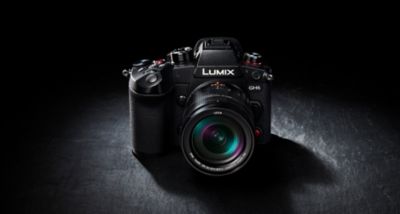

DC-GH6M

Peilittömässä LUMIX G -kamerassa on uusi 25 megapikselin Live MOS -kenno ja 4:2:2 10-bittinen C4K/4K 60p/50p -videotallennus. 12–60 mm:n (24–120 mm) objektiivisarja

DC-GH6L

Peilittömässä LUMIX G -kamerassa on uusi 25 megapikselin Live MOS -kenno ja 4:2:2 10-bittinen C4K/4K 60p/50p -videotallennus. 12–60 mm:n (24–120 mm) LEICA DG -objektiivisarja

DC-GH5M2

Peilitön LUMIX G -kamera, jossa on 20,3 MP MOS-kuvakenno, C4K 60 p/50 p 10-bittinen videokuvaus- ja langaton suoratoisto-ominaisuus.

DC-GH5M2L

Peilitön LUMIX G -kamera, jossa on 20,3 MP MOS-kuvakenno, C4K 60 p/50 p 10-bittinen videokuvaus- ja langaton suoratoisto-ominaisuus. 12–60 mm (24–120 mm) LEICA DG -objektiivisarja

DC-GH5M2M

Peilitön LUMIX G -kamera, jossa on 20,3 MP MOS-kuvakenno, C4K 60 p/50 p 10-bittinen videokuvaus- ja langaton suoratoisto-ominaisuus. 12–60 mm (24–120 mm) objektiivisarja

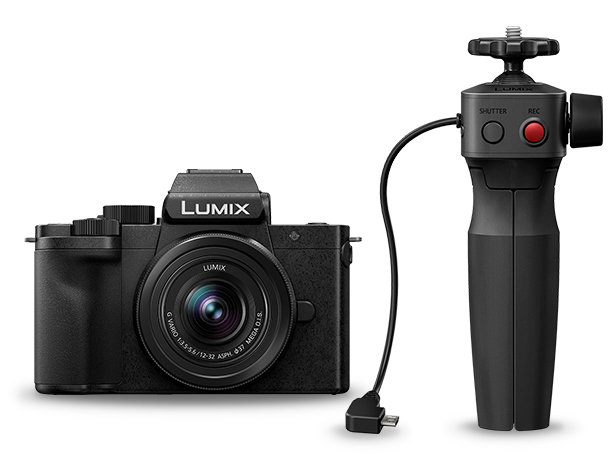

DC-G100V

Korkea kuvan ja äänen laatu helppokäyttöisessä ja kätevässä rungossa. Kokeile erityisesti vloggereille suunniteltua kameraa. 12–32 mm:n (24–64 mm:n) objektiivi ja kolmijalkakahvasarja
