DC-BGH1

Vapauta luovuutesi

Laatikkomallinen peilitön elokuva- ja live-kamera, jossa on 10-bittinen C4K 60p/50p -videotallennus.

Laiteohjelmiston Päivitys V2.0

Lisää toiveluetteloonPoista toiveluettelosta

DC-BGH1

Osta

Ominaisuudet

Laatikkomallinen elokuva- ja live-kamera

Dual Native ISO, 10-bittinen C4K/4K 60p/50p -tallennus, 13 askeleen dynaaminen alue V-Log L -toiminnon avulla, kaikki helppokäyttöisessä laatikkomallisessa kamerassa joustavampaa kuvausta varten.

Järjestelmäkaavio
(mkl. vahvistetut lisävarusteet)

Laatikkomallinen elokuva- ja live-kamera

10,2 megapikselin Live MOS -kenno, jossa Dual Native ISO -tekniikka

LUMIX BGH1 -kamerassa on 10,2 megapikselin Live MOS -kenno, jossa käytetään Dual Native ISO -tekniikkaa erinomaisen videotallennuksen takaamiseksi heikossa valaistuksessa.

13 askeleen laaja dynaaminen alue ja V-Log L

LUMIX BGH1 -kamerassa on laaja 13 askeleen dynaaminen alue ja V-Log L -toiminto, jonka kanssa värinkäsittelijät voivat käyttää samoja LUT-taulukkoja kuin V-Log-toiminnon kanssa.

10-bittinen sisäinen/ulkoinen C4K/4K 60p/50p -tallennus

Samanaikaista 10-bittistä sisäistä C4K/4K 60p/50p 4:2:0 -tallennusta ja 10-bittistä ulkoista C4K/4K 60p/50p 4:2:2 HDMI Live Output -tallennusta tuetaan.

Ensimmäistä kertaa LUMIXissa: Samanaikainen SDI/HDMI-lähtö

Voit samanaikaisesti valvoa SDI-lähtöä, tallentaa HDMI-lähtöä ulkoisesti ja kauko-ohjata kameraa USB:n kautta tai yhdistämällä LAN-verkkoon.

Lämmönhallinta = rajoittamaton tallennus

Kompaktissa, kevyessä rungossa käytetään hienointa LUMIXin lämmönhaihdutustekniikkaa, jonka avulla saadaan rajaton videotallennus kaikissa kuvaustiloissa.

Kauko-ohjaus LUMIX Tether for Multicam -ohjelmistolla

RAW-muodon eli raakavideon lähtö

Ensimmäistä kertaa LUMIXissa: Ethernet / PoE+ -yhteensopiva kamera

IP-suoratoisto tietokoneella (RTP/RTSP-protokolla)

Ensimmäistä kertaa LUMIXissa: Genlock IN ja Timecode IN/OUT

Lisätietoja

Kauko-ohjaus LUMIX Tether for Multicam -ohjelmistolla

Inspiroidu

Tiedot

Valokuva Laatikkomallinen LUMIX-kamera DC-BGH1 kamerasta

Koko ja paino

Korkeus: 93mm

Leveys: 93mm

Syvyys: 78mm

Paino: 545g

Kaikki arvot ovat likimääräisiä. Paino on vain rungon paino. Mitat eivät sisällä ulkonemia.

Micro Four Thirds -järjestelmästandardi
10,2 megapikseliä
4K-videokuvausmahdollisuus
V-Log L
HDMI-lähtö ja SDI-lähtö
Genlock IN ja Timecode IN/OUT
Ethernet- ja PoE+-yhteensopiva
Wi-Fi
Bluetooth

10,2 megapikseliä

MFT Live MOS -kenno ja Dual ISO -tekniikka

C4K/4K 60p/50p 10-bittinen

Sisäinen/ulkoinen tallennus

V-Log L

13 askeleen dynaaminen alue

TYPE

Type
- Digital Single Lens Mirrorless camera
Recording media
- SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
Lens mount
- Micro Four Thirds mount

IMAGE SENSOR

Type
- Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels
- 10.28 megapixels / 11.93 megapixels
Aspect ratio / Color filter
- 4:3 / Primary color filter
Dust reduction system
- -

LATITUDE

LATITUDE
- 13 stops (V-Log L)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 2.31) *Still image shooting is available only when using the LUMIX Tether software.
Aspect ratio
- 4:3
File size (Pixels)
- 3680x2760(L) / 2592x1944(M) / 1824x1368(S)
Image quality
- Fine / Standard
Color space
- sRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*)) *When attaching DMW-XLR1 (sold separately).
  MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
MOV** High-res audio is selectable only when using the DMW-XLR1 (sold separately).
- 59.94Hz [C4K] 4096x2160
  - 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [4K] 3840x2160
  - 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [C4K] 4096x2160
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [4K] 3840x2160
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM, High-Res Audio) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [C4K] 4096x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [4K] 3840x2160
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 24.00p, 400Mbps (4:2:2 10-bit ALL-Intra)* / 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
- 24.00Hz [FHD] 1920x1080
  - 24.00p, 200Mbps (4:2:2 10-bit ALL-Intra)* / 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM, High-Res Audio) *HLG is selectable.
MP4**
- 59.94Hz [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 24.00Hz
  - -

VARIABLE FRAME RATE

MOV**
- 59.94Hz [C4K] 4096x2160
  - 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [4K] 3840x2160
  - 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 29.97p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 59.94Hz [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    29.97p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    23.98p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 201 or more.
- 50.00Hz [C4K] 4096x2160
  - 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)　
- 50.00Hz [4K] 3840x2160
  - 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 25.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 50.00Hz [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    25.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 201 or more.
- 24.00Hz [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [Anamorphic 4K] 3328x2496 (4:3)
  - 24.00p (Maximum output of sensor is 60fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
- 24.00Hz [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 240fps), 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    *Angle of view narrows if you select a frame rate with a number of frames 201 or more.

VIEWFINDER

VIEWFINDER
- -

REAR MONITOR

REAR MONITOR
- -

STATUS LCD

STATUS LCD
- -

FOCUS

Focus ring control (*6)
- Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Exposure mode
- Program AE / Aperture Priority AE / Shutter Priority AE / Manual Exposure
ISO sensitivity (Standard output sensitivity)
- Auto / 80* / 100* / 160 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Native ISO: 160, 800
  Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 80* / 100* / 160-800 *Extended ISO
  High: Auto / 800-51200 / 102400* / 204800* *Extended ISO

  [V-Log L]
  Native ISO: 400, 2000
  Auto: Auto / 400-25600
  Low: Auto / 400-2000
  High: Auto / 2000-25600

  [HLG]
  Native ISO: 320, 1600
  Auto: Auto / 320-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 320-1600
  High: Auto / 1600-51200 / 102400* / 204800* *Extended ISO

  [Cinelike D2 / Cinelike V2]
  Native ISO: 160, 800
  Auto: Auto / 80* / 100* / 160-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 80* / 100* / 160-800 *Extended ISO
  High: Auto / 800-51200 / 102400* / 204800* *Extended ISO
Exposure compensation
- Motion picture: 1/3 EV step ±3EV
  Still image: 1/3 EV step ±5EV *Still image shooting is available only when using the LUMIX Tether software.
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

IMAGE STABILIZATION SYSTEM
- -

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- -
Shutter speed
- Motion picture: 1/16,000 - 1/2
  Still image: 1/16,000 - 1 *Still image shooting is available only when using the LUMIX Tether software.

BURST SHOOTING

BURST SHOOTING
- -

FLASH

FLASH
- -

PHOTO STYLE

Photo Style
- Motion picture: Standard / Vivid / Natural / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / Cinelike D2 / Cinelike V2 / Like709 / V-Log L / Hybrid Log Gamma / My Photo Style 1-10
  Still image: Standard / Vivid (*6) / Natural (*6) / Landscape (*6) / Portrait (*6) / Monochrome (*6) / L. Monochrome (*6) / L. Monochrome D (*6) / Cinelike D2 (*6) / Cinelike V2 (*6) / Like709 (*6) / V-Log L (*6) / My Photo Style 1-10 (*6) *Tethered photo shooting with LUMIX Tether for Multicam software
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Sharpness / Noise Reduction / Dual Native ISO Setting / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

FILTER
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Fantasy / One Point Color

OTHER FUNCTIONS

Vertical Position Information (*5)
- ON / OFF

FUNCTION BUTTON

REC
- Exposure Mode / Aperture Value / Shutter Speed / Exposure Comp. / Dual Native ISO Setting / Sensitivity / White Balance / Photo Style / Metering Mode / i.Dynamic Range / Filter Effect / One Push AE / Synchro Scan / Focus Mode / AF Mode / AF Custom Setting (Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Rec File Format / Rec Quality / Rec Quality (My List) / Variable Frame Rate / Time Code Display / HDMI RAW Data Output (*6) / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Level Limiter / XLR Mic Adaptor Setting / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Image Area of Video / Digital Zoom / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Cursor Button Lock / DISP. / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Monochrome Live View / Zebra Pattern / LUT View Assist (HDMI) / LUT View Assist (SDI) / LUT Select / HLG View Assist (HDMI) / HLG View Assist (SDI) / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control (*6) / Zoom Control / Step Zoom / Zoom Speed / Destination Card Slot / LAN/Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / No Setting / Off (Disable Press and Hold) / Restore to Default
PLAY
- Anamorphic Desqueeze Display / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / Video Record / DISP. / Card Slot Change / Wi-Fi / Info Display (HDMI/SDI) / Fan Mode / LUT View Assist (HDMI) / LUT View Assist (SDI) / HLG View Assist (HDMI) / HLG View Assist (SDI) / No Setting / Off (Disable Press and Hold) / Restore to Default

OSD LANGUAGE

OSD LANGUAGE
- Japanese, English, German, French, Italian, Spanish, Polish, Czech, Hungarian, Romanian, Netherlandic, Turkish, Portuguese, Finnish, Danish, Swedish, Greek, Russian, Chinese (Traditional)

INTERFACE

USB
- SuperSpeed USB 3.1 Gen1 Type-C
DC IN
- DC 12V (11.4-12.6V), EIAJ Type4
HDMI***
- HDMI
  - HDMI TypeA
    Audio: Stereo
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
    Down Convert: Auto / 4K/30p/25p / 1080p / 1080i / OFF
- Playback
  - 59.94Hz: Auto / C4K/59.94p / C4K/29.97p / C4K/23.98p / 4K/59.94p / 4K/29.97p / 4K/23.98p / 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 720/59.94p / 480/59.94p
    50.00Hz: Auto / C4K/50.00p / C4K/25.00p / 4K/50.00p / 4K/25.00p / 1080/50.00p / 1080/25.00p / 1080/50.00i / 720/50.00p / 576/50.00p
    24.00Hz: Auto / C4K/24.00p / 4K/24.00p / 1080/24.00p
SDI
- SDI
  - BNC Terminal, 0.8V [p-p], 75Ω, 3G-SDI
    Audio: Stereo, SDI Sound Output Gain Adj.: 0dB / -6dB / -8dB
- Monitor-through
  - 4:2:2 10bit　　
- Playback
  - 59.94Hz: 1080/59.94p / 1080/29.97p / 1080/23.98p / 1080/59.94i / 1080/29.97PsF / 1080/23.98PsF / 720/59.94p
    50.00Hz: 1080/50.00p / 1080/25.00p / 1080/50.00i / 1080/25.00PsF / 720/50.00p
    24.00Hz: 1080/24.00PsF
Ethernet
- Remote Control: LAN Terminal (RJ-45)
  Power Supply: PoE+ (IEEE802.3at compliant)
  * Use an IEC60950-1 or IEC62368-1 compliant PoE+ (IEEE802.3at compliant) hub or power supplying device.
Remote input
- φ2.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
Speaker
- -
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
XLR microphone
- Yes with DMW-XLR1 (sold separately)
Headphone output
- φ3.5mm
SD card slot
- Slot 1, Slot 2
TC IN/OUT
- Count up
  - Rec Run / Free Run
- Timecode mode
  - Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
- HDMI timecode output
  - ON / OFF
- SDI timecode output
  - ON / OFF
- External TC setting
  - TC Synchronization / TC Output Reference
Genlock IN
- Genlock IN
  - ON / OFF
- Horizontal phase synchronization
  - -206 - +49
Fan
- Auto1 / Auto2 / Normal / Slow
Lamp
- Tally Lamp (front/rear) / Card Access Lamp / Power LED / Network LED

WIRELESS

Wi-Fi
- IEEE 802.11b/g/n, 2412 MHz - 2462 MHz (1-11 ch), Wi-Fi / WPA / WPA2, Infrastructure mode
Bluetooth
- Bluetooth® v4.2 (Bluetooth Low Energy (BLE))

POWER

Direct power supply
- AC Adaptor (12V, 3A) (bundled)
  Li-ion Battery Pack (7.28V) (sold separately)
  PoE+ (IEEE802.3at compliant) (sold separately)
Battery
- Li-ion Battery Pack AG-VBR59 (7.28V, 5900mAh, 43Wh) (sold separately)
  Li-ion Battery Pack AG-VBR89 (7.28V, 8850mAh, 65Wh) (sold separately)
  Li-ion Battery Pack AG-VBR118 (7.28V, 11800mAh, 86Wh) (sold separately)
Continuous recordable time (Motion picture)**
- MP4 [4K/60p]: Approx. 270 min, MP4 [FHD/60p]: Approx. 300 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 420 min, MP4 [FHD/60p]: Approx. 480 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 560 min, MP4 [FHD/60p]: Approx. 640 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.
Actual recordable time (Motion picture)**
- MP4 [4K/60p]: Approx. 135 min, MP4 [FHD/60p]: Approx. 150 min *When using H-ES12060 and AG-VBR59 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 210 min, MP4 [FHD/60p]: Approx. 240 min *When using H-ES12060 and AG-VBR89 (sold separately). When the battery is fully charged.
  MP4 [4K/60p]: Approx. 280 min, MP4 [FHD/60p]: Approx. 320 min *When using H-ES12060 and AG-VBR118 (sold separately). When the battery is fully charged.

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 93.0 x 93.0 x 78.0 mm / 3.66 x 3.66 x 3.07 inch (excluding protrusions)
Weight
- Approx. 545g / 1.2 lb (Body only)

OPERATING ENVIRONMENT

Operating temperature****
- -10oC to 40oC (14oF to 104oF)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- LUMIX Tether
  ・ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
Standard accessories
- AC Adaptor, AC Cable, Cable Lock Band, Body Cap, Hot Shoe Cover, AUDIO Terminal Cover, DC IN Terminal Cover, BNC Terminal Cover, HDMI Terminal Cover, REMOTE Terminal Cover

  ・ The DC-BGGH1 Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

NOTE
- (*2) About motion picture recording
  - Use a card with SD Speed Class with ""Class 4"" or higher when recording motion pictures in [MP4(under 28Mbps)].
  - Use a card with SD Speed Class with ""UHS-I / UHS-II UHS Speed Class 3 (U3)"" when recording motion pictures with [MP4] in [4K] or [MOV].
  (SD speed class is the speed standard regarding continuous writing.)
  - Video Speed Class 60 or higher is required for ALL-Intra 400Mbps recording. Use of SD Memory Card with Video Speed Class 60 or higher is recommended for C4K/4K ALL-Intra video recording.
  - MP4 motion pictures with [MP4] in [4K]:
  - When using an SDHC memory card: You can continue recording without interruption even if the file size exceeds 4 GB, but the motion picture file will be divided and recorded/played back separately.
  - When using an SDXC memory card: You can continue recording without interruption even if the file size exceeds 96 GB or 3 hours 4 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - MP4 motion pictures with [MP4] in [FHD]:
  - You can continue recording without interruption even if the file size exceeds 4 GB or 30 minutes in length, but the motion picture file will be divided and recorded/played back separately.
  - 4:2:2 10-bit recording is a recording mode for film production and the video needs to be processed on PC.
  The original video cannot be played on standard TV, Blu-ray Disc™ recorder and Blu-ray Disc™ player.
  It may cause problems such as freezing when played on these devices.
  - When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

  (*3) For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as""4K compatible"".

  (*4) The camera may stop recording when used in lower or higher than recommended operating temperature: -10 to 40 degrees.

  (*5) Firmware must be updated to version 2.0 or later.

  (*6) Firmware must be updated to version 2.3.

HDMI RAW DATA OUTPUT (5) (6)

Compatible external devices
- ATOMOS Ninja V 4K HDR Monitor-Recorder (*5)
  *Selectable recording mode depends on the firmware version of Atomos Ninja V.
  *Please refer to the Atomos website for the information on the corresponding firmware version of Atomos Ninja V.
  *Software that supports Apple ProRes RAW is required to edit RAW video recorded with NINJA V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
  *All functions may not be available depending on the situation.

  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR (*6)
  *Selectable recording mode depends on the firmware version of Blackmagic Video Assist 12G HDR.
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
  *All functions may not be available depending on the situation.
Rec quality
- NTSC (59.94Hz)[4K] 4096x2160 (17:9)
  - 59.94p, 12-bit (LPCM, High-Res Audio)
    29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- NTSC (59.94Hz)[Anamorphic 3.7K] 3680x2760 (4:3)
  - 59.94p, 12-bit (LPCM, High-Res Audio)
    29.97p, 12-bit (LPCM, High-Res Audio)
    23.98p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[4K] 4096x2160 (17:9)
  - 50.00p, 12-bit (LPCM, High-Res Audio)
    25.00p, 12-bit (LPCM, High-Res Audio)
- PAL (50.00Hz)[Anamorphic 3.7K] 3680x2760 (4:3)
  - 50.00p, 12-bit (LPCM, High-Res Audio)
    25.00p, 12-bit (LPCM, High-Res Audio)
Audio format
- LPCM (2ch 48kHz/16-bit, 48kHz/24-bit*, 96kHz/24-bit*) *High-res audio is selectable only when using the DMW-XLR1 (sold separately).

IP STREAMING (*5)

Protocol
- RTP / RTSP
Streaming quality
- NTSC (59.94Hz)[4K] 3840x2160
  - 59.94p, 50Mbps / 25Mbps (H.265)
    59.94p, 50Mbps / 25Mbps (H.264)
    29.97p, 25Mbps / 12.5Mbps (H.265)
    29.97p, 25Mbps / 12.5Mbps (H.264)
- NTSC (59.94Hz)[FHD] 1920x1080
  - 59.94p, 20Mbps / 16Mbps (H.265)
    59.94p, 16Mbps / 8Mbps (H.264)
    29.97p, 12Mbps / 6Mbps (H.265)
    29.97p, 6Mbps / 3Mbps (H.264)
- NTSC (59.94Hz)[HD] 1280x720
  - 59.94p, 6Mbps (H.264)
    29.97p, 4Mbps (H.264)
- PAL (50.00Hz)[4K] 3840x2160
  - 50.00p, 50Mbps / 25Mbps (H.265)
    50.00p, 50Mbps / 25Mbps (H.264)
    25.00p, 25Mbps / 12.5Mbps (H.265)
    25.00p, 25Mbps / 12.5Mbps (H.264)
- PAL (50.00Hz)[FHD] 1920x1080
  - 50.00p, 20Mbps / 16Mbps (H.265)
    50.00p, 16Mbps / 8Mbps (H.264)
    25.00p, 12Mbps / 6Mbps (H.265)
    25.00p, 6Mbps / 3Mbps (H.264)
- PAL (50.00Hz)[HD] 1280x720
  - 50.00p, 6Mbps (H.264)
    25.00p, 4Mbps (H.264)
RTSP Port
- ON / OFF

Avaa uusi sivu tulostusta varten

Erikokoiset tuotteet

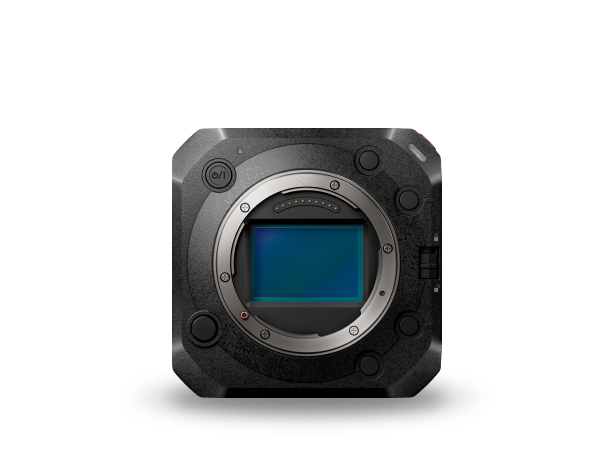

DC-BS1H

Peilitön laatikkokamera live- ja elokuvaukseen 6K 24p / 5,9K 30p 10-bittisellä videokuvauksella.

Arvioinnit

Käyttäjien arvioinnit

Ole ensimmäinen käyttäjäarvostelun kirjoittaja.

KIRJOITA KÄYTTÄJÄARVOSTELU

Varusteet

Objektiivit

H-H020A

LUMIX G 20mm / F1.7 Ⅱ ASPH.

H-HS030

LUMIX G MACRO 30mm / F2.8 ASPH. / MEGA O.I.S.

H-HS043

LUMIX G 42,5mm / F1.7 ASPH. / POWER O.I.S.

H-E08018

LEICA DG VARIO-ELMARIT 8-18mm / F2.8-4.0 ASPH.

H-X1025

LEICA DG VARIO-SUMMILUX 10–25 mm / F1.7 ASPH.

H-ES12060

LEICA DG VARIO-ELMARIT 12-60mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-ES50200

LEICA DG VARIO-ELMARIT 50-200mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-RS100400

LEICA DG VARIO-ELMAR 100-400mm / F4.0-6.3 ASPH. / POWER O.I.S.

H-X012

LEICA DG SUMMILUX 12mm / F1.4 ASPH.

H-X015

LEICA DG SUMMILUX 15mm / F1.7 ASPH.

H-XA025

LEICA DG SUMMILUX 25mm / F1.4 II ASPH.

H-NS043

LEICA DG NOCTICRON 42,5mm / F1.2 ASPH. / POWER O.I.S.

H-ES045

LEICA DG MACRO-ELMARIT 45mm / F2.8 ASPH. / MEGA O.I.S.

H-ES200

LEICA DG ELMARIT 200mm / F2.8 / POWER O.I.S.

H-HSA12035

LUMIX G X VARIO 12-35mm / F2.8 II ASPH. / POWER O.I.S.

H-HSA35100

LUMIX G X VARIO 35-100mm / F2.8 II / POWER O.I.S.

H-F007014

LUMIX G VARIO 7-14mm / F4.0 ASPH.

H-FS12032

LUMIX G VARIO 12-32mm / F3.5-F5.6 ASPH. / MEGA O.I.S.

H-FS12060

LUMIX G VARIO 12-60mm / F3,5-5.6 ASPH. / POWER O.I.S.

H-PS14042

LUMIX G X VARIO PZ 14-42mm / F3.5-5.6 ASPH. / POWER O.I.S.

H-FS1442A

LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S.

H-FS014042

LUMIX G VARIO 14-42mm / F3.5-5.6 ASPH. / MEGA O.I.S.

H-FS014045

LUMIX G VARIO 14-45mm / F3.5-5.6 ASPH. / MEGA O.I.S.

H-FSA14140

LUMIX G VARIO 14-140mm / F3.5-5.6 II ASPH. / POWER O.I.S.

H-FS35100

LUMIX G VARIO 35-100mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-FS45150

LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-PS45175

LUMIX G X VARIO PZ 45-175mm / F4.0-5.6 ASPH. / POWER O.I.S.

H-FSA45200

LUMIX G VARIO 45-200mm / F4.0-5.6 II / POWER O.I.S.

H-FSA100300

LUMIX G VARIO 100-300mm / F4.0-5.6 II / MEGA O.I.S.

H-F008

LUMIX G FISHEYE 8mm / F3.5

H-H014A

LUMIX G 14mm / F2.5 II ASPH.
