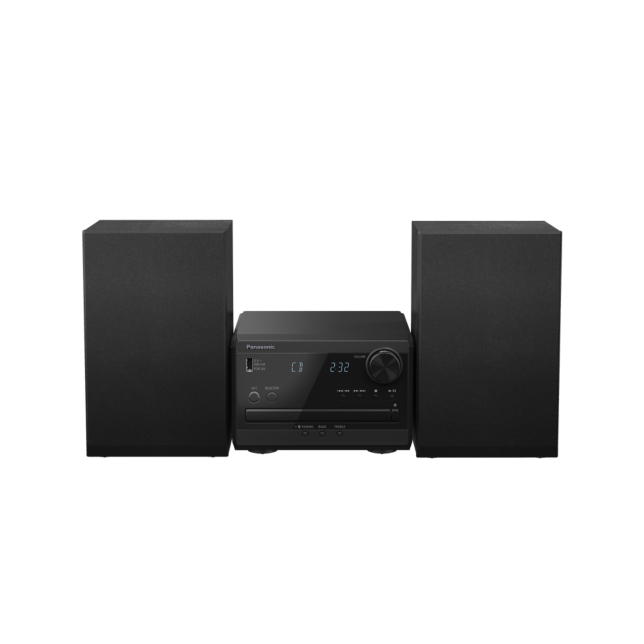

CD, raadio ja Bluetooth®-iga mikrosüsteem SC-PM272
SC-PM272
Teie muusika, teie stiil, teie valik
SC-PM272 on elegantne mikrosüsteem neile, kes soovivad esitada oma CD-sid või kuulata raadiot, voogesitada telefonist juhtmevabalt netisaateid või esitusloendeid ja kuulda kõike kõrge kvaliteedilise stereohelina. Ning kõik see paindlikus tervikus, mis mahub teie pärisellu.
Funktsioonid
Kompaktne süsteem, selgelt hea heli
Tänu ühele sisemisele kõlarile ja kahele eraldi kõlarile on väikesemõõtmelise PM272 heli silmapaistvalt võimas. Kõlaritel on bassipeegeldusavadega 10 cm täissagedusmembraanid, mis suudavad vaevata 20 W stereoheli esitada.
Väike süsteem paljude valikutega
Armastate raadio ja CD lihtsust? Sellisel juhul valige integreeritud kõrge kvaliteediga DAB+ raadio, stereo FM-tuuneri ja CD-mängijaga PM272. Seadet saab netisaadete või esitusloendite jaoks Bluetooth®-i abil oma mobiiltelefoniga ühendada. USB-ühendus lisab veel ühe kuulamisvaliku.
Voogesitage esitusloendeid juhtmevabalt Bluetooth®-iga
Sisseehitatud Bluetoothi abil saab PM272 esitada nutitelefonist või tahvelarvutist juhtmevabalt heli. Bluetooth Remaster aitab kompenseerida juhtmeta edastuse mugavusele kaotatud helisagedusi ja saavutada kõrgema kvaliteediga heli. Esitusloendite ja netisaadete kuulamine selge ja ruumi täitva heliga on niivõrd nauditav.
Värske disain, paindlikult paigutatav
PM272 õhuke kujustus täiustab iga raamaturiiulit või kapipealset. Eraldi kõlareid saab paigutada vastavalt oma vajadustele ja stereoheli paremaks esitamiseks. Kõik liigne on eemaldatud ja alles on jäänud lihtne ja intuitiivne juhtpind.
Inspiratsioon
Tehnilised andmed
Väljundvõimsus kokku 20 W- Bluetooth Re-Master
- CD
- USB (esitamine)
- FM
- DAB+
- Bluetooth®
Kompaktne, ent samas selge heli bassipeegeldusavaga 10 cm kõlarisüsteemiga
Nautige muusikat juhtmevabalt Bluetooth®-iga
Õhuke ja kompaktne lahendus, mida saab paindlikult paigutada
Amplifier
-
Amp Type
-
2ch Amp
-
-
RMS Output Power
-
Total RMS Stereo Mode Power
-
20W
-
-
Front Speaker (Left / Right)
-
10W + 10W (1 kHz, THD 10%, 6Ω)
-
-
Speaker System
-
Front Speaker (Left / Right)
-
Type
-
1 Way, 1 Speaker System
-
-
Speaker Unit (Woofer)
-
Cone type 10cm
-
-
Speaker Unit (Tweeter)
-
-
-
-
Speaker Unit (Sup. Tweeter)
-
-
-
-
Bass Expand
-
Bass Reflex Port
-
-
CD
-
Playback Disc *¹
-
CD-R / RW
-
-
Format
-
CD-DA / MP3
-
Internal Memory
-
-
USB
-
Playback
-
Yes *²
-
-
USB Standard
-
USB 2.0 Full Speed
-
-
Playback Format
-
DSD
-
-
-
-
WAV, AIFF
-
-
-
-
FLAC
-
-
-
-
AAC
-
-
-
-
MP3
-
Yes (32, 44.1, 48kHz/16-320kbps)
-
-
-
Battery Charge
-
500mA
-
-
USB-DAC function
-
Playback Format
-
-
-
-
Player Application (Windows / Mac OS)
-
-
-
-
Radio
-
Station Presets
-
FM
-
30 Stations (87.5〜108MHz (50K step))
-
-
DAB Plus
-
20 Stations (174.928〜239.2MHz)
-
-
AM
-
-
-
-
-
Radio Data System
-
Yes
-
-
Auto Tuning
-
Yes
-
-
Auto Preset
-
Yes
-
-
Antenna Terminal
-
75 ohm
-
Network
-
Bluetooth®
-
Version
-
Ver 4.2
-
-
Class
-
Class 2
-
-
Function
-
Wireless audio playback / Remote control
-
-
Codec
-
SBC
-
-
Connectivity
-
Multi-Pairing (MAX 8 Devices)
-
-
Bluetooth Standby
-
Yes
-
-
-
Wi-Fi
-
Wi-Fi
-
-
-
-
WLAN Standard
-
-
-
-
Frequency Range
-
-
-
-
DLNA
-
-
-
-
-
AirPlay
-
-
-
-
Chromecast built-in
-
Chromecast built-in Speaker grouping
-
-
-
-
Chromecast built-in Multi-zone
-
-
-
-
Chromecast built-in Stereo Pair
-
-
-
-
Chromecast built-in Wireless surround
-
-
-
-
-
Compatible with Google Assistant
-
-
-
-
works with Alexa
-
-
-
-
StreamUnlimited
-
SDK
-
-
-
-
Multi-room = Party Mode
-
-
-
-
Multi-zone
-
-
-
-
Re-transmission
-
-
-
-
Stereo Pair
-
-
-
-
-
Favourite Button
-
Main Unit
-
-
-
-
Remote
-
-
-
-
-
AUX-In Auto Play
-
-
-
-
NFC
-
-
-
-
Online Music Services
-
Spotify Connect
-
-
-
-
Airable
-
-
-
-
Sound Function
-
Super Sound EQ, Super Bass Sound
-
D.Bass
-
-
EQ
-
Preset EQ
-
Normal Preset EQ
-
-
Manual EQ
-
Bass / Treble
-
-
-
Surround
-
Yes
-
-
Karaoke
-
-
-
-
My Sound Setting
-
-
-
-
Clear-mode Dialog
-
-
-
-
XBS Master
-
-
-
-
High-Res AUDIO
-
-
-
-
Re-Master
-
CD High-Res Re-Master
-
-
-
-
Bluetooth Re-Master
-
Bluetooth Re-Master
-
-
MP3 Re-Master
-
-
-
-
USB Re-Master
-
-
-
-
Streaming Re-Master
-
-
-
-
Terminals
-
USB Port
-
USB Type-A x1
-
-
Audio IN
-
-
-
-
Audio OUT
-
-
-
-
Mic Jack
-
-
-
-
Speaker Terminal
-
Yes
-
-
LAN
-
-
-
General
-
Power Supply
-
AC 220-240V, 50Hz
-
-
Power Consumption *³
-
Normal Use
-
14 W
-
-
Bluetooth Standby Off
-
0.2 W
-
-
Bluetooth Standby
-
0.3 W
-
-
-
Display Type
-
LCD
-
-
Language Indication
-
Alphabet
-
-
Dimmer
-
Yes
-
-
Auto OFF
-
Yes
-
-
Timer
-
Sleep
-
Yes
-
-
Clock
-
Yes
-
-
Play Timer
-
Yes
-
-
Rec Timer
-
-
-
-
Dimension
-
Main Unit (W x H x D)
-
184 x 123 x 231 mm
-
-
Speaker Unit (W x H x D)
-
139 x 224 x 136 mm
-
Weight
-
Main Unit
-
1.1 kg
-
-
Speaker Unit
-
1.3 kg
-
Color
-
Silver / Black
Accessories
-
Remote Control
-
Yes
-
-
Dry Batteries for Remote Control
-
Not included.
-
-
AC Cord
-
Yes (1.5 m)
-
-
Operating Instruction
-
Yes
-
-
Quick Start Guide
-
-
-
Note:
-
*1 Playability may vary depending on the contents, discs and quality of the recording.
*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android™, etc.) using a USB extension cable.
*3 Specifications are subject to change without notice. All numbers given here are approximate.
LEGAL NOTICE:
-
Recording and playback of content on this (or any other) device may require permission from the copyright owner.
Panasonic has no authority to and does not grant you that permission and explicitly disclaims any right, ability or intention to obtain such permission on your behalf.
It is your responsibility to ensure that your use of this or any other device complies with applicable copyright law in your country.
TRADEMARK NOTICE:
-
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic Holdings Corporation is under license. Other trademarks and trade names are those of their respective owners.
The N-Mark is a trademark or registered trademark of NFC Forum, Inc. in the United States and in other countries.
