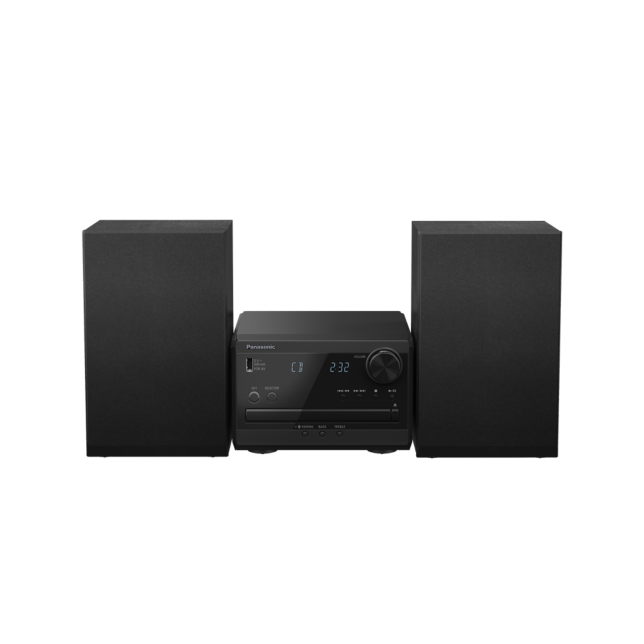

CD, raadio ja Bluetooth®-iga mikrosüsteem SC-PM270
SC-PM270
Teie muusika, teie stiil, teie valik
SC-PM270 on elegantne mikrosüsteem neile, kes soovivad esitada oma CD-sid või kuulata raadiot, voogesitada telefonist juhtmevabalt netisaateid või esitusloendeid ja kuulda kõike kõrge kvaliteedilise stereohelina. Ning kõik see paindlikus tervikus, mis mahub teie pärisellu.
Funktsioonid
Kompaktne süsteem, selgelt hea heli
Tänu ühele sisemisele kõlarile ja kahele eraldi kõlarile on väikesemõõtmelise PM270 heli silmapaistvalt võimas. Kõlaritel on bassipeegeldusavadega 10 cm täissagedusmembraanid, mis suudavad vaevata 20 W stereoheli esitada.
Väike süsteem paljude valikutega
Armastate raadio ja CD lihtsust? Sellisel juhul valige integreeritud stereo FM-tuuneri ja CD-mängijaga PM270. Seadet saab netisaadete või esitusloendite jaoks Bluetooth®-i abil oma mobiiltelefoniga ühendada. USB-ühendus lisab veel ühe kuulamisvaliku.
Voogesitage esitusloendeid juhtmevabalt Bluetooth®-iga
Sisseehitatud Bluetoothi abil saab PM270 esitada nutitelefonist või tahvelarvutist juhtmevabalt heli. Bluetooth Remaster aitab kompenseerida juhtmeta edastuse mugavusele kaotatud helisagedusi ja saavutada kõrgema kvaliteediga heli. Esitusloendite ja netisaadete kuulamine selge ja ruumi täitva heliga on niivõrd nauditav.
Värske disain, paindlikult paigutatav
PM270 õhuke kujustus täiustab iga raamaturiiulit või kapipealset. Eraldi kõlareid saab paigutada vastavalt oma vajadustele ja stereoheli paremaks esitamiseks. Kõik liigne on eemaldatud ja alles on jäänud lihtne ja intuitiivne juhtpind.
Inspiratsioon
Tehnilised andmed
Väljundvõimsus kokku 20 W- Bluetooth Re-Master
- CD
- USB (esitamine)
- FM
- Bluetooth®
Kompaktne, ent samas selge heli bassipeegeldusavaga 10 cm kõlarisüsteemiga
Nautige muusikat juhtmevabalt Bluetooth®-iga
Õhuke ja kompaktne lahendus, mida saab paindlikult paigutada
Amplifier
-
Amp Type
-
2ch Amp
-
-
RMS Output Power
-
Total RMS Stereo Mode Power
-
20W
-
-
Front Speaker (Left / Right)
-
10W + 10W (1 kHz, THD 10%, 6Ω)
-
-
Speaker System
-
Front Speaker (Left / Right)
-
Type
-
1 Way, 1 Speaker System
-
-
Speaker Unit (Woofer)
-
Cone type 10cm
-
-
Speaker Unit (Tweeter)
-
-
-
-
Speaker Unit (Sup. Tweeter)
-
-
-
-
Bass Expand
-
Bass Reflex Port
-
-
CD
-
Playback Disc *¹
-
CD-R / RW
-
-
Format
-
CD-DA / MP3
-
Internal Memory
-
-
USB
-
Playback
-
Yes *²
-
-
USB Standard
-
USB 2.0 Full Speed
-
-
Playback Format
-
DSD
-
-
-
-
WAV, AIFF
-
-
-
-
FLAC
-
-
-
-
AAC
-
-
-
-
MP3
-
Yes (32, 44.1, 48kHz/16-320kbps)
-
-
-
Battery Charge
-
500mA
-
-
USB-DAC function
-
Playback Format
-
-
-
-
Player Application (Windows / Mac OS)
-
-
-
-
Radio
-
Station Presets
-
FM
-
30 Stations (87.5〜108MHz (50K step))
-
-
DAB Plus
-
-
-
-
AM
-
-
-
-
-
Radio Data System
-
-
-
-
Auto Tuning
-
Yes
-
-
Auto Preset
-
Yes
-
-
Antenna Terminal
-
75 ohm
-
Network
-
Bluetooth®
-
Version
-
Ver 4.2
-
-
Class
-
Class 2
-
-
Function
-
Wireless audio playback / Remote control
-
-
Codec
-
SBC
-
-
Connectivity
-
Multi-Pairing (MAX 8 Devices)
-
-
Bluetooth Standby
-
Yes
-
-
-
Wi-Fi
-
Wi-Fi
-
-
-
-
WLAN Standard
-
-
-
-
Frequency Range
-
-
-
-
DLNA
-
-
-
-
-
AirPlay
-
-
-
-
Chromecast built-in
-
Chromecast built-in Speaker grouping
-
-
-
-
Chromecast built-in Multi-zone
-
-
-
-
Chromecast built-in Stereo Pair
-
-
-
-
Chromecast built-in Wireless surround
-
-
-
-
-
Compatible with Google Assistant
-
-
-
-
works with Alexa
-
-
-
-
StreamUnlimited
-
SDK
-
-
-
-
Multi-room = Party Mode
-
-
-
-
Multi-zone
-
-
-
-
Re-transmission
-
-
-
-
Stereo Pair
-
-
-
-
-
Favourite Button
-
Main Unit
-
-
-
-
Remote
-
-
-
-
-
AUX-In Auto Play
-
-
-
-
NFC
-
-
-
-
Online Music Services
-
Spotify Connect
-
-
-
-
Airable
-
-
-
-
Sound Function
-
Super Sound EQ, Super Bass Sound
-
D.Bass
-
-
EQ
-
Preset EQ
-
Normal Preset EQ
-
-
Manual EQ
-
Bass / Treble
-
-
-
Surround
-
Yes
-
-
Karaoke
-
-
-
-
My Sound Setting
-
-
-
-
Clear-mode Dialog
-
-
-
-
XBS Master
-
-
-
-
High-Res AUDIO
-
-
-
-
Re-Master
-
CD High-Res Re-Master
-
-
-
-
Bluetooth Re-Master
-
Bluetooth Re-Master
-
-
MP3 Re-Master
-
-
-
-
USB Re-Master
-
-
-
-
Streaming Re-Master
-
-
-
-
Terminals
-
USB Port
-
USB Type-A x1
-
-
Audio IN
-
-
-
-
Audio OUT
-
-
-
-
Mic Jack
-
-
-
-
Speaker Terminal
-
Yes
-
-
LAN
-
-
-
General
-
Power Supply
-
AC 220-240V, 50Hz
-
-
Power Consumption *³
-
Normal Use
-
14 W
-
-
Bluetooth Standby Off
-
0.2 W
-
-
Bluetooth Standby
-
0.3 W
-
-
-
Display Type
-
LCD
-
-
Language Indication
-
Alphabet
-
-
Dimmer
-
Yes
-
-
Auto OFF
-
Yes
-
-
Timer
-
Sleep
-
Yes
-
-
Clock
-
Yes
-
-
Play Timer
-
Yes
-
-
Rec Timer
-
-
-
-
Dimension
-
Main Unit (W x H x D)
-
184 x 123 x 231 mm
-
-
Speaker Unit (W x H x D)
-
139 x 224 x 136 mm
-
Weight
-
Main Unit
-
1.1 kg
-
-
Speaker Unit
-
1.3 kg
-
Color
-
Silver / Black
Accessories
-
Remote Control
-
Yes
-
-
Dry Batteries for Remote Control
-
Not included.
-
-
AC Cord
-
Yes (1.5 m)
-
-
Operating Instruction
-
Yes
-
-
Quick Start Guide
-
-
-
Note:
-
*1 Playability may vary depending on the contents, discs and quality of the recording.
*2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android™, etc.) using a USB extension cable.
*3 Specifications are subject to change without notice. All numbers given here are approximate.
