LUMIX S5D Spejlløst kamera i fuld ramme DC-S5D

Tilføj til ønskelisteFjern fra ønskeliste

DC-S5DH
(DC-S5D + S-R28200)

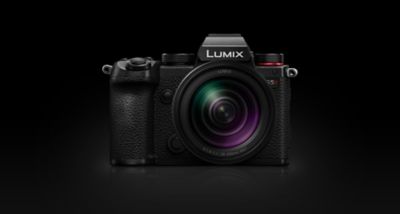

KRAFTVÆRK MED FULL-FRAME

LUMIX DC-S5DH (sæt med S5D-hus og LUMIX S 28-200 mm / F4-7.1 zoomobjektiv)
LUMIX S5D giver fremragende billedkvalitet til foto og video på tværs af følsomhedsområdet i et ergonomisk hus, der er designet til den kvalitetsbevidste indholdsskaber.

Tilføj til ønskelisteFjern fra ønskeliste

DC-S5DH
(DC-S5D + S-R28200)

Egenskaber

Hybridt kompakt hus

Dette spejlfrie hybridkamera har en billedsensor i fuldformat, 10-bit 4K 60p/50p optagelse, 14+ stop V-Log og meget mere - alt sammen i et utroligt kompakt letvægtshus.

24,2MP CMOS-sensor med Dual Native ISO-teknologi

24,2 MP CMOS-sensoren leverer høj følsomhed og fremragende billedkvalitet for både stillbilleder og videoer. Dual Native ISO-teknologi* øger videoydeevnen yderligere.

*Dual Native ISO fungerer automatisk.

24,2MP CMOS-sensor med Dual Native ISO-teknologi

Forskellige optagelsestilstande

Som svar på en lang række behov omfatter optagetilstande 4K 60p/50p* 4:2:0 10-bit og C4K/4K 30p/25p 4:2:2 10-bit — plus 4K 8-bit uden begrænsning af video optagelsestid.

*I ASP-C- eller PIXEL/PIXEL-indstillinger

HDMI-liveoutput til professionelle filmoptagelser

4:2:2 10-bit intern optagelse/HDMI-udgang

I 10-bit-indstillingen understøttes 4:2:2 10-bit HDMI-udgang sammen med samtidig optagelse af eksternt drev/SD-kort.*

*SD-kortoptagelse er ikke tilgængeligt under C4K/4K 60p/50 p 4:2:2 10-bit HDMI-overførsel.

4:2:2 10-bit intern optagelse/HDMI-udgang

RAW-videodataoutput

LUMIX S5D muliggør at overføre maksimalt 29,97p 5,9K (5888 x 3312, 16:9), 59,94p 4,1K (4128 x 2176, 17:9) og 50,00p 3,5 K (3536 x 2656, 4:3) 12-bit RAW-videodata over HDMI for at gemme som ProRes RAW på ATOMOS INJA V HDR-skærmoptageren. Blackmagic RAW kan også optages på Video Assist 12G HDR.**

*[ProRes RAW] ･På ATOMOS-webstedet findes oplysninger om den tilsvarende firmwareversion af ATOMOS Ninja V. ･Software, der understøtter ProRes RAW, kræves for at redigere RAW-video optaget med ATOMOS Ninja V. Brug den opslagstabel, der er tilgængelig på det følgende kundesupportwebsted, for at skabe den samme farvegraduering som V-Log/V-Gamut https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/ ･Alle funktioner er muligvis ikke tilgængelige afhængigt af situationen.
**[Blackmagic RAW] ･På Blackmagic Designs websted findes oplysninger om den tilsvarende firmwareversion af Blackmagic Video Assist 12G HDR. ･DaVinci Resolve eller DaVinci Resolve Studio kræves for at afspille og redigere Blackmagic RAW-data. DaVinci Resolve Studio kræves for at levere projekter ved hjælp af Blackmagic RAW-data ved opløsninger over 3840x2160. ･Alle funktioner er muligvis ikke tilgængelige afhængigt af situationen.

Mere end 14 stops af V-Log og V-Gamut "VariCam Look"

V-Log og V-farveområde er forudinstalleret. Med 14+ stop dynamikområde og et bredt farveområde er ydeevnen sammenlignelig med et professionelt VariCam-biografkamera.

Autofokus-system med AI-teknologi

Indeholder AF med høj hastighed (ca. 0,08 sek.**), høj præcision og dybtgående læringsteknologi til at genkende menneskers ansigter, øjne, hoveder og kroppe samt dyr.

*Dette billede er taget med en model med tilsvarende ydeevne.
**11EV, ved den brede ende med S-R24105 (CIPA) i LVF120 fps-indstilling.

96MP JPEG med høj opløsningstilstand

Billeder kan nu gemmes direkte i JPEG-formatet for fint detaljerede, 96-megapixel-ækvivalente billeder, der er karakteristiske for LUMIX.

*Dette billede er taget med en model med tilsvarende ydeevne.

6.5-stop Dual I.S. 2

5-akslet Dual I.S. 2 (billedstabilisator) kombinerer kontrol af Body I.S. og Lens O.I.S. for at give en korrektion på 6,5 standsninger.*

*Baseret på CIPA-standarden [drejnings-/hældningsretning: fokuseringsafstand f = 200 mm, når S-E70200 bruges.

Støv- og stænkbestandig

Den hårde krop er støv- og stænkafvisende* takket være tætning og anden beskyttelse af sømme, knapper og andre funktionelle dele.

*Stænkbestandig fungerer med de objektiver, som er specielt designet til at understøtte denne funktion. Støv- og stænkbestandig garanterer ikke, at der ikke opstår skader, hvis dette kamera udsættes for direkte kontakt med støv og vand.

Bliv inspireret

Specifikationer

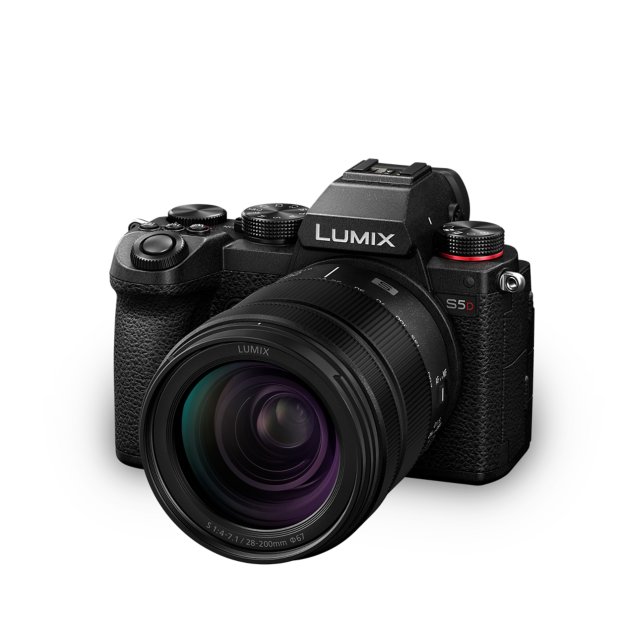

Foto af LUMIX S5D Spejlløst kamera i fuld ramme DC-S5D

Størrelse og vægt

Højde: 97.1mm

Bredde: 132.6mm

Dybde: 81.9mm

Vægt: 714g

Alle værdier er omtrentlige. Objektiv er ikke inkluderet. Vægt med hot shoe-dæksel, batteri og SD-kort. Kun hus 630 g. Dimensioner er uden fremspring.

L-Mount
24,2 megapixel
Videooptagelse i 4K
14+ stopper V-Log
5-akslet Dual I.S. 2 (billedstabilisator)
OLED View Finder med 2.360.000 punkter
Vipbar skærm med 1.840.000 punkter
Stænk- og støvbestandigt
Wi-fi
Bluetooth

Et hybrid spejlløst foto-/videokamera med et kompakt letvægtshus.

24,2 MP CMOS-sensor i fuldformat med Dual Native ISO-teknologi.

4K 60p/50p 4:2:0 10-bit, C4K/4K 30p/25p 4:2:2 10-bit, 4K 8-bit uden begrænsning af videooptagelsestid og 14 stop af V-Log/V-Gamut .

Højhastigheds-, højpræcisions-AF og deep learning-teknologi til genkendelse af mennesker/dyr.

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Image sensor shift type

LATITUDE

14+ stops (V-Log)

STILL IMAGE

Recording file format
- Still image
  - JPEG (DCF, Exif 2.31), RAW, HLG Photo (CTA-2072)
- 6K PHOTO** / 4K PHOTO**
  - 6K PHOTO: MP4 (H.265/HEVC, Audio format: AAC (2ch))
    4K PHOTO: MP4 (H.264/MPEG-4 AVC, Audio format: AAC (2ch))
    Extracted still images: JPEG (DCF, Exif 2.31)
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (Pixels) / When using full-frame lenses
- 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution Mode.
    5184x3456(6K PHOTO) / 3504x2336(4K PHOTO) / 5984x4000(HLG PHOTO, Full-Res.) / 3232x2160(HLG PHOTO, 4K-Res.)
- 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution Mode.
    4992x3744(6K PHOTO) / 3328x2496(4K PHOTO) / 5312x3984(HLG PHOTO, Full-Res.) / 2880x2160(HLG PHOTO, 4K-Res.)
- 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution Mode.
    3840x2160(4K PHOTO) / 5888x3312(HLG PHOTO, Full-Res.) / 3840x2160(HLG PHOTO, 4K-Res.)
- 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution Mode.
    2880x2880(4K PHOTO) / 4000x4000(HLG PHOTO, Full-Res.) / 2144x2144(HLG PHOTO, 4K-Res.)
- 65:24
  - 6000x2208(L)
- 2:1
  - 6000x3000(L)
File size (Pixels) / When using APS-C/Super 35mm lenses
- 3:2
  - 3984x2656(L) / 2880x1920(M) / 2064x1376(S) / 3504x2336(4K PHOTO)
- 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S) / 3328x2496(4K PHOTO)
- 16:9
  - 3984x2240(L) / 2880x1624(M) / 1920x1080(S) / 3840x2160(4K PHOTO)
- 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S) / 2880x2880(4K PHOTO)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: LPCM (2ch 48kHz/16-bit))
  MP4: H.264/MPEG-4 AVC, H.265/HEVC (Audio format: AAC (2ch))
Switch NTSC / PAL
- Yes (NTSC (59.94Hz) / PAL(50.00Hz))
MOV** / NTSC (59.94Hz) / Full-frame
- [C4K] 4096x2160
  - 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [4K] 3840x2160
  - 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [FHD] 1920x1080
  - 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MOV** / NTSC (59.94Hz) / APS-C / Pixel by Pixel
- [C4K] 4096x2160
  - 59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [4K] 3840x2160
  - 59.94p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
    59.94p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [Anamorphic 4K] 3328x2496 (4:3)
  - 29.97p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    23.98p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [FHD] 1920x1080
  - 59.94p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    29.97p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    23.98p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MOV** / PAL (50.00Hz) / Full-frame
- [C4K] 4096x2160
  - 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [4K] 3840x2160
  - 25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [FHD] 1920x1080
  - 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MOV** / PAL (50.00Hz) / APS-C / Pixel by Pixel
- [C4K] 4096x2160
  - 50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [4K] 3840x2160
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [Anamorphic 4K] 3328x2496 (4:3)
  - 50.00p, 200Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, LPCM) *HLG is selectable.
    50.00p, 150Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
- [FHD] 1920x1080
  - 50.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
    25.00p, 100Mbps (4:2:2 10-bit LongGOP)* / 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, LPCM) *HLG is selectable.
MP4** / NTSC (59.94Hz) / Full-frame
- [4K] 3840x2160
  - 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4** / NTSC (59.94Hz) / APS-C / Pixel by Pixel
- [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4** / PAL (50.00Hz) / Full-frame
- [4K] 3840x2160
  - 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4** / PAL (50.00Hz) / APS-C / Pixel by Pixel
- [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)

HDMI RAW DATA OUTPUT

Compatible external devices
- ATOMOS HDMI field monitor/recorder "Ninja V+"
  *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V.
  *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
  *All functions may not be available depending on the situation.

  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
  *All functions may not be available depending on the situation.
Rec quality / NTSC (59.94Hz) / Full-frame
- [5.9K] 5888x3312
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / NTSC (59.94Hz) / APS-C
- [4.1K] 4128x2176 (17:9)
  - 59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- [Anamorphic 3.5K] 3536x2656 (4:3)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / PAL (50.00Hz) / Full-frame
- [5.9K] 5888x3312
  - 25.00p, 12-bit (LPCM)
Rec quality / PAL (50.00Hz) / APS-C
- [4.1K] 4128x2176 (17:9)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
- [Anamorphic 3.5K] 3536x2656 (4:3)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
Audio format
- LPCM (2ch 48kHz/16-bit)

SLOW & QUICK

MP4** / NTSC (59.94Hz) / Full-frame
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
    *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.
MP4** / NTSC (59.94Hz) / APS-C / Pixel by Pixel
- [4K] 3840x2160
  - 29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    1, 2, 5, 10, 15, 30, 60 fps
MP4** / PAL (50.00Hz) / Full-frame
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    1, 2, 5, 10, 15, 30, 60, 100, 120, 150*, 180* fps
    *Angle of view narrows if you select a frame rate with a number of frames 180. The AF mode switches to MF when the frame rate is set to of 150 fps or more.
MP4** / PAL (50.00Hz) / APS-C / Pixel by Pixel
- [4K] 3840x2160
  - 25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    1, 2, 5, 10, 15, 30, 60 fps

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 2.36 million dots
Field of view / Magnification
- Approx. 100% / Approx. 0.74x with 50 mm lens at infinity; -1.0 m^-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 20 mm at infinity; -1.0 m^-1 / -4.0 - +4.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps
Display time lag
- Approx. 0.005sec

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Free-angle, 3.0-inch (about 7.62cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

FOCUS

Type
- Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Auto Detection (Face, Eye, Body, Animal) / Tracking / 225-Area / Zone (Vertical/Horizontal) / Zone (Square) / Zone (Oval) / 1-Area+* / 1-Area* / Pinpoint / Custom 1, 2, 3
  (Full area touch is available) (Scalable AF frame size and flexible AF position) *Human/Animal Detection AF can be set ON or OFF.
AF detective range
- EV -6 - 20 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist lamp
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Post Focus / Focus Stacking
- Yes / Yes
Others
- AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Shutter AF, Half Press Release, Focus/Shutter Priority, Quick AF, Continuous AF (during motion picture recording), Eye Sensor AF, AF-Point Scope Setting, AF+MF, MF Guide, MF Assist, Touch MF Assist, Focus Peaking, Touch AF/AE Function, Touch Pad AF, Touch Shutter, Focus Switching for Vert/Hor, Focus Ring Lock, Show/Hide AF Mode, 1-Area AF Moving Speed, Loop Movement Focus Frame, AFC Start Point (225-Area), Lens Focus Resume, Focus Ring Control

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial
- Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
  *The same exposure operations as P/A/S/M mode is available.
ISO sensitivity (Standard output sensitivity)
- Auto / 50* / 100 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 / 51200 / 102400* / 204800* (Changeable to 1/3 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Native ISO: 100, 640
  Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO

  [V-Log]
  Native ISO: 640, 4000
  Auto: Auto / 320* / 640-51200 *Extended ISO

  [HLG]
  Native ISO: 400, 2500
  Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO

  [Cinelike D2 / Cinelike V2]
  Native ISO: 200, 1250
  Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

Image sensor shift type (5-axis / 5.0-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. (6.5-stop* Dual I.S. 2 compatible) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25
  Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer
- 10sec, 3 images / 2sec / 10sec
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions in 1 EV step
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
- Electronic shutter
  - AFS/MF: H: 7 frames/sec, M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
    AFC: H: 5 frames/sec (with Live View), M: 5 frames/sec (with Live View), L: 2 frames/sec (with Live View)
Number of recordable images
- RAW / RAW+JPEG: More than 24 images
  JPEG: More than 999 images (When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)" inserted into card slot 1.)
  * When recording is performed under the test conditions specified by Panasonic.

6K PHOTO / 4K PHOTO

Burst speed
- 6K PHOTO: 30 frames/sec
  4K PHOTO: 60 frames/sec, 30 frames/sec
Exif information
- Yes (Each JPEG image cropped out of the 6K/4K burst file complies with EXIF.)

FLASH

Flash type
- TTL External Flash (sold separately)
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

PHOTO STYLE

Photo Style
- Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / Cinelike D2 / Cinelike V2 / Like709 / V-Log / Standard (HLG) / Monochrome (HLG) / Like2100 (HLG) / My Photo Style 1-10
Picture adjustment
- Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB
  *Adjustable settings vary depending on the Photo Style mode.

FILTER

Expressive / Retro / Old Days / High Key / Low Key / Sepia / Monochrome / Dynamic Monochrome / Rough Monochrome* / Silky Monochrome* / Impressive Art / High Dynamic / Cross Process / Toy Effect / Toy Pop / Bleach Bypass / Miniature Effect / Soft Focus* / Fantasy / Star Filter* / One Point Color / Sunshine*
*For photos only.

MOTION PICTURE FUNCTION

Vertical Position Information
- ON / OFF
Master pedestal level
- 31 steps
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Wave form monitor / Vectorscope
- Selectable
LUT display
- LUT View Assist (Monitor) / LUT View Assist (HDMI)
Time code
- Count Up: Rec Run/Free Run selectable, Time Code Mode: Drop frame/Non-drop frame selectable (When NTSC (59.94Hz) is selected.)
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Knee control
- Yes (in Like709 mode)

FUNCTION BUTTON

REC
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / HLG Photo / High Resolution Mode / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / Exposure Mode / AF Mode / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode / 1 Shot "6K/4K PHOTO" / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Post-Focus / Motion Pic. Rec File Format / Motion Pic. Rec Quality / Slow & Quick Setting / Time Code Display / Sound Rec Level Disp. / Sound Rec Level Adj. / Sound Rec Level Limiter / Special Mic. Directivity Adjust / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Live Cropping / Q.MENU / Rec / Playback Switch / Video Record / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Style / Photo/Video Preview / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Focus Ring Control/ Zoom Control / Destination Card Slot / Wi-Fi / No Setting / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / 6K/4K PHOTO Bulk Saving / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Night Mode / Card Slot Change / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / 6K/4K Photo Play / No Setting / Off (Disable Press and Hold) / Restore to Default

LEVEL GAUGE

PRINT

PictBridge compatible

INTERFACE

USB
- USB Type-C^® (USB 10Gbps)
HDMI***
- Monitor-through
  - When a mode other than [C4K/60p]/[C4K/50p]/[4K/60p]/[4K/50p] is selected for [Rec Quality]:
    4:2:2 10bit, 4:2:2 8bit, 4:2:0 8bit

    When [C4K/60p]/[C4K/50p/[4K/60p]/[4K/50p] mode is selected in [Rec Quality]:
    4:2:2 10bit*, 4:2:0 8bit *When 4:2:2 10bit mode is selected, it is not possible to record motion picture or still picture on the memory card in the camera unit.

    Info Display: ON / OFF (selectable)
    HLG View Assist (HDMI): AUTO / MODE1 / MODE2 / OFF (selectable)
- Playback
  - microHDMI TypeD / VIERA Link, Audio: Stereo
    NTSC (59.94Hz): Auto / C4K/60p / 4K/60p / 4K/30p / 1080p / 1080i / 720p / 480p
    PAL (50.00Hz): Auto / C4K/50p / 4K/50p / 4K/25p / 1080p / 1080i / 720p / 576p
Remote input
- φ2.5mm
External microphone / external audio device input
- φ3.5mm for external microphone / external audio device
  MIC (Plug-in Power) / MIC / LINE is selectable.
  Stereo/Lens Auto/Shotgun/Super Shotgun/Manual is selectable when attaching DMW-MS2 (sold separately).
Headphone output
- φ3.5mm
Microphone
- Stereo, Wind Noise Canceller: OFF / Low* / Standard / High *When attaching DMW-MS2 (sold separately).
XLR microphone
- Yes with DMW-XLR1 (sold separately)
Speaker
- Monaural
SD card slot
- SD Memory Card, SDHC Memory Card, SDXC Memory Card
  Slot 1: Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.
  Slot 2: Compatible with UHS-I UHS Speed Class 3 standard SDHC/SDXC Memory Cards.

WIRELESS

Wi-Fi
- 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
  5GHz bands (STA) (IEEE 802.11a/n/ac)
Bluetooth
- Bluetooth^® v4.2 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging
Battery life (CIPA standard)
- Approx. 430 images (rear monitor), 450 images (LVF), 1,500 images (Power Save LVF mode*) with S-R1840
  Approx. 410 images (rear monitor), 430 images (LVF), 1,450 images (Power Save LVF mode*) with S-R28200
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture)**
- MP4 [FHD/60p]: Approx. 140 min (rear monitor), 140 min (LVF) *When using S-R1840. When the battery is fully charged.
  MP4 [FHD/60p]: Approx. 130 min (rear monitor), 140 min (LVF) *When using S-R28200. When the battery is fully charged.
Actual recordable time (Motion picture)**
- MP4 [FHD/60p]: Approx. 70 min (APS-C, Pixel by Pixel) (rear monitor), 70 min (APS-C, Pixel by Pixel) (LVF) *When using S-R1840. When the battery is fully charged.
  MP4 [FHD/60p]: Approx. 65 min (APS-C, Pixel by Pixel) (rear monitor), 70 min (APS-C, Pixel by Pixel) (LVF) *When using S-R28200. When the battery is fully charged.
Battery grip
- DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 132.6 x 97.1 x 81.9 mm / 5.22 x 3.82 x 3.22 inch (excluding protrusions)
Weight
- Approx. 714g / 1.58 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
  Approx. 630g / 1.39 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

Operating temperature
- 0°C to 40°C (32°F to 104°F)
Operating humidity
- 10%RH to 80%RH

STANDARD ACCESSORIES

Software
- Recording
  - LUMIX Tether
    ･ This software is used to control a Panasonic digital camera from a PC. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
    http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)
- Playback / Editing
  - ･ The software to edit and playback images on computer is not bundled with this camera. To do this, PHOTOfunSTUDIO 10.1PE is available for download at Panasonic website using computer connected to the Internet.
    https://panasonic.jp/support/global/cs/soft/download/d_pfs1001pe.html(For Windows)
    ･ The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Adwaa's website using computer connected to the Internet.
    http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S5D Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack

  DC-S5DN Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Lens Cap, Lens Rear Cap

  DC-S5DH Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, Lens Cap, Lens Hood, Lens Rear Cap

  ･ The DC-S5D Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

** About motion picture recording / 6K PHOTO/4K PHOTO recording

- 6K PHOTO is a high speed burst shooting function that cuts a still image out of a 4:3 or 3:2 video footage with approx. 18-megapixel (approx. 6000 x 3000 effective pixel count) that the 6K image manages.

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher

- Recording stops when the continuous recording time exceeds 30 minutes in [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] [4K-A/50p] [C4K/4:2:2 10-bit] [4K/4:2:2 10-bit] [4K-A/4:2:2 10-bit] [4K/4:2:0 10-bit] [4K-A/4:2:0 10-bit] [S&Q].
- Recording stops when the continuous recording time exceeds 15 minutes in [6K PHOTO] [4K PHOTO].

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV]: 192GB

- When the ambient temperature is high or continuous recording is performed, the camera may stop the recording to protect itself. Wait until the camera cools down.

*** For [C4K/60p] [C4K/50p] [4K/60p] [4K/50p] video output, use an HDMI2.0 cable that has the HDMI logo on it, and that is described as"4K compatible".

Åbn en ny side til udskrivning

Lignende produkter

DC-S5M2N
(DC-S5M2 + S-R1840)

Full-Frame spejlfrit kamera med Phase Hybrid AF, Aktiv I.S., kvalitetsvideotilstand, C4K/4K 60p/50p 4:2:2 10-bit ubegrænset optagelse og med mere. (Sæt med S5II krop + LUMIX S 18-40 mm / F4.5-6.3)

DC-S5M2XN
(DC-S5M2X + S-R1840)

Full-Frame spejlfrit kamera med Phase Hybrid AF, Aktiv I.S., kvalitetsvideotilstand, C4K/4K 60p/50p 4:2:2 10-bit ubegrænset optagelse og med mere. (Sæt med S5IIX hus + LUMIX S 18-40 mm / F4.5-6.3)

DC-S5DN
(DC-S5D + S-R1840)

LUMIX DC-S5DN (sæt med S5D-hus og LUMIX S 18-40 mm / F4.5-6.3 zoomobjektiv) Full-frame spejlfrit kamera med 24,2 MP MOS-sensor, 4K 60p/50p 10-bit video, og meget mere - alt sammen i et kompakt, let...

DC-S9N
(DC-S9 + S-R1840)

LUMIX DC-S9N (Sæt med S9-hus + LUMIX S 18-40 mm/F4.5-6.3 zoomobjektiv) Skab fængslende indhold direkte fra det nye LUMIX S9 Full-Frame-kamera, som er spækket med professionelle funktioner, men uden...

DC-S9

Skab fængslende indhold direkte fra det nye LUMIX S9 Full-Frame-kamera, som er spækket med professionelle funktioner, men uden behov for redigeringsevner – fra optagelse til udsendelse på 30 sekunder.

DC-S9H
(DC-S9 + S-R28200)

LUMIX DC-S9H (sæt med S9-hus + LUMIX S 28-200 mm/F4-7.1 zoomobjektiv) Skab fængslende indhold direkte fra det nye LUMIX S9 Full-Frame-kamera, som er spækket med professionelle funktioner, men uden ...

DC-S9K
(DC-S9 + S-R2060)

LUMIX DC-S9K (sæt med S9-hus + LUMIX S 20-60 mm/F3.5-5.6-objektiv) Skab fængslende indhold direkte fra det nye LUMIX S9 Full-Frame-kamera, spækket med professionelle funktioner, men uden behov for ...

DC-S5

Full-frame spejlfrit kamera med 24,2 MP MOS-sensor, 4K 60p/50p 10-bit video, og meget mere - alt sammen i et kompakt, letvægtshus.

DC-S5K

Full-frame spejlfrit kamera med 24,2 MP MOS-sensor, 4K 60p/50p 10-bit video, og meget mere - alt sammen i et kompakt, letvægtshus. 20-60mm objektivsæt

DC-S1H

Full-frame DSLM (Digital Single Lens Mirrorless) kamera med V-Log/V-Gamut med 14+ stop dynamic range, 6K full-frame optagelse og 10-bit Cinema 4K/4K 60p/50p optagelse.

DC-S1

En ny 24,2 MP CMOS-sensor, der leverer utroligt realistiske detaljer. 4K-videooptagelse supplerer videokvaliteten på professionelt niveau.

DC-S1M

En ny 24,2 MP CMOS-sensor, der leverer utroligt realistiske detaljer. 4K-videooptagelse supplerer videokvaliteten på professionelt niveau.

DC-S1R

En ny 47,3 MP CMOS-sensor, der leverer utroligt realistiske detaljer. Fokus- og billedstabiliseringssystemer, der indfanger hvert øjeblik med fantastisk klarhed.

DC-S1RM

En ny 47,3 MP CMOS-sensor, der leverer utroligt realistiske detaljer. Fokus- og billedstabiliseringssystemer, der indfanger hvert øjeblik med fantastisk klarhed.
