Dolby Atmos® Soundbar med Bluetooth® SC-HTB900

Tilbage til produktsiden

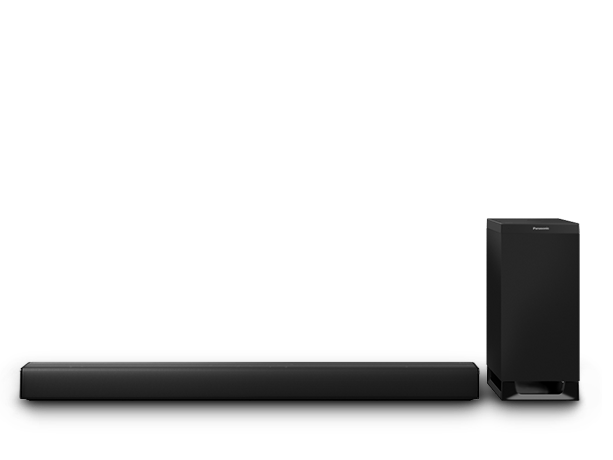

Foto af Dolby Atmos® Soundbar med Bluetooth® SC-HTB900

AMPLIFIER

  • Amp Type

    • 3.1 ch Amp

  • RMS Output Power

    • Front Speaker (Left/Right)

      • 85W+85W (4 Ohm, 1kHz,10%THD, 20kHz LPF)

    • Front Speaker (Center)

      • 85W (4 Ohm, 1kHz,10%THD, 20kHz LPF)

    • Subwoofer

      • 250W (8 Ohm, 100Hz,10%THD, 20kHz LPF)

    • Total RMS Stereo mode power

      • 505 W

SPEAKER SYSTEM

  • Front Speaker(Left/Right)

    • Type

      • 2 way, 3 speaker system(Bass reflex)

    • Speaker Unit

      • Woofer : 6.5 cm x 2 / ch, Cone type
        Tweeter : 1.6 cm x 1 / ch, Dome type

    • Bass Expand

      • Bass Reflex Port x 2

  • Front Speaker(Center)

    • Type

      • 1 way, 2 speaker system(Closed)

    • Speaker Unit

      • Full range : 6.5 cm x 2 / ch, Cone type

  • Wireless Subwoofer

    • Type

      • 1 way, 1 speaker system(Bass reflex)

    • Speaker Unit

      • 16 cm x 1, Cone type

    • Bass Expand

      • Bass Reflex Port

  • Sound Tuning

    • Tuned by Technics

      • yes

  • Speaker Net

    • Metal Mesh Grill

NETWORK

  • Bluetooth

    • Version

      • Bluetooth® Ver 4.2

    • Class

      • Class 2

    • Codec

      • SBC, AAC

    • Connectivity

      • Multi-Pairing(MAX 8 Devices)

  • Wi-Fi

    • WLAN Standard

      • IEEE802.11a/b/g/n/ac

    • Frequency Range

      • 2.4GHz band / 5GHz band

  • Chromecast built-in

    • Multi-room

      • yes

  • Support Format

    • WAV (up to 192 kHz/16, 24 bit), FLAC (up to 192 kHz/16, 24 bit), AIFF, ALAC, AAC, MP3

  • Standby

    • yes

SMARTPHONE APP

  • Music Streaming App *1

    • iOS

      • yes (Bluetooth)

    • Android

      • yes (Bluetooth)

  • Panasonic Music Control App *1*2

    • iOS

      • yes

    • Android

      • yes

SOUND FUNCTION

  • Surround

    • 3D Surround / Virtual Surround

  • SOUND MODE

    • STANDARD, STADIUM, MUSIC, CINEMA, NEWS, STRAIGHT

  • Berlin Philharmonic Hall Mode *2

    • yes

  • Subwoofer Level Adjustment

    • yes

  • Clear-mode Dialog

    • yes

  • Dialog Level Control

    • yes

  • Low-volume Mode

    • yes

  • Auto Gain Control

    • yes

  • Auto LIP Synchronization with Panasonic TV Link

    • yes

DECORDER FUNCTION

  • Dolby Digital / Dolby Digital + / Dolby True HD

    • yes/yes/yes

  • Dolby Atmos

    • yes

  • DTS / DTS ES / DTS 96/24

    • yes/yes/yes

  • DTS-HD HR / HD Master Audio

    • yes/yes

  • DTS : X

    • yes

  • DTS Virtual : X

    • yes

HDMI FUNCTION

  • HDAVI Control

    • yes

  • CEC

    • yes

  • Audio Return Channel(for HDMI Output)*3

    • yes

  • LPCM Multi Channel Input (HDMI Input)

    • yes

  • 1080p, Deep Color, x.v. Color

    • yes

  • 4K Pass through

    • yes

  • FULL HD 3D COMPATIBLE

    • yes

  • HDR

    • yes

TERMINALS

  • HDMI

    • Input

      • x 2

    • Output

      • x 1 (ARC)

  • Audio Input

    • Optical Digital Input

      • yes

  • Other

    • IR System Terminal

      • yes

MAIN UNIT SETTING

  • Wall Mountable

    • yes

  • TV Size for Fitting

    • 48 inch

GENERAL

  • Power Supply

    • AC 220 - 240 V, 50 Hz

  • Power Consumption *4

    • Normal Use

      • 40 W

    • Standby OFF

      • 0.3 W

    • Standby ON

      • 2.0 W

  • Dimmer

    • FL Dimmer (Bright / Dark / OFF)

  • Auto OFF

    • yes

DIMENSIONS, WEIGHT

  • Main Unit

    • Dimensions (W x H x D)

      • 1050 x 78 x 129 mm

    • Weight

      • 6.0kg

  • Wireless Subwoofer

    • Dimensions (W x H x D)

      • 180 x 408 x 306mm

    • Weight

      • 5.4kg

NOTIFICATION

  • NOTE

    • *1 Download on the App Store. Download on Google Play™.
      *2 Enabled by software update.
      *3 Package Remarks: ARC (Audio Return Channel) compatible TV is required.
      *4 Specifications are subject to change without notice. All numbers given here are approximate.

  • REMARKS

    • Consider world wide design, except USA.
      For example, for Taiwan market and wide-range power supplier design.
