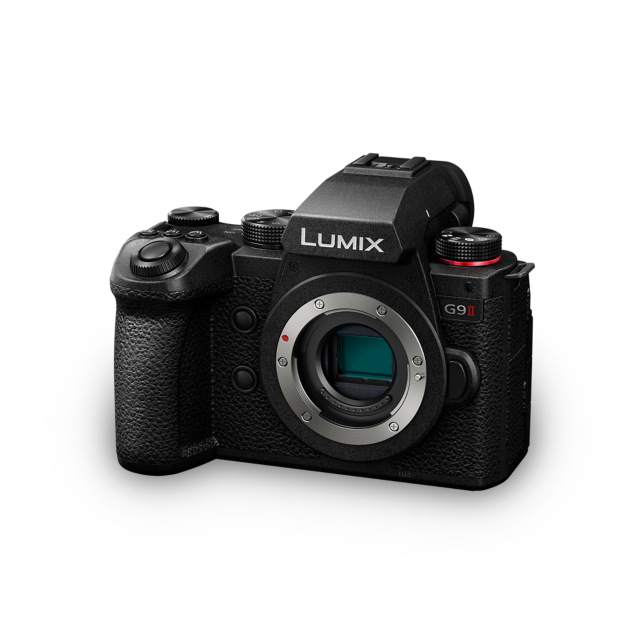

LUMIX G9II Camera DC-G9M2

Price †$ 2,599.99

DC-G9M2

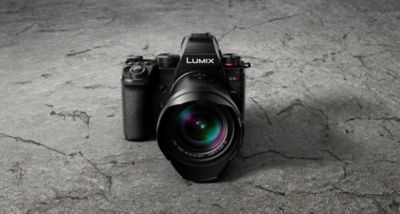

Capture the decisive moment

A new sensor and new engine. Boasting outstanding photographic performance, and the first PDAF in the LUMIX G Series. Flagship model for still images to capture the decisive moment through improved high-speed performance and mobility.

DC-G9M2

Price †2,599.99

SHOP NOW

Features

Capture the decisive moment

Picture-making with LUMIX

Capture the decisive moment with the utmost fidelity and express it in your own unique way. The LUMIX G9II offers a wide range of options, including LEICA Monochrome and REAL TIME LUT, as well as the latest image sensor and image processing engine.

Capture the moment

The LUMIX G9II is totally equipped, from the LUMIX G series’ first-ever Phase Hybrid AF, to 60 fps AFC burst shooting and incredible slow-motion videos.

Unparalleled mobility

The compact and lightweight system is easy to use on the go, while the Image Stabilizer allows hand-held shooting even in low-light environments or at telephoto range. The intuitive, ergonomic layout and 8-directional joystick allows you to select the focus area intuitively with simple, one-thumb operation.

LUMIX's commitment to picture-making

Enjoy richer tonal gradations and more descriptive shadows when shooting RAW. The LUMIX G9II’s combination of a new 25.2MP Live MOS sensor with Phase Detection AF and the latest image processing engine ensures each precious moment is faithfully captured forever.

FIND OUT MORE

Capture the moment with speed and precision

Phase Hybrid AF, a first for the LUMIX G series, lets you shoot continuously with speed and precision, while the LUMIX G9II’s highly advanced AF pushes the envelope on sport, wildlife, and car/motorcycle photography. Now, with the addition of "airplane" and "train" to the subject recognition capabilities, you can capture a wider variety of scenes with ease.

* *To use Airplane/Train recognition, please update the firmware to version 2.3.

FIND OUT MORE

Capture the moment with speed and precision

Just keep shooting

The camera allows 60 fps burst shooting with AFC,* as well as burst shooting of up to approximately 3 seconds, all with the viewfinder staying blackout-free. In addition, the LUMIX G9II’s pre-burst shooting function allows you to go back in time. Now you’re ready to capture that perfect moment.

*Uses electronic shutter. 75 fps with AFS.
*This photo a composite created from photos taken using the burst shooting feature of this model.

FIND OUT MORE

Infinite color expression

LEICA Monochrome

Leica is well known for its superior picture quality and has a reputation from users all over the world for its outstanding depiction and expressiveness. Through our L2 Technology collaboration, we learned the picture-making philosophy that Leica has built up over its long history and realized this mode as one of the new expressiveness of the LUMIX camera. It features deep contrasts between black and white.

･Compared to LUMIX’s L.Monochrome D, LEICA Monochrome shows brighter images on highlights, and generally strong and dynamic monochrome.

REAL TIME LUT

Capture the moment with final look even before editing. With the LUMIX G9II, you can record LUT-applied photos and videos for your desired color grading. Exponentially expand your range of expression with the camera alone.

DOWNLOAD CREATOR’S LUTS

Easy hand-held shooting

Express your creativity without limitations even in low light or at telephoto range. The astonishing power of the 8.0-stop B.I.S.* eliminates shake, even in low light with slow shutter speeds, while the 7.5-stop 5-axis Dual I.S. 2** provides powerful image stabilization even at telephoto range.

*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.]
**Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FSA14140 is used.]

FIND OUT MORE

Video creation begins here

With the LUMIX G9II, you now have the option of capturing the decisive moment in incredible slow-motion video (C4K/4K 10-bit 120p/100p). Create video with greater ease and simplicity than ever before.

FIND OUT MORE

Become one with the camera

The intuitive, well-calculated layout and 8-directional joystick allow you to select the focus area intuitively with simple, one-thumb operation for speedy shooting.

Discover something new

A compact and lightweight system

The LUMIX G series offers a full lineup of LEICA DG lenses ranging from 16mm to 1600mm*, while the Micro Four Thirds system's unrivaled mobility gives you free rein to express your creativity.

･The Micro Four Thirds™ name and logos are trademarks or registered trademarks of OM Digital Solutions Corporation in Japan, the United States, the European Union, and other countries and regions.

FIND OUT MORE ABOUT LUMIX G LENSES

LUMIX photography impression

View the work of four photographers who have collaborated with LUMIX.

DISCOVER THEIR STORIES

Get Inspired

Specs

Size and Weight

Height: 102.3mm

Width: 134.3mm

Depth: 90.1mm

Weight: 658g

All values are approximate. Weight with SD card and battery. Lens is excluded. Body only 575g. Dimensions exclude protrusions.

Micro Four Thirds System Standard
25.2 Megapixels
Phase Hybrid AF
5-Axis Dual I.S. 2 (Image Stabilizer)
C4K/4K 4:2:2 10-bit 60p/50p video
HFR, S&Q 10-bit Video
V-Log
1840k-dot Free-angle Monitor
3680k-dot OLED Live View Finder
Splash and Dust-resistant
Wi-Fi
Bluetooth

New 25.2MP sensor and new engine

Phase Hybrid AF and 60 fps AFC burst shooting

8.0-stop B.I.S. and 7.5-stop 5-axis Dual I.S. 2

C4K/4K 60p/50p 4:2:2 10-bit video recording

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- Micro Four Thirds mount

IMAGE SENSOR

Type
- Live MOS sensor (17.3 x 13.0 mm)
Camera effective pixels / Total pixels
- 25.21 megapixels / 26.52 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 4:3 / Primary color filter
Dust reduction system
- Image sensor shift type

LATITUDE

13+ stops (V-Log) (Sensor output is 60fps or less)
12+ stops (V-Log) (Sensor output is 61fps or higher)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 2.31), RAW
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1
File size (Pixels)
- 4:3
  - 5776x4336(L) / 4096x3072(M) / 2944x2208(S) / 1920x1440(XS) (*⁷) / 11552x8672(XL)* / 8192x6144(LL)* *High Resolution Mode.
- 3:2
  - 5776x3848(L) / 4096x2728(M) / 2944x1960(S) / 1920x1280(XS) (*⁷) / 11552x7696(XL)* / 8192x5464(LL)* *High Resolution Mode.
- 16:9
  - 5776x3248(L) / 4096x2304(M) / 2944x1656(S) / 1920x1080(XS) (*⁷) / 11552x6496(XL)* / 8192x4608(LL)* *High Resolution Mode.
- 1:1
  - 4336x4336(L) / 3072x3072(M) / 2208x2208(S) / 1440x1440(XS) (*⁷) / 8672x8672(XL)* / 6144x6144(LL)* *High Resolution Mode.
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC, Apple ProRes
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
  MP4(Lite): H.265/HEVC (*⁷)
Audio format
- MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  MP4: AAC (2ch 48kHz/16-bit)
  MP4(Lite): AAC (2ch 48kHz/16-bit) (*⁷)
  *When attaching Φ3.5mm microphone, DMW-XLR2(*⁶) or DMW-XLR1 (sold separately). **When attaching DMW-XLR2(*⁶) or DMW-XLR1 (sold separately).
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- FULL / PIXEL/PIXEL
MOV (*¹) (*²) *HLG is selectable.
- 59.94Hz [5.8K] 5760x4320 (4:3)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 59.94Hz [5.7K] 5728x3024 (17:9)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 59.94Hz [4.4K] 4352x3264 (4:3)
  - 59.94p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    47.95p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
- 59.94Hz [C4K] 4096x2160
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
    **External USB-SSD recording.
- 59.94Hz [4K] 3840x2160
  - 119.88p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    59.94p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    47.95p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
    **External USB-SSD recording.
- 59.94Hz [FHD] 1920x1080
  - 239.76p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/**
    239.76p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/***
    239.76p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/***
    119.88p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)***
    119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)***
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)***
    59.94p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Image Area of Video is set to FULL during this recording mode.
    **External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required.
    ***An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
- 50.00Hz [5.8K] 5760x4320 (4:3)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 50.00Hz [5.7K] 5728x3024 (17:9)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 50.00Hz [4.4K] 4352x3264 (4:3)
  - 50.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
- 50.00Hz [C4K] 4096x2160
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
    **External USB-SSD recording.
- 50.00Hz [4K] 3840x2160
  - 100.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**
    50.00p, 600Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
    **External USB-SSD recording.
- 50.00Hz [FHD] 1920x1080
  - 200.00p, 800Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/**
    200.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*/***
    200.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/***
    100.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)***
    100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)***
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)***
    50.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Image Area of Video is set to FULL during this recording mode.
    **External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required.
    ***An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
- 24.00Hz [5.8K] 5760x4320 (4:3)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 24.00Hz [5.7K] 5728x3024 (17:9)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to FULL during this recording mode.
- 24.00Hz [4.4K] 4352x3264 (4:3)
  - 48.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    *Image Area of Video is set to PIXEL/PIXEL during this recording mode.
- 24.00Hz [C4K] 4096x2160
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
- 24.00Hz [4K] 3840x2160
  - 120.00p, 300Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
- 24.00Hz [FHD] 1920x1080
  - 120.00p, 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*
    120.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    120.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p, 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required on a USB-SSD.
MP4 (*¹)
- 59.94Hz [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    29.97p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    23.98p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    *HLG is selectable.
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 50.00Hz [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    25.00p, 72Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)*
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    *HLG is selectable.
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- 24.00Hz
  - -
MP4(Lite) (*⁷)
- 59.94Hz [3.8K] 3840x2880 (4:3)
  - 29.97p, 50Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
- 50.00Hz [3.8K] 3840x2880 (4:3)
  - 25.00p, 50Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, AAC)
- 24.00Hz
  - -
ProRes (*¹) (*²)
- 59.94Hz [5.7K] 5728x3024 (17:9)
  - 29.97p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (LPCM)*
    23.98p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (LPCM)*
    *External USB-SSD recording. Image Area of Video is set to FULL during this recording mode.
- 59.94Hz [C4K] 4096x2160
  - 59.94p, 1.9Gbps (ProRes 422 HQ) / 1.3Gbps (ProRes 422) (LPCM)*
    29.97p, 972Mbps (ProRes 422 HQ) / 648Mbps (ProRes 422) (LPCM)*
    23.98p, 778Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (LPCM)*
    *External USB-SSD recording.
- 59.94Hz [FHD] 1920x1080
  - 59.94p, 454Mbps (ProRes 422 HQ) / 302Mbps (ProRes 422) (LPCM)
    29.97p, 227Mbps (ProRes 422 HQ) / 151Mbps (ProRes 422) (LPCM)
    23.98p, 181Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (LPCM)
- 50.00Hz [5.7K] 5728x3024 (17:9)
  - 25.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (LPCM)*
    *External USB-SSD recording. Image Area of Video is set to FULL during this recording mode.
- 50.00Hz [C4K] 4096x2160
  - 50.00p, 1.6Gbps (ProRes 422 HQ) / 1.1Gbps (ProRes 422) (LPCM)*
    25.00p, 811Mbps (ProRes 422 HQ) / 541Mbps (ProRes 422) (LPCM)*
    *External USB-SSD recording.
- 50.00Hz [FHD] 1920x1080
  - 50.00p, 378Mbps (ProRes 422 HQ) / 252Mbps (ProRes 422) (LPCM)
    25.00p, 189Mbps (ProRes 422 HQ) / 126Mbps (ProRes 422) (LPCM)
- 24.00Hz [5.7K] 5728x3024 (17:9)
  - 24.00p, 1.5Gbps (ProRes 422 HQ) / 1.0Gbps (ProRes 422) (LPCM)*
    *External USB-SSD recording. Image Area of Video is set to FULL during this recording mode.
- 24.00Hz [C4K] 4096x2160
  - 24.00p, 779Mbps (ProRes 422 HQ) / 519Mbps (ProRes 422) (LPCM)*
    *External USB-SSD recording.
- 24.00Hz [FHD] 1920x1080
  - 24.00p, 182Mbps (ProRes 422 HQ) / 121Mbps (ProRes 422) (LPCM)

SLOW & QUICK

MOV (*¹) *HLG is selectable.
- 59.94Hz [C4K] 4096x2160
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    **External USB-SSD recording.
- 59.94Hz [4K] 3840x2160
  - 59.94p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    29.97p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    23.98p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    23.98p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    **External USB-SSD recording.
- 59.94Hz [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    59.94p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/***
    29.97p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    29.97p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/***
    23.98p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    23.98p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/***
    *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    **An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    ***External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher.
- 50.00Hz [C4K] 4096x2160
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    **External USB-SSD recording.
- 50.00Hz [4K] 3840x2160
  - 50.00p (Maximum output of sensor is 120fps), 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    25.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    **External USB-SSD recording.
- 50.00Hz [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    50.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/***
    25.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    25.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/***
    *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    **An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    ***External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher.
- 24.00Hz [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    **External USB-SSD recording.
- 24.00Hz [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 120fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    24.00p (Maximum output of sensor is 60fps), 400Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)**　
    *An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    **External USB-SSD recording.
- 24.00Hz [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 300fps), 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*/**
    24.00p (Maximum output of sensor is 240fps), 200Mbps (4:2:2 10-bit ALL-Intra) (H.264/MPEG-4 AVC, LPCM)*/***
    *Maximum output of sensor is 120fps when Image Area of Video is set to PIXEL/PIXEL.
    **An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher on a USB-SSD.
    ***External USB-SSD recording. An AC Adaptor DMW-AC10 (optional) and DC Coupler DMW-DCC17 (optional) are required to record video of 61fps or higher.

HDMI RAW DATA OUTPUT (*⁵)

Compatible external devices
- Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and DaVinci Resolve Studio to edit Blackmagic RAW data.
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of Blackmagic Video Assist 5" 12G HDR and Blackmagic Video Assist 7" 12G HDR.
  *All functions may not be available depending on the situation.
  *When recording in C4K 120p/100p or 5.7K 60p/50p, constant bitrate 5:1 or less is recommended for SSD recording and 8:1 or less for SD card recording.

  ATOMOS devices "Ninja V" / "Ninja V+" / "Ninja" / "Ninja Ultra" / "Shogun" / "Shogun Ultra" / "Shogun Connect"
  *All functions may not be available depending on the situation.
  *Please check here for compatible firmware versions of external recorders.
  https://panasonic.jp/support/global/cs/dsc/connect/index.html
  *"Ninja V" "Ninja" "Shogun" does not support some RAW video data.
  *Software that supports Apple ProRes RAW is required to edit RAW video recorded.
  *A LUT (Lookup table) exclusively designed for RAW video is available on the following customer support website to make the same color grading as V-Log/V-Gamut.
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
Rec quality
- NTSC (59.94Hz) [5.8K] 5760x4320 (4:3)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- NTSC (59.94Hz) [5.7K] 5728x3024 (17:9)
  - 59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- NTSC (59.94Hz) [4.4K] 4352x3264 (4:3)
  - 59.94p, 12-bit (LPCM)
- NTSC (59.94Hz) [C4K] 4096x2160 (17:9)
  - 119.88p, 12-bit (LPCM)
    59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- PAL (50.00Hz) [5.8K] 5760x4320 (4:3)
  - 25.00p, 12-bit (LPCM)
- PAL (50.00Hz) [5.7K] 5728x3024 (17:9)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
- PAL (50.00Hz) [4.4K] 4352x3264 (4:3)
  - 50.00p, 12-bit (LPCM)
- PAL (50.00Hz) [C4K] 4096x2160 (17:9)
  - 100.00p, 12-bit (LPCM)
    50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
Audio format
- LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  *When attaching Φ3.5mm microphone, DMW-XLR2(*⁶) or DMW-XLR1 (sold separately). **When attaching DMW-XLR2(*⁶) or DMW-XLR1 (sold separately).

EXTERNAL USB-SSD RECORDING

Yes (ON / OFF)

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 3.68 million dots
Field of view / Magnification
- Approx. 100% / Approx. 1.6x / 0.8x (35mm camera equivalent) with 50 mm lens at infinity; -1.0 m^-1, when the aspect ratio is set to 4:3
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m^-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

FOCUS (*³)

Type
- Phase Detection AF system / Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Automatic Detection can be turned ON to switch between Human / Animal / Car / Motorcycle / Train (*⁷) / Airplane (*⁷). Except when Pinpoint is set.
AF detective range
- EV -4 - 18 (F2.0, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Focus ring control
- Nonlinear / Linear* (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum) *When a compatible lens is attached.
Others
- AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope, Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial
- Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
  *The same exposure operations as P/A/S/M mode is available.
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)
- Still image
  - [Normal]
    Auto / 50 (Extended ISO) / 100-25600

    [V-Log]
    Auto / 125 (Extended ISO) / 500-12800

    *Switchable between 1/3 or 1 EV step.
- Motion picture
  - [Normal]
    Sensor output is 60fps or less (Base ISO 100): Auto / 50 (Extended ISO) / 100-12800
    Sensor output is 61fps or higher (Base ISO 100): Auto / 50 (Extended ISO) / 100-3200 / 4000-12800 (Extended ISO)

    [V-Log]
    Sensor output is 60fps or less (Base ISO 500): Auto / 125-400 (Extended ISO) / 500-12800
    Sensor output is 61fps or higher (Base ISO 250): Auto / 125-200 (Extended ISO) / 250-3200 / 4000-12800 (Extended ISO)

    [Hybrid Log Gamma]
    Sensor output is 60fps or less (Base ISO 250): Auto / 250-12800
    Sensor output is 61fps or higher (Base ISO 250): Auto / 250-3200 / 4000-12800 (Extended ISO)

    *Switchable between 1/3 or 1 EV step.
ISO Auto
- Still image
  - [Normal]
    Minimum: 100-12800
    Max: Auto / 200-25600

    [V-Log]
    Minimum: 500-6400
    Max: Auto / 800-12800
- Motion picture
  - [Normal]
    Minimum:
    Sensor output is 60fps or less: 100-6400
    Sensor output is 61fps or higher: 100-1600
    Max:
    Sensor output is 60fps or less: Auto / 200-12800
    Sensor output is 61fps or higher: Auto / 200-3200

    [V-Log]
    Minimum:
    Sensor output is 60fps or less: 500-6400
    Sensor output is 61fps or higher: 250-1600
    Max:
    Sensor output is 60fps or less: Auto / 800-12800
    Sensor output is 61fps or higher: Auto / 400-3200

    [Hybrid Log Gamma]
    Minimum:
    Sensor output is 60fps or less: 250-6400
    Sensor output is 61fps or higher: 250-1600
    Max:
    Sensor output is 60fps or less: Auto / 400-12800
    Sensor output is 61fps or higher: Auto / 400-3200
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

B.I.S. (5-axis / 8.0-stop*)
*Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm (35mm camera equivalent f=120mm) when H-ES12060 is used.]

Dual I.S. 2 (7.5-stop**)
**Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=140mm (35mm camera equivalent f=280mm) when H-FSA14140 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/32,000 - 60
  Motion picture: 1/25,000 - 1/25
  Creative Video M mode / MF mode: 1/25,000 - 1/8
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter
  - H: 14 frames/sec (AFS/MF), 10 frames/sec (AFC) (with Live View)
    M: 6 frames/sec (AFS/AFC/MF) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
- Electronic front curtain shutter
  - H: 14 frames/sec (AFS/MF), 9 frames/sec (AFC) (with Live View)
    M: 6 frames/sec (AFS/AFC/MF) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
- Electronic shutter
  - SH75: 75 frames/sec (AFS/MF)
    SH60: 60 frames/sec (AFS/AFC/MF)
    SH20: 20 frames/sec (AFS/AFC/MF)
    SH75 PRE: 75 frames/sec (AFS/MF)
    SH60 PRE: 60 frames/sec (AFS/AFC/MF)
    SH20 PRE: 20 frames/sec (AFS/AFC/MF)
    H: 14 frames/sec (AFS/MF), 9 frames/sec (AFC) (with Live View)
    M: 6 frames/sec (AFS/AFC/MF) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images
- H/M/L*
  RAW+JPEG: More than 160 images
  RAW: More than 170 images
  JPEG: More than 200 images
  *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
  *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

  SH
  RAW / RAW+JPEG / JPEG: 200 images

FLASH

Flash type
- TTL External Flash (sold separately)
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Synchronization speed
- Less than 1/250 second
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

2.0x (EX S), 1.4x (EX M) *Only for still image recording.

CROP ZOOM (*⁷)

Still image / Motion picture

COLOR SETTINGS

Photo Style
- Photo Style
  - Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Hybrid Log Gamma / My Photo Style 1-4 (5-10)*
    *Set to ON from Show/Hide Photo Style to select.
- Picture adjustment
  - Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
    *Adjustable settings vary depending on the Photo Style mode.
Filter
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library
- Vlog_709 / Set 1-10
  *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

MOTION PICTURE FUNCTION

Time lapse shot
- Yes
Stop motion animation
- Yes
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Synchro scan
- Yes
Master pedestal level
- 31 steps
Color bars / Test tone
- Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist
- Supported file types: .vlt, .cube
  Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / Vectorscope
- Selectable
Knee control
- Yes (in Like709 mode)
Red REC frame indicator
- ON / OFF

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / Focus Frame Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / AF-Point Scope / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Live View Composite / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Zoom Control / Step Zoom / Zoom Speed / Lens Information / Destination Card Slot / Wi-Fi / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / REAL TIME LUT (*⁶) / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Restore to Default

INTERFACE

USB
- USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*⁴)
- HDMI
  - HDMI TypeA
    Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit] or [4:2:0 8bit].)
- Playback
  - 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
    50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
    24.00Hz: C4K/24p / 4K/24p / 1080p
    *Only for playback.
Remote input
- φ2.5mm
Audio
- Build-in microphone
  - Stereo
    Wind Noise Canceller: OFF / Standard / High
- External microphone / External audio device input
  - φ3.5mm for external microphone / external audio device
    MIC (Plug-in Power) / MIC / LINE
    Wind Cut: OFF / Low / Standard / High *When attaching Φ3.5mm microphone.
    Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
- XLR microphone
  - Yes with DMW-XLR2(*⁶) or DMW-XLR1 (sold separately)
- 4ch mic input
  - Yes with DMW-XLR2(*⁶) or DMW-XLR1 (sold separately)
- Speaker
  - Monaural
- Headphone output
  - φ3.5mm
Card slot
- Slot 1, Slot 2
  SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

Count up
- Rec Run / Free Run
Time code mode
- Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output
- ON / OFF

WIRELESS

Wi-Fi
- 2.4GHz (STA/AP) (IEEE802.11b/g/n)
  5GHz (STA) (IEEE 802.11a/n/ac)
  Security: WPA/WPA2/WPA3
Bluetooth
- Bluetooth^® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- When using SD memory card
  - Approx. 370 images, 1300 images (Power Save LVF mode*) with H-ES12060 / DMW-BLK22
    Approx. 390 images, 1350 images (Power Save LVF mode*) with H-FS12060 / DMW-BLK22
    *Using a Panasonic SDXC memory card. Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
- When using external USB-SSD (*⁶)
  - Approx. 310 images with H-ES12060 / DMW-BLK22
    Approx. 320 images with H-FS12060 / DMW-BLK22
    *Using a Samsung external SSD (T7 Shield 2TB1TB). Under the test conditions specified by Panasonic based on CIPA standard.
Continuous recordable time (Motion picture) (*¹)
- When using SD memory card
  - MP4 [4K/60p]: Approx. 90 min *When using H-ES12060 / H-FS12060. When the battery is fully charged.
- When using external USB-SSD
  - MP4 [4K/60p]: Approx. 80 min *When using H-ES12060 / H-FS12060. When the battery is fully charged.
Actual recordable time (Motion picture) (*¹)
- When using SD memory card
  - MP4 [4K/60p]: Approx. 45 min *When using H-ES12060 / H-FS12060. When the battery is fully charged.
- When using external USB-SSD
  - MP4 [4K/60p]: Approx. 40 min *When using H-ES12060 / H-FS12060. When the battery is fully charged.
Battery grip
- DMW-BG1 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
  Approx. 134.3 x 102.3 x 140.7 mm / 5.29 x 4.03 x 5.54 inch (with H-FS12060, excluding protrusions)
  Approx. 134.3 x 102.3 x 153.8 mm / 5.29 x 4.03 x 6.06 inch (with H-ES12060, excluding protrusions)
Weight
- Approx. 658g / 1.45 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
  Approx. 575g / 1.27 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

Operating temperature
- -10℃ to 40℃ (14˚F to 104˚F)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- LUMIX Tether
  ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

  LUMIX Sync / LUMIX Lab (*⁶)
  ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
  https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

  ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-G9M2 Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C)

  DC-G9M2L Kit / DC-G9M2M Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap

  ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

NOTE

(*1) About motion picture recording

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: External USB-SSD, SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: External USB-SSD, SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher
Motion pictures with 400Mbps or less: External USB-SSD, SD memory card with Video Speed Class 60 or higher
Motion pictures with 600Mbps or less: External USB-SSD, SD memory card with Video Speed Class 90
Motion pictures with 800Mbps or more, Slow&Quick with ALL-Intra, or ProRes in 5.7K / C4K: External USB-SSD

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV] in 600Mbps or less: 192GB
[MOV] in 800Mbps: 640GB
[ProRes] in [5.7K]: 640GB

- The camera may stop the recording to protect itself when the camera temperature rises. Wait until the camera cools down.
- The camera may stop the recording when used in a temperature that is lower or higher than the recommended operating temperature (-10 to 40 degrees).

(*2) High-res audio is selectable only when attaching Φ3.5mm microphone, DMW-XLR2(*⁶) or DMW-XLR1 (sold separately).

(*3) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 60p.
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting above 60p.

(*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).

(*5) Firmware must be updated to version 2.0.

(*6) Firmware must be updated to version 2.2.

(*7) Firmware must be updated to version 2.3.

Open a new page for printing

Different Size Products

DC-GH7

Equipped with a 25.2MP BSI CMOS sensor with PDAF, ProRes RAW HQ internal recording and 32-bit float recording, LUMIX's flagship hybrid camera allows you to produce high-quality and high-efficiency ...

DC-GH7L

LUMIX’s flagship hybrid camera equipped with a 25.2MP BSI CMOS sensor with PDAF, ProRes RAW HQ internal recording and 32-bit float recording. 12-60mm (24-120mm) LEICA DG lens kit

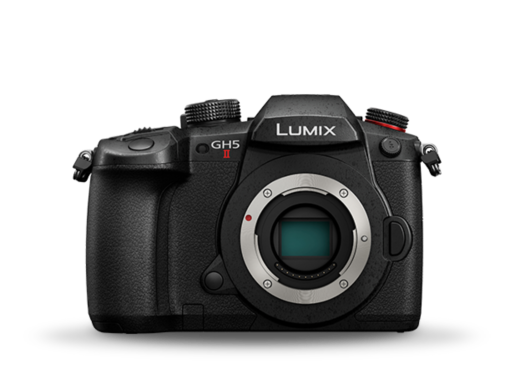

DC-GH5M2

LUMIX G mirrorless camera featuring 20.3MP MOS sensor, C4K 60p/50p 10-bit video recording and wireless live streaming capability.

Price †$ 1,699.99

DC-GH5M2L

LUMIX G mirrorless camera featuring 20.3MP MOS sensor, C4K 60p/50p 10-bit video recording and wireless live streaming capability. 12-60mm (24-120mm) LEICA DG lens kit

Price †$ 2,499.99

Where to Buy

Panasonic eStore

Buy hassle free direct from Panasonic and enjoy free shipping on orders $19.95+ (excluding scheduled deliveries).

Dealer Locator

Experience our products in store at a dealer near you.

Support Centre

Need help? Find solutions to popular support inquiries.

Club Panasonic

Join Club Panasonic to receive exclusive discounts and additional membership benefits.

Accessories

Lenses

H-E08018

LEICA DG VARIO-ELMARIT 8-18mm / F2.8-4.0 ASPH.

H-X1025

LEICA DG VARIO-SUMMILUX 10-25mm/F1.7 ASPH.

H-ES12035

Micro Four Thirds 12-35mm Standard Zoom Lens / 24-70mm (35mm camera equiv.)

H-ES12060

LEICA DG VARIO-ELMARIT 12-60mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-X2550PP

Micro Four Thirds 25-50 mm Telephoto Zoom Lens / 50-100 mm (35 mm camera equiv.)

H-ES35100PP

Micro Four Thirds 35-100mm Telephoto Zoom Lens / 70-200mm (35mm camera equiv.)

H-ES50200

LEICA DG VARIO-ELMARIT 50-200mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-RSA100400P

Micro Four Thirds 100-400mm Telephoto Zoom Lens / 200-800mm (35mm camera equiv.)

H-X09

Micro Four Thirds 9mm Fixed Focal Length Lens / 18mm (35mm camera equiv.)

H-X012

LEICA DG SUMMILUX 12mm / F1.4 ASPH.

H-X015

LEICA DG SUMMILUX 15mm / F1.7 ASPH.

H-XA025

LEICA DG SUMMILUX 25mm / F1.4 II ASPH.

H-NS043

LEICA DG NOCTICRON 42.5mm / F1.2 ASPH. / POWER O.I.S.

H-ES045

LEICA DG MACRO-ELMARIT 45mm / F2.8 ASPH. / MEGA O.I.S.

H-ES200

LEICA DG ELMARIT 200mm / F2.8 / POWER O.I.S.

H-HSA12035

LUMIX G X VARIO 12-35mm / F2.8 II ASPH. / POWER O.I.S.

H-HSA35100

LUMIX G X VARIO 35-100mm / F2.8 II / POWER O.I.S.

H-F007014

LUMIX G VARIO 7-14mm / F4.0 ASPH.

H-FS12032

LUMIX G VARIO 12-32mm / F3.5-F5.6 ASPH. / MEGA O.I.S.

H-FS12060

LUMIX G VARIO 12-60mm / F3.5-5.6 ASPH. / POWER O.I.S.

H-PS14042

LUMIX G X VARIO PZ 14-42mm / F3.5-5.6 ASPH. / POWER O.I.S.

H-FS1442A

LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S.

H-FSA14140

LUMIX G VARIO 14-140mm / F3.5-5.6 II ASPH. / POWER O.I.S.

H-FS35100

LUMIX G VARIO 35-100mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-FS45150

LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-PS45175

LUMIX G X VARIO PZ 45-175mm / F4.0-5.6 ASPH. / POWER O.I.S.

H-FSA45200

LUMIX G VARIO 45-200mm / F4.0-5.6 II / POWER O.I.S.

H-FSA100300

LUMIX G VARIO 100-300mm / F4.0-5.6 II / MEGA O.I.S.

H-F008

LUMIX G FISHEYE 8mm / F3.5

H-H014A

LUMIX G 14mm / F2.5 II ASPH.

H-H020A

LUMIX G 20mm / F1.7 Ⅱ ASPH.

H-HS030

LUMIX G MACRO 30mm / F2.8 ASPH. / MEGA O.I.S.

H-E08018

LEICA DG VARIO-ELMARIT 8-18mm / F2.8-4.0 ASPH.

H-X1025

LEICA DG VARIO-SUMMILUX 10-25mm/F1.7 ASPH.

H-ES12035

Micro Four Thirds 12-35mm Standard Zoom Lens / 24-70mm (35mm camera equiv.)

H-ES12060

LEICA DG VARIO-ELMARIT 12-60mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-X2550PP

Micro Four Thirds 25-50 mm Telephoto Zoom Lens / 50-100 mm (35 mm camera equiv.)

H-ES35100PP

Micro Four Thirds 35-100mm Telephoto Zoom Lens / 70-200mm (35mm camera equiv.)

H-ES50200

LEICA DG VARIO-ELMARIT 50-200mm / F2.8-4.0 ASPH. / POWER O.I.S.

H-RSA100400P

Micro Four Thirds 100-400mm Telephoto Zoom Lens / 200-800mm (35mm camera equiv.)

H-X09

Micro Four Thirds 9mm Fixed Focal Length Lens / 18mm (35mm camera equiv.)

H-X012

LEICA DG SUMMILUX 12mm / F1.4 ASPH.

H-X015

LEICA DG SUMMILUX 15mm / F1.7 ASPH.

H-XA025

LEICA DG SUMMILUX 25mm / F1.4 II ASPH.

H-NS043

LEICA DG NOCTICRON 42.5mm / F1.2 ASPH. / POWER O.I.S.

H-ES045

LEICA DG MACRO-ELMARIT 45mm / F2.8 ASPH. / MEGA O.I.S.

H-ES200

LEICA DG ELMARIT 200mm / F2.8 / POWER O.I.S.

H-HSA12035

LUMIX G X VARIO 12-35mm / F2.8 II ASPH. / POWER O.I.S.

H-HSA35100

LUMIX G X VARIO 35-100mm / F2.8 II / POWER O.I.S.

H-F007014

LUMIX G VARIO 7-14mm / F4.0 ASPH.

H-FS12032

LUMIX G VARIO 12-32mm / F3.5-F5.6 ASPH. / MEGA O.I.S.

H-FS12060

LUMIX G VARIO 12-60mm / F3.5-5.6 ASPH. / POWER O.I.S.

H-PS14042

LUMIX G X VARIO PZ 14-42mm / F3.5-5.6 ASPH. / POWER O.I.S.

H-FS1442A

LUMIX G VARIO 14-42mm / F3.5-5.6 II ASPH. / MEGA O.I.S.

H-FSA14140

LUMIX G VARIO 14-140mm / F3.5-5.6 II ASPH. / POWER O.I.S.

H-FS35100

LUMIX G VARIO 35-100mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-FS45150

LUMIX G VARIO 45-150mm / F4.0-5.6 ASPH. / MEGA O.I.S.

H-PS45175

LUMIX G X VARIO PZ 45-175mm / F4.0-5.6 ASPH. / POWER O.I.S.

H-FSA45200

LUMIX G VARIO 45-200mm / F4.0-5.6 II / POWER O.I.S.

H-FSA100300

LUMIX G VARIO 100-300mm / F4.0-5.6 II / MEGA O.I.S.

H-F008

LUMIX G FISHEYE 8mm / F3.5

H-H014A

LUMIX G 14mm / F2.5 II ASPH.

H-H020A

LUMIX G 20mm / F1.7 Ⅱ ASPH.

H-HS030

LUMIX G MACRO 30mm / F2.8 ASPH. / MEGA O.I.S.

Battery / Battery Grip

DMW-AC11

AC Adapter for use with DC Coupler DMW-DCC18

DMW-DCC17

DC Coupler

DMW-AC10PP

AC Adaptor

DMW-BGS5

Battery Grip

DMW-BG1PP

Battery Grip for extended shooting time. Compatible with the LUMIX S5II (DC-S5M2), LUMIX S5IIX (DC-S5M2X) and LUMIX G9II (DC-G9M2).

DMW-BLK22

Battery Pack

DMW-BTC15

Battery Charger

DMW-DCC18

DC Coupler for cameras compatible with battery pack DMW-BLK22
