LUMIX S Lens S-R2060

See product page

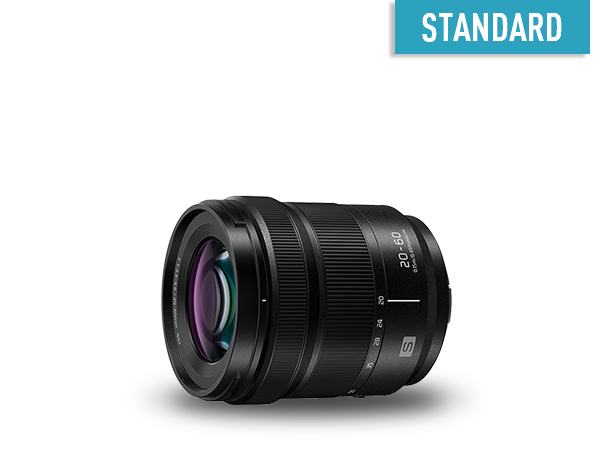

Photo of LUMIX S Lens S-R2060

Name

  • Lens Construction

    • 11 elements in 9 groups (2 aspherical lenses, 3 ED lenses, 1 UHR lens)

  • Mount

    • L-Mount

  • Optical Image Stabilizer

    • No

  • Focal Length

    • f=20-60 mm

  • Aperture Type

    • 9 diaphragm blades / Circular aperture diaphragm

  • Maximum Aperture

    • F3.5 (Wide) - F5.6 (Tele)

  • Minimum Aperture

    • F22

  • Closest Focusing Distance

    • 0.15 m/0.49ft (at focal length 20-26 mm) / 0.4 m/1.31ft (at focal length 60 mm)

  • Maximum Magnification

    • 0.43x

General

  • Diagonal Angle of View

    • 94°(Wide) - 40°(Tele)

  • Dust and Splash Resistant

    • Yes*

  • Recommended Operating Temperature

    • -10˚C to 40˚C (14˚F to 104˚F)

  • Filter Size

    • φ67 mm

  • Max. Diameter

    • φ77.4 mm / 3.05 inch

  • Overall Length

    • Approx. 87.2 mm / 3.43 inch (from the tip of the lens to the base side of the lens mount)

  • Weight

    • Approx. 350 g / 12.35 oz (excluding lens cap, lens rear cap and lens hood)

  • Standard Accessories

    • Lens cap, Lens rear cap, Lens hood

NOTE

  • *Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
