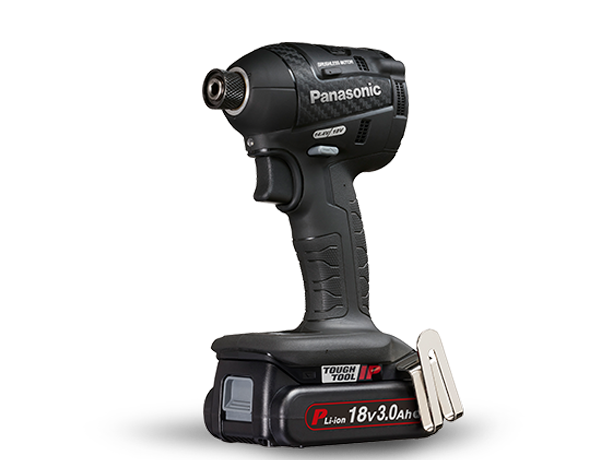

EY75A7PN2G57 KIT
| Feature | • Self-drilling screw mode • Variable speed control / reversible • LED light to support work • Electric brake • With 2 battery packs, battery charger (EY0L82) and carrying case | ||||
|---|---|---|---|---|---|
| Max. Torque | High/Hard Mode (M14 High tensile bolt tightening for 3 sec.) | 14.4V:155Nm / 18V:160Nm | |||
| Medium Mode (M14 High tensile bolt tightening for 3 sec.) | 14.4V:130Nm / 18V:130Nm | ||||
| Low/Soft Mode (M10 High tensile bolt tightening for 3 sec.) | 14.4V:26Nm / 18V:26Nm | ||||
| Self-drilling screw Mode (M14 High tensile bolt tightening for 3 sec.) | 14.4V:130Nm / 18V:130Nm | ||||
| Speed at No Load | High/Hard Mode | 0-2500rpm | |||
| Medium Mode | 0-1450rpm | ||||
| Low/Soft Mode | 0- 950rpm | ||||
| Self-drilling screw Mode | 0-2500rpm | ||||
| Impact/min. | High/Hard Mode | 0-3100ipm | |||
| Medium Mode | 0-2900ipm | ||||
| Low/Soft Mode | 0-1900ipm | ||||
| Self-drilling screw Mode | 0-1200ipm | ||||
| Size (LxHxW) / Weight (including battery pack) | LJ2G | 118mm x 242mm x 66mm / 1.70kg | |||
| PN2G | 118mm x 226mm x 66mm / 1.65kg | ||||
| LS2F | 118mm x 234mm x 66mm / 1.55kg | ||||
| Battery Pack and Charging time (using EY0L82B) | LJ2G | 18V / 5.0Ah (EY9L54B) Usable:65min. / Full:80min. | |||
| PN2G | 18V / 3.0Ah (EY9L53B) Usable:45min. / Full:60min. | ||||
| LS2F | 14.4V / 4.2Ah (EY9L45B) Usable:50min. / Full:60min. | ||||
| Capacity | LJ2G | Screwing | Wood Screws in Yellow pine | dia.4.2mm x 75mm | 700pcs |
| Self-Driling Screws in SPC | dia.4mm x 13mm, t=1.6mm | 980pcs | |||
| Bolting | Standard Tensil Bolt | M16 x 25mm, t=10mm | 1150pcs | ||
| M12 x 25mm, t=10mm | 2700pcs | ||||
| Drilling | High Tensil Bolt | M12 x 25mm, t=10mm | 360pcs | ||
| Holes in Plaster Board + Plywood (DL core) | dia.21mmm (Plaster Board t=12.5mm, Plywood t=12.0mm) | - | |||
| PN2G | Screwing | Wood Screws in Yellow pine | dia.4.2mm x 75mm | 420pcs | |
| Self-Driling Screws in SPC | dia.4mm x 13mm, t=1.6mm | 590pcs | |||
| Bolting | Standard Tensil Bolt | M16 x 25mm, t=10mm | 680pcs | ||
| M12 x 25mm, t=10mm | 1600pcs | ||||
| Drilling | High Tensil Bolt | M12 x 25mm, t=10mm | 220pcs | ||
| Holes in Plaster Board + Plywood (DL core) | dia.21mmm (Plaster Board t=12.5mm, Plywood t=12.0mm) | - | |||
| LS2F | Screwing | Wood Screws in Yellow pine | dia.4.2mm x 75mm | 490pcs | |
| Self-Driling Screws in SPC | dia.4mm x 13mm, t=1.6mm | 750pcs | |||
| Bolting | Standard Tensil Bolt | M16 x 25mm, t=10mm | 1050pcs | ||
| M12 x 25mm, t=10mm | 2300pcs | ||||
| Drilling | High Tensil Bolt | M12 x 25mm, t=10mm | 300pcs | ||
| Holes in Plaster Board + Plywood (DL core) | dia.21mmm (Plaster Board t=12.5mm, Plywood t=12.0mm) | 140pcs | |||
