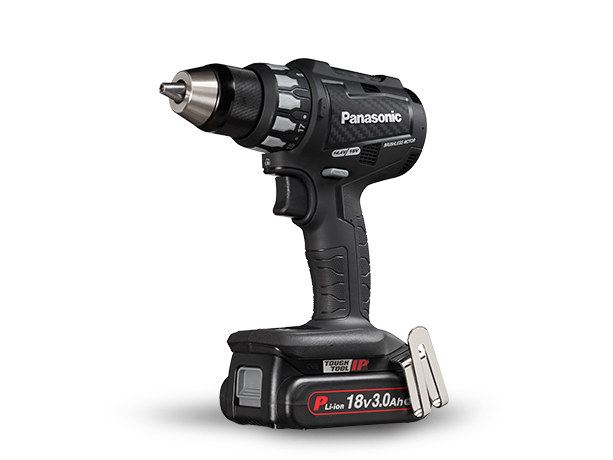

EY74A2PN2G57 KIT
| Feature | • Optimum rotation speed control • Variable speed control / reversible • LED light to support work • Electric brake • With 2 battery packs, battery charger (EY0L82) and carrying case | ||||
|---|---|---|---|---|---|
| Max. Torque | Stalling Torque | High/Hard Mode | 14.4V : 10Nm / 18V : 12Nm | ||
| Low/Soft Mode | 14.4V : 28Nm / 18V : 32Nm | ||||
| Instant Torque | Low/Soft Mode | 14.4V : 40Nm / 18V : 50Nm | |||
| Speed at No Load | High/Hard Mode | 14.4V : 70-1350rpm / 18V : 70-1580rpm | |||
| Low/Soft Mode | 14.4V : 30-400rpm / 18V : 30-470rpm | ||||
| Clutch Torque | 0.5-4.4Nm | ||||
| Max.Drill Diameter | Low/Soft Mode | In Wood - 14.4V : dia.35mm / 18V : dia.38mm | |||
| Low/Soft Mode | In Metal - 14.4V : dia.13mm / 18V : dia.13mm | ||||
| Max.Screws Driving | Low/Soft Mode | In Wood screw - 14.4V : dia.6.8mm / 18V : dia.8mm | |||
| Low/Soft Mode | In Self-drilling screw - 14.4V : dia.6mm / 18V : dia.6mm | ||||
| Size (LxHxW) / Weight (including battery pack) | LJ2G | 178mm x 250mm x 68mm / 2.05kg | |||
| PN2G | 178mm x 234mm x 68mm / 1.80kg | ||||
| LS2F | 178mm x 242mm x 68mm / 1.90kg | ||||
| Battery Pack and Charging time (using EY0L82B) | LJ2G | 18V / 5.0Ah (EY9L54B) Usable:65min. / Full:80min. | |||
| PN2G | 18V / 3.0Ah (EY9L53B) Usable:45min. / Full:60min. | ||||
| LS2F | 14.4V / 4.2Ah (EY9L45B) Usable:50min. / Full:60min. | ||||
| Capacity | LJ2G | Screwing | Wood Screws in Yellow pine – High Mode | dia.4.1mm x 25mm | 1750pcs |
| Wood Screws in Yellow pine – Low Mode | dia.8mm x 80mm | 430pcs | |||
| Self-Driling Screws in SPC – High Mode | dia.4mm x 13mm, t=1.6mm | 1250pcs | |||
| Drilling | Holes in Plaster Board + Plywood (Wooding core) – High Mode | dia.50mm, t=24.5mm (Plaster Board t=12.5mm, Plywood t=12.0mm) | 60pcs | ||
| Holes in SPC (Hole Saw) – High Mode | dia.21mm, t=1.6mm | 50pcs | |||
| Holes in SPC (Hole Saw) – Low Mode | dia.33mm, t=1.6mm | 75pcs | |||
| Holes in Yellow Pine – High Mode | dia.18mm x 120mm | 140pcs | |||
| Holes in Yellow Pine – Low Mode | dia.30mm x 40mm | 280pcs | |||
| PN2G | Screwing | Wood Screws in Yellow pine – High Mode | dia.4.1mm x 25mm | 1050pcs | |
| Wood Screws in Yellow pine – Low Mode | dia.8mm x 80mm | 260pcs | |||
| Self-Driling Screws in SPC – High Mode | dia.4mm x 13mm, t=1.6mm | 740pcs | |||
| Drilling | Holes in Plaster Board + Plywood (Wooding core) – High Mode | dia.50mm, t=24.5mm (Plaster Board t=12.5mm, Plywood t=12.0mm) | 35pcs | ||
| Holes in SPC (Hole Saw) – High Mode | dia.21mm, t=1.6mm | 30pcs | |||
| Holes in SPC (Hole Saw) – Low Mode | dia.33mm, t=1.6mm | 45pcs | |||
| Holes in Yellow Pine – High Mode | dia.18mm x 120mm | 80pcs | |||
| Holes in Yellow Pine – Low Mode | dia.30mm x 40mm | 170pcs | |||
| LS2F | Screwing | Wood Screws in Yellow pine – High Mode | dia.4.1mm x 25mm | 1600pcs | |
| Wood Screws in Yellow pine – Low Mode | dia.8mm x 80mm | 300pcs | |||
| Self-Driling Screws in SPC – High Mode | dia.4mm x 13mm, t=1.6mm | 830pcs | |||
| Drilling | Holes in Plaster Board + Plywood (Wooding core) – High Mode | dia.50mm, t=24.5mm (Plaster Board t=12.5mm, Plywood t=12.0mm) | - | ||
| Holes in SPC (Hole Saw) – High Mode | dia.21mm, t=1.6mm | 35pcs | |||
| Holes in SPC (Hole Saw) – Low Mode | dia.33mm, t=1.6mm | 50pcs | |||
| Holes in Yellow Pine – High Mode | dia.18mm x 120mm | 110pcs | |||
| Holes in Yellow Pine – Low Mode | dia.30mm x 40mm | 180pcs | |||
