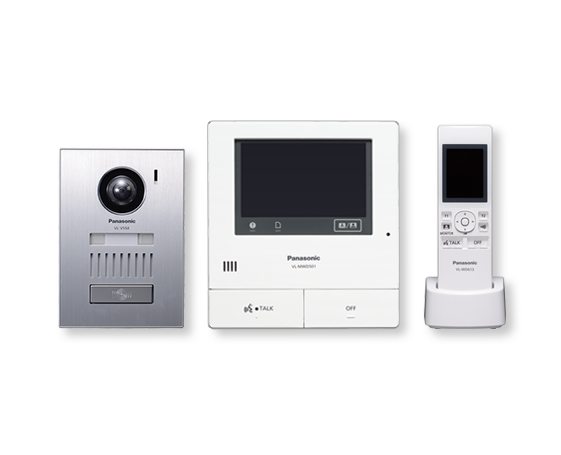

Expandable DECT Wireless Video Intercom Kit VL-SWD501AZ
| Model composition | Main Monito(VL-MWD501) x1, Door Station(VL-V554) x1, Wireless monitor(VL-WD613) x1, Power Supply Unit(VL-PS241) x1 | |
|---|---|---|
| Optional Accessories | Wireless Monitor | VL-WD613 (1 included in VL-SWD501) |
| Door Station | VL-V554 (1 included in VL-SWD501) | |
| Repeater | VL-FKD2 | |
| Wireless Sensor Camera | VL-WD812 | |
| Maximum Connectable Units | Wireless Monitor | Up to 6 (1 included with VL-SWD501) |
| Door Station | Up to 2 (1 included with VL-SWD501) | |
| Connectable Devices | Electric Lock Release Support | Up to 2 (user supplied) * When connecting 2, an optional doorphone is required. |
| Repeater | Up to 2 (sold separately) | |
| PBX | - | |
| Convenience | Picture Recording | SD Card: Stores up to 3,000 visitors (30seconds per visitor) Internal memory (when an SD card is not inserted): up to 50 events / 400 images (8-shot continuous recording |
| Night Vision | Yes | |
| Touch Panel / Pan & Tilt | Yes / Yes | |
| Voice Changer | Yes | |
| Intercom call | Yes (between main monitor and wireless sub monitor) | |
| Smartphone connect | - | |
| Monitor | Power source | Power supply unit (VL-PS241) 24 V DC, 0.5 A |
| Power consumption | Standby: Approx. 1.4 W, During operation: Approx. 10 W | |
| Dimensions (H x W x D) | Approx. 180 x 165 x 21mm (excluding protruding sections) | |
| Mass (weight) | Approx. 470 g | |
| Operating environment | Ambient temperature: Approx. 0 °C to +40 °C, Relative humidity (non-condensing): up to 90 % | |
| Display size | 5-inch wide colour / WQVGA (480x272 pixels) | |
| Display language | English | |
| Talking method | Hands-free | |
| Installation method | Wall mount (mounting bracket supplied) | |
| Frequency range | 1.88 GHz to 1.90 GHz | |
| Option output (A contact) | Rated load: 24 V AC/DC, 0.3 A or lower Minimum applicable load: 5 V DC, 0.001 A (Output when there is a call from the doorphone) | |
| External material | Flame retardant ABS and PS resin | |
| Power supply unit | Power source | Input: 220-240 V AC, 0.2 A, 50/60 Hz Output: 24 V DC, 0.6 A |
| Dimensions (H x W x D) | Approx. 104 x 100 x 54 mm (excluding protruding sections) | |
| Mass (weight) | Approx. 215 g | |
| Operating environment | Ambient temperature: Approx. 0 °C to +50 °C, Relative humidity (non-condensing): up to 90 % (indoor use only) | |
| Installation method | Wall mount or attach to DIN rail | |
| External material | Flame retardant PC+ABS resin | |
| Door Station | Power source | Power supplied by the main monitor |
| Dimensions (H x W x D) | Approx. 169 x 118 x 30 mm (excluding protruding sections) | |
| Mass (weight) | Approx. 405 g | |
| Operating environment | Ambient temperature: Approx. -15 °C to +55 °C, Relative humidity (non-condensing): up to 90 % (tested up to -20 °C) | |
| Viewing angle | Horizontally: Approx. 170 degree, Vertically: Approx. 115 degree | |
| Installation method | Surface mount (mounting base supplied) | |
| Image sensor/ Camera (pixel) | CMOS sensor (Approx. 1.0M pixels) | |
| Minimum illuminance required | 1 lx (within approx. 50cm from the camera lens) | |
| Lighting method | LED lights | |
| IP rating (INGRESS PROTECTION) | IP54 *Water resistance is only assured if the doorphone is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken. | |
| IK rating (IMPACT PROTECTION) | Compliant with IK07 | |
| External material | Aluminium and flame retardant PC+PS resin | |
| Wireless Monitor | Power source | Rechargeable Ni-MH (AAA x 2) |
| Dimensions (H x W x D) | Approx. 173 x 52 x 30 mm (excluding protruding sections) | |
| Mass (weight) | Approx. 160 g (including the batteries) | |
| Operating environment | Ambient temperature: Approx. 0 °C to +40 °C, Relative humidity (non-condensing): up to 90 % | |
| Display size | 2.2-inch colour / QVGA (320 x 240 pixels) | |
| Frequency | 1.88 GHz to 1.90 GHz | |
| External material | ABS resin | |
| Operating time | Standby use: Approx. 80 hours *When used fully charged in an operating temperature of 20 °C. | |
| Charging time | Approx. 8 hours *When the operating temperature is 20 °C. The charging time may increase when the operating temperature is lower than this. | |
| Transmitting range | Approx. 100 m (line-of-sight distance from the main monitor) | |
| Charger | Power source | AC adaptor Output: 5.5 V DC, 0.5 A |
| Power consumption | Standby: Approx. 0.4 W (when the sub monitor is not placed in the charger) During charging: Approx. 1.4 W | |
| Dimensions (H x W x D) | Approx. 43 x 81 x 76 mm (excluding protruding sections) | |
| Mass (weight) | Approx. 70 g (excluding the AC adaptor) | |
| Operating environment | Ambient temperature: Approx. 0 °C to +40 °C, Relative humidity (non-condensing): up to 90 % | |
| External material | ABS resin | |
