| GENERAL |

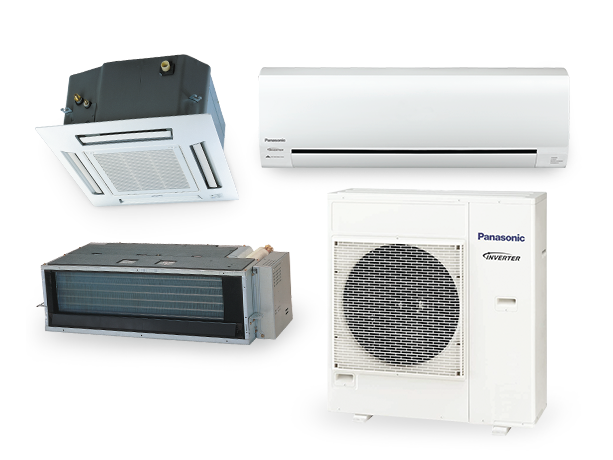

Type of Split System Air Conditioner |
Multi Split System |
| Outdoor Unit |
CU-5E34QBR |
| Connectable Indoor Units |
CS-MRE7QKR;
CS-MRE9QKR;
CS-MRE12QKR;
CS-MRE18QKR;
CS-MRE24QKR;
CS-E12QD3RW;
CS-E18QD3RW;
CS-E12QB4RW;
CS-E18QB4RW |
| Maximum Connectable Indoor Units |
5 |
| Maximum Connectable Capacity (kW) |
17.5 |
| Inverter Equipped |
Yes |
| Function |
Cooling + Heating |
| Electrical Voltage (V) |
240 |
| PERFORMANCE |
Phase |
1 |
| Cooling Capacity (kW) |
10.0 |
| Cooling Capacity Range - Min ~ Max (kW) |
2.9 ~ 11.5 |
| Heating Capacity (kW) |
12.0 |
| Heating Capacity Range - Min ~ Max (kW) |
3.4 ~ 14.5 |
| EER (w/w) |
3.50 |
| COP (w/w) |
4.05 |
| Power Input - Cooling / Heating (kW) |
2.86 / 2.96 |
| Cooling Operating Temperature Range (˚C) |
-10 ~ 46 |
| Heating Operating Temperature Range (˚C) |
-15 ~ 24 |
| Compressor Type |
Inverter |
| Refrigerant Type |
R410A |
| Outdoor Unit Dimensions W x H x D (mm) |
940 x 999 x 340 |
| SPECIFICATIONS |
Net Weight - Outdoor Unit (kg) |
81 |
| Sound Pressure Level - Outdoor - Cooling / Heating (dB(A)) |
53 / 54 |
| Sound Power Level - Outdoor - Cooling / Heating (dB(A)) |
69 / 70 |
| Pipe Length - 1 Room - min. ~ max. (m) |
3 ~ 25 |
| Maximum Pipe Length - Total (m) |
80 |
| Piping Connections - Liquid / Gas (mm) |
Ø6.35 / Ø9.52 |
| Warranty |
5 Years Manufacturer's Warranty |
