Bathroom Dryer Standard Series

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

Bathroom Dryer Standard Series

4-in-1: Heating, Drying, Ventilation, Circulation

Multifunctional bathroom unit with safety features. Transform your bathroom into a comfortable and convenient space. Clean air, ease of operation, and energy-saving.
Zoom In
Zoom Out
Close

Features

Dedicated Bathroom Ventilation

Your one-stop solution for a fresh and comfortable bathroom. Quickly remove moisture from the air, preventing mould and mildew growth. This means no more lingering steam, just fresh towels and a healthier bathroom environment.
Dedicated Bathroom Ventilation

Enjoy a Warm and Comfortable Bathroom

Your bathroom can be warm even in a cold winter

Tired of damp towels and foggy mirrors? Quickly remove moisture from the air, preventing mould and mildew growth. This means fresher towels, clearer mirrors, and a more comfortable bathroom environment.
Your bathroom can be warm even in a cold winter

Warm up your room to average 25°C in 8 mins

Test conditions: Area of bathroom (L x W x H): 1.6m x 1.6m x 2.3m, starting temperature: 5°C, Time: 30 minutes, actual heating performance with four different distance above the ground.
*model FV-30BY1 as example
Warm up your room to average 25°C in 8 mins

Don't Let Damp Clothes Ruin Your Day!

Introducing the Thermo Ventilator, your solution for drying clothes quickly and easily, even on humid days. Simply hang your clothes in the bathroom, turn on the Thermo Ventilator, and the circulated airflow will efficiently dry them.
Don't Let Damp Clothes Ruin Your Day!

Keep Your Bathroom Clean and Dry

Enjoy a bathroom that is fresh and clean all day. Thermo Ventilation exhausts stale air and odours. The growth of mould and mildew is restricted by moisture removal from the bathroom when you are taking a shower or bath.
Keep Your Bathroom Clean and Dry

Feel the Breeze in the Bathroom

Circulating Air Flow

Acts as a cooling electric fan in the bathroom during hot weather.
Circulating Air Flow

A Dry Cool feature is also available for enhanced air circulation

The ventilator can act as a low noise electric fan and maintain air circulation throughout the bathroom for extra comfort.
A Dry Cool feature is also available for enhanced air circulation

Anti-Bacterial Filter

Antibacterial function of the
Anti-bacterial filter is proven to
inhibit 99.9% of Staphylococcus
Aureus and E. coli.
•Based on the result of JIS Z2801:2010 standard test.
•The filter will change from yellow to brown color after certain period of usage, which will not affect its function.
•According to the time of usage, the antibacterial function may relatively decrease.

*This feature only works on the FV-30BG3
*FV-30BY1 is equipped with Dust Filter
Anti-Bacterial Filter

Adjustable Air Direction

Change the baffle angle as you desire. Under Auto Mode, the baffle plate swings continuously. Or use Manual Mode to select your preferred air direction angle between 60° to 120°.
*This feature only works on the FV-30BG3
Adjustable Air Direction

4 Levels of Safety Protection

Safety performance is extremely important as the product is used under special conditions. With Panasonic thermoventilators, you can rest assured with four levels of safety protection.
4 Levels of Safety Protection

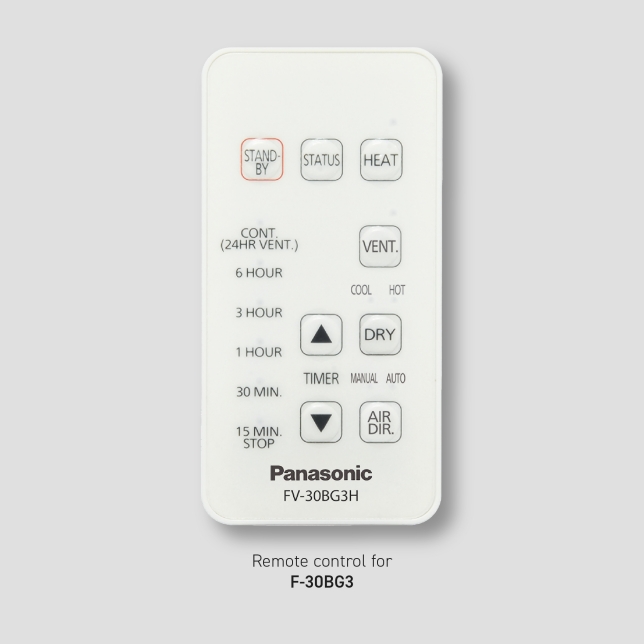

Wireless RF Remote Control

1 STANDBY button

In standby, power consumption is 0.5 W. If the product will not be in use for an extended period, turn off the all-pole power switch to disconnect the power supply and save energy.

2 STATUS button

Confirm the current running status. (When you press the button once, the indicator of the current running status will stay on for 3 seconds.)

3 TIMER button

Timer function

4 HEAT button

Heating function

5 VENT button

Air change function

6 DRY button

Change the dry mode (COOL/HOT)

7 AIR DIR. button

Change the air direction (MANUAL/AUTO)

Highly Secure Fuse

A thermal safety fuse ensures that no accidents occur, even when there is a spike in current.
Highly Secure Fuse

Specifications

FV-30BG3

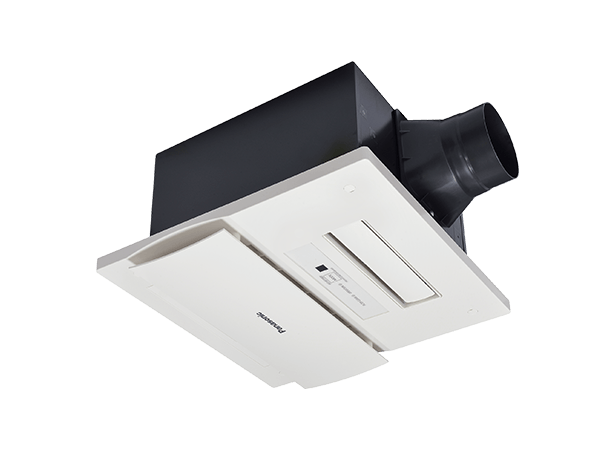

Photo of FV-30BG3

FV-30BY1

Photo of FV-30BY1

Multi-level safety protection including PTC heater and flame-retardant material

Adjustable air direction (for FV-30BG3)

Wireless remote control

Off timer function

Water resistance: IPX2

DC motor for energy efficiency

FV-30BG3 FV-30BY1
Air Volume (CMH [CFM]) 170 [100] 140 [ - ]
Power Consumption (W) Ventilating 28 20
Heating 23℃ 1650 1400
40℃ 1500 1280
Dry Hot - 1250
Cool - 22
Rated Current (A) 6.8 5.9
Noise Level (dB[A]) Ventilating 39 41
Heating 46 45
Dry Hot 46 45
Cool 46 45
Installation Space (mm) 300 x 300 260 x 280
Duct Size (mm) φ100 φ110
Weight (kg) 5 3.1
Filter Dust Filter Anti-bacterial Filter
Note Note1: Specification values are measured under 220V 50Hz
Note2: Power consumption and rated current are obtained in the factory default state and the test ambient temperature is 40˚C
Note3: Air volume, electric characteristic and noise are specified at the static pressure of 0 Pa
Note4: The values of noise level is a weighted average sound pressure level, the mean value are measured by our company, within +3 to -7 dB tolerance
Note5: The values of noise level are measured at 1 m apart from the side of fan body
Note6: The values of air volume are the mid-points of results measured by our company, within ±10% tolerance
Note1: Specification values are measured under 220V 50Hz
Note2: Power consumption and rated current are obtained in the factory default state and the test ambient temperature is 40˚C
Note3: Air volume, electric characteristic and noise are specified at the static pressure of 0 Pa
Note4: The values of noise level is a weighted average sound pressure level, the mean value are measured by our company, within +3 to -7 dB tolerance
Note5: The values of noise level are measured at 1 m apart from the side of fan body
Note6: The values of air volume are the mid-points of results measured by our company, within ±10% tolerance
