SER8150

VRF Smart Connectivity+

Panasonic's VRF Smart Connectivity+ is an advanced solution that prioritises energy management, delivering exceptional energy savings and comfort. With its user-friendly installation, operation, and running, it ensures a seamless experience.
Zoom In
Zoom Out
Close

Features

VRF Smart Connectivity+

VRF Smart Connectivity+ allows efficient energy management with high IAQ (indoor air quality). Simplified Plug & Play installation with BMS connection for better energy consumption management.
VRF Smart Connectivity+

Specs

SER8150

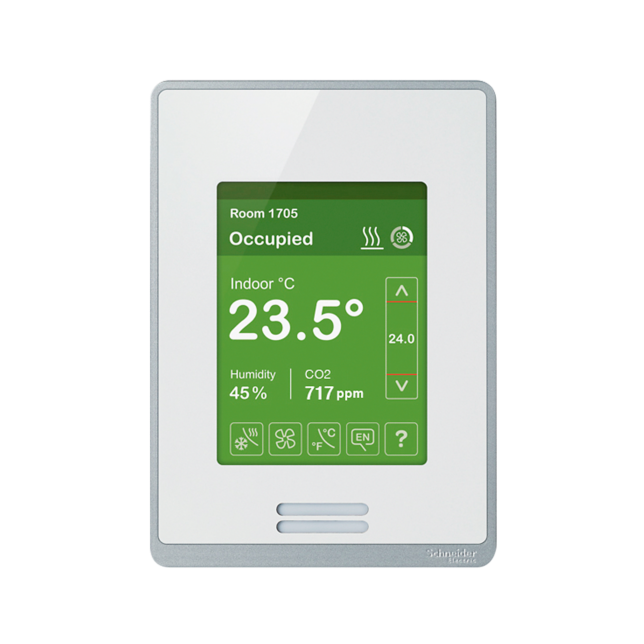

Photo of SER8150

The "Single Powered Component" enables communication directly to the FSV indoor unit from a single cable with two conductors.

The touch screen offers a customisable user experience with language selection, units, air direction, and screen colours.

Custom messages can be displayed on-screen using BACnet objects when the controller is integrated with a BACnet system.

SER8150
Dimensions (cm/in) Height: 12 / 4.72
Width: 8.6 / 3.39
Depth: 2.7 / 1.06
Power Requirements 16Vdc from Panasonic R-R IDU
connectors
50/60Hz, 4VA, Class 2 Supply
Range from Indoor Unit Recommended 500ft (150m)
Operating Conditions 0 to 50°C (32 to 122°F)
0 to 95% R.H. non-condensing
Storage Conditions -30 to 50°C (-22 to 122°F)
0 to 95% R.H. non-condensing
Temperature Sensor Local 10K NTC type 2 thermistor
Temperature Sensor Resolution ± 0.1°C (± 0.2°F)
Temperature Sensor Accuracy ± 0.5°C (± 0.9°F ) @ 21°C (70°F) typical calibrated
Humidity Sensor and Calibration Single point calibrated bulk polymer type sensor
