ON/OFF Controller

Add to WishlistRemove from Wishlist

NO ROOM TO ADD MORE PRODUCTS

The wishlist has already reached the maximum number of products

CZ-ANC3

Simple Centralised ON/OFF Control

Enable simple, centralised control of up to 64 units (16 groups, 64 indoor units). This system specialises in ON/OFF control for easy and efficient management.
Zoom In
Zoom Out
Close

Features

Fully Centralised ON/OFF HVAC Control

• Control up to 64 units (16 groups, 64 indoor units) centrally.
• Centralised ON/OFF control (individual or collective)
• Up to 8 ON/OFF controllers (4 main, 4 sub) can be installed in one link system.
• Panasonic ERV and ERV with a microcontroller can be controlled*¹ via a communication adaptor CZ-CAPC3.
*1: Please contact an authorised Panasonic dealer for details due to restrictions on available functions and operation screens. *2: The system configuration diagram is for reference purposes only. See technical documentation for details. *3: Adaptor CZ-CAPRA1 is required for Single split wall mounted and Multi split air conditioners. *4: Adaptor CZ-CAPR1 and CZ-CCERA1 are required for some Single split packaged air conditioners.
1) Signal input x 2/ Signal output x 2.
Fully Centralised ON/OFF HVAC Control

Specs

CZ-ANC3

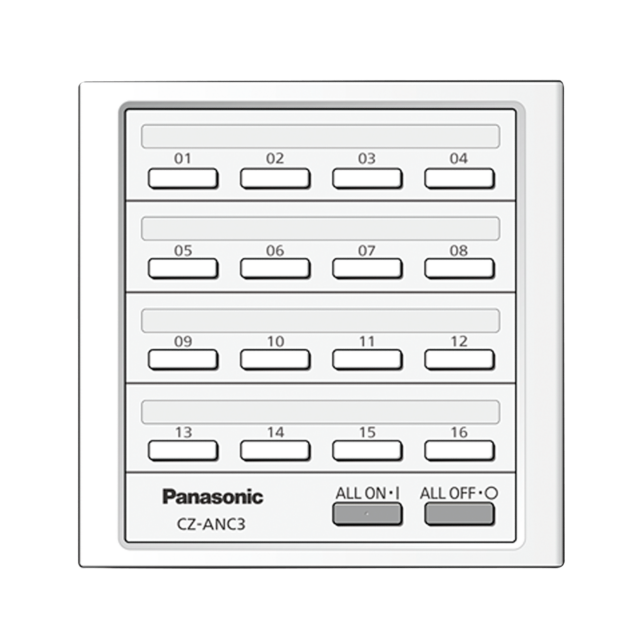

Photo of CZ-ANC3

Control up to 64 units (16 groups, 64 indoor units) centrally.

Centralised ON/OFF control (individual or collective).

Up to 8 ON/OFF controllers (4 main, 4 sub) can be installed in one link system.

CZ-ANC3
Dimensions (mm) H 120.5 x W 121.5 x D 14 + 51.1
Weight 500g
Temperature/Humidity Range 0 to 40°C / 20 to 80% (No condensation)
*Indoor use only.
Power Source Single phase 100-240V ~ 50-60Hz
Power Consumption Max. 4.0W
Number of Connected Indoor Units Up to 16 groups (64 units)
