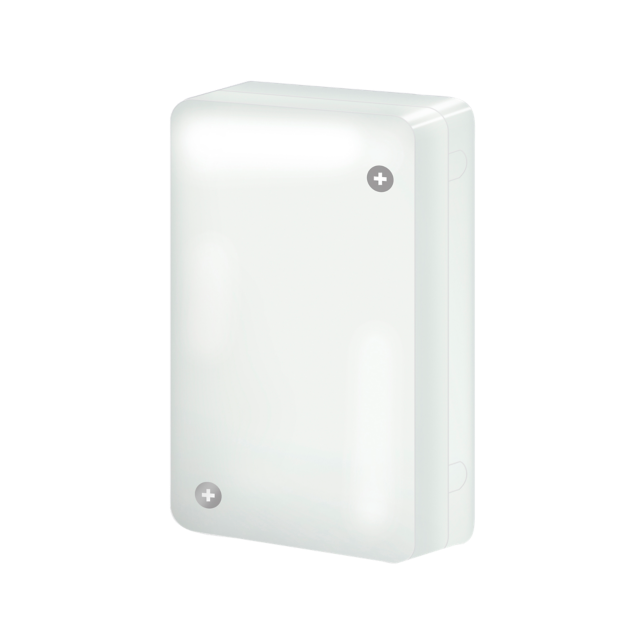

Interface Adaptor to Panasonic S-Link
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CZ-CAPRA1
Universal Integration for Comprehensive Control
Adaptor to connect Single Split System and Multi Split System to S-Link system for full centralised control.
CZ-CAPRA1
Features
Easy Integration for Comprehensive Control
This is the connecting adaptor for RAC/PAC range to Panasonic communication bus line for commercial systems (S-Link).
Full control is now possible by Panasonic centralised controllers.
Full control is now possible by Panasonic centralised controllers.
1) Centralised controller
Specs
CZ-CAPRA1
Basic functions: ON/OFF, mode select, temperature setting, fan speed, flap setting, etc.
External input: ON/OFF control signal, abnormal stop signal.
External output for Relay * : Operation status [ON/OFF], alarm status output.
* Because current CN-CNT connector can not provide the power for external output relay, additional input power for external relay is necessary.
