Ultra Premium Reverse Cycle Inverter HZ Series (YKR)

Purify Around-the-Clock with nanoe™ X

Panasonic Ultra Premium Reverse Cycle Inverter HZ Series (YKR) offers both cooling and heating systems to efficiently cool and heat your homes for all-year comfort. It is also equipped with nanoe™ X technology which effectively inhibits adhered and airborne pollutants, and reduces odours. Stay connected with built-in Wi-Fi and Panasonic Comfort Cloud App to manage your air conditioners from anywhere, anytime. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.

Ultra Premium Reverse Cycle Inverter HZ Series (YKR)

FIND A DEALER

Features

Stay Warm/Cold Any Season All Year Long

The Panasonic HZ series wall split offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone's comfortable all year round.

Purify Your Home All Day Long with 24-hour nanoe™ X Air Purification

Breathe easy at home, all day long. Panasonic's nanoe™ X technology continuously cleans and purifies your indoor air, even on surfaces and soft furnishings. nanoe™ X can be activated with or without heating/cooling function turned on, thereby saving you electricity. This purification technology keeps your living space feeling fresh and clean, creating a safe haven for you and your loved ones 24/7.

LEARN MORE

Breathe Cleaner, Live Better: The Benefits of nanoe™ X Air Purification

Active Air Purification with nanoe™ X

Known as nature’s detergent, hydroxyl radicals (also known as OH radicals) are natural reactive molecules seek to react with other elements such as hydrogen. This reaction enables hydroxyl radicals to inhibit the growth of pollutants. nanoe™ X can inhibit several types of bacteria, viruses, mould, allergens, pollen and certain hazardous substances. Furthermore, nanoe™ X also deodourises odour and moisturises skin and hair.

Asthma and Allergy Friendly

Panasonic nanoe™ X technology has been approved by the National Asthma Council Australia's Sensitive Choice program, helping those with asthma and allergies breathe easier.

2x Faster Odours Reduction and Pollens Inhibition with nanoe X Generator Mark 2

Equipped with the nanoe X Generator Mark 2 to offer greater effectiveness in deodorising odours and inhibiting pollens at 2x faster pace compared to the previous nanoe X Generator Mark 1.

Notes:
(1) Deodorisation Test: • Testing organisation: Panasonic Product Analysis Center • Test subject: Adhered nonenal (body odour) • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Odour intensity reduced by 1.1 levels in 60 minutes (Test report No.: Y18HM047-1)
• nanoe X Generator Mark 2 test result: Odour intensity reduced by 1.1 levels in 30 minutes (Test report No.: Y18HM059)
(2) Pollen Inhibition Test: • Testing organisation: Panasonic Product Analysis Center • Test subject: Adhered cedar pollen • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Inhibited 99% in 24 hours (Test report No.: 4AA33-151001-F01) • nanoe X Generator Mark 2 test result: Inhibited 99% in 12 hours (Test report No.: L19YA009)

2x Faster Odours Reduction and Pollens Inhibition with nanoe X Generator Mark 2

Connect & Control Your Air Conditioners Anywhere, Anytime

With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multiple air conditioning units from anywhere, at home or away.

LEARN MORE

Advanced Smart Control with Voice Assistant Compatibility

Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

LEARN MORE

*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model.

Environmentally Friendly R32 Refrigerant

Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

LEARN MORE

Comfort Cooling Environment for Your Needs

Up to 15 Meters Long Air Distance with AEROWINGS

AEROWINGS provides long air distance as far as 15 meters* by incorporating two independently controlled flaps, so you can enjoy the cooling sensation even if you are across the room.

*Tested 15 meters long airflow based on ULTRA PREMIUM REVERSE CYCLE INVERTER.

LEARN MORE

Up to 15 Meters Long Air Distance with AEROWINGS

Humidity Sensor Optimises an Ideal Indoor Environment

iAUTO-X together with built-in Humidity Sensor constantly monitors and adjusts relative humidity levels to below 60% for an optimal indoor environment, so you can enjoy comfortable cooling all day long.

LEARN MORE

Humidity Sensor Optimises an Ideal Indoor Environment

Built Tough to Last

Harsh coastal environments, with salty air, dust, wind, and rain, can damage and reduce the performance of the outdoor unit. Panasonic units are built to endure these elements, having undergone rigorous durability testing in extreme temperatures, high humidity, and low temperatures to ensure they continue to operate flawlessly. Enjoy continuous comfort regardless of climate.

Robust Design and Long Term Endurance

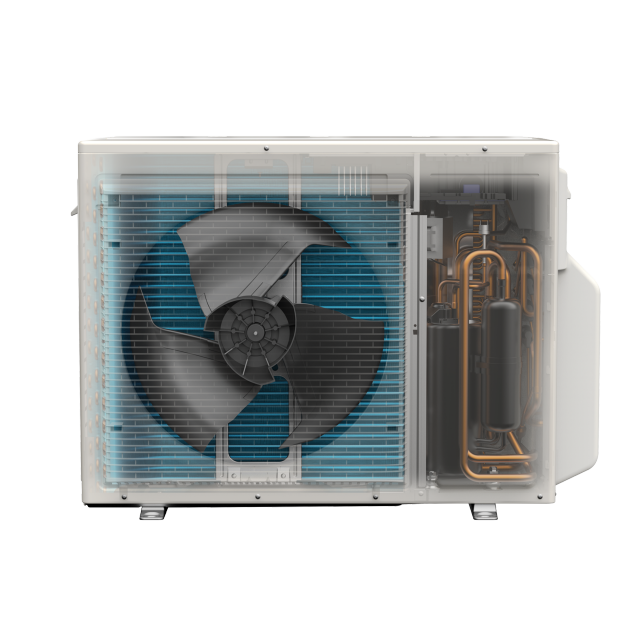

1 Corrosion-Resistant Blue Fin Condenser

All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.

Wireless Remote Controller

The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Cooling Capacity	2.50 kW	3.50 kW	5.00 kW	7.10 kW	8.00 kW
Cooling Capacity	8,530 Btu/h	11,900 Btu/h	17,100 Btu/h	24,200 Btu/h	27,300 Btu/h
Heating Capacity	3.20 kW	4.10 kW	6.00 kW	8.00 kW	9.00 kW
Heating Capacity	10,900 Btu/h	14,000 Btu/h	20,500 Btu/h	27,300 Btu/h	30,700 Btu/h
Indoor Unit	CS-HZ25YKR	CS-HZ35YKR	CS-HZ50YKR	CS-HZ71YKR	CS-HZ80YKR
Outdoor Unit	CU-HZ25YKR	CU-HZ35YKR	CU-HZ50YKR	CU-HZ71YKR	CU-HZ80YKR

Specs

CS_CU-HZ25YKR

nanoe X Generator Mark 2
Built-in Wi-Fi
iAUTO-X
Humidity Sensor
AEROWINGS
Inverter
ECO Mode with A.I. Control
Refrigerant R32
DRED ready

nanoe™ X 24-hour air purification inhibits various pollutants and deodorises odours

Manage your air conditioner using mobile device with Built-in Wi-Fi and Comfort Cloud App

iAUTO-X with Humidity Sensor lets you enjoy better indoor environment with optimal comfortable cooling

15 meters long air distance with AEROWINGS

ECO Mode with A.I. control intelligently balances energy savings and comfort

Energy efficiency with Inverter technology and R32 refrigerant

	CS_CU-HZ25YKR	CS_CU-HZ35YKR	CS_CU-HZ50YKR	CS_CU-HZ71YKR	CS_CU-HZ80YKR
Indoor Unit	CS-HZ25YKR	CS-HZ35YKR	CS-HZ50YKR	CS-HZ71YKR	CS-HZ80YKR
Outdoor Unit	CU-HZ25YKR	CU-HZ35YKR	CU-HZ50YKR	CU-HZ71YKR	CU-HZ80YKR
Cooling Capacity (min-max) (kW)	2.50 (0.95-3.70) kW	3.50 (1.00-4.20) kW	5.00 (1.25-6.70) kW	7.10 (1.80-8.90) kW	8.00 (2.30-9.00) kW
Heating Capacity (min-max) (kW)	3.20 (0.90-4.80) kW	4.10 (0.90-6.10) kW	6.00 (1.05-8.20) kW	8.00 (2.00-10.80) kW	9.00 (2.20-11.60) kW
Cooling Capacity (min-max) (Btu/h)	8,530 (3,240-12,600) Btu/h	11,900 (3,410-14,300) Btu/h	17,100 (4,260-22,800) Btu/h	24,200 (6,140-30,300) Btu/h	27,300 (7,840-30,700) Btu/h
Heating Capacity (min-max) (Btu/h)	10,900 (3,070-16,400) Btu/h	14,000 (3,070-20,800) Btu/h	20,500 (3,580-28,000) Btu/h	27,300 (6,820-36,800) Btu/h	30,700 (7,500-39,600) Btu/h
Cooling Indoor Air Flow (L/s)	208 L/s	232 L/s	328 L/s	352 L/s	367 L/s
Heating Indoor Air Flow (L/s)	222 L/s	250 L/s	332 L/s	367 L/s	377 L/s
Dehumid (L/h)	1.50 L/h	2.00 L/h	2.80 L/h	4.10 L/h	4.70 L/h
Cooling Running Current (A)	2.15 A	3.40 A	5.20 A	8.10 A	10.10 A
Heating Running Current (A)	2.70 A	3.80 A	5.70 A	7.90 A	9.80 A
Max Current (A)	5.40 A	7.00 A	10.70 A	13.00 A	15.00 A
Cooling Power Input (min-max) (kW)	0.49 (0.185-1.00) kW	0.78 (0.19-1.16) kW	1.23 (0.25-1.96) kW	1.93 (0.45-2.98) kW	2.39 (0.46-3.03) kW
Heating Power Input (min-max) (kW)	0.62 (0.17-1.20) kW	0.87 (0.18-1.60) kW	1.34 (0.195-2.30) kW	1.88 (0.40-2.95) kW	2.34 (0.43-3.42) kW
Cooling AEER/EER	5.02 W/W / 5.10 W/W	4.44 W/W / 4.49 W/W	4.04 W/W / 4.07 W/W	3.66 W/W / 3.68 W/W	3.34 W/W / 3.35 W/W
Heating ACOP/COP	5.09 W/W / 5.16 W/W	4.67 W/W / 4.71 W/W	4.45 W/W / 4.48 W/W	4.24 W/W / 4.26 W/W	3.83 W/W / 3.85 W/W
Star Rating Residential/Commercial - Cooling (Hot Climate)	5.5/6.5 TCSPF	5.5/6.5 TCSPF	5.0/6.0 TCSPF	4.0/5.0 TCSPF	3.5/4.5 TCSPF
Star Rating Residential/Commercial - Cooling (Average Climate)	4.5/7.0 TCSPF	5.0/7.5 TCSPF	4.5/7.5 TCSPF	4.0/5.5 TCSPF	3.5/5.0 TCSPF
Star Rating Residential/Commercial - Cooling (Cold Climate)	5.0/8.0 TCSPF	5.0/9.5 TCSPF	5.0/9.5 TCSPF	4.0/6.5 TCSPF	3.5/6.0 TCSPF
Star Rating Residential/Commercial - Heating (Hot Climate)	4.0/4.0 HSPF	4.0/4.0 HSPF	4.0/4.0 HSPF	3.5/3.5 HSPF	3.5/3.5 HSPF
Star Rating Residential/Commercial - Heating (Average Climate)	3.5/3.5 HSPF	3.5/4.0 HSPF	3.0/3.5 HSPF	3.0/3.0 HSPF	2.5/3.0 HSPF
Star Rating Residential/Commercial - Heating (Cold Climate)	3.0/3.0 HSPF	3.0/3.0 HSPF	2.5/3.0 HSPF	2.5/2.5 HSPF	2.0/2.5 HSPF
Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)	40/25/19 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/26/19 dB(A) *Sound pressure level specification is measured according to JIS C9612.	47/34/31 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/37/34 dB(A) *Sound pressure level specification is measured according to JIS C9612.	51/38/35 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)	40/27/21 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/29/22 dB(A) *Sound pressure level specification is measured according to JIS C9612.	45/33/29 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/37/34 dB(A) *Sound pressure level specification is measured according to JIS C9612.	50/38/35 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)	56/41/35 dB(A)	60/42/35 dB(A)	63/50/47 dB(A)	65/53/50 dB(A)	67/54/51 dB(A)
Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)	56/43/37 dB(A)	60/45/38 dB(A)	61/49/45 dB(A)	65/53/50 dB(A)	66/54/51 dB(A)
Indoor Unit Dimensions (H x W x D)	295 mm x 870 mm x 229 mm	295 mm x 870 mm x 229 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm
Indoor Unit Net Weight	10 kg	10 kg	12 kg	13 kg	13 kg
Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)	48/43 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	48/43 dB(A) *Sound pressure level specification is measured according to JIS C9612.	54/49 dB(A) *Sound pressure level specification is measured according to JIS C9612.	55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo)	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	50/45 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	54/49 dB(A) *Sound pressure level specification is measured according to JIS C9612.	55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)	63/58 dB(A)	64/59 dB(A)	63/58 dB(A)	68/63 dB(A)	69/64 dB(A)
Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)	64/59 dB(A)	65/60 dB(A)	64/59 dB(A)	68/63 dB(A)	69/64 dB(A)
Outdoor Unit Dimensions (H x W x D)	542 mm x 780 mm x 289 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	795 mm x 875 mm x 320 mm	795 mm x 875 mm x 320 mm
Outdoor Unit Net Weight	26 kg	30 kg	35 kg	51 kg	51 kg
Refrigerant Type	R32	R32	R32	R32	R32
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 15.88 mm (5/8 inch)	ø 15.88 mm (5/8 inch)
Pipe Extension Length (min-max)	3 m ~ 20 m	3 m ~ 20 m	3 m ~ 30 m	3 m ~ 30 m	3 m ~ 30 m
Pipe Extension (Maximum Elevation Length)	15 m	15 m	15 m	20 m	20 m
Pipe Length for Additional Refrigerant Gas	7.5 m	7.5 m	10 m	10 m	10 m
Additional Gas Amount	10 g/m	10 g/m	15 g/m	25 g/m	25 g/m
Power Supply	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Outdoor Unit Operating Range (Cooling)	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C
Outdoor Unit Operating Range (Heating)	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C
iAUTO-X	Yes	Yes	Yes	Yes	Yes
Humidity Sensor	Yes	Yes	Yes	Yes	Yes
ECO Mode with A.I.	Yes	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes
Personal Airflow Creation	Yes	Yes	Yes	Yes	Yes
nanoe™ X	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)	Yes (Generator Mark 2)
nanoe-G	Yes	Yes	Yes	Yes	Yes
Odour Removing Function	Yes	Yes	Yes	Yes	Yes
Removable Washable Panel	Yes	Yes	Yes	Yes	Yes
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes
Wi-Fi	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)	Yes (Built-in)
Wired Remote Control	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes
Long Piping (max.)	20 m	20 m	30 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes	Yes
Note	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
