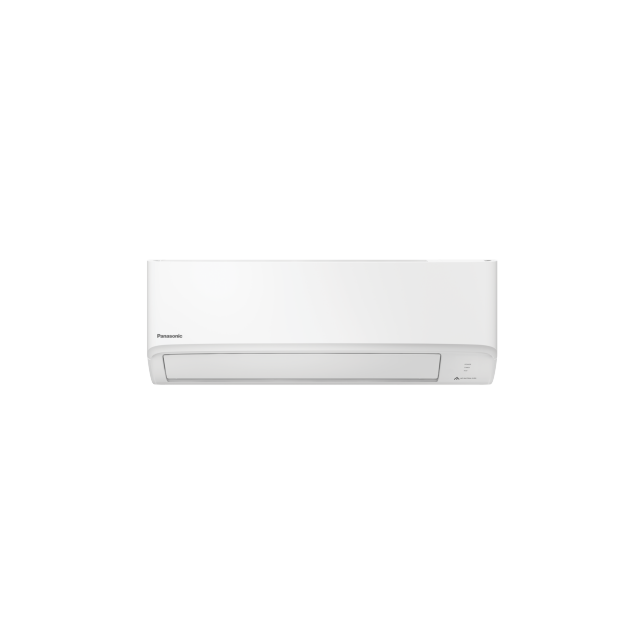

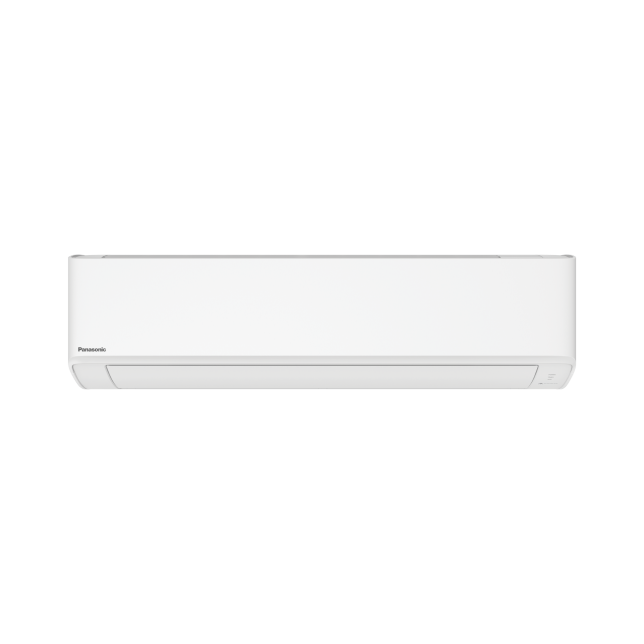

Standard Reverse Cycle Inverter RZ Series (XKR)

Shop Bar

Comfort Cooling/Heating All Year Round

Panasonic Standard Reverse Cycle Inverter RZ Series (XKR) features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant cooling with just a push of a button. AEROWINGS directs airflow further across the room. Enjoy cooling comfort while saving energy with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.

Standard Reverse Cycle Inverter RZ Series (XKR)

FIND A DEALER

Shop Bar

Features

Stay Warm/Cold Any Season All Year Long

The Panasonic RZ series wall split offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during the cooler season. Ensuring everyone's comfortable all year round.

Filters Bacteria and Viruses for Clean, Healthy Air

The filter combines anti-bacterial, anti-virus, anti-allergen and anti-mould protection, ensuring that clean air is delivered to the room.

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

Advanced Smart Control with Voice Assistant Compatibility

Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

LEARN MORE

*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model. Not applicable for multi-split systems.

Environmentally Friendly R32 Refrigerant

Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.

LEARN MORE

Comfort Cooling Environment for Your Needs

Faster and Further Airflow with AEROWINGS

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.

LEARN MORE

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.

LEARN MORE

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.

Sleep Better at Night

A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.

Built Tough to Last

Harsh coastal environments, with salty air, dust, wind, and rain, can damage and reduce the performance of the outdoor unit. Panasonic units are built to endure these elements, having undergone rigorous durability testing in extreme temperatures, high humidity, and low temperatures to ensure they continue to operate flawlessly. Enjoy continuous comfort regardless of climate.

Robust Design and Long Term Endurance

1 Corrosion-Resistant Blue Fin Condenser

All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.

2 Better Heat Transfer with Copper Tube Condenser

Panasonic outdoor units feature copper tube condensers, offering higher cooling capacity for efficient heat transfer.

3 Corrosion-Resistant Outdoor Coating

Durable outdoor unit with a multi-layered, corrosion-resistant coating shrugs off rain and salty water for long-lasting performance.

4 Water-Resistant PCB

Contact sections on the PCB feature a special resin coating, protecting them from damage caused by water droplets.

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.

*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.

Optional Wired Remote Controller

The optional wired remote controller provides a large display for improved visibility and a vast range of information to ease operations.

Range

Model
Cooling Capacity	2.50 kW	3.50 kW	4.20 kW	5.00 kW	6.00 kW	7.10 kW
Cooling Capacity	8,530 Btu/h	11,900 Btu/h	14,300 Btu/h	17,100 Btu/h	20,500 Btu/h	24,200 Btu/h
Heating Capacity	3.00 kW	4.00 kW	5.10 kW	6.00 kW	6.50 kW	8.00 kW
Heating Capacity	10,200 Btu/h	13,600 Btu/h	17,400 Btu/h	20,500 Btu/h	22,200 Btu/h	27,300 Btu/h
Indoor Unit	CS-RZ25XKRW	CS-RZ35XKRW	CS-RZ42XKRW	CS-RZ50XKRW	CS-RZ60XKRW	CS-RZ71XKRW
Outdoor Unit	CU-RZ25XKR	CU-RZ35XKR	CU-RZ42XKR	CU-RZ50XKR	CU-RZ60XKR	CU-RZ71XKR

Specs

CS_CU-RZ25XKR

CS_CU-RZ35XKR

CS_CU-RZ42XKR

CS_CU-RZ50XKR

CS_CU-RZ60XKR

CS_CU-RZ71XKR

ANTI-BACTERIAL FILTER
AEROWINGS
POWERFUL Mode
ECO Mode with A.I. Control
Inverter
Refrigerant R32
Quiet Mode
Sleep Mode
DRED ready

Anti-bacterial filter delivers quality indoor air to your spaces

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

AEROWINGS concentrates cool air for further and faster airflow across the room

POWERFUL Mode offers instant cooling with just a push of a button

ECO Mode with A.I. control intelligently balances energy savings and comfort

Energy efficiency with Inverter technology and R32 refrigerant

	CS_CU-RZ25XKR	CS_CU-RZ35XKR	CS_CU-RZ42XKR	CS_CU-RZ50XKR	CS_CU-RZ60XKR	CS_CU-RZ71XKR
Indoor Unit	CS-RZ25XKRW	CS-RZ35XKRW	CS-RZ42XKRW	CS-RZ50XKRW	CS-RZ60XKRW	CS-RZ71XKRW
Outdoor Unit	CU-RZ25XKR	CU-RZ35XKR	CU-RZ42XKR	CU-RZ50XKR	CU-RZ60XKR	CU-RZ71XKR
Cooling Capacity (min-max) (kW)	2.50 (0.95-3.70) kW	3.50 (1.00-4.20) kW	4.20 (1.15-5.10) kW	5.00 (1.15-6.10) kW	6.00 (1.25-6.90) kW	7.10 (1.70-8.50) kW
Heating Capacity (min-max) (kW)	3.00 (0.90-4.40) kW	4.00 (0.90-5.70) kW	5.10 (0.90-6.80) kW	6.00 (0.98-7.70) kW	6.50 (0.98-8.20) kW	8.00 (1.70-10.60) kW
Cooling Capacity (min-max) (Btu/h)	8,530 (3,240-12,600) Btu/h	11,900 (3,410-14,300) Btu/h	14,300 (3,920-17,400) Btu/h	17,100 (3,920-20,800) Btu/h	20,500 (4,260-23,500) Btu/h	24,200 (5,800-29,000) Btu/h
Heating Capacity (min-max) (Btu/h)	10,200 (3,070-15,000) Btu/h	13,600 (3,070-19,400) Btu/h	17,400 (3,070-23,200) Btu/h	20,500 (3,340-26,300) Btu/h	22,200 (3,340-28,000) Btu/h	27,300 (5,800-36,100) Btu/h
Cooling Indoor Air Flow (L/s)	187 L/s	193 L/s	193 L/s	208 L/s	328 L/s	352 L/s
Heating Indoor Air Flow (L/s)	200 L/s	202 L/s	202 L/s	228 L/s	339 L/s	367 L/s
Dehumid (L/h)	1.50 L/h	2.00 L/h	2.40 L/h	2.80 L/h	3.30 L/h	4.10 L/h
Cooling Running Current (A)	2.50 A	3.50 A	5.00 A	6.50 A	7.90 A	8.80 A
Heating Running Current (A)	2.80 A	3.80 A	5.70 A	7.30 A	8.00 A	8.90 A
Max Current (A)	6.40 A	7.20 A	8.90 A	11.00 A	11.60 A	14.80 A
Cooling Power Input (min-max) (kW)	0.57 (0.22-1.20) kW	0.80 (0.22-1.29) kW	1.18 (0.24-1.64) kW	1.51 (0.24-2.10) kW	1.85 (0.35-2.20) kW	2.06 (0.45-2.90) kW
Heating Power Input (min-max) (kW)	0.64 (0.19-1.29) kW	0.86 (0.19-1.65) kW	1.36 (0.20-2.04) kW	1.72 (0.26-2.50) kW	1.89 (0.26-2.64) kW	2.09 (0.40-3.30) kW
Cooling AEER/EER	4.32 W/W / 4.39 W/W	4.33 W/W / 4.38 W/W	3.53 W/W / 3.56 W/W	3.29 W/W / 3.31 W/W	3.23 W/W / 3.24 W/W	3.43 W/W / 3.45 W/W
Heating ACOP/COP	4.63 W/W / 4.69 W/W	4.61 W/W / 4.65 W/W	3.73 W/W / 3.75 W/W	3.47 W/W / 3.49 W/W	3.42 W/W / 3.44 W/W	3.81 W/W / 3.83 W/W
Star Rating Residential/Commercial - Cooling (Hot Climate)	4.5/6.0 TCSPF	4.5/5.5 TCSPF	3.5/4.5 TCSPF	3.5/4.5 TCSPF	3.5/4.5 TCSPF	3.5/4.5 TCSPF
Star Rating Residential/Commercial - Cooling (Average Climate)	4.0/6.5 TCSPF	4.0/6.5 TCSPF	3.5/5.0 TCSPF	3.5/6.0 TCSPF	3.5/5.5 TCSPF	3.5/5.0 TCSPF
Star Rating Residential/Commercial - Cooling (Cold Climate)	4.0/8.0 TCSPF	4.5/7.5 TCSPF	3.5/6.0 TCSPF	3.5/8.0 TCSPF	3.5/7.0 TCSPF	3.5/6.0 TCSPF
Star Rating Residential/Commercial - Heating (Hot Climate)	3.5/3.5 HSPF	3.5/3.5 HSPF	3.0/3.0 HSPF	3.0/3.0 HSPF	3.5/3.5 HSPF	3.5/3.5 HSPF
Star Rating Residential/Commercial - Heating (Average Climate)	3.0/3.0 HSPF	3.0/3.5 HSPF	2.5/2.5 HSPF	2.5/2.5 HSPF	3.0/3.0 HSPF	2.5/3.0 HSPF
Star Rating Residential/Commercial - Heating (Cold Climate)	2.5/2.5 HSPF	2.5/3.0 HSPF	2.0/2.0 HSPF	2.0/2.0 HSPF	2.0/2.5 HSPF	2.0/2.5 HSPF
Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)	40/25/19 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/26/19 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/31/28 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/34/28 dB(A) *Sound pressure level specification is measured according to JIS C9612.	47/36/33 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/37/34 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)	40/27/21 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/29/22 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/32/48 dB(A) *Sound pressure level specification is measured according to JIS C9612.	44/33/29 dB(A) *Sound pressure level specification is measured according to JIS C9612.	48/36/33 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/37/34 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)	56/41/35 dB(A)	60/42/35 dB(A)	60/47/44 dB(A)	60/50/44 dB(A)	63/52/49 dB(A)	65/53/50 dB(A)
Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)	56/43/37 dB(A)	60/45/38 dB(A)	60/48/44 dB(A)	60/49/45 dB(A)	64/52/49 dB(A)	65/53/50 dB(A)
Indoor Unit Dimensions (H x W x D) (mm)	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	290 mm x 779 mm x 209 mm	295 mm x 1,040 mm x 244 mm	295 mm x 1,040 mm x 244 mm
Indoor Unit Net Weight	8 kg	8 kg	8 kg	8 kg	12 kg	13 kg
Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)	48/43 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	48/43 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	54/49 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo)	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	50/45 dB(A) *Sound pressure level specification is measured according to JIS C9612.	51/46 dB(A) *Sound pressure level specification is measured according to JIS C9612.	49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612.	51/46 dB(A) *Sound pressure level specification is measured according to JIS C9612.	54/49 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)	63/58 dB(A)	64/59 dB(A)	64/59 dB(A)	63/58 dB(A)	64/59 dB(A)	68/63 dB(A)
Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)	64/59 dB(A)	65/60 dB(A)	66/61 dB(A)	64/59 dB(A)	66/61 dB(A)	68/63 dB(A)
Outdoor Unit Dimensions (H x W x D)	542 mm x 780 mm x 289 mm	542 mm x 780 mm x 289 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm	619 mm x 824 mm x 299 mm	695 mm x 875 mm x 320 mm
Outdoor Unit Net Weight	25 kg	30 kg	31 kg	35 kg	35 kg	45 kg
Refrigerant Type	R32	R32	R32	R32	R32	R32
Refrigerant Pipe Diameter (Liquid Side)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)	ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)	ø 9.52 mm (3/8 inch)	ø 9.52 mm (3/8 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)	ø 12.70 mm (1/2 inch)	ø 15.88 mm (5/8 inch)
Pipe Extension Length (min-max)	3 m ~ 20 m	3 m ~ 20 m	3 m ~ 20 m	3 m ~ 30 m	3 m ~ 30 m	3 m ~ 30 m
Maximum Elevation Length	15 m	15 m	15 m	15 m	15 m	20 m
Pipe Length for Additional Refrigerant Gas	7.50 m	7.50 m	7.50 m	10 m	10 m	10 m
Additional Refrigerant Gas Amount	10 g/m	10 g/m	10 g/m	15 g/m	15 g/m	25 g/m
Power Supply	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor	Outdoor
Outdoor Unit Operating Range (Cooling)	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C	-10°C ~ +46°C
Outdoor Unit Operating Range (Heating)	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C	-15°C ~ +24°C
POWERFUL Mode	Yes	Yes	Yes	Yes	Yes	Yes
ECO Mode with A.I.	Yes	Yes	Yes	Yes	Yes	Yes
Inverter Control	Yes	Yes	Yes	Yes	Yes	Yes
Sleep Mode	Yes	Yes	Yes	Yes	Yes	Yes
Quiet Mode	Yes	Yes	Yes	Yes	Yes	Yes
Fan Mode	Yes	Yes	Yes	Yes	Yes	Yes
Soft Dry Operation Mode	Yes	Yes	Yes	Yes	Yes	Yes
Hot Start Control	Yes	Yes	Yes	Yes	Yes	Yes
Auto Changeover (Inverter)	Yes	Yes	Yes	Yes	Yes	Yes
Personal Airflow Creation	No	No	No	No	Yes	Yes
Manual Horizontal Airflow Direction Control	Yes	Yes	Yes	Yes	No	No
Airflow Direction Control (Up & Down)	Yes	Yes	Yes	Yes	No	No
Anti-Bacterial Filter	Yes	Yes	Yes	Yes	Yes	Yes
Odour Removing Function	Yes	Yes	Yes	Yes	Yes	Yes
Removable Washable Panel	Yes	Yes	Yes	Yes	Yes	Yes
24-Hour Dual ON & OFF Real Setting Timer	Yes	Yes	Yes	Yes	Yes	Yes
Demand Response Enabling Device (DRED)	Yes	Yes	Yes	Yes	Yes	Yes
LCD Wireless Remote Control	Yes	Yes	Yes	Yes	Yes	Yes
Wi-Fi	Optional (Network adaptor required)	Optional (Network adaptor required)	Optional (Network adaptor required)	Optional (Network adaptor required)	Optional (Network adaptor required)	Optional (Network adaptor required)
Wired Remote Control	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)	Yes (Optional)
Random Auto Restart	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)	Yes (32 Restart Patterns)
Blue Fin Condenser	Yes	Yes	Yes	Yes	Yes	Yes
Long Piping (max.)	20 m	20 m	20 m	30 m	30 m	30 m
Top Panel Maintenance Access	Yes	Yes	Yes	Yes	Yes	Yes
Self-Diagnostic Function	Yes	Yes	Yes	Yes	Yes	Yes
Note	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.	Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
