Cooling Only Inverter U Series (WKR/XKR)

Optimising Comfort, Energy-Saving

Panasonic Cooling Only Inverter U Series (WKR/XKR) features an anti-bacterial filter to ensure clean air is delivered throughout the space. POWERFUL Mode offers instant powerful cooling with just a push of a button. AEROWINGS directs airflow further across the room. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant and ECO Mode with A.I. Control. Stay connected with Panasonic Comfort Cloud App (optional network adaptor is required) to manage your air conditioners from one mobile device.
  • ANTI-BACTERIAL FILTER
  • AEROWINGS
  • POWERFUL Mode
  • ECO Mode with A.I. Control
Zoom In
Zoom Out
Close
Cooling Only Inverter U Series (WKR/XKR)
FIND A DEALER

Features

Filters Bacteria and Viruses for Clean, Healthy Air

Filters Bacteria and Viruses for Clean, Healthy Air
The filter combines anti-bacterial, anti-virus, anti-allergen and anti-mould protection, ensuring that clean air is delivered to the room.

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime

Control multiple air conditioning units from anywhere, at home or away, with Panasonic Comfort Cloud App (requires optional network adaptor CZ-TACG1). Remotely access all air conditioning features, track and monitor usage of air conditioning units using comprehensive energy statistics and identify issues with error notifications for effortless troubleshooting, all just from one mobile device.

LEARN MORE

Advanced Smart Control with Voice Assistant Compatibility

Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Advanced Smart Control with Voice Assistant Compatibility

Intelligently Balances Energy Savings and Comfort

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.

LEARN MORE

*Comparison of ECO mode & normal mode by using 3.5kW Inverter Model.

Environmentally Friendly R32 Refrigerant

Panasonic air conditioners use environmentally friendly R32 refrigerant. An excellent heat transfer medium with a higher cooling capacity, this refrigerant reduces energy costs. It also has low global warming potential, making it friendlier to the environment.
LEARN MORE
Environmentally Friendly R32 Refrigerant

Comfort Cooling Environment for Your Needs

Faster and Further Airflow with AEROWINGS

AEROWINGS concentrates cool air for further and faster airflow across the room using 2 flaps. The sub-flap compresses and concentrates cool air, while the outer flap helps to deliver airflow further.
LEARN MORE
Faster and Further Airflow with AEROWINGS

Instant Powerful Cooling with a Push of a Button

POWERFUL Mode will run both the compressor and indoor fan at super high speed, so you get to enjoy instant powerful cooling.
LEARN MORE
Instant Powerful Cooling with a Push of a Button

Calm and Peaceful Environment with Quiet Mode

Loud noises can be bothersome. Switch on Quiet mode to reduce the noise level of the indoor unit. In Quiet mode, the fan speed is reduced to minimum. This mode is ideal when you require a quiet, peaceful environment, during rest time or study.
Calm and Peaceful Environment with Quiet Mode

Sleep Better at Night

A comfortable environment is essential for healthy sleep. Our body’s temperature decreases while we sleep, thus less cooling is required. Sleep mode offers ambient temperature by automatically shifting the set temperature during sleeping time.
Sleep Better at Night

Built Tough to Last

Harsh coastal environments, with salty air, dust, wind, and rain, can damage and reduce the performance of the outdoor unit. Panasonic units are built to endure these elements, having undergone rigorous durability testing in extreme temperatures, high humidity, and low temperatures to ensure they continue to operate flawlessly. Enjoy continuous comfort regardless of climate.
Built Tough to Last

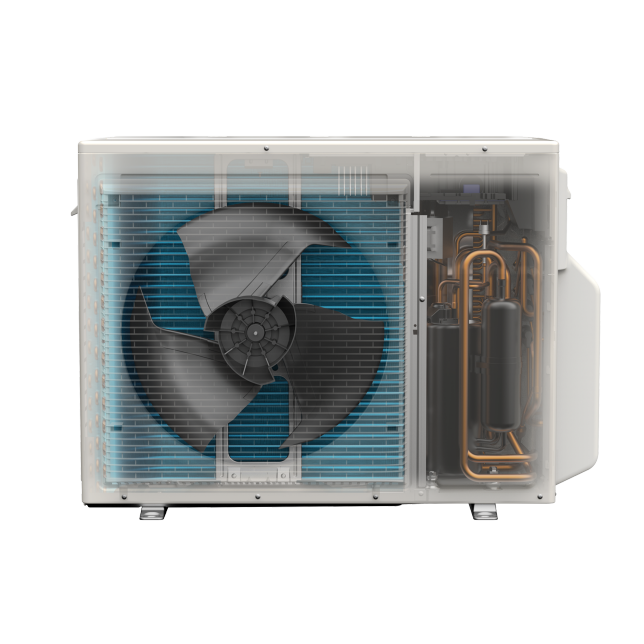

Robust Design and Long Term Endurance

1 Corrosion-Resistant Blue Fin Condenser

All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.
Corrosion-Resistant Blue Fin Condenser

2 Better Heat Transfer with Copper Tube Condenser

Panasonic outdoor units feature copper tube condensers, offering higher cooling capacity for efficient heat transfer.
Better Heat Transfer with Copper Tube Condenser

3 Corrosion-Resistant Outdoor Coating

Durable outdoor unit with a multi-layered, corrosion-resistant coating shrugs off rain and salty water for long-lasting performance.
Corrosion-Resistant Outdoor Coating

4 Water-Resistant PCB

Contact sections on the PCB feature a special resin coating, protecting them from damage caused by water droplets.
Water-Resistant PCB

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is easy to use, with commonly used functions for quick access.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

Range

Model

Cooling Capacity

2.50 kW

3.50 kW

5.00 kW

7.10 kW

8.00 kW

8,530 Btu/h

11,900 Btu/h

17,100 Btu/h

24,200 Btu/h

27,300 Btu/h

Indoor Unit

CS-U25WKR

CS-U35WKR

CS-U50WKR

CS-U71XKR

CS-U80XKR

Outdoor Unit

CU-U25WKR

CU-U35WKR

CU-U50WKR

CU-U71XKR

CU-U80XKR

Specs

CS_CU-U25WKR

Photo of CS_CU-U25WKR

CS_CU-U35WKR

Photo of CS_CU-U35WKR

CS_CU-U50WKR

Photo of CS_CU-U50WKR

CS_CU-U71XKR

Photo of CS_CU-U71XKR

CS_CU-U80XKR

Photo of CS_CU-U80XKR
  • ANTI-BACTERIAL FILTERANTI-BACTERIAL FILTER
  • AEROWINGSAEROWINGS
  • POWERFUL ModePOWERFUL Mode
  • ECO Mode with A.I. ControlECO Mode with A.I. Control

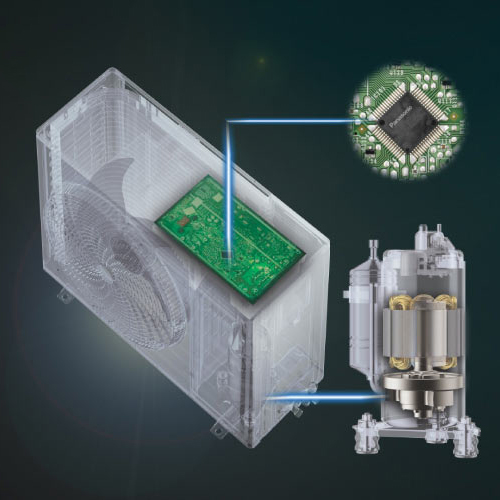

  • InverterInverter
  • Refrigerant R32Refrigerant R32
  • Quiet ModeQuiet Mode
  • Sleep ModeSleep Mode
  • DRED readyDRED ready

Anti-bacterial filter delivers quality indoor air to your spaces

Manage your air conditioner using your mobile device with Comfort Cloud App (Optional network adaptor is required)

AEROWINGS concentrates cool air for further and faster airflow across the room

POWERFUL Mode offers instant cooling with just a push of a button

ECO Mode with A.I. control intelligently balances energy savings and comfort

Energy efficiency with Inverter technology and R32 refrigerant

CS_CU-U25WKR CS_CU-U35WKR CS_CU-U50WKR CS_CU-U71XKR CS_CU-U80XKR
Indoor Unit CS-U25WKR CS-U35WKR CS-U50WKR CS-U71XKR CS-U80XKR
Outdoor Unit CU-U25WKR CU-U35WKR CU-U50WKR CU-U71XKR CU-U80XKR
Cooling Capacity (min-max) (kW) 2.50 (0.90-3.00) kW 3.50 (0.90-4.00) kW 5.00 (1.15-5.80) kW 7.10 (2.00-7.70) kW 8.00 (2.10-8.40) kW
Cooling Capacity (min-max) (Btu/h) 8,530 (3,070-10,200) Btu/h 11,900 (3,070-13,600) Btu/h 17,100 (3,920-19,800) Btu/h 24,200 (6,820-26,300) Btu/h 27,300 (7,160-28,600) Btu/h
Indoor Air Flow (L/s) 208 L/s 217 L/s 230 L/s 362 L/s 377 L/s
Dehumid (L/h) 1.5 L/h 2.00 L/h 2.8 L/h 4.1 L/h 4.7 L/h
Running Current (A) 2.70 A 3.90 A 6.00 A 9.10 A 10.50 A
Max Current (A) 5.00 A 6.40 A 10.30 A 13.00 A 14.70 A
Power Input (min-max) (kW) 0.60 (0.20-0.78) kW 0.87 (0.22-1.13) kW 1.36 (0.20-1.85) kW 2.15 (0.47-2.40) kW 2.46 (0.43-2.60) kW
AEER / EER 4.08 W/W / 4.17 W/W 3.96 W/W / 4.02 W/W 3.64 W/W / 3.68 W/W 3.29 W/W / 3.30 W/W 3.24 W/W / 3.25 W/W
Star Rating Residential/Commercial - Hot Climate 4.0/5.0 TCSPF 4.0/4.5 TCSPF 4.0/4.5 TCSPF 3.5/4.0 TCSPF 3.0/3.5 TCSPF
Star Rating Residential/Commercial - Average Climate 3.5/5.5 TCSPF 3.5/5.5 TCSPF 3.5/5.5 TCSPF 3.0/4.5 TCSPF 3.0/4.0 TCSPF
Star Rating Residential/Commercial - Cold Climate 3.5/6.0 TCSPF 3.5/6.5 TCSPF 4.0/7.0 TCSPF 3.0/5.0 TCSPF 3.0/5.0 TCSPF
Indoor Unit Sound Pressure Noise Level (H / L / Q-Lo) 42/25/19 dB(A) *Sound pressure level specification is measured according to JIS C9612. 43/26/19 dB(A) *Sound pressure level specification is measured according to JIS C9612. 47/34/28 dB(A) *Sound pressure level specification is measured according to JIS C9612. 49/38/35 dB(A) *Sound pressure level specification is measured according to JIS C9612. 52/38/35 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Indoor Unit Sound Power Noise Level (H / L / Q-Lo) 58/41/35 dB(A) 59/42/35 dB(A) 63/50/44 dB(A) 65/54/51 dB(A) 68/54/51 dB(A)
Indoor Unit Dimensions (H x W x D) 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 290 mm x 779 mm x 209 mm 295 mm x 1,040 mm x 244 mm 295 mm x 1,040 mm x 244 mm
Indoor Unit Net Weight 8 kg 8 kg 8 kg 13 kg 13 kg
Outdoor Unit Sound Pressure Noise Level (H / Q-Lo) 47/42 dB(A) *Sound pressure level specification is measured according to JIS C9612. 49/44 dB(A) *Sound pressure level specification is measured according to JIS C9612. 48/43 dB(A) *Sound pressure level specification is measured according to JIS C9612. 54/49 dB(A) *Sound pressure level specification is measured according to JIS C9612. 55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Outdoor Unit Sound Power Noise Level (H / Q-Lo) 62/57 dB(A) 64/59 dB(A) 63/58 dB(A) 68/63 dB(A) 69/64 dB(A)
Outdoor Unit Dimensions (H x W x D) 542 mm x 780 mm x 289 mm 542 mm x 780 mm x 289 mm 619 mm x 824 mm x 299 mm 695 mm x 875 mm x 320 mm 695 mm x 875 mm x 320 mm
Outdoor Unit Net Weight 24 kg 30 kg 35 kg 42 kg 43 kg
Refrigerant Type R32 R32 R32 R32 R32
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 12.70 mm (1/2 inch) ø 15.88 mm (5/8 inch) ø 15.88 mm (5/8 inch)
Pipe Extension Length (min-max) 3 m ~ 20 m 3 m ~ 20 m 3 m ~ 30 m 3 m ~ 30 m 3 m ~ 30 m
Maximum Elevation Length 15 m 15 m 15 m 20 m 20 m
Pipe Length For Additional Refrigerant Gas 7.50 m 7.50 m 10 m 10 m 10 m
Pipe Extension (Maximum Pipe Length) 20 m 20 m 30 m 30 m 30 m
Additional Refrigerant Gas Amount 10 g/m 10 g/m 15 g/m 25 g/m 25 g/m
Power Supply Outdoor Outdoor Outdoor Outdoor Outdoor
Outdoor Unit Operating Range +5°C ~ +46°C +5°C ~ +46°C +5°C ~ +46°C +5°C ~ +46°C +5°C ~ +46°C
ECO Mode with A.I. Yes Yes Yes Yes Yes
Inverter Control Yes Yes Yes Yes Yes
POWERFUL Mode Yes Yes Yes Yes Yes
Sleep Mode Yes Yes Yes Yes Yes
Quiet Mode Yes Yes Yes Yes Yes
Fan Mode Yes Yes Yes Yes Yes
Soft Dry Operation Mode Yes Yes Yes Yes Yes
Personal Airflow Creation No No No Yes Yes
Manual Horizontal Airflow Direction Control Yes Yes Yes No No
Airflow Direction Control (Up & Down) Yes Yes Yes No No
Anti-Bacterial Filter Yes Yes Yes Yes Yes
Odour Removing Function Yes Yes Yes Yes Yes
Removable Washable Panel Yes Yes Yes Yes Yes
24-Hour Dual ON & OFF Real Setting Timer Yes Yes Yes Yes Yes
Demand Response Enabling Device (DRED) Yes Yes Yes Yes Yes
LCD Wireless Remote Control Yes Yes Yes Yes Yes
Wi-Fi Optional (Network adaptor is required) Optional (Network adaptor is required) Optional (Network adaptor is required) Optional (Network adaptor is required) Optional (Network adaptor is required)
Wired Remote Control Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional) Yes (Optional)
Random Auto Restart Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns) Yes (32 Restart Patterns)
Blue Fin Condenser Yes Yes Yes Yes Yes
Long Piping (max.) 20 m 20 m 20 m 30 m 30 m
Top Panel Maintenance Access Yes Yes Yes Yes Yes
Self-Diagnostic Function Yes Yes Yes Yes Yes
Note Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
