Multi Split Air Conditioning System

Energy-Efficient Multi Split System

Panasonic’s Multi Split Air Conditioning System is a high efficiency multi split system and designed with high durability under a wide range of harsh conditions. A single outdoor unit offers flexibility up to 11.5kW (cooling) and 14.5kW (heating), and connects up to 5 ports with independent operational control. Mix and match with a selection of 5 types of indoor units, including Wall-Mounted Z Series with nanoe™ X and built-in Wi-Fi, Wall-Mounted RZ Series, Ultra Slim Ducted, Mini Cassette with nanoe™ X and Floor Console with nanoe™ X. The outdoor unit’s wide cooling capacity provides greater installation flexibility to accommodate large spaces or high occupancy levels.
  • Inverter
  • R32 Refrigerant
  • Blue Fin Condenser
  • Copper Tube Condenser
Zoom In
Zoom Out
Close
Multi Split Air Conditioning System
Contact UsOpen new window

Features

One System that Houses All

One System that Houses All

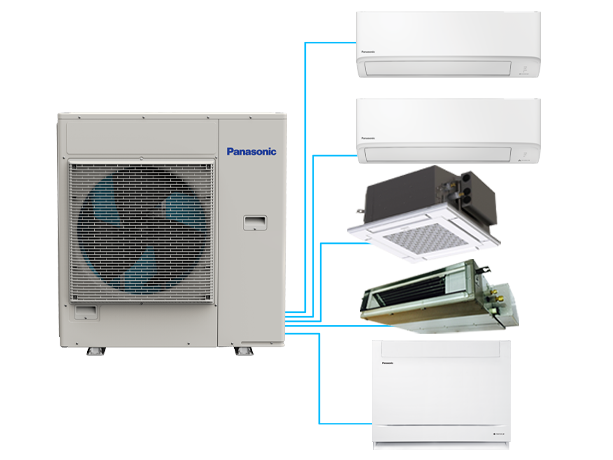

Panasonic Multi Split Air Conditioning System offers flexible multi zone cooling solutions with just one outdoor unit. Connect up to 5 indoor units with independent indoor operational control and a vast selection of indoor types from a wide cooling capacity range. It also offers convenient comfort for every space, keeping you cool during the warm season and letting you enjoy warmth during cooler seasons. Ensuring everyone is comfortable all year round.

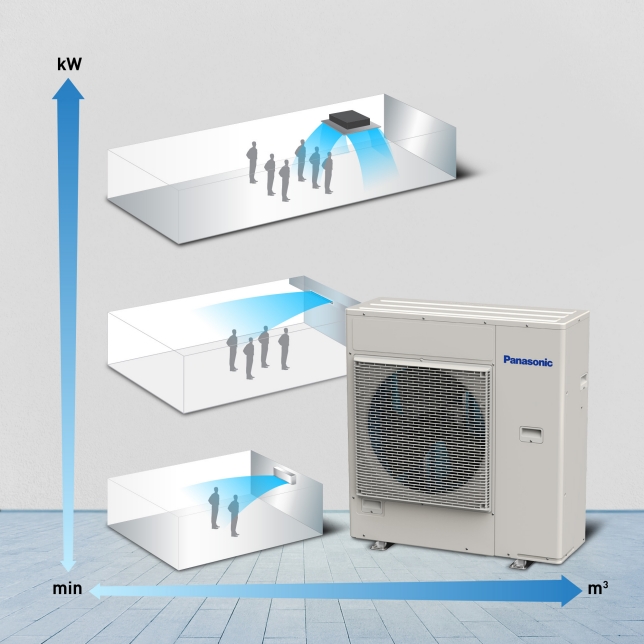

Wide Cooling/Heating Capacity Range to Meet Different Space Requirements

Multi Split Air Conditioning System offers a wide range of outdoor cooling capacity up to 11.5kW and heating capacity up to 14.5kW. This enables flexible indoor unit combinations according to different applications and room sizes, from small to large rooms.
Wide Cooling/Heating Capacity Range to Meet Different Space Requirements

Purify Your Home All Day Long with 24-hour nanoe™ X Air Purification

Purify Your Home All Day Long with 24-hour nanoe™ X Air Purification

Breathe easy at home, all day long. Panasonic’s nanoe™ X technology uses hydroxyl radicals contained in water to continuously clean and purify your indoor air, even on surfaces and soft furnishings. Activate with or without heating/cooling function turned on, nanoe™ X effectively inhibits bacteria, viruses and other pollutants, while deodorising the space, as well as moisturising skin and hair. This purification technology keeps your living space feeling fresh and clean, creating a safe haven for you and your loved ones 24/7.

LEARN MORE

*nanoe™ X applicable to Wall-Mounted Z Series, Mini Cassette and Floor Console.

Asthma and Allergy Friendly

Panasonic nanoe™ X technology has been approved by the National Asthma Council Australia's Sensitive Choice program, helping those with asthma and allergies breathe easier.
Asthma and Allergy Friendly

Multi Zone Control with Comfort Cloud App

Multi Zone Control with Comfort Cloud App

With built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multi zone air conditioning units from anywhere, at home or away via one mobile device.

LEARN MORE

Advanced Smart Control with Voice Assistant Compatibility

Panasonic Comfort Cloud App also connects to leading voice assistants, granting you effortless control over your comfort. Optimise your air conditioning experience without lifting a finger – simply give a voice command to adjust settings and create the perfect comfort for your home.
Advanced Smart Control with Voice Assistant Compatibility

Better Living, Together with Energy-saving and Eco-friendly Technologies

Better Living, Together with Energy-saving and Eco-friendly Technologies
Panasonic air conditioners have excellent energy efficiency with energy-saving Inverter technology and the use of environmentally friendly R32 refrigerant. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. A smarter, greener choice with energy-saving technologies for sustainable living.

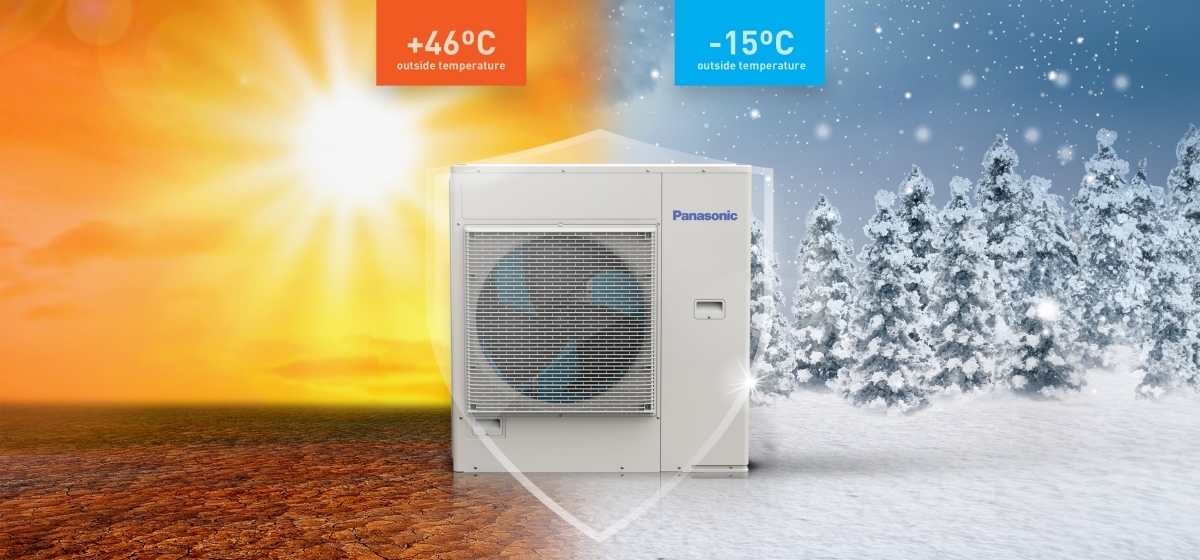

High Durability, Made to Last Under Harsh Weather Conditions

High Durability, Made to Last Under Harsh Weather Conditions
Our air conditioning systems boast an outstanding operating temperature range. Cooling operation is possible even when it is a scorching +46°C outside, which is perfect for hot summer days. The heating operation is designed to operate even when it’s a freezing -15°C outside, ensuring that you are comfortable in extremely cold weather.

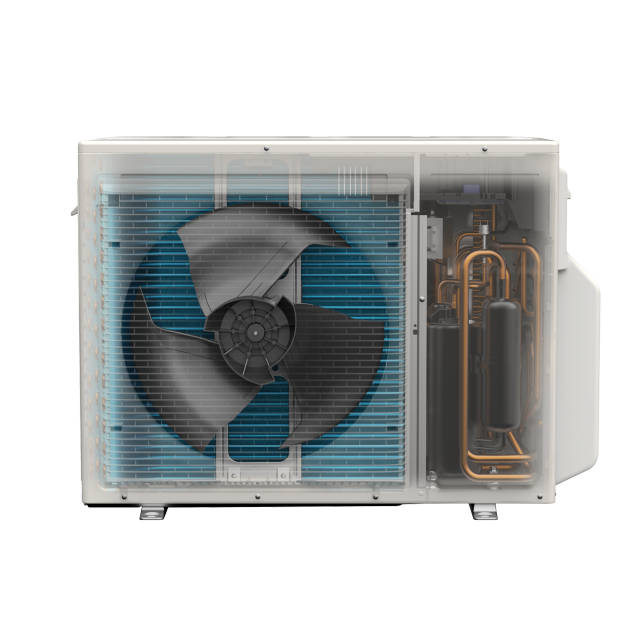

Robust Design and Long Term Endurance

1 Corrosion-Resistant Blue Fin Condenser

All Panasonic outdoor units feature Blue Fin coating, which protects the condenser from corrosion caused by air, water, and other corrosive elements.
Corrosion-Resistant Blue Fin Condenser

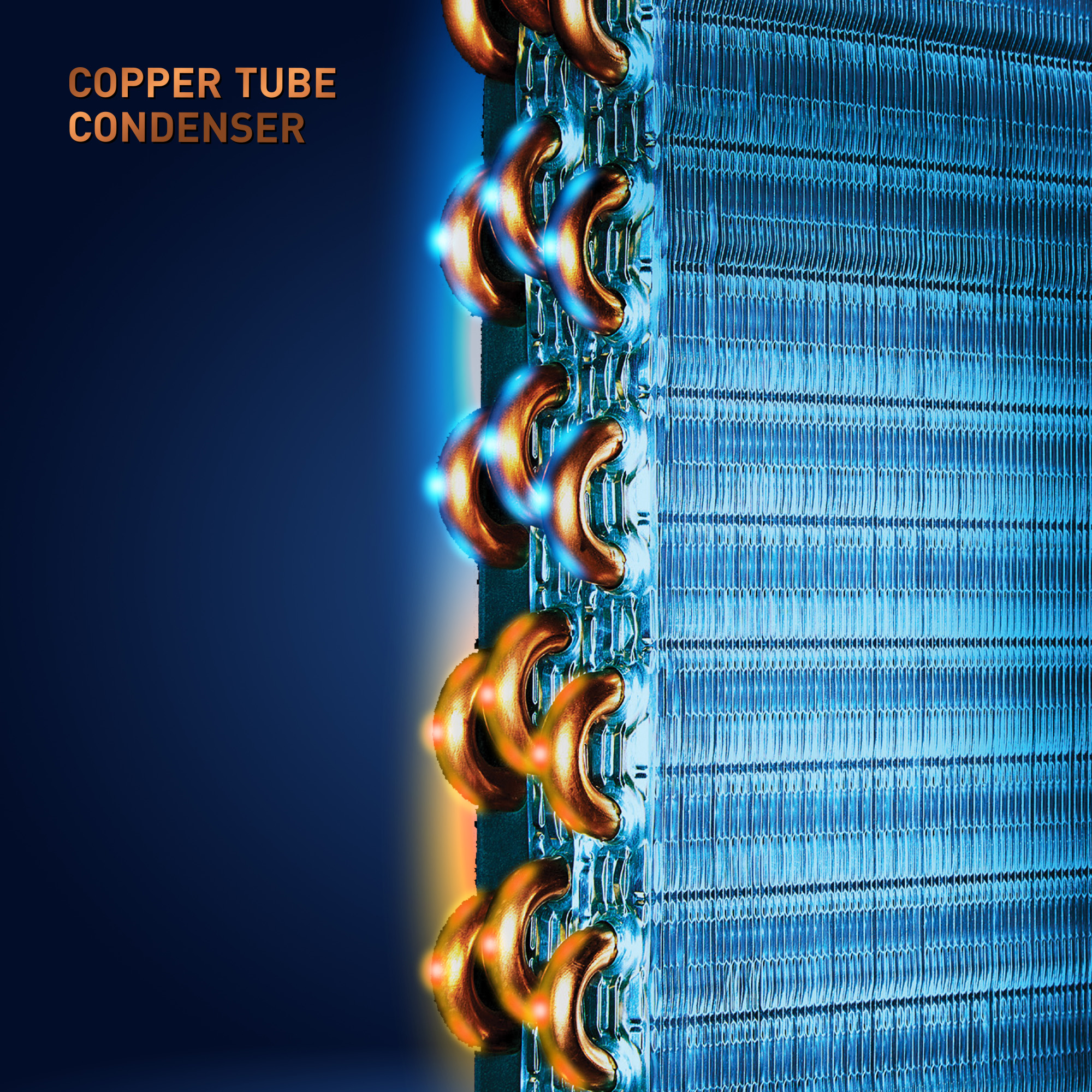

2 Better Heat Transfer with Copper Tube Condenser

Panasonic outdoor units feature copper tube condensers, offering higher cooling capacity for efficient heat transfer.
Better Heat Transfer with Copper Tube Condenser

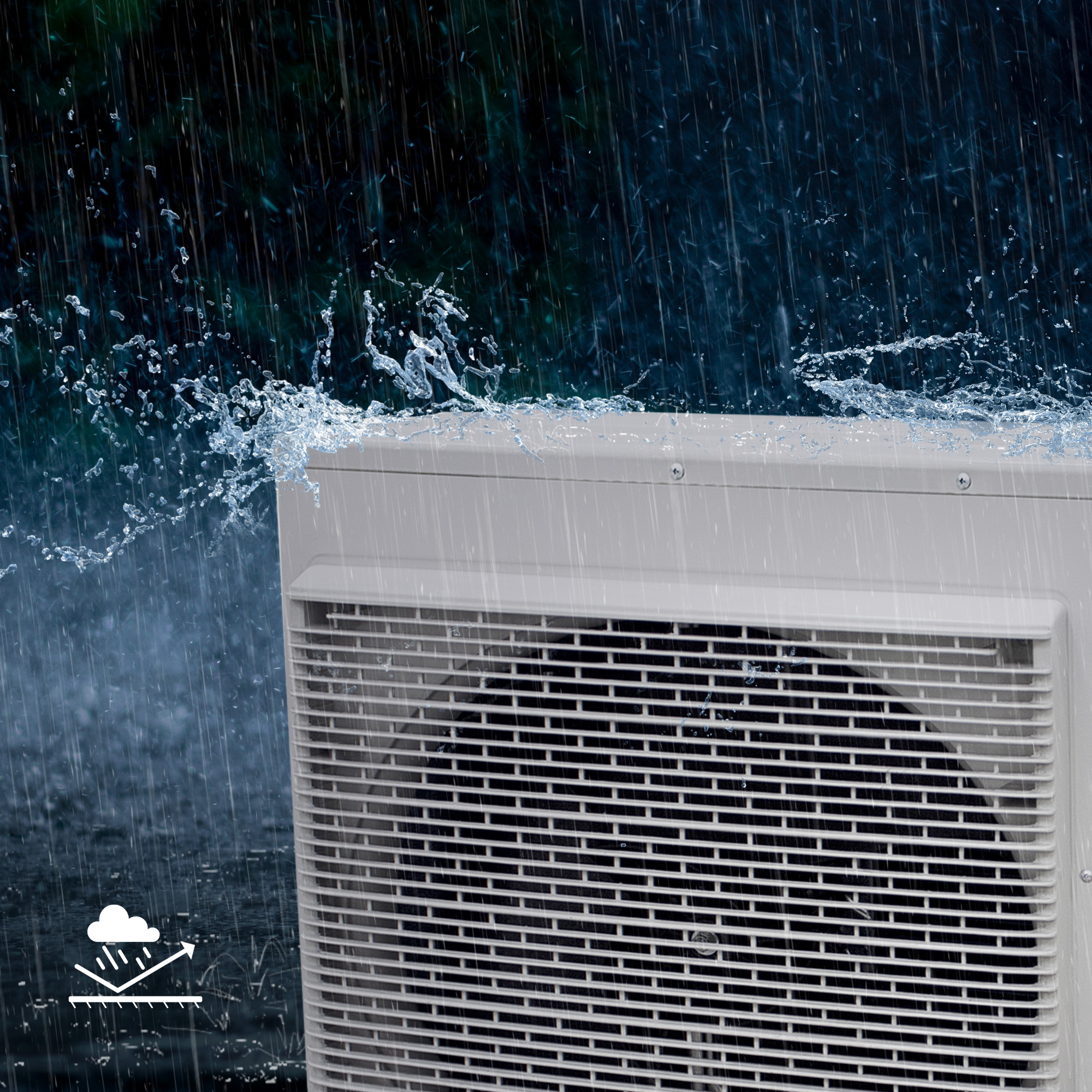

3 Corrosion-Resistant Outdoor Coating

Durable outdoor unit with a multi-layered, corrosion-resistant coating shrugs off rain and salty water for long-lasting performance.
Corrosion-Resistant Outdoor Coating

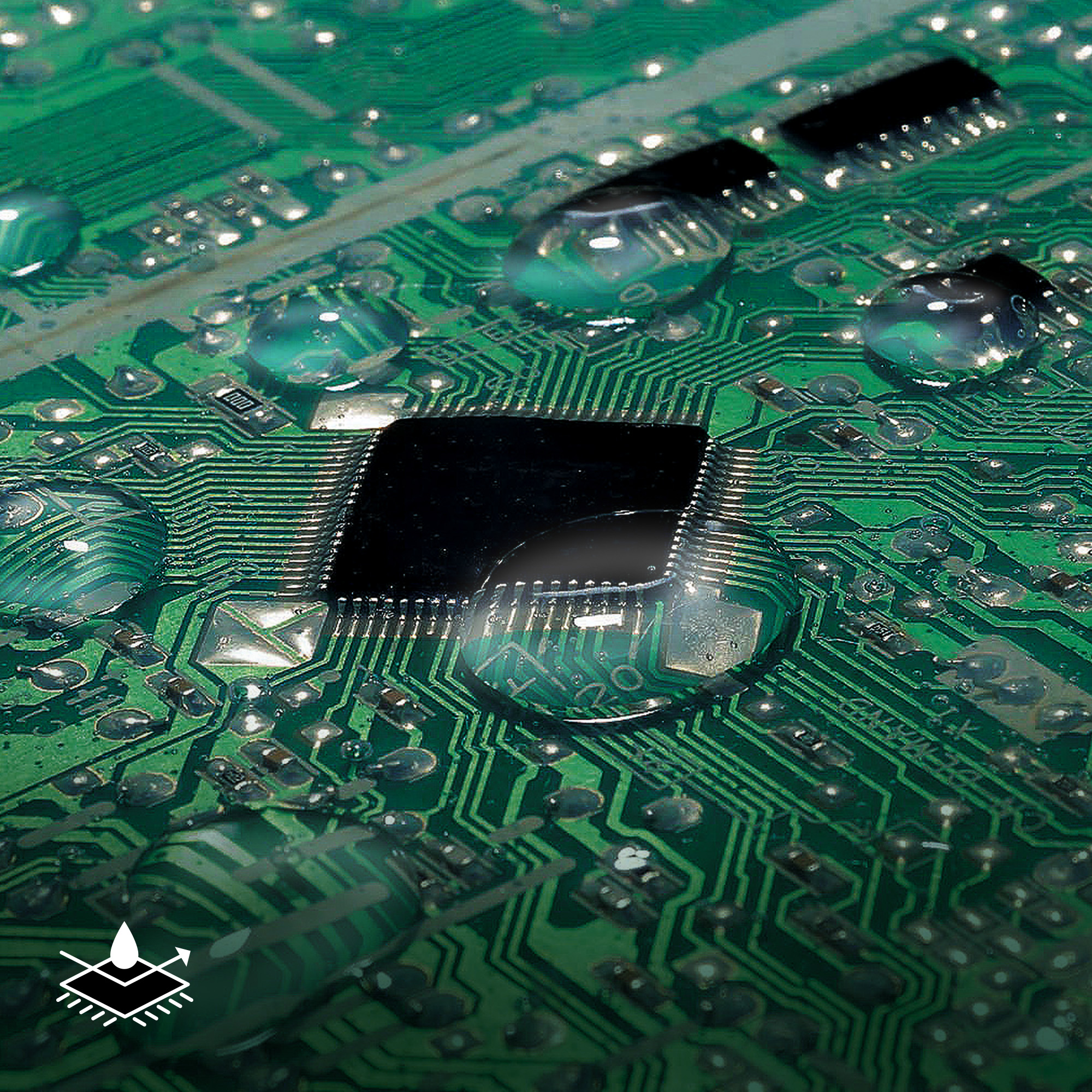

4 Water-Resistant PCB

Contact sections on the PCB feature a special resin coating, protecting them from damage caused by water droplets.
Water-Resistant PCB

Outdoor Units Range

Multi Split
Air Conditioning System

Up to 2 rooms

Up to 3 rooms

Up to 4 rooms

Up to 5 rooms

Model

CU-2Z52VBR

CU-3Z54VBR

CU-4Z71VBR

CU-4Z80VBR

CU-5Z100VBR

Cooling Capacity (min – max)

5.2kW
(1.5kW – 6.0kW)

5.4kW
(1.8kW – 7.3kW)

7.1kW
(1.9kW – 8.8kW)

8.0kW
(2.3kW – 9.2kW)

10.0kW
(2.3kW – 11.5kW)

Heating Capacity (min – max)

6.1kW
(1.1kW – 7.2kW)

7.0kW
(1.6kW – 9.0kW)

8.5kW
(3.0kW – 10.7kW)

9.4kW
(3.0kW – 11.6kW)

12.0kW
(3.4kW – 14.5kW)

Maximum Indoor Connectable Capacity

7.7kW

9.5kW

11.5kW

14.7kW

18.3kW

Maximum Connectable Indoor

2 units

3 units

4 units

4 units

5 units

Selectable Indoor Units

Indoor Unit

Wall-Mounted
Z Series

Wall-Mounted
RZ Series

Ultra
Slim Ducted

Mini Cassette
with nanoe™ X

Floor Console
with nanoe™ X

Air Purification

nanoe™ X

Anti-Bacterial Filter

–

nanoe™ X

nanoe™ X

Connectivity

Built in Wi-Fi

Optional
(Network adaptor is required)

Optional
(Network adaptor is required)

Optional
(Network adaptor is required)

Optional
(Network adaptor is required)

Energy Efficiency

ECO Mode with A.I. Control

ECO Mode with A.I. Control

–

–

–

Comfort

iAUTO-X,
Quiet Mode,
Sleep Mode,
AEROWINGS

POWERFUL Mode,
Quiet Mode,
Sleep Mode,
AEROWINGS

POWERFUL Mode,
Quiet Mode,
Wide Angle Airflow

POWERFUL Mode,
Quiet Mode,
4-Way Airflow

POWERFUL Mode,
Upward Airflow,
Double Airflow
(only during heating)

Flexible Installation

Compact design fit any space

Compact design fit any space

Slim design 200mm height

Flat horizontal design

Flat front panel

Specs

CU-2Z52VBR

Photo of CU-2Z52VBR

CU-3Z54VBR

Photo of CU-3Z54VBR

CU-4Z71VBR

Photo of CU-4Z71VBR

CU-4Z80VBR

Photo of CU-4Z80VBR

CU-5Z100VBR

Photo of CU-5Z100VBR
  • InverterInverter
  • R32 RefrigerantR32 Refrigerant
  • Blue Fin CondenserBlue Fin Condenser
  • Copper Tube CondenserCopper Tube Condenser

Wide cooling capacity range of up to 11.5kW and heating capacity of up to 14.5kW

Energy-saving & eco-friendly technologies with Inverter and R32 refrigerant

Vast selection of indoor type

Wide operating temperature range

High durability under harsh weather conditions

Robust design and long term endurance

CU-2Z52VBR CU-3Z54VBR CU-4Z71VBR CU-4Z80VBR CU-5Z100VBR
Power Source Single Phase 240V, 50Hz Single Phase 240V, 50Hz Single Phase 240V, 50Hz Single Phase 240V, 50Hz Single Phase 240V, 50Hz
Cooling Capacity (min-max) (kW) 5.20 (1.50-6.00) kW 5.40 (1.80-7.30) kW 7.10 (1.90-8.80) kW 8.00 (2.30-9.20) kW 10.00 (2.30-11.50) kW
Heating Capacity (kW) 6.10 (1.10-7.20) kW 7.00 (1.60-9.00) kW 8.50 (3.00-10.70) kW 9.40 (3.00-11.60) kW 12.00 (3.40-14.50) kW
Maximum Connectable Capacity (kW) 7.7 kW 9.5 kW 11.5 kW 14.7 kW 18.3 kW
Maximum Connectable Indoor (Units) 2 Units 3 Units 4 Units 4 Units 5 Units
Cooling Running Current (A) 5.9 A 5.1 A 7.4 A 8.9 A 11.8 A
Heating Running Current (A) 6.2 A 6.8 A 8.6 A 9.3 A 12.1 A
Maximum Current (A) 11.5 A 15.2 A 15.6 A 19.0 A 21.3 A
Starting Current (A) 6.4 A 7.0 A 8.8 A 9.7 A 12.5 A
Cooling Power Input (min-max) (kW) 1.35 (0.25-1.62) kW 1.12 (0.36-2.18) kW 1.66 (0.34-2.47) kW 1.98 (0.42-2.87) kW 2.60 (0.43-3.59) kW
Heating Power Input (min-max) (kW) 1.43 (0.21-1.90) kW 1.54 (0.32-2.63) kW 1.95 (0.50-2.72) kW 2.03 (0.50-3.42) kW 2.76 (0.58-4.02) kW
Compressor Output (W) 900 W 1,300 W 1,300 W 1,700 W 1,700 W
Cooling AEER 3.79 W/W 4.74 W/W 4.23 W/W 4.00 W/W 3.81 W/W
Cooling EER 3.85 W/W 4.82 W/W 4.28 W/W 4.04 W/W 3.85 W/W
Heating ACOP 4.21 W/W 4.49 W/W 4.32 W/W 4.58 W/W 4.31 W/W
Heating COP 4.27 W/W 4.55 W/W 4.36 W/W 4.63 W/W 4.35 W/W
Cooling Sound Pressure Noise Level (H) 51 dB(A) *Sound pressure level specification is measured according to JIS C9612. 48 dB(A) *Sound pressure level specification is measured according to JIS C9612. 49 dB(A) *Sound pressure level specification is measured according to JIS C9612. 51 dB(A) *Sound pressure level specification is measured according to JIS C9612. 53 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Heating Sound Pressure Noise Level (H) 53 dB(A) *Sound pressure level specification is measured according to JIS C9612. 49 dB(A) *Sound pressure level specification is measured according to JIS C9612. 51 dB(A) *Sound pressure level specification is measured according to JIS C9612. 52 dB(A) *Sound pressure level specification is measured according to JIS C9612. 56 dB(A) *Sound pressure level specification is measured according to JIS C9612.
Cooling Sound Power Noise Level (H) 66 dB(A) 62 dB(A) 63 dB(A) 67 dB(A) 69 dB(A)
Heating Sound Power Noise Level (H) 68 dB(A) 63 dB(A) 65 dB(A) 68 dB(A) 72 dB(A)
Dimensions (H x W x D) 619 mm x 824 (+70) mm x 299 mm 795 mm x 875 (+95) mm x 320 mm 795 mm x 875 (+95) mm x 320 mm 999 mm x 940 mm x 340 mm 999 mm x 940 mm x 340 mm
Net Weight (kg) 39 kg 71 kg 72 kg 80 kg 81 kg
Refrigerant Type R32 R32 R32 R32 R32
Refrigerant Pipe Diameter (Liquid Side) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch) ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch) ø 9.52 mm (3/8 inch)
Pipe Length Range (Maximum Pipe Length) (1 room) 3 m ~ 20 m 3 m ~ 25 m 3 m ~ 25 m 3 m ~ 25 m 3 m ~ 25 m
Pipe Extension (Maximum Pipe Length) (Total) 30 m 50 m 60 m 70 m 80 m
Power Supply Outdoor Outdoor Outdoor Outdoor Outdoor
Cooling Operating Range (ºC) -10°C ~ +46°C -10°C ~ +46°C -10°C ~ +46°C -10°C ~ +46°C -10°C ~ +46°C
Heating Operating Range (ºC) -15°C ~ +24°C -15°C ~ +24°C -15°C ~ +24°C -15°C ~ +24°C -15°C ~ +24°C
Inverter Control Yes Yes Yes Yes Yes
Blue Fin Condenser Yes Yes Yes Yes Yes
Copper Tube Condenser Yes Yes Yes Yes Yes
Note Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice. Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
