EY74A2X57 DRILL ONLY Tough Tool Drills – Drill Only

14.4V/18V Cordless Drill & Driver

High speed performance with a compact body with extreme durability. Featuring a new brushless motor, possible to use with dual voltage, ultra hard chuck jaw tips and a hybrid switch. Increased efficiency and flexibility. *Battery pack & battery charger are not included.

Features

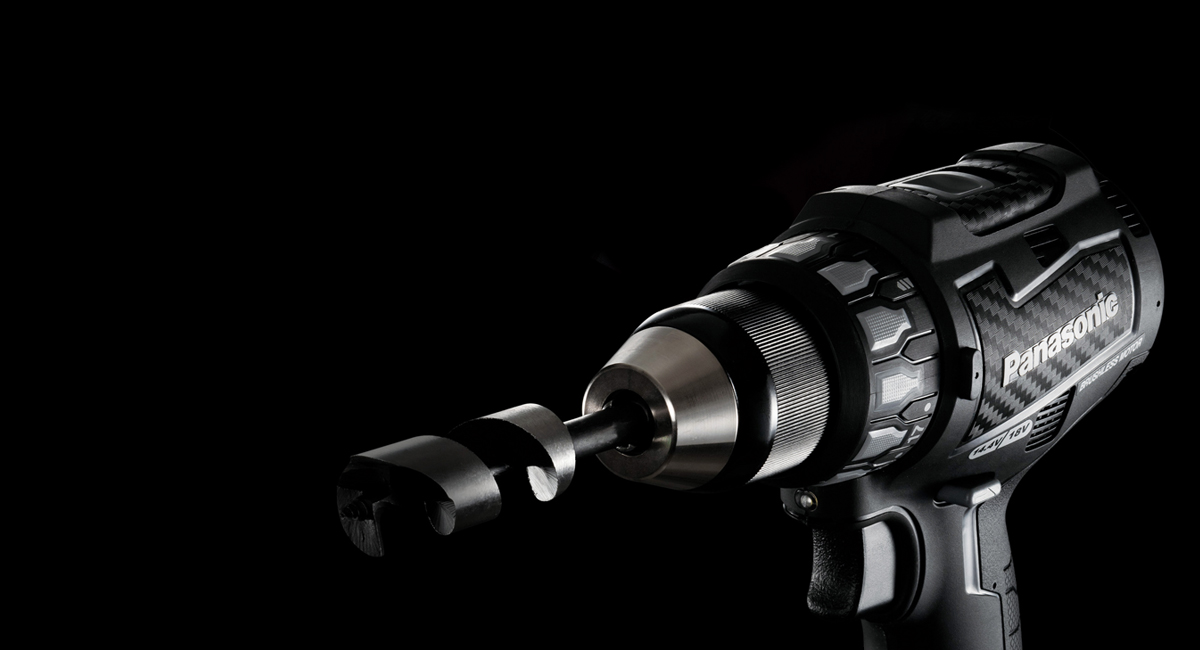

High Performance 13mm Cordless Drill & Driver

The Panasonic EY74A2X57 14.4V/18V Dual Voltage Cordless Drill & Driver is lightweight and compact, yet powerful. With precision variable speed control/reversible, an 18-stage clutch, optimum rotation speed control plus high power brushless motor. The EY74A2X57 is ready for work with with a Panasonic 14.4V or 18V battery. Featuring a handy LED light for user-friendly operation in dark areas, a heavy-duty keyless chuck, and an electric brake for added safety.

Extreme Durability

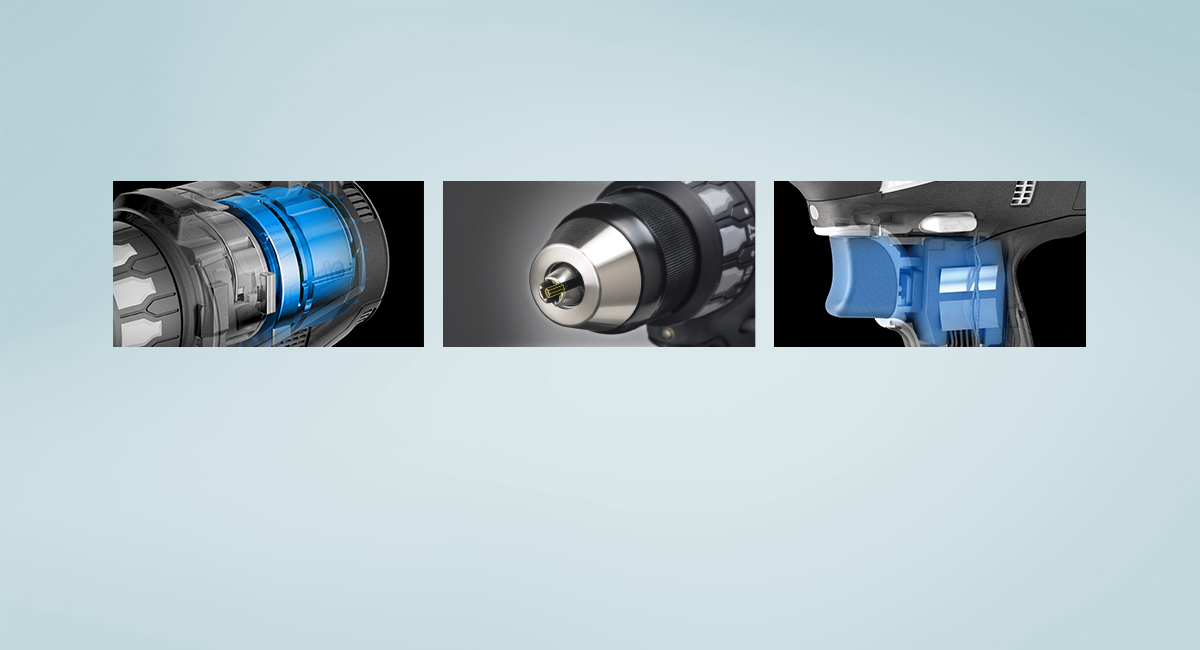

New Brushless Motor

Without brushes and commutator which can reduce the lifetime of the tool, the motor lasts approximately twice compared with brushed motor*.

* Compared with Panasonic conventional brushed motor.

New Ultra Hard Chuck Jaw Tips

We increased durability of every part right down to the new metal chuck which features tungsten carbide jaw tips. These extra hardened inserts are brazed into each jaw to give extra ‘bite strength’ and substantially reduce wear.

New Hybrid Switch

To eliminate heavy friction to internal parts of the switch during use of electric brake, we developed a new semi-electronic switch. This gives smoother operation and double* the life expectancy of the part.

* Compared with Panasonic conventional switches.

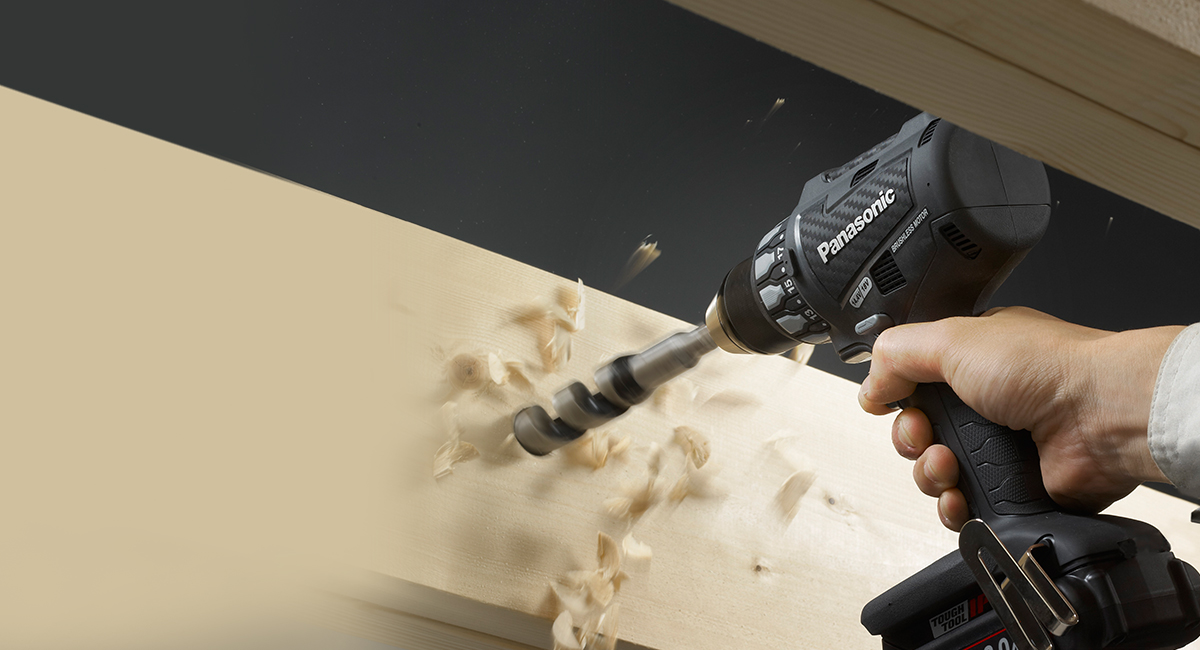

Powerful
to the Finish

The new, large diameter brushless motors generate high power and efficiency (32Nm of torque - 18V battery). Plus the newly designed control circuit increases stable current flow to motor by more than 70%*. This enables high power output to be evenly maintained until the task is completed even during high-load operation.

* Compared with previous brushless motor.

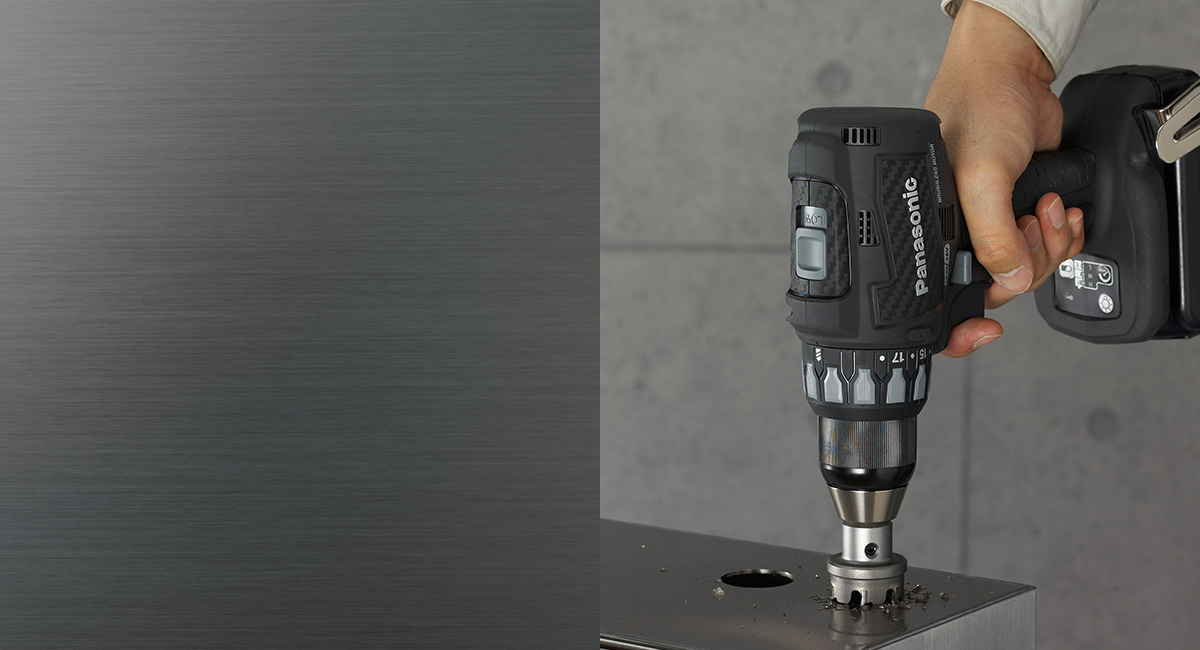

Increased Efficiency and Flexibility

The new ‘Speed Control Function’ allows the user to select from three different low rotation speed settings, based on allowable maximum speeds for metal hole saws. It greatly reduces ‘run out’ when using metal hole saws and prevents surface scorching on stainless steel and other materials.

The advanced ‘Smooth Start’ electronics allow easy, precise speed control, enabling the ultimate control when starting drilling or working with small screws in precise applications.

Tough Tools for Tough Conditions

Many things can happen at a job site such as unexpected incidents, water contact, or exposure to dust; which can cause a tool to malfunction. By incorporating the Tough Tool IP technology, it reassures that Panasonic cordless tools perform at its best in the most difficult situations.

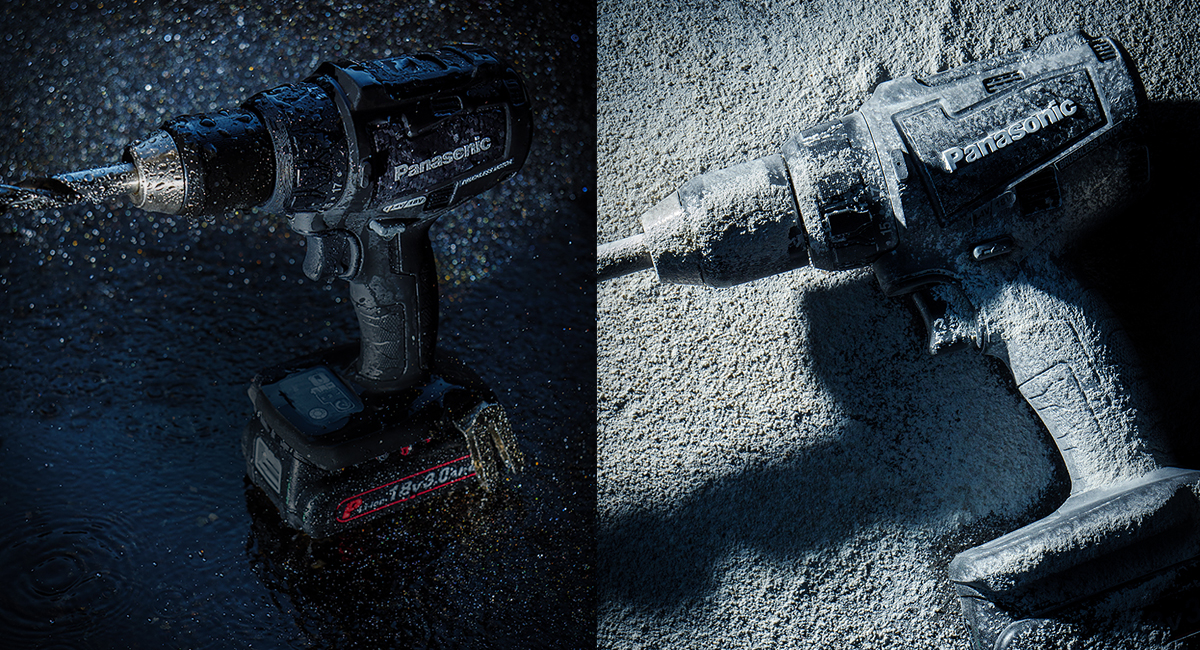

Dust and Water
Resistant Level IP56

The International Protection Code classifies the degree of protection provided against intrusion of solid foreign objects and liquids in electrical machinery and fixtures as defined by the IEC standards.

LEVEL 5 - Dust Protected
LEVEL 6 - Protected Against Powerful Water Jets

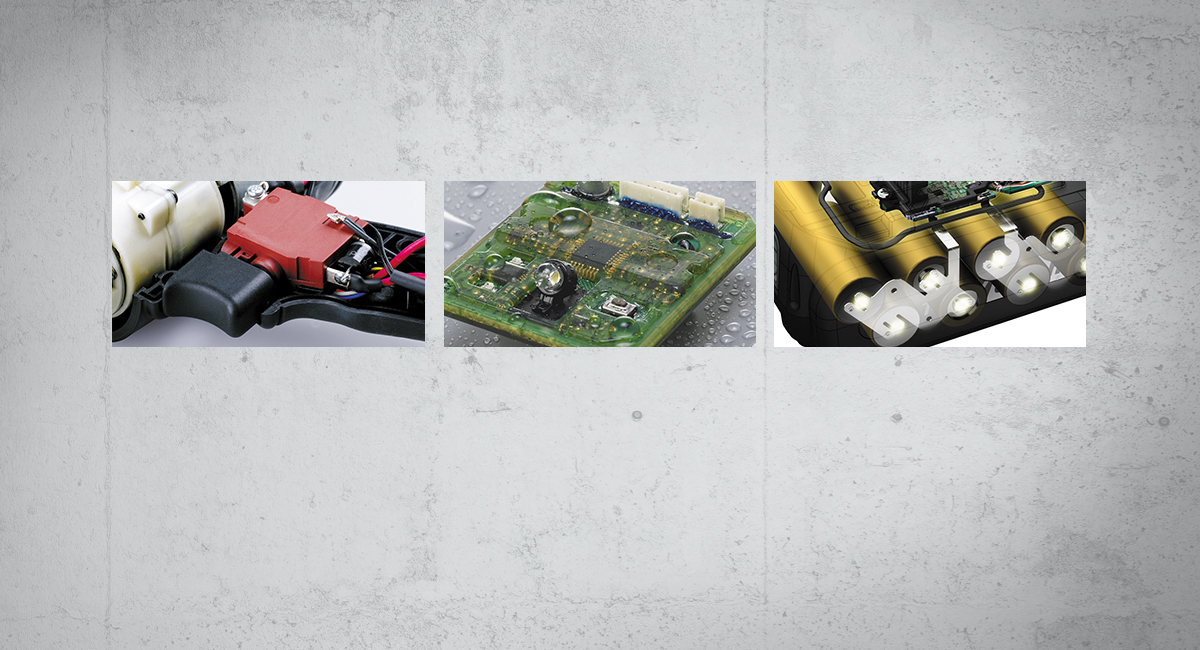

Performance Protection

Switch

An additional rubber cap seals the switch and protects it against dust and water.

Electronics

The electronic circuits of control panel and battery pack are covered by an Urethan layer for maximum dust and water protection.

Battery

The battery cells are designed to avoid intrusion of moisture.

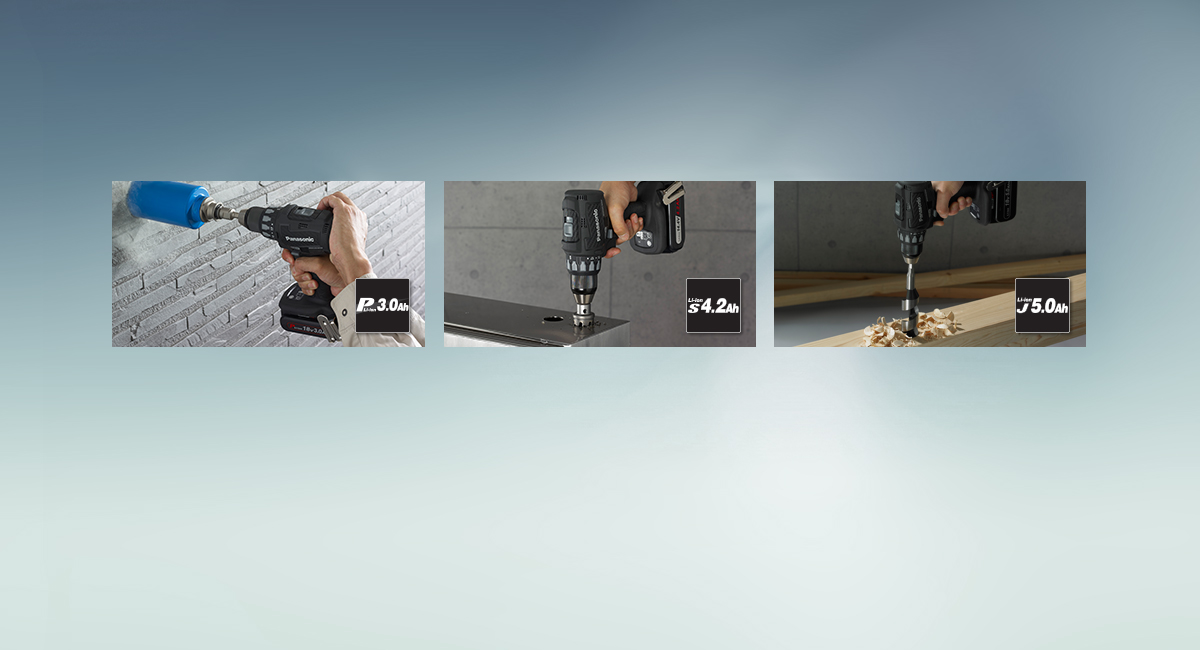

Dual Voltage for Better Versatility

Dual voltage technology offers powerful performance with either a 14.4V or 18V battery. A special dual voltage circuit detects the voltage of the attached battery pack and controls the current and voltage flows to the tool to ensure optimum performance.

18V 3.0Ah

With the 18V 3.0Ah battery, the application speed and working capacity goes up.

14.4V 4.2Ah

With the 14.4V 4.2Ah battery, it’s easier to use with light weight and compactness.

18V 5.0Ah

With the 18V 5.0Ah battery, the application speed and working capacity goes up with increased power.

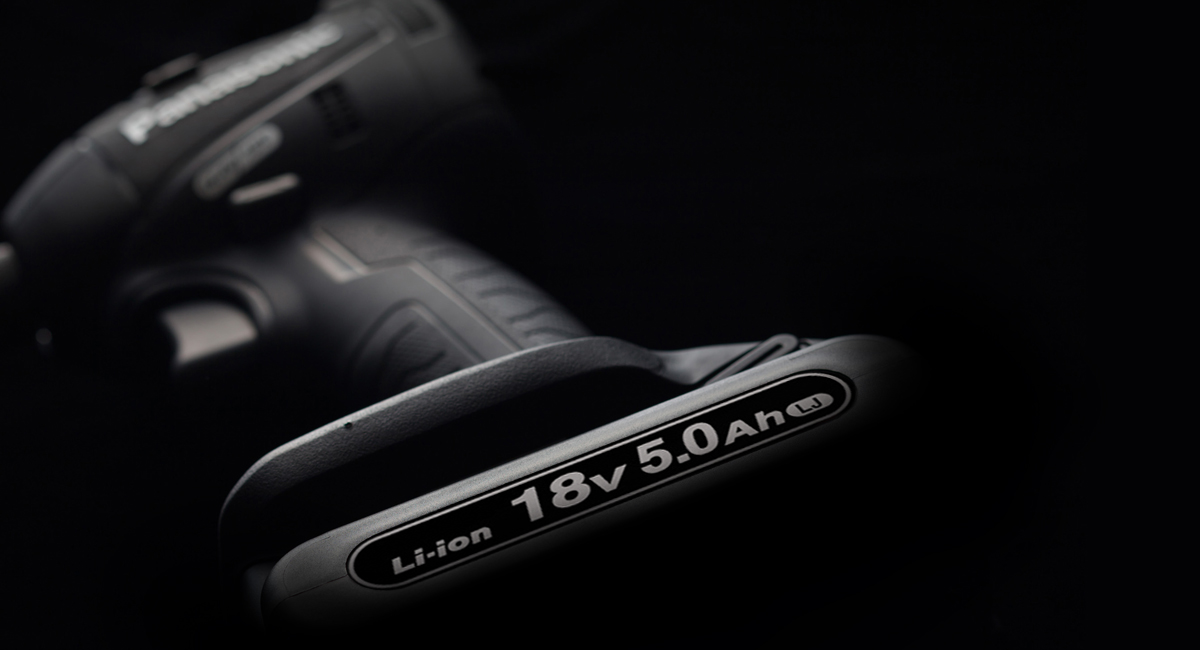

Powerful and Longer Lasting

Whether it’s Panasonic’s new generation 18V 5.0Ah battery cell, a slim and lightweight 18V 3.0Ah battery, or a compact standard 14.4V 4.2Ah battery – they all offer more durability during high workload conditions due to its reduction in internal resistance.

Durable New Design

Over-discharge prevention sensor
Prevents over-discharge to avoid lasting cell damage or recharge problems.

Battery overheat protection sensor
Cuts off power to the motor before the battery temperature rises.

Individual monitoring of battery cell voltage
Each cell monitored by sensor to ensure optimal discharge control.

Battery sensor
Flashing lamps indicates overheating battery. Battery is automatically reactivated when temperature drops.

Heat resistance layer technology
In cases where seperator is damaged and abnormal heat is created, HRL acts to contain this heat, just like a Fire wall.

NNP technology
Panasonic’s own developed Nickel oxide material provides higher capacity and higher reliability.
