High-Resolution Bluetooth DAB+ Radio CD Micro Hi-Fi SC-PMX92

Price (RRP)$ 729.00

Buy

SC-PMX92GN-S

Polished High-Res Audio Performance

The PMX92 pushes audio boundaries with amazing sound quality, versatile connectivity and masterful design. The 3-way speaker design and LincsD-Amp provide rich sound from a variety of music sources, while the USB DAC port makes it easy to enjoy hi-res audio. AUX-IN Auto Play function allows it to work with various devices, and an Optical Input has been added for easy connection with your TV.

Add to WishlistRemove from Wishlist

SC-PMX92GN-S

Price (RRP)729.00

Buy

Features

High quality audio parts

Unlocking the full potential of Hi-Res sound

To get the best sound quality from today‘s Hi-Res audio formats, you need to use the best quality components. This is why Panasonic has left no stone unturned in sourcing only the finest materials for the PMX92 to ensure it’s built to make a genuine HiFi difference.

Elegant, compact design

Aluminum is used in the main unit’s front panel, top panel, and sound volume dial, to provide a simple, high-grade appearance. The speaker box is made of high-quality lumber. This high-quality, universal design matches a wide range of room décor.

Specs

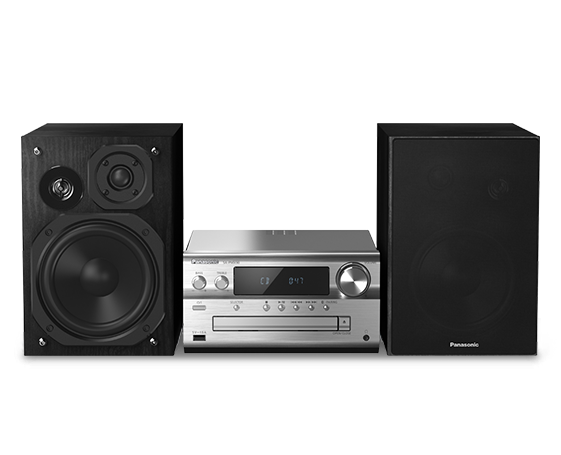

Photo of High-Resolution Bluetooth DAB+ Radio CD Micro Hi-Fi SC-PMX92

Size and Weight

Height: 114mm

Width: 211mm

Depth: 267mm

Weight: 2.8kg

The size of the speaker is H238 × W161 × D262 mm and its weight is approximately 2.6 kg.

High Resolution Music Quality

Wide Compatibility and Connection

AUX-IN Auto Play Smart Function

AUX-IN Auto Play for audio devices and streaming devices

AMPLIFIER

Amp Type
- Lincs D-Amp™ (3rd generation)
RMS Output Power
- Front Ch
  - 60 W Per channel (3 ohms, 1 kHz, 10 % THD)
- Total RMS Stereo mode power
  - 120 W

SPEAKER SYSTEM

Bass Expand
- Bass Reflex Port
Front Speaker
- Type
  - 3 Way, 3 Speaker system (Bass reflex)
- Speaker Unit
  - Bamboo Charcoal PP 14 cm
    Silk Dome Tweeter 1.9cm
    Piezo Tweeter 1.5cm

CD / DVD

Playback Disc *1
- CD-R / RW
Format
- CD-DA / MP3

USB

USB Standard
- USB 2.0 High-speed
Playback Format
- DSD (2.8 MHz)*Not support 5.6 MHz, MP3, AIFF, AAC, FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
Playback
- yes *2
Battery Charge
- Other portable device (1.5 A)
USB-DAC function
- Playback Format
  - DSD (2.8 MHz)*Not support 5.6 MHz, MP3, AIFF,FLAC(up to 192 kHz/24 bit), WAV(up to 192 kHz/24 bit)
- Player Application (Windows / Mac OS)
  - yes

RADIO

Auto Tuning
- yes
Antenna Terminal
- 75 ohm unbalanced
Station Presets
- FM
  - 30 stations
- DAB Plus
  - 20 stations

NETWORK

AUX-In Auto Play
- yes
Bluetooth
- Version
  - Bluetooth® Ver 2.1 + EDR
- Class
  - Class 2 (2.5mW)
- Wireless audio playback
  - yes
- Remote control
  - yes
- Codec
  - SBC, AAC
- Multi-Pairing
  - yes (MAX 8 Devices)

SMARTPHONE APP

Panasonic Music Streaming App
- Supported OS
  - iOS*3(Bluetooth), Android*3(Bluetooth)

SOUND FUNCTION

Super Sound EQ, Super Bass Sound
- D.Bass
Surround
- yes
XBS Master
- yes
High-Res AUDIO
- yes
EQ
- Preset EQ
  - 4 Preset
- Manual EQ
  - Bass / Treble
Re-Master
- Bluetooth Re-Master
  - yes

TERMINALS

USB Port
- USB Type-A x1 / USB Type-B x1
Audio IN
- RCA Pin Jack (AUDIO IN) / 3.5 mm Stereo mini (AUX IN) / Opt-In (for LPCM)
Audio OUT
- Phones (3.5 mm)
Speaker Terminal
- Screw type

GENERAL

Power Supply
- AC 220 - 240 V, 50 Hz
Dimmer
- yes
Auto Off
- yes
Power Consumption
- Normal Use
  - 40 W*4
- Normal Standby
  - 0.35 W*4
- Bluetooth Standby
  - 0.45 W*4
Timer
- Sleep
  - yes
- Clock
  - yes
- Play Timer
  - yes

DIMENSIONS, WEIGHT

Main Unit
- Dimensions (W x H x D)
  - 211 x 114 x 267 mm
- Weight
  - 2.8 kg
Speaker Unit
- Dimensions (W x H x D)
  - 161 x 238 x 262 mm
- Weight
  - 2.6 kg

NOTIFICATIONS

NOTE
- *1 Playability may vary depending on the contents, discs and quality of the recording.
  *2 Only a USB flash drive. Playback is not possible from a portable device (Apple, Android, etc.) using a USB extension cable.
  *3 Download on the App Store. Download on Google Play™.
  *4 Specifications are subject to change without notice. All numbers given here are approximate.
