S-18PMB7H5YA

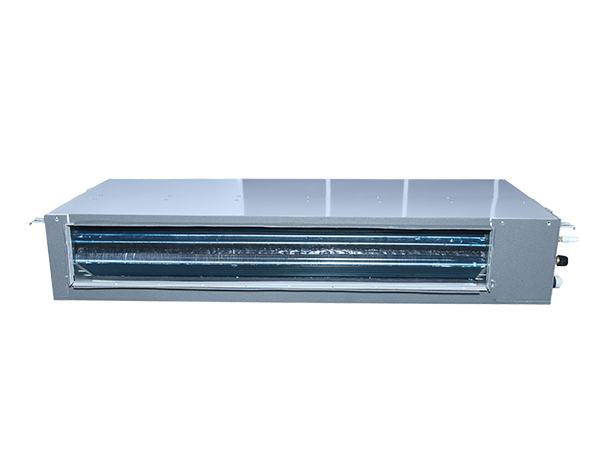

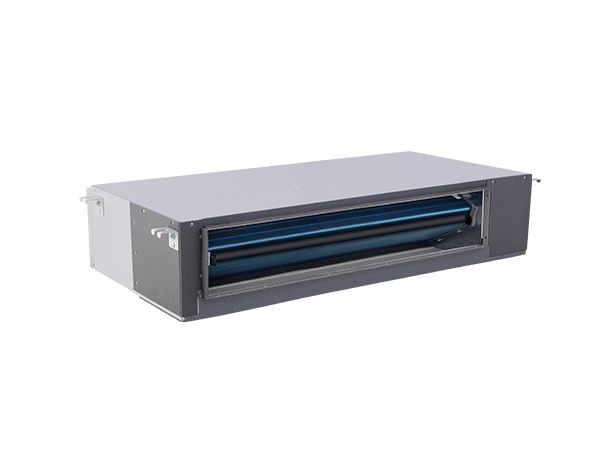

Slim Low Static Ducted AC (Non-Inverter), Cooling only Concealed Duct
Features
• Slim Design (IDU Height = 20.0cm)*
• Built-in Drain Pump*
• V-Shaped Evaporator Coil*
• Flexible Air Intake (Bottom & Back)*
• LCD Wireless Remote Controller (Optional)
• Operation Range up to 50°C
• In-built Air Filter
• Pre-Coated IDU Sheet Metal
* Available in 1.5TR & 2.0TR
• Built-in Drain Pump*
• V-Shaped Evaporator Coil*
• Flexible Air Intake (Bottom & Back)*
• LCD Wireless Remote Controller (Optional)
• Operation Range up to 50°C
• In-built Air Filter
• Pre-Coated IDU Sheet Metal
* Available in 1.5TR & 2.0TR
Specs
Model Indoor Unit
-
S-18PMB7H5YA

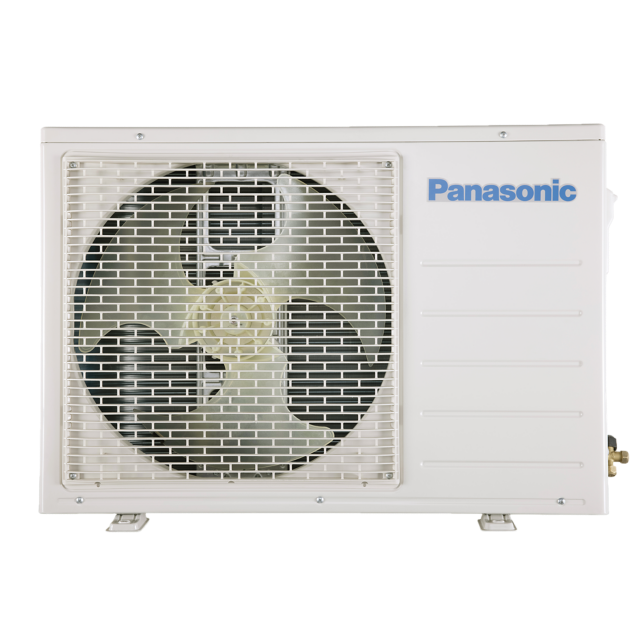

Model Outdoor Unit
-
U-18PNB7H5Y
Capacity Rated
-
Cooling
-
W
-
5050
-
-
Btu/hr
-
17230
-
-
EER/COP
-
W/W
-
3.37
-
Electrical Rating
-
Cooling
-
Running Current (A)
-
6.6
-
-
Power Input (W)
-
1500
-
-
Power Source
-
V/Phase/Hz
-
230V / 1ɸ / 50Hz
-
Indoor Unit
-
Air Volume
-
H/M/L (CMH)
-
950/780/650
-
-
External Static Pressure (Pa)
-
10
-
-
-
Sound Pressure Level
-
H/M/L dB (A)
-
45/41/38
-
-
-
Dimension
-
Indoor LxBxH (cm)
-
95.5 x 45.5 x 20.0
-
-
-
Net Weight
-
Indoor Unit (Kg)
-
24
-
-
Outdoor Unit
-
Sound Pressure Level
-
dB(A)
-
52
-
-
-
Dimension
-
LxBxH (cm)
-
78.0 x 24.0 x 55.7
-
-
-
Net Weight
-
Kg
-
34.5
-
-
-
Refrigerant Type
-
R-32
-
Piping Connection
-
Gas (Flare)
-
cm (inches)
-
1.27 (1/2")
-
-
-
Liquid (Flare)
-
cm (inches)
-
0.635 (1/4")
-
-
-
Drain
-
cm
-
3.2
-
-
Ambient Temperature Operating Range
-
°C
-
up to 50°C
-
Standard Remote Controller
-
Wired (Optional Wireless)
Compressor Type
-
Rotary
