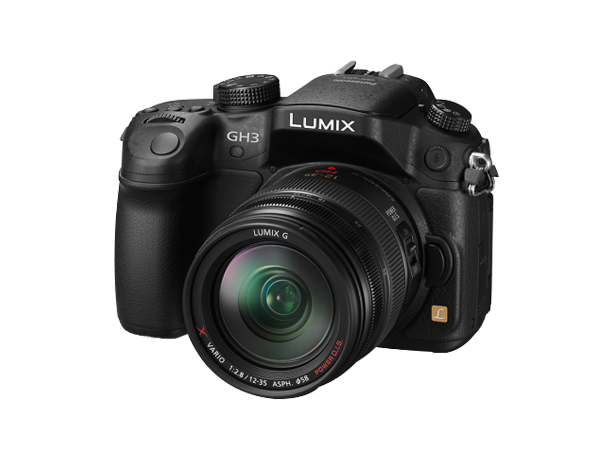

LUMIX Digital Single Lens Mirrorless Camera DMC-GH3
| TYPE | Type | Digital Single Lens Mirrorless camera | |
|---|---|---|---|
| Recording media | SD Memory Card, SDHC Memory Card, SDXC Memory Card (Compatible with UHS-I standard SDHC / SDXC Memory Cards) | ||
| Image sensor size | 17.3 x 13.0 mm (in 4:3 aspect ratio) | ||
| Lens Mount | Micro Four Thirds mount | ||
| IMAGE SENSOR | Type | Live MOS Sensor | |
| Total pixels | 17.20 Megapixels | ||
| Camera effective pixels | 16.05 Megapixels | ||
| Colour filter | Primary color filter | ||
| Dust reduction system | Supersonic wave filter | ||
| RECORDING SYSTEM | Recording file format | Still Image: JPEG(DCF, Exif 2.3), RAW, MPO (When attaching 3D lens in Micro Four Thirds standard) | |
| Aspect ratio | 4:3, 3:2, 16:9, 1:1 | ||
| Image quality | RAW, RAW+Fine, RAW+Standard, Fine, Standard, | ||
| Color Space | sRGB, Adobe RGB | ||
| File size(Pixels) | Still Image | [4:3] 4608x3456(L) / 3264x2448(M) / 2336x1752(S) / 1824x1368 (with 3D lens in Micro Four Thirds System standard) | |
| Motion Image (MOV*1 : NTSC area) | [Full HD]1920×1080, 30p (sensor output is 30p, 72Mbps(ALL-Intra)) | ||
| Motion Image (MOV*1 : PAL area) | [Full HD]1920×1080, 25p (sensor output is 25p, 72Mbps(ALL-Intra))*3 | ||
| Motion Image (MP4*2 : NTSC area) | [Full HD]1920×1080, 60fps (sensor output is 60p, 28Mbps)*4 | ||
| Motion Image (MP4*2 : PAL area) | [Full HD]1920×1080, 50fps (sensor output is 50p, 28Mbps)*3*4 | ||
| Motion Image (AVCHD Progressive*2:NTSC area) | [Full HD]1920×1080, 60p (sensor output is 60p, 28Mbps) | ||
| Motion Image (AVCHD*2 : NTSC area) | [Full HD] 1920×1080, 24p （sensor output is 24p, 24Mbps） | ||
| Motion Image (AVCHD Progressive*2:PAL area) | [Full HD]1920×1080, 50p (sensor output is 50p, 28Mbps)*3 | ||
| Motion Image (AVCHD*2 : PAL area) | [Full HD] 1920×1080, 24p （sensor output is 24p, 24Mbps）*3 | ||
| Continuous recordable time (Motion images) | AVCHD with picture quality set to Approx. 240 min with H-HS12035 / Approx. 220 min with H-VS014140 | ||
| Actual recordable time (Motion images) | AVCHD with picture quality set to Approx. 120 min with H-HS12035 / Approx. 110 min with H-VS014140 | ||
| Flicker reduction (Motion images) | [1/50] / [1/60] / [1/100] / [1/120] / OFF | ||
| Time Code (Motion images) (except MP4) | ON/OFF, Count Up : Rec Run/Free Run selectable, Time Code Mode : Drop frame/Non-drop frame selectable(NTSC only) | ||
| WiFi | IEEE 802.11b/g/n, 2412MHz - 2462MHz (11ch), Wi-Fi / WPA / WPA2, Infrastructure mode | ||
| VIEWFINDER | Type | OLED Live View Finder (1,744K dots) | |
| Field of view | Approx. 100% | ||
| Magnification | Approx. 1.34x / 0.67x (35mm camera equivalent) | ||
| Eye point | Approx. 21 mm from eyepiece lens | ||
| Diopter adjustment | -4.0~+4.0（dpt） | ||
| Auto eye sensor | Yes | ||
| FOCUS | Type | Contrast AF system | |
| Focus mode | AFS (Single) / AFF (Flexible) / AFC (Continuous) / MF | ||
| AF assist lamp | Yes (ON / OFF) | ||
| AF lock | Yes (AF/AE LOCK button) | ||
| Others | Quick AF, Continuous AF (during motion image recording), AF+MF, Eye Sensor AF, Touch Pad AF, Touch AF, Touch shutter, Touch MF Assist, Shutter AF, | ||
| AF mode | Face detection / AF Tracking / 23-area-focusing / 1-area-focusing / Pinpoint | ||
| EXPOSURE CONTROL | Light metering system | 144-zone multi-pattern sensing system | |
| Light metering mode | Intelligent Multiple / Center Weighted / Spot | ||
| Metering range | EV0-18 （F2.0 lens, ISO100 equivalent） | ||
| Exposure mode | Program AE, Aperture Priority AE, Shutter Priority AE, Manual | ||
| ISO sensitivity (Standard Output Sensitivity) | Auto / Intelligent ISO / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 (Changeable to 1/3, 1EV step) | ||
| Exposure compensation | 1/3 EV Step ±5EV (±3EV for motion image) | ||
| AE lock | AF/AE LOCK button | ||
| AE bracket | 3,5,7 frame in 1/3, 2/3 or 1 EV Step, single/burst | ||
| WHITE BALANCE | White balance | Auto / Daylight / Cloudy / Shade / incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting | |
| White balance adjustment | Blue/amber bias, Magenta/green bias | ||
| Color temperature setting | 2500-10000K in 100K | ||
| White balance bracket | 3 exposures in blue/amber axis or in magenta/green axis | ||
| SHUTTER | Remote control | Remote control with Bulb function by DMW-RSL1 (Optional) | |
| Type | Focal-plane shutter | ||
| Shutter speed | Still Images: 1/4000-60 and Bulb (Approx. 60 minutes), Motion image: 1/16,000 ~ 1/30 (NTSC), 1/16,000 ~ 1/25 (PAL) | ||
| Self timer | 10sec, 3 images after 10sec, 2sec | ||
| BURST SHOOTING | Burst speed | SH: 20 frames/sec, H: 6 frames/sec, M: 4 frames/sec (with Live View), L: 2 frames/sec (with Live View) | |
| Number of recordable images | 18 images (when there are RAW files with the particular speed) | ||
| SCENE GUIDE | Still image | Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / | |
| Motion Picture | Clear Portrait / Silky Skin / Backlit Softness / Clear in Backlight / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Clear Nightscape / Cool Night Sky / | ||
| FLASH | Flash Mode | Auto, Auto/Red-eye Reduction (when iA, iA+), Forced On, Forced On/Red-eye Reduction, Slow Sync., Slow Sync./Red-eye Reduction | |
| Synchronization speed | Less than 1/160 second | ||
| Flash synchronization | 1st. Curtain Sync, 2nd Curtain Sync. | ||
| Flash output adjustment | 1/3EV Step ±3EV | ||
| Synchronization for flash dimming and exposure compensation | Yes (ON/OFF) | ||
| Flash sync socket | Yes | ||
| MONITOR | Type | OLED Monitor with static touch control | |
| Monitor size | Free-angle 3.0inch / 3:2 Aspect / Wide viewing angle | ||
| Pixels | 614K dots | ||
| Filed of view | Approx. 100% | ||
| Monitor adjustment | Brightness (7 levels), Color (7 levels), Red-Green(11 levels), Blue-Yellow(11 levels) | ||
| LIVE VIEW | Digital zoom | 2x, 4x | |
| Extra Tele Conversion | Still image: Max.2x (Not effective with L size recording. Magnification ratio depends on the recording pixels and aspect ratio.) | ||
| Other functions | Guide Lines (3 patterns) | ||
| LEVEL GAUGE | Level Gauge | Yes | |
| VERTICAL SHOOTING DETECTION | VERTICAL SHOOTING DETECTION | Yes | |
| PHOTO STYLE | Still image and Video | Standard / Vivid / Natural / Monochrome / Scenery / Portrait / Custom | |
| CREATIVE CONTROL | Motion Picture | Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / One Point Color | |
| Still image | Expressive / Retro / High Key / Low Key / Sepia / Dynamic Monochrome / Impressive Art / High Dynamic / Cross Process / Toy Effect / Miniature Effect / Soft Focus / Star Filter / One Point Color | ||
| CREATIVE VIDEO MODE | Exposure Mode | Program AE/ Aperture-Priority / Sutter-Priority / Manual Exposure | |
| Slow and fast motion | 40% / 48% / 80% (Records 0.4 times, 0.48 times, 0.8 times slower) | ||
| PLAYBACK | Playback mode | Normal playback, 30-thumbnail display, 12-thumbnail display, Calendar display, Zoomed playback (Max.16x), Slide Show (All / Picture Only / Video Only / 3D / Category Selection / Favorite, duration & effect is selectable), | |
| IMAGE PROTECTION / ERASE | Protection | Single / Multi or Cancel | |
| Erase | Single / Multi / All / Except Favorite | ||
| Direct Print | PictBridge compatible | ||
| INTERFACE | USB | USB 2.0 High Speed | |
| HDMI | miniHDMI TypeC | ||
| Audio video output | Monaural Type, NTSC/PAL, NTSC only for North America | ||
| Microphone | Stereo, Wind-cut: Off / Low / Standard / High / AUTO | ||
| Speaker | Monaural | ||
| Remote input | φ2.5mm for Remote | ||
| External microphone input | φ3.5mm for External microphone | ||
| Headphone output | φ3.5mm for Headphone | ||
| LANGUAGE | OSD language | Japanese, English, German, French, Italian, Spanish(English) | |
| POWER | Battery | Li-ion Battery Pack (7.2V, 1860mAh) (Included) | |
| Battery life (CIPA standard) | Approx. 540 images with H-HS12035 | ||
| Dimensions/ Weight | Dimensions (W x H x D) | 132.9 x 93.4 x 82.0mm / 5.23 x 3.68 x 3.23 in (excluding protrusions) | |
| Weight | Approx. 550g/ 19.40 oz (SD card, Battery, Body) | ||
| OPERATING ENVIRONMENT | Operating temperature | 0℃ to 40℃ (32°F to 104°F) | |
| Operating humidity | 10% to 80％ | ||
| STANDARD ACCESSORIES | Software | PHOTOfunSTUDIO 8.5 PE | |
| Standard accessories | Body, | ||
| OPTIONAL ACCESSORIES | External Flash (optional) | DMW-FL360L (optional), Wireless Channel: 1ch/2ch/3ch/4ch | |
| External Microphone (optional) | DMW-MS2 (optional), Gun/Stereo selectable | ||
| Battery Grip (optional) | DMW-BGGH3 (optional) | ||
| NOTE | *1 Use a card with SD Speed Class with "Class10" | ||
