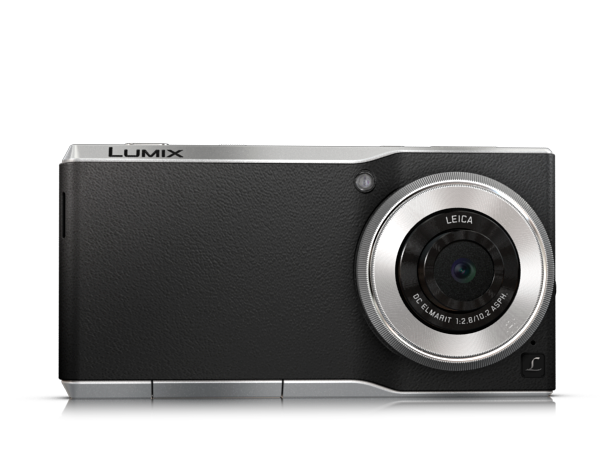

DMC-CM1
| DIMENSIONS / WEIGHT | Dimensions (W x H x D) | Approx. 135.4 x 68.0 x 21.1 (Body 15.2) mm (5.33 x 2.68 x 0.83 (0.60) inch) | |
|---|---|---|---|
| Weight | Approx. 203 g without SIM Card and microSD Memory Card (0.45 lb) Approx. 204 g with SIM Card and microSD Memory Card (0.45 lb) | ||
| OUT CAMERA | IMAGE SENSOR | Camera Effective Pixels | 20.1 Megapixels |
| Sensor Size / Total Pixels / Filter | 1-inch High Sensitivity MOS Sensor / Total Pixel Number 20.9 Megapixels / Primary Color Filter | ||
| LENS | Aperture | F2.8 - 11 / Multistage Iris Diaphragm | |
| Optical Zoom | 1x (Fixed focal length) | ||
| Focal Length | f = 10.2mm (31mm in 35mm equiv. in 4:3) (28mm in 35mm equiv. in 3:2) (30mm in 35mm equiv. in 16:9) (36mm in 35mm equiv. in 1:1) (43mm in 35mm equiv. in 4K video recording) | ||
| Extra Optical Zoom (EZ) | Picture Quality M: Max. 1.32x (4:3 / 3:2 / 1:1), Max. 1.41x (16:9) Picture Quality S: Max. 2.0x Picture Quality XS: Max. 2.83x (3:2 / 16:9), Max. 4x (4:3 / 1:1) | ||
| Intelligent Zoom | 2x | ||
| Lens | LEICA DC ELMARIT 6 elements in 5 groups (3 Aspherical Lenses / 6 Aspherical Surfaces) | ||
| Optical Image Stabilizer | - | ||
| Digital Zoom | Max. 2x (When Digital Zoom is used simultaneously with Extra Optical Zoom or Intelligent Zoom, the total zoom ratio is max. 4x.) | ||
| FOCUS | Focusing Area | 10 cm - infinity | |
| AF Assist Lamp | Yes (On / Off) | ||
| Focus | AF / MF | ||
| AF Metering | Face Detection / Tracking / 23-area / 1-area | ||
| SHUTTER | Shutter Type | Mechanical Shutter / Auto (Mechanical Shutter + Eerectronic Shutter) | |
| Shutter Speed | Still Image: Mechanical Shutter : Approx. 60 - 1/2,000 sec Auto : Approx. 60 - 1/16,000 sec Motion Picture: Approx. 1/30 - 1/16,000 sec | ||
| Self Timer | 2 sec / 10 sec | ||
| RECORDING SYSTEM | File Format | Still Image: JPEG (DCF/Exif2.3) (*1) / RAW (*2) Motion Picture: MP4 | |
| Image Quality | RAW / RAW+Fine / Fine / Standard | ||
| Recording Media | microSD Memory Card, microSDHC Memory Card, microSDXC Memory Card | ||
| Color Space | sRGB, AdobeRGB | ||
| Still Picture Recording | 4:3 4864x3648 (18M) (L) / 3456x2592 (9M) (M) / 2432x1824 (4.5M) (S) / 640x480 (0.3M) (XS) 3:2 5472x3648 (20M) (L) / 3888x2592 (10M) (M) / 2736x1824 (5M) (S) / 1920x1280 (2.5M) (XS) 16:9 5472x3080 (17M) (L) / 3840x2160 (8M) (M) / 2560x1440 (3.5M) (S) / 1920x1080 (2M) (XS) 1:1 3648x3648 (13M) (L) / 2592x2592 (7M) (M) / 1824x1824 (3.5M) (S) / 640x640 (0.4M) (XS) | ||
| Recording Mode | Intelligent Auto, Intelligent Auto Plus, P, A, S, M, C1 (Custom), C2 (Custom), Scene Guide, Creative Control, Panorama Shot | ||
| Photo Style | Standard, Vivid, Natural, Monochrome, Scenery, Portrait | ||
| Picture Adjustment | Contrast, Sharpness, Noise Reduction, Saturation*, Color Tone**, * Except for Monochrome mode. ** For Monochrome mode only | ||
| Filter (Creative Control) (Still Image) | Expressive, Retro, Old Days, High Key, Low Key, Sepia, Monochrome, Dynamic Monochrome,Impressive Art, High Dynamic, Cross Process, Toy Effect, Toy Pop, Bleach Bypass, Miniature Effect, Fantasy, Star Filter, One Point Color (18 filters) | ||
| Scene Guide (Still Image) | Clear Portrait / Silky Skin / Backlit Softness / Relaxing Tone / Sweet Child's Face / Distinct Scenery / Bright Blue Sky / Romantic Sunset Glow / Vivid Sunset Glow / Glistening Water / Clear Nightscape / Cool Night Sky / Warm Glowing Nightscape / Artistic Nightscape / Glittering Illuminations / Handheld Night Shot / Clear Night Portrait / Appetizing Food / Cute Dessert / Freeze Animal Motion / Clear Sports Shot / Monochrome (22 modes) | ||
| Continuous Shooting Mode (Approx.) | SH 50 frames/sec (max. 5M, max. 23 images in JPEG) (*3) H 10 frames/sec (max. 5 images in JPEG, max. 3 images in RAW+JPEG) M 5 frames/sec (with Live View, max. 6 images in JPEG, max. 3 images in RAW+JPEG) L 2 frames/sec (with Live View, max. 9 images in JPEG, max. 3 images in RAW+JPEG) (depending on memory card size, battery power, picture size, and compression) | ||
| Motion Picture Recording (*4) | 4K Video 3840 x 2160 pixels, 15p (4K: 50Mbps / MP4) (Sensor output is 30fps) (AAC) HD Video 1920 x 1080 pixels, 30p (FHD: 20Mbps / MP4) (Sensor output is 30fps) (AAC) 1280 x 720 pixels, 30p (HD: 10Mbps / MP4) (Sensor output is 30fps) (AAC) STD Video 640 x 480, 30p (VGA: 4Mbps / MP4) (Sensor output is 30fps) (AAC) 640 x 640, 30p (1:1: 4Mbps / MP4) (Sensor output is 30fps) (AAC) | ||
| EXPOSURE CONTROL | Exposure | Program AE, Aperture Priority AE, Shutter Priority AE, Manual | |
| Exposure Compensation | 1/3 EV step, +/-3 EV | ||
| Auto (AE) Bracketing | 3 frames in 1/3, 2/3 or 1 EV step, Max. +/-1 EV | ||
| Light Metering | Intelligent Multiple / Center Weighted / Spot | ||
| ISO Sensitivity | Auto / i.ISO / 100 (Extended ISO) /125 / 200 / 400 / 800 / 1600 / 3200 / 6400 / 12800 / 25600 (Extended ISO) (Changeable to 1/3 EV step) (Motion picture recording: Auto) | ||
| WHITE BALANCE | White Balance | Auto / Daylight / Cloudy / Shade / Incandescent / White Set / Color Temperature (White Balance Adjustment) | |
| FLASH | Flash (Included) | Auto, Forced On, Always On, Forced Off 0.6 - 5.3m (ISO Auto) | |
| OTHERS | Digital Red Eye Correction (Red-Eye Removal) | Yes (On / Off) | |
| Level Gauge | Yes | ||
| IN CAMERA | IMAGE SENSOR | Camera Effective Pixels | 1.07 Megapixels |
| Picture Size | 0.92 Megapixels | ||
| File Format | Still Image: JPEG (Exif2.2) Motion Picture: MP4 | ||
| FEATURES | OS | Android™ 4.4(KitKat) | |
| CPU | Qualcomm® SnapdragonTM 801 (MSM8974AB) | ||
| Storage & Memory | Storage 16GB (*5), Memory 2GB (Up to 128GB additional with optional microSDXC Card (*6)) | ||
| SIM Size | microSIM Class B / Class C | ||
| Sensors | Accelerometer, Gyro, Proximity, Compass, Pressure, Luminance | ||
| WIRELESS | Baseband Supported Band | 4G: 1, 3, 4, 5, 7, 8, 20 3G: I, IV, V, VIII 2G: GSM850, GSM900, DCS1800, PCS1900 | |
| NFC | Yes | ||
| Wi-Fi | Yes IEEE 802.11a/b/g/n/ac 2.4GHz (1-13ch) 5.2/5.3GHｚ (W52: 36, 40, 44, 48ch, W53: 52, 56, 60, 64ch) 5.6GHz (100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140ch) | ||
| Bluetooth | Yes (Bluetooth® v4.0) | ||
| GPS | Yes (GPS, GLONASS) | ||
| DISPLAY | Type | TFT LCD Monitor with Static Touch Control, 16.8M Colors | |
| Size | 4.7", 16:9 aspect 1920 (W) x 1080 (H) RGB, 6,220k dots | ||
| Multi touch | Yes | ||
| INTERFACE | Microphone / Speaker | Stereo / Mono | |
| microUSB | USB 2.0 ( High Speed ) | ||
| Headphone Output | φ3.5mm (3-pin / 4-pin) | ||
| LANGUAGE | OSD Language | Japanese, English (US/UK), German, French, Spanish, Swedish ,Chinese (Traditional), Chinese (Simplified), Indonesian | |
| POWER | Battery | Li-ion Battery Pack (3.8V, 2600mAh, 9.9Wh) (Built-in) AC Adaptor (Input: 110 - 240V AC) | |
| Battery Life (Approx.) | Still Image: 300 pictures (CIPA Standard) (*7) Motion Picture (*4): Continuous Recordable Time: 100 min (4K), 130 min (FHD) Actual Recordable Time: 70 min (4K), 90 min (FHD) Standby: 630 hours (3G), 560 hours (GSM) Talk: 12 hours (3G), 11 hours (GSM) | ||
| Battery Charging Time (Approx.) | 150 minutes (100% charge) | ||
| ACCESSORIES | Standard Accessories | AC Adaptor (Quick Charge 2.0), Stereo Headset (EF model only) | |
| NOTE | *1 Based on “Exif 2.2” standard when taking pictures in Panorama Shot Mode or when recording motion picture. *2 The software to process RAW file on PC is not bundled with DMC-CM1. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using PC connected to the Internet. *3 SH use Electronic shutter automatically. *4 - These are standard times taken at a temperature of 23 oC (73.4 oF) and a humidity of 50%RH. - The time available for recording varies depending on the environment, the interval between recordings, and the manner of use. - The actual recordable time is the time of recording possible with repeated start/stop of the camera function, and start/stop of recording - Use a card with SD Speed Class with "Class 4" or higher when recording motion pictures. - Use a card with SD Speed Class with "Class 10" when recording motion pictures with [MP4] in [4K]. (SD speed class is the speed standard regarding continuous writing.) (The SD speed class represents the level of performace of microSD cards. The SD speed class does not serve as a guarantee of performace for all operations.) - The maximum continuous recordable time of a motion picture is 29 minutes and 59 seconds, which is equivalent to a file size of approximately 4 GB. - Maximum time to record motion pictures continuously with [MP4] in [4K] is 10 minutes 50 seconds. - Maximum time to record motion pictures continuously with [MP4] in [FHD] is 26 minutes 58 seconds. *5 Operation has been tested and confirmed using Panasonic SD Memory Card with a capacity of up to 2GB, Panasonic SDHC Memory Card with a capacity of up to 32GB, and Panasonic SDXC Memory Card with a capacity of up to 64GB. Operation on other SD equipment is not guaranteed. *6 Total usable memory will be less depending upon actual system configuration. *7 Recording conditions by CIPA standard - Temperature: 23 oC (73.4 oF) / Humidity: 50%RH when LCD monitor is ON. - Using a Panasonic microSDHC Memory Card - Starting recording 30 seconds after the camera application is turned on. - Recording once every 30 seconds with full flash every second recording. - The number of recordable pictures varies depending on the recording interval time. - If the recording interval time becomes longer, the number of recordable pictures decreases. - CIPA is an abbreviation of [Camera & Imaging Products Association]. | ||
