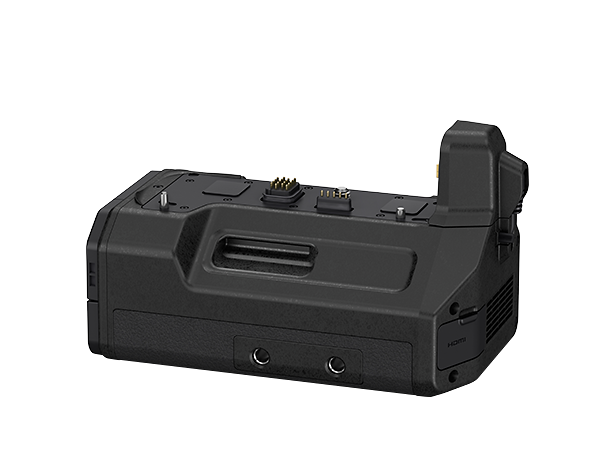

Photo of LUMIX Interface Unit for 4K Recorder DMW-YAGHE

LUMIX Interface Unit for 4K Recorder DMW-YAGHE

POWER Power source 12 V DC, 1.5A (including a digital camera)
OPERATING ENVIRONMENT Operating temperature 0℃ to 40℃ (32°F to 104°F)
Operating humidity 10% to 80% (no condensation)
DIMENSIONS / WEIGHT Weight Approx. 750 g / 24.46 oz (main unit only)
Dimensions (W x H x D) 160 x 64 x 91 mm / 6.30 x 2.52 x 3.58 in (excluding protrusions and HDMI terminal)
VIDEO (DIGITAL VIDEO) Resolution Cinema4K 4096 x 2160 [24p]
QFHD 3840 x 2160 [29.97p]/3840 x 2160 [25p]/3840 x 2160 [24p]/3840 x 2160 [23.98p]
FHD 1920 x 1080 [59.94p] (3G-SDI Level-A/B)/1920 x 1080 [50p] (3G-SDI Level-A/B)/1920 x 1080 [59.94i]/1920 x 1080 [50i]/1920 x 1080 [29.97PsF]/1920 x 1080 [25PsF]/1920 x 1080 [24PsF]/1920 x 1080 [23.98PsF]
HD 1280 x 720 [59.94p]/1280 x 720 [50p]
Color sampling Y:Cb:Cr=4:2:2
Bit depth 8 bits / 10 bits
AUDIO (DIGITAL AUDIO) Sampling frequencies 48 kHz (synchronized with video)
Audio quantization 16 bit
Headroom 12 dB
INPUT / OUTPUT TC IN BNC x 1, 1.0-4.0 V [p-p], 10 kΩ
AUDIO IN [CH1, CH2] XLR (3-pin) x 2, High impedance,/LINE / MIC / +48 V (switchable)/LINE: 0 dBu/MIC: -50 dBu/+48 V: Phantom +48 V compatible, -50 dBu
SDI OUT [1, 2, 3, 4] BNC x 4, 0.8 V [p-p], 75 kΩ/Embedded audio: 2 channel, embedded timecode
HDMI OUT HDMI type A (VIERA link not supported), 2 channels (linear PCM)
