LUMIX S5II spegellös fullformatskamera DC-S5M2N

Lägg till i önskelistanTa bort från önskelistan

DC-S5M2N
(DC-S5M2 + S-R1840)

Utforska ditt kreativa skapande.

LUMIX DC-S5IIN (Kit med S5II-hus + LUMIX S 18-40 mm/F4.5-6.3)
Avancerade funktioner som PDAF och I.S. (Image Stabilization) som gör LUMIX S5IIX till en verkligt inspirerande upplevelse. Fånga högkvalitativa bilder och spela in filmer utan tidsbegränsning och med större rörelsefrihet tillsammans med denna kompakta fullformats DSLM-kamera.

Lägg till i önskelistanTa bort från önskelistan

DC-S5M2N
(DC-S5M2 + S-R1840)

Funktioner

Utforska ditt kreativa universum.

LUMIX S5II är början på en ny utvecklingsfas för LUMIX. En mångsidig spegellös fullformatskamera med obegränsade kreativa möjligheter som hjälper dig att fånga fantastiska bilder i alla situationer.

Firmware 3.0 förbättrar fotograferingsstilar med rörelse

Byggd för att klara av ambitiös fotografering

Med Phase Hybrid AF kan du fotografera kontinuerligt med snabbhet och precision, medan LUMIX S5II:s mycket avancerade AF tänjer på gränserna vid fotografering av sport, djurliv, bilar och motorcyklar.* Dessutom kan du gå bakåt i tiden när du fotograferar med funktionen pre-burst.* Nu är du beredd att fånga det där speciella ögonblicket.

*För att använda igenkänning av djurögon, bilar eller motorcyklar och fotografera med funktionen pre-burst måste du uppdatera firmware till version 3.0.

LÄS MER

Byggd för att klara av ambitiös fotografering

Perfekt för fotografering under rörelse

LUMIX S5II gör det också enkelt att spela in video på resande fot. Aktiv I.S. bestämmer status för kameraskakning och optimerar korrigeringsförhållanden för att till och med kompensera för betydande rörelser, medan avancerad E.I.S.* dämpar perifer distorsion som uppstår under videoinspelning. Så nu kan du ta vackra bilder, även om du behöver röra dig snabbt medan du fotar.

*Uppdatera firmware till version 3.0.

LÄS MER

Firmware 3.0 introducerar LUMIX:s första funktioner

Proxyvideoinspelning

Med den här nya funktionen spelas en proxyfil in med låg bithastighet när du spelar in video. Samtidig inspelning av en proxyfil som är kopplad till den ursprungliga videoinspelningen möjliggör en snabbare leverans från produktion till efterproduktion.

･Uppdatera firmware till version 3.0.

Inbyggd Camera to Cloud-integration med Adobes Frame.io

Med Frame.io Camera to Cloud kan bilder och videor automatiskt laddas upp, säkerhetskopieras, delas och redigeras tillsammans med andra via molnet.

･Uppdatera firmware till version 3.0.
･Vi garanterar inte alla funktioner i Frame.io Camera to Cloud.
･Frame.io, Frame.io-logotypen och Camera to Cloud är antingen registrerade varumärken eller varumärken som tillhör Adobe i USA och/eller andra länder.

Inbyggd Camera to Cloud-integration med Adobes Frame.io

Värmehantering för obegränsad inspelningstid

4:2:2 C4K/4K 60p/50p 10-bit videoinspelning utan tidsbegränsning.* LUMIX S5II har samma kompakta kamerahus som S5, men också en ny optimerad konstruktion för mer effektiv avledning av värme. Detta ger bättre inspelningsprestanda även vid tung belastning (t.ex. vid högupplöst video över 4K, HFR-video).

*Kameran kan avsluta inspelningen om den används i temperaturer under eller över rekommenderad driftstemperatur (0 till +40 grader). Inspelningen avbryts när den inspelningstiden pågått i mer än 30 minuter i [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] om värmehanteringen är inställt på Standard-läge.

LÄS MER

Värmehantering för obegränsad inspelningstid

LUMIX arbetar målmedvetet för att nå högsta möjliga bildkvalitet

Den nya bildprocessorn ger mer verklighetstrogna färger, finare upplösning och en naturlig tredimensionell effekt. I kombination med Dual Native ISO-tekniken dämpas bruset effektivt även när du fotograferar med mycket höga ISO-tal och levererar fin återgivning även av mörka bildpartier.

LÄS MER

LUMIX arbetar målmedvetet för att nå högsta möjliga bildkvalitet

Enkel färggradering med REAL TIME LUT

Bilder och videor som tillämpar LUT kan spelas in internt utan någon speciell programvara. Om du inte har så avancerade kunskaper inom redigering får du hjälp av kameran att uttrycka din kreativitet ännu tydligare.

LADDA NER CREATOR'S LUTS

Tålig konstruktion som klarar olika typer av väderförhållanden

Kameran kan användas i nästan alla typer av väderförhållanden. Det tåliga och helgjutna chassit i magnesiumlegering tillsammans med tätade skarvar, rattar och knappar gör kamerahuset skyddat mot damm- och stänk*.

Stänkskyddet innebär inte någon skadegaranti om kameran skulle utsättas för direktkontakt med damm eller vatten.

LÄS MER

Tålig konstruktion som klarar olika typer av väderförhållanden

Intuitivt handhavande

Layouten är intuitiv och väldisponerad med en joystick som går att röra i 8 riktningar så du snabbt kan välja fokusområde med små, enkla tumrörelser.

LÄS MER

Relaterade produkter

Objektiv som säkerställer fotografering och videofilmning med hög kvalitet

LUMIX S levererar överlägsen optisk prestanda, rörlighet och funktion utan kompromisser. Oavsett om du byter objektiv får dina bilder samma känsla i bildåtergivningen, vilket manar för ett högkvalitativt konstnärligt arbete.

LÄS MER OM LUMIX S-objektiven

Objektiv som säkerställer fotografering och videofilmning med hög kvalitet

Visuella uttryck på en högre nivå

Här hittar du RAW-videodata, ProRes-inspelning, All-Intra-video, extern USB-SSD-inspelning och trådlös/trådbunden live-streaming för professionell videoproduktion.

LÄS MER OM LUMIX S5IIX

Bli inspirerad

Specifikationer

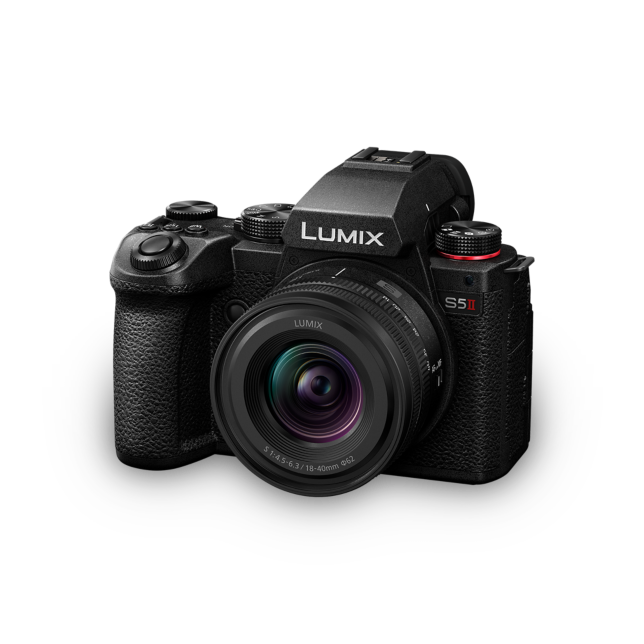

Foto av LUMIX S5II spegellös fullformatskamera DC-S5M2N

Storlek och vikt

Höjd: 102.3mm

Bredd: 134.3mm

Djup: 90.1mm

Vikt: 740g

Alla värden är ungefärliga. Vikt med SD-kort och batteri. Objektiv ingår ej. Endast kamerahus 657g. Mått exklusive utskjutande delar.

L-fattning
24,2 Megapixlar
Phase Hybrid AF
Active I.S. Teknologi
C4K/4K 4:2:2 10-bit 60p/50p videoinspelning
HFR/VFR 10-bit inspelning
V-log
Helt rörlig skärm med 1840k pixlar
OLED Live View-sökare med 3,68 Mpixlars upplösning
Stänk- och dammskyddad
Wi-Fi
Bluetooth

Ny 24,2 MP-sensor med Dual Native ISO-teknik och en ny generation bildprocessorer

Snabbt, exakt, pålitligt autofokus-system — Phase Detection AF

Active I.S. Tekniken förbättrar bildstabiliseringen vid videoinspelning ytterligare så du kan gå samtidigt som du filmar

C4K/4K 60p 4:2:2 10-bit inspelning utan tidsbegränsning

TYPE

Type
- Digital Single Lens Mirrorless camera
Lens mount
- L-Mount

IMAGE SENSOR

Type
- 35mm full-frame (35.6mm x 23.8mm) CMOS sensor
Camera effective pixels / Total pixels
- 24.20 megapixels / 25.28 megapixels
AR (Anti Reflection) coating
- Yes
Aspect ratio / Color filter
- 3:2 / Primary color filter
Dust reduction system
- Image sensor shift type

LATITUDE

14+ stops (V-Log)

STILL IMAGE

Recording file format
- JPEG (DCF, Exif 2.31), RAW
Aspect ratio
- 4:3 / 3:2 / 16:9 / 1:1 / 65:24 / 2:1
File size (pixels) when using full-frame lenses
- 3:2
  - 6000x4000(L) / 4272x2848(M) / 3024x2016(S) / 12000x8000(XL)* / 8496x5664(LL)* *High Resolution mode.
- 4:3
  - 5328x4000(L) / 3792x2848(M) / 2688x2016(S) / 10656x8000(XL)* / 7552x5664(LL)* *High Resolution mode.
- 16:9
  - 6000x3368(L) / 4272x2400(M) / 3024x1704(S) / 12000x6736(XL)* / 8496x4784(LL)* *High Resolution mode.
- 1:1
  - 4000x4000(L) / 2848x2848(M) / 2016x2016(S) / 8000x8000(XL)* / 5664x5664(LL)* *High Resolution mode.
- 65:24
  - 6000x2208(L)
- 2:1
  - 6000x3000(L)
File size (pixels) when using APS-C/Super 35mm lenses
- 3:2
  - 3984x2656(L) / 2880x1920(M) / 2064x1376(S)
- 4:3
  - 3536x2656(L) / 2560x1920(M) / 1840x1376(S)
- 16:9
  - 3984x2240(L) / 2880x1624(M) / 1920x1080(S)
- 1:1
  - 2656x2656(L) / 1920x1920(M) / 1376x1376(S)
Image quality
- RAW / RAW+Fine / RAW+Standard / Fine / Standard (High Resolution mode: Combined / RAW / RAW+Fine / Fine)
Color space
- sRGB, AdobeRGB

MOTION PICTURE

Recording file format
- MOV: H.264/MPEG-4 AVC, H.265/HEVC
  MP4: H.264/MPEG-4 AVC, H.265/HEVC
Audio format
- MOV: LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  MP4: AAC (2ch 48kHz/16-bit)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).
System frequency
- 59.94Hz / 50.00Hz / 24.00Hz
Image area of video
- Full / APS-C / PIXEL/PIXEL
Proxy (*⁷)
- ON / OFF
  Proxy Rec Quality: H / M / L
  Real Time LUT (Proxy): ON / OFF
  *When the following functions are being used, proxy recording is not available: [MP4], [Rec Quality] exceeding a resolution of C4K, [Rec Quality] with [4:3] or [3:2] aspect ratio, [Rec Quality] with a high frame rate video, and [HDMI RAW Data Output].
MOV / 59.94Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 29.97p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 59.94Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 59.94p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [3.3K] 3328x2496 (4:3)
  - 47.95p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 119.88p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    119.88p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    59.94p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    59.94p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    47.95p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    47.95p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    29.97p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    23.98p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Image Area of Video is set to APS-C.
MOV / 50.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 25.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 50.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [3.3K] 3328x2496 (4:3)
  - 50.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 100.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)*
    100.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)*
    50.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    50.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    25.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *When Image Area of Video is set to APS-C.
MOV / 24.00Hz / FULL (*HLG is selectable.) (*¹) (*²)
- [6K] 5952x3968 (3:2)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [6K] 5952x3136 (17:9)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [5.9K] 5888x3312 (16:9)
  - 24.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [C4K] 4096x2160
  - 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MOV / 24.00Hz / APS-C / PIXEL/PIXEL (*HLG is selectable.) (*¹) (*²)
- [C4K] 4096x2160
  - 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [3.3K] 3328x2496 (4:3)
  - 48.00p, 200Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 200Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 150Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 48.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    48.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    24.00p, 100Mbps (4:2:2 10-bit LongGOP) (H.264/MPEG-4 AVC, LPCM)
    24.00p, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
MP4 / 59.94Hz / FULL (*¹)
- [4K] 3840x2160
  - 29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 59.94Hz / APS-C / PIXEL/PIXEL (*¹)
- [4K] 3840x2160
  - 59.94p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    23.98p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    29.97p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 59.94p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    29.97p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    23.98p, 24Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / FULL (*¹)
- [4K] 3840x2160
  - 25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 50.00Hz / APS-C / PIXEL/PIXEL (*¹)
- [4K] 3840x2160
  - 50.00p, 100Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 72Mbps (4:2:0 10-bit LongGOP)* (H.265/HEVC, AAC) *HLG is selectable.
    25.00p, 100Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
- [FHD] 1920x1080
  - 50.00p, 28Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
    25.00p, 20Mbps (4:2:0 8-bit LongGOP) (H.264/MPEG-4 AVC, AAC)
MP4 / 24.00Hz / FULL (*¹)
- -
MP4 / 24.00Hz / APS-C / PIXEL/PIXEL (*¹)
- -

SLOW & QUICK

MOV / 59.94Hz / FULL (*¹)
- [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
MOV / 59.94Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 29.97p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 59.94p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    29.97p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    23.98p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
MOV / 50.00Hz / FULL (*¹)
- [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
MOV / 50.00Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 25.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 50.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    25.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
MOV / 24.00Hz / FULL (*¹)
- [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.
MOV / 24.00Hz / APS-C (*¹)
- [C4K] 4096x2160
  - 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [4K] 3840x2160
  - 24.00p (Maximum output of sensor is 60fps), 150Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
- [FHD] 1920x1080
  - 24.00p (Maximum output of sensor is 180fps)*, 100Mbps (4:2:0 10-bit LongGOP) (H.265/HEVC, LPCM)
    *Angle of view narrows if you select a frame rate with a number of frames 151 or more.

HDMI RAW DATA OUTPUT (*⁵)

Compatible external devices
- ATOMOS HDMI field monitor/recorder "Ninja V+" / "Ninja V" / "Shogun CONNECT"
  *Please refer to the ATOMOS website for the information on the corresponding firmware version of ATOMOS Ninja V+, ATOMOS Ninja V or ATOMOS Shogun CONNECT.
  *Software that supports ProRes RAW is required to edit RAW video recorded with ATOMOS Ninja V+ or ATOMOS Ninja V. Apply the LUT (Look up table) available on the following customer supports site to make the same color grading as V-Log/V-Gamut
  https://panasonic.jp/support/global/cs/dsc/download/lut/s1h_raw_lut/
  *All functions may not be available depending on the situation.

  Blackmagic Video Assist 5" 12G HDR, Blackmagic Video Assist 7" 12G HDR
  *Please refer to the Blackmagic Design website for the information on the corresponding firmware version of the Blackmagic Video Assist 12G HDR.
  *DaVinci Resolve or DaVinci Resolve Studio is required to play back and edit Blackmagic RAW data. DaVinci Resolve Studio is required to deliver projects using Blackmagic RAW data in resolutions over 3840x2160.
  *All functions may not be available depending on the situation.
Rec quality / 59.94Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / 59.94Hz / APS-C
- [4.1K] 4128x2176 (17:9)
  - 59.94p, 12-bit (LPCM)
    29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
- [3.5K] 3536x2656 (4:3)
  - 29.97p, 12-bit (LPCM)
    23.98p, 12-bit (LPCM)
Rec quality / 50.00Hz / FULL
- [5.9K] 5888x3312 (16:9)
  - 25.00p, 12-bit (LPCM)
Rec quality / 50.00Hz / APS-C
- [4.1K] 4128x2176 (17:9)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
- [3.5K] 3536x2656 (4:3)
  - 50.00p, 12-bit (LPCM)
    25.00p, 12-bit (LPCM)
Audio format
- LPCM (2ch 48kHz/24-bit, 96kHz/24-bit*) (4ch 48kHz/24-bit**, 96kHz/24-bit**)
  *When attaching Φ3.5mm microphone or DMW-XLR1 (sold separately). **When attaching DMW-XLR1 (sold separately).

VIEWFINDER

Type
- OLED Live View Finder
Pixels
- Approx. 3.68 million dots
Field of view / Magnification
- Approx. 100% / Approx. 0.78x with 50 mm lens at infinity; -1.0 m^-1, when the aspect ratio is set to 3:2
Eye point / Diopter adjustment
- Approx. 21 mm at infinity; -1.0 m^-1 / -4.0 - +2.0 (dpt)
Eye sensor
- Yes
Display speed
- 120fps / 60fps

REAR MONITOR

Type
- TFT LCD monitor with static touch control
Monitor size
- Free-angle, 3.0-inch (7.6cm), 3:2 aspect
Pixels
- Approx. 1.84 million dots
Field of view
- Approx. 100%

STATUS LCD

FOCUS (*³)

Type
- Phase Detection AF system / Contrast AF system
DFD technology
- Yes
Focus mode
- AFS (Single) / AFC (Continuous) / MF
AF mode
- Tracking / Full Area AF / Zone (Horizontal/Vertical) / Zone / 1-Area+ / 1-Area / Pinpoint
  *Automatic Detection can be turned ON to switch between Human / Animal / Car (*⁷) / Motorcycle (*⁷). Except when Pinpoint is set.
AF detective range
- EV -6 - 18 (F1.4, ISO100 equivalent, AFS)
AF custom setting
- AF Sensitivity, AF Area Switching Sensitivity, Moving Object Prediction
AF assist light
- Yes
AF lock
- Set the Fn button in custom menu to AF lock
Focus ring control
- Nonlinear / Linear (90°/ 120°/ 150°/ 180°/ 210°/ 240°/ 270°/ 300°/ 330°/ 360°/ 720°/ 1080°/ Maximum)
Others
- AF-ON, AF-ON: Near Shift, AF-ON: Far Shift, Focus Limiter, Focus Peaking, 1-Area AF Moving Speed, AF Micro Adjustment, Continuous AF (during motion picture recording), Focus/Shutter Priority, Focus Switching for Vert/Hor, AF/AE Lock Hold, AF+MF, MF Assist, MF Guide, Focus Ring Lock, Show/Hide AF Mode, AF-Point Scope (*⁶), Shutter AF, Half Press Shutter, Quick AF, Eye Sensor AF, Loop Focus Frame, Enlarged Live Display (Video), Touch Shutter, Touch AF/AE Function, Touch Pad AF, Lens Focus Resume

EXPOSURE CONTROL

Light metering system
- 1,728-zone multi-pattern sensing system
Light metering mode
- Multiple / Center Weighted / Spot / Highlight Weighted
Metering range
- EV0-18 (F2.0 lens, ISO100 equivalent)
Mode dial
- Program AE (P) / Aperture Priority AE (A) / Shutter Priority AE (S) / Manual Exposure (M) / Creative Video (P/A/S/M)* / Slow&Quick / Custom 1, 2, 3 / Intelligent Auto
  *The same exposure operations as P/A/S/M mode is available.
Exposure compensation
- 1/3 EV step ±5EV (±3EV for motion picture)
ISO sensitivity (Standard output sensitivity)
- [Normal]
  Auto / 50* / 100-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO

  [V-Log]
  Auto / 320* / 640-51200 (1/3 or 1 EV step) *Extended ISO

  [HLG]
  Auto / 400-51200 / 102400* / 204800* (1/3 or 1 EV step) *Extended ISO
Dual Native ISO
- [Normal]
  Native ISO: 100, 640
  Auto: Auto / 50* / 100-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 50* / 100-800 *Extended ISO
  High: Auto / 320* / 640-51200 / 102400* / 204800* *Extended ISO

  [V-Log]
  Native ISO: 640, 4000
  Auto: Auto / 320* / 640-51200 *Extended ISO
  Low: Auto / 320* / 640-5000 *Extended ISO
  High: Auto / 2000* / 4000-51200 *Extended ISO

  [HLG]
  Native ISO: 400, 2500
  Auto: Auto / 400-51200 / 102400* / 204800* *Extended ISO
  Low: Auto / 400-3200
  High: Auto / 2500-51200 / 102400* / 204800* *Extended ISO

  [Cinelike D2 / Cinelike V2]
  Native ISO: 200, 1250
  Auto: Auto / 100* / 200-51200 / 102400* / 204800* *Extended ISO
  Low: Auto /100* / 200-1600 *Extended ISO
  High: Auto / 640* / 1250-51200 / 102400* / 204800* *Extended ISO
AE lock
- Set the Fn button in custom menu to AE lock

IMAGE STABILIZATION SYSTEM

B.I.S. (5-axis / 5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=60mm when S-R2060 is used.]
Dual I.S. 2 (6.5-stop*) *Based on the CIPA standard [Yaw/Pitch direction: focusing distance f=200mm when S-E70200 is used.]

WHITE BALANCE

White balance
- AWB / AWBc / AWBw / Daylight / Cloudy / Shade / Incandescent / Flash / White Set 1, 2, 3, 4 / Color temperature setting 1, 2, 3, 4
White balance adjustment
- Blue/Amber bias, Magenta/Green bias
Color temperature setting
- 2500-10000K in 100K

SHUTTER

Type
- Focal-plane shutter
Shutter speed
- Still image: Bulb (Max. 30 minutes), 1/8,000 - 60
  Electronic front curtain shutter: Bulb (Max. 30 minutes), 1/2,000 - 60
  Electronic shutter: Bulb (Max. 60 sec), 1/8,000 - 60
  Motion picture: 1/16,000 - 1/25
  Creative Video M mode / MF mode: 1/16,000 - 1/2
Self timer
- 10sec, 3 images / 2sec / 10sec / Custom Time
Remote control
- Remote control by DMW-RS2 (sold separately)
Silent mode / Shutter type
- Yes / Yes (Auto / Mechanical / Electronic front curtain / Electronic / Electronic+NR)

BRACKET

AE bracket
- 3, 5, 7 images in 1/3, 2/3 or 1 EV step, max. ±3 EV, single/burst
Aperture bracket
- 3, 5 or all positions
Focus bracket
- 1 to 999 images, focus steps can be set in 10 levels
White balance bracket
- 3 images in blue/amber axis or in magenta/green axis, color temperature setting

BURST SHOOTING

Burst speed
- Mechanical shutter / Electronic front curtain shutter
  - H: 9 frames/sec (AFS/MF), 7 frames/sec (AFC) (with Live View)
    M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
- Electronic shutter
  - SH30: 30 frames/sec (AFS/AFC/MF)
    SH30 PRE: 30 frames/sec (AFS/AFC/MF) (*⁷)
    H: 9 frames/sec (AFS/MF), 8 frames/sec (AFC) (with Live View)
    M: 5 frames/sec (AFS/MF) (with Live View), 5 frames/sec (AFC) (with Live View)
    L: 2 frames/sec (AFS/AFC/MF) (with Live View)
Number of recordable images
- H/M/L*
  RAW+JPEG: More than 200 images
  RAW: More than 200 images
  JPEG: More than 300 images
  *Until the burst shooting speed slows. When recording is performed under the test conditions specified by Panasonic.
  *When using a card with SD Speed Class with "UHS-II UHS Speed Class 3 (U3)".

  SH
  RAW / RAW+JPEG / JPEG: 200 images

FLASH

Flash type
- TTL External Flash (sold separately)
Synchronization speed
- Less than 1/250 second *The guide number decreases at 1/250 second. Only when set to M mode or S mode.
Flash mode
- Auto* / Auto/Red-eye Reduction* / Forced On / Forced On/Red-eye Reduction / Slow Sync. / Slow Sync./Red-eye Reduction / Forced Off *For iA only.
Flash synchronization
- 1st Curtain Sync, 2nd Curtain Sync.
Flash output adjustment
- 1/3EV step ±3EV
Wireless control
- Yes (When using DMW-FL200L / FL360L / FL580L (sold separately)), Wireless Channel: 1ch/2ch/3ch/4ch

EXTRA TELE CONVERSION

2.0x (EX S) (When using full-frame lenses), 1.9x (EX S) (When using APS-C / Super 35mm lenses), 1.4x (EX M) *Only for still image recording.

COLOR SETTINGS

Photo Style
- Photo Style
  - Standard / Vivid / Natural / L. Classic Neo / Flat / Landscape / Portrait / Monochrome / L. Monochrome / L. Monochrome D / L. Monochrome S / LEICA Monochrome (*⁸) / Cinelike D2 / Cinelike V2 / Like709 / V-Log / REAL TIME LUT / Like2100 (HLG) / Like2100 (HLG) Full Range* / My Photo Style 1-4 (5-10)*
    *Set to ON from Show/Hide Photo Style to select.
- Picture adjustment
  - Contrast / Highlight / Shadow / Saturation / Color Tone / Hue / Filter Effect / Grain Effect / Color Noise / Sharpness / Noise Reduction / ISO / WB / LUT
    *Adjustable settings vary depending on the Photo Style mode.
Filter
- Expressive / Retro / Old Days / High Key / Low Key / Sepia / Cross Process / Bleach Bypass
LUT Library
- Vlog_709 / Set 1-10
  *REAL TIME LUT in Photo Style, Apply LUT in Fn button, Apply LUT in RAW Processing, LUT View Assist in V-Log View Assist, LUT can be applied from these settings.

MOTION PICTURE FUNCTION

Time lapse shot
- Yes
Stop motion animation
- Yes
Live cropping
- Yes (Supports cropping from 5.9K (FULL) 30p/25p/24p video to 4K/FHD sizes)
SS/Gain operation
- Shutter Duration/ISO / Angle/ISO / Shutter Duration/dB
Luminance level
- 8-bit: 0-255 / 16-235 / 16-255
  10-bit: 0‒1023 / 64‒940 / 64‒1023
Synchro scan
- Yes
Master pedestal level
- 31 steps
Color bars / 1kHz test tone
- Yes (SMPTE / EBU / ARIB) / Yes
LUT view assist
- Supported file types: .vlt, .cube
  Monitor / HDMI
HLG view assist
- Monitor (MODE1 / MODE2 / OFF) / HDMI (AUTO / MODE1 / MODE2 / OFF)
Anamorphic desqueeze display
- 2.0x / 1.8x / 1.5x / 1.33x / 1.30x / OFF
Wave form monitor / Vectorscope
- Selectable
Knee control
- Yes (in Like709 mode)
Red REC frame indicator
- ON / OFF

VERTICAL POSITION INFORMATION

Still image / Motion picture (ON/OFF)

LEVEL GAUGE

FUNCTION BUTTON

REC
- Exposure Comp. / Dual Native ISO / Sensitivity / White Balance / Photo Style / Apply LUT / Metering Mode / Aspect Ratio / Picture Quality / Picture Size / 1 Shot Spot Metering / Long Exposure NR / Min. Shutter Speed / 1 Shot RAW+JPG / i.Dynamic Range / Color Shading Compensation / Filter Effect / One Push AE / Touch AE / AWB Lock / Exposure Mode / Synchro Scan / AF Mode / AF Detection Setting / Detecting Subject / AF Custom Setting(Photo) / AF Custom Setting(Video) / Focus Limiter / Focus Limiter Range Set / Focus Peaking / Focus Peaking Sensitivity / 1-Area AF Moving Speed / Focus Ring Lock / AE LOCK / AF LOCK / AF/AE LOCK / AF-ON / AF-ON: Near Shift / AF-ON: Far Shift / Focus Area Set / Enlarged Live Display (Video) / Flash Mode / Flash Adjust. / Wireless Flash Setup / Drive Mode Setting / Bracketing / Silent Mode / Image Stabilizer / Shutter Type / Ex. Tele Conv. / Rec. File Format / Rec Quality / Rec Quality (My List) / Slow & Quick Setting / Time Code Display / Audio Information / Sound Rec Level Disp. / Mute Sound Input / Sound Rec Level Adj. / Sound Rec Quality / Sound Rec Level Limiter / 4ch Mic Input / XLR Mic Adaptor Setting / Sound Monitoring Channel / Image Stabilizer / E-Stabilization (Video) / Boost I.S. (Video) / Image Area of Video / Focus Transition / Live Cropping / Q.MENU / Rec/Playback Switch / Video Record / Video Record (Creative Video) / LVF/Monitor Switch / Operation Lock / Dial Operation Switch / Preview / Preview Aperture Effect / Constant Preview / Level Gauge / Histogram / Luminance Spot Meter / Frame Marker / Photo Grid Line / Live View Boost / Monochrome Live View / Night Mode / LVF/Monitor Disp. Set / Video-Priority Display / Zebra Pattern / LUT View Assist (Monitor) / LUT View Assist (HDMI) / LUT Select / HLG View Assist(Monitor) / HLG View Assist (HDMI) / Sheer Overlay / I.S. Status Scope / WFM/Vector Scope / Anamorphic Desqueeze Display / Color Bars / Focus Ring Control / AF Micro Adjustment / Lens Information / Destination Card Slot / Wi-Fi / Fan Mode / Save to Custom Mode / No Setting / Off (Disable Press and Hold) / AF-Point Scope (*⁶) / Proxy Recording (*⁷) / REAL TIME LUT (*⁸) / Restore to Default
PLAY
- Magnify from AF Point / LUT View Assist (Monitor) / HLG View Assist (Monitor) / Anamorphic Desqueeze Display / RAW Processing / Delete Single / Protect / Rating 1, 2, 3, 4, 5 / Copy / Rec/Playback Switch / LVF/Monitor Switch / Video Record / Video Record (Creative Video) / Night Mode / Card Slot Change / Sound Monitoring Channel(Play) / Wi-Fi / Fan Mode / Send Image (Smartphone) / LUT View Assist (HDMI) / HLG View Assist (HDMI) / No Setting / Off (Disable Press and Hold) / Send Images to Frame.io (*⁷) / Restore to Default

INTERFACE

USB
- USB Type-C (SuperSpeed USB 10Gbps (USB 3.2 Gen2))
HDMI (*⁴)
- HDMI
  - HDMI TypeA
    Audio: ON / OFF, MP4: 2ch, MOV: 2ch (When [4ch Mic Input] is set to OFF.), 4ch (When [4ch Mic Input] is set to ON.)
- Monitor-through
  - 4:2:2 10bit (When [Rec Quality] is set to [4:2:2 10bit] or [4:2:0 10bit].)
    4:2:2 8bit (When [Rec Quality] is set to [4:2:0 8bit].)
- Playback
  - 59.94Hz: C4K/60p / C4K/30p / 4K/60p / 4K/30p / 1080/120p / 1080p / 1080i / 720p* / 480p*
    50.00Hz: C4K/50p / C4K/25p / 4K/50p / 4K/25p / 1080/100p / 1080p / 1080i / 720p* / 576p*
    24.00Hz: C4K/24p / 4K/24p / 1080p
    *Only for playback.
Remote input
- φ2.5mm
Audio
- Build-in microphone
  - Stereo
    Wind Noise Canceller: OFF / Standard / High
- External microphone / External audio device input
  - φ3.5mm for external microphone / external audio device
    MIC (Plug-in Power) / MIC / LINE
    Wind Cut: OFF / Low / Standard / High *When attaching 3.5mm microphone (sold separately).
    Special Mic: Stereo / Shotgun *When attaching DMW-MS2 (sold separately).
- XLR microphone
  - Yes with DMW-XLR1 (sold separately)
- 4ch mic input
  - Yes with DMW-XLR1 (sold separately)
- Speaker
  - Monaural
- Headphone output
  - φ3.5mm
SD card slot
- Slot 1, Slot 2
  SD Memory Card / SDHC Memory Card* / SDXC Memory Card*
  *Compatible with UHS-I/UHS-II UHS Speed Class 3 standard SDHC/SDXC Memory Cards and UHS-II Video Speed Class 90 standard SDXC Memory Cards.

TC IN/OUT

Count up
- Rec Run / Free Run
Time code mode
- Drop Frame / Non-Drop Frame (When system frequency [59.94Hz] is selected.)
HDMI time code output
- ON / OFF

FAN

Auto1 / Auto2 / Fast / Normal / Slow* / OFF**
*Not selectable when the resolution is higher than C4K, or the frame rate is higher than 60p.
**OFF can be set when in iA/P/A/S/M mode.

WIRELESS

Wi-Fi
- 2.4GHz bands (STA/AP) (IEEE802.11b/g/n)
  5GHz bands (STA) (IEEE 802.11a/n/ac)
  Security: WPA/WPA2/WPA3
Bluetooth
- Bluetooth® v5.0 (Bluetooth Low Energy (BLE))

DUST AND SPLASH RESISTANT*

Yes.
*Dust and Splash Resistant does not guarantee that damage will not occur if this camera is subjected to direct contact with dust and water.

POWER

Battery
- Li-ion Battery Pack (7.2V, 2200mAh, 16Wh) (bundled)
  USB power supply, USB power charging, USB power delivery
Battery life (CIPA standard)
- Approx. 370 images, 1,250 images (Power Save LVF mode*) with S-R2060
  Approx. 370 images, 1,200 images (Power Save LVF mode*) with S-S50
  *Under the test conditions specified by Panasonic based on CIPA standard. When the time to get in the sleep mode is set to 1 sec.
Continuous recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 90 min (APS-C), MP4 [FHD/60p]: Approx. 130 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Actual recordable time (Motion picture) (*¹)
- MP4 [4K/60p]: Approx. 45 min (APS-C), MP4 [FHD/60p]: Approx. 65 min (FULL) *When using S-R2060 / S-S50. When the battery is fully charged.
Battery grip
- DMW-BGS5 (sold separately)

DIMENSIONS / WEIGHT

Dimensions (W x H x D)
- Approx. 134.3 x 102.3 x 90.1 mm / 5.29 x 4.03 x 3.55 inch (Body only, excluding protrusions)
  Approx. 134.3 x 102.3 x 157.0 mm / 5.29 x 4.03 x 6.19 inch (with S-R2060, excluding protrusions)
  Approx. 134.3 x 102.3 x 151.8 mm / 5.29 x 4.03 x 5.98 inch (with S-S50, excluding protrusions)
Weight
- Approx. 740g / 1.64 lb (Body, Hot Shoe Cover, Battery, SD Memory Card x 1) (excluding body cap)
  Approx. 657g / 1.45 lb (Body, Hot Shoe Cover) (excluding body cap)

OPERATING ENVIRONMENT

Operating temperature
- 0℃ to 40℃ (32℉ to 104℉)
Operating humidity
- 10%RH to 80％RH

STANDARD ACCESSORIES

Software
- LUMIX Tether
  ･This software is used to control a Panasonic digital camera from a computer. It allows you to change various settings of the camera, perform remote recording, and save remotely recorded images to the PC. Check the site below to download and install the software.
  http://panasonic.jp/support/global/cs/soft/download/d_lumixtether.html (For Windows / Mac)

  LUMIX Sync / LUMIX Lab (*⁸)
  ･This software is used to control a Panasonic digital camera from a smartphone. Check the site below to download and install the software.
  https://panasonic.jp/support/global/cs/dsc/ (For Android™ / iOS)

  ･The software to process RAW file on computer is not bundled with this camera. To do this, SILKYPIX Developer Studio is available for download at Ichikawa Soft Laboratory's website using computer connected to the Internet.
  http://www.isl.co.jp/SILKYPIX/english/p/ (For Windows / Mac)
Standard accessories
- DC-S5M2 Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C)

  DC-S5M2K Kit / DC-S5M2C Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap, Lens Hood, Lens Rear Cap

  DC-S5M2W Kit
  Body Cap, Hot Shoe Cover, Cover for the Battery Grip Connector, Shoulder Strap, Battery Pack, AC Adaptor, USB Connection Cable (A-C), Lens Cap x 2, Lens Hood x 2, Lens Rear Cap x 2

  ･The Operating Instructions for advanced features is available for downloaded at Panasonic LUMIX Customer Support Site using PC, smartphone or tablet connected to the Internet.

Note

(*1) About motion picture recording

- Recording stops when the continuous recording time exceeds 30 minutes in [6K/29.97p] [6K/25.00p] [5.9K/29.97p] [5.9K/25.00p] when Thermal Management mode is set to Standard.

- The cards that can be used for recording vary depending on the motion pictures bit rate and format type.
Motion pictures with 72Mbps or less: SD memory card with SD Speed Class with Class 10 or Video Speed Class 10 or higher
Motion pictures with 200Mbps or less: SD memory card with UHS-I / UHS-II UHS Speed Class 3 (U3) or Video Speed Class 30 or higher

- A new file will be created to continue recording if the continuous recording time exceeds the following conditions.
Motion pictures with less than 72Mbps: 30 minutes
Motion pictures with 72Mbps or more: 3 hours 4 minutes

- A new file will be created to continue recording if the file size exceeds the following conditions.
[MP4] in [FHD]: 4GB
[MP4] in [4K]: 96GB
[MOV]: 192GB

(*2) High-res audio is selectable only when attaching Φ3.5mm microphone or DMW-XLR1 (sold separately).

(*3) About AF
- Automatic Detection is not available for High Frame Rate video shooting above 60p (100p or 120p).
- Tracking and Automatic Detection are not available when using HDMI cable or USB connection cable for High Frame Rate video shooting (100p or 120p) above 60p.

(*4) To output motion pictures with 4K or higher, use a Premium High Speed HDMI cable (Type A - Type A plug).

(*5) Firmware must be updated to version 2.0. Upgrade Software Key (DMW-SFU2) is required.

(*6) Firmware must be updated to version 2.2.

(*7) Firmware must be updated to version 3.0.

(*8) Firmware must be updated to version 3.1.

Öppna en ny sida för utskrift

Liknande produkter

DC-S5M2XN
(DC-S5M2X + S-R1840)

Spegellös fullformatskamera utrustad med Phase Hybrid AF, Active I.S., High Grade Video-läge, C4K/4K 60p/50p 4:2:2 10-bit videoinspelning utan tidsbegränsning och mycket annat. (Sats med S5IIX-hus ...

DC-S5DN
(DC-S5D + S-R1840)

LUMIX DC-S5DN (Kit med S5D-hus och LUMIX S 18-40 mm/F4.5-6.3 zoomobjektiv) Fullformats DSLM-kamera med 24,2 Mpixels MOS-sensor, 4K 60p/50p 10-bit video och mer – allt i ett lätt och kompakt kamerah...

DC-S5DH
(DC-S5D + S-R28200)

LUMIX DC-S5DH (Kit med S5D-hus och LUMIX S 28-200 mm/F4-7.1 zoomobjektiv) Fullformats DSLM-kamera med 24,2 Mpixels MOS-sensor, 4K 60p/50p 10-bit video och mer – allt i ett lätt och kompakt kamerahu...

DC-S9N
(DC-S9 + S-R1840)

LUMIX DC-S9N (set med S9 Body + LUMIX S 14-80 mm/F4.5-6.3 zoomobjektiv) Skapa fängslande innehåll direkt från den nya LUMIX S9 fullformatskameran, fylld med professionella funktioner men utan att b...

DC-S9

Skapa fängslande innehåll direkt från den nya LUMIX S9 fullformatskameran, fylld med professionella funktioner men utan att behöva kunna redigera – från fotografering till publicering på 30 sekunder.

DC-S9H
(DC-S9 + S-R28200)

LUMIX DC-S9H (set med S9 Body + LUMIX S 28-200 mm/F4-7.1 zoomobjektiv) Skapa fängslande innehåll direkt från den nya LUMIX S9 fullformatskameran, fylld med professionella funktioner men utan att be...

DC-S9K
(DC-S9 + S-R2060)

LUMIX DC-S9K (set med S9 Body + LUMIX S 20-60 mm/F3.5-5.6-objektiv) Skapa fängslande innehåll direkt från den nya LUMIX S9 fullformatskameran, fylld med professionella funktioner men utan att behöv...

DC-S5

Fullformats DSLM-kamera med 24,2 Mpixels MOS-sensor, 4K 60p/50p 10-bit video och mer – allt i ett lätt och kompakt kamerahus.

DC-S5K

Fullformats DSLM-kamera med 24,2 Mpixels MOS-sensor, 4K 60p/50p 10-bit video och mer – allt i ett lätt och kompakt kamerahus. 20-60mm kitobjektiv

DC-S1H

Fullformats DSLM-kamera (Digital Single Lens Mirrorless) med V-Log/V-Gamut med ett dynamiskt omfång på 14+ steg, 6K fullformat och 10-bit Cinema 4K/4K 60p/50p videoinspelning.

DC-S1RM

En ny 47,3 Mpixlars CMOS-sensor som ger fenomenalt verkliga detaljer. Fokus och bildstabiliseringssystem som fångar varje ögonblick med fantastisk klarhet.

DC-S1R

Fullformats DSLM-kamera (Digital Single Lens Mirrorless) med 47,3 Mpixlars MOS-sensor och högupplöst läge på 187 Mpixlar.

DC-S1

En ny 24,2 Mpixlars CMOS-sensor som ger fenomenalt verkliga detaljer. Inspelning av 4K-video helt enligt professionell standard och prestanda.

DC-S1M

En ny 24,2 Mpixlars CMOS-sensor som ger fenomenalt verkliga detaljer. Inspelning av 4K-video helt enligt professionell standard och prestanda.

Tillbehör

Objektiv

S-R1635

LUMIX S PRO 16-35mm F4

S-E2470

LUMIX S PRO 24-70mm F2.8

S-E70200

LUMIX S PRO 70-200 mm F2,8 O.I.S.

S-R70200

LUMIX S PRO 70-200mm F4 O.I.S.

S-X50

LUMIX S PRO 50mm F1.4

S-R1428

14-28mm vidvinkelzoom med L-fattning

S-R1840

18-40mm vidvinkelzoom med L-fattning

S-R2060

20-60 mm standardzoom med L-fattning

S-R24105

LUMIX S 24-105mm F4 MACRO O.I.S.

S-R28200

28-200 mm zoomobjektiv med L-fattning

S-R70300

70-300mm telezoom med L-Mount

S-S18

18mm fast brännvidd med L-fattning

S-S24

24mm fast brännvidd med L-fattning

S-S35

35mm fast brännvidd med L-fattning

S-S50

50mm fast brännvidd med L-fattning

S-S85

85 mm fast brännvidd med L-fattning

S-E100

100 mm makroobjektiv med fast brännvidd och L-fattning

S-R26

26 mm pannkaksobjektiv med fast brännvidd och L-fattning

Batterier/batterigrepp

DMW-BG1

Batterigrepp som ger fler bilder. Kompatibel med LUMIX S5II (DC-S5M2), LUMIX S5IIX (DC-S5M2X) och LUMIX G9II (DC-G9M2).

DMW-BGS5

Batterigrepp

DMW-BLK22

Batteri

DMW-BTC15

Batteriladdare

DMW-BTCD15

Batteriladdare till DMW-BLK22 eller DMW-BLF19. (Endast batteriladdare. Nätadapter, USB-anslutningskabel och nätkabel ingår inte.)

DMW-DCC18

Batteriadapter för kameror kompatibla med batteri DMW-BLK22

DMW-AC11

AC Adapter for use with DC Coupler

DMW-DCC17

DC Coupler

DMW-AC10E

Nätadapter

Fjärrstyrd slutare / Stativfäste

DMW-RS2

Fjärrutlösare

DMW-SHGR2

Ett kompakt och lätt handgrepp/ministativ med USB Type-C-anslutning som gör det möjligt att starta/stoppa videoinspelning och utlösa slutaren.

DMW-SHGR1

Stativgrepp

Blixtar

DMW-FL580L

Extern blixt

DMW-FL360L

Extern blixt

DMW-FL200L

Extern blixt

VW-LED1

LED-videolampa

XLR-mikrofonadapter / Mikrofon

DMW-XLR1

XLR-mikrofonadapter

DMW-MS2

Mikrofoner

DMW-VMS10

Mikrofoner

Axelrem

DMW-SFU2

Genom att aktivera LUMIX S1 (DC-S1) eller LUMIX S5II (DC-S5M2) med nyckeln för programuppgradering DMW-SFU2 kan du njuta av avancerade videofunktioner för användning i en professionell miljö.

DMW-SSTG9

Axelrem

Se alla tillbehör

Läs mer om hela kategorin

LUMIX S systemkamera

Få support
