X-Premium Inverter XU Series (AKH)

အလိုရှိသည်များ စာရင်း (Wish List) ထဲ ပေါင်းထည့်ရန်အလိုရှိသည်များ စာရင်း (Wish List) မှ ဖယ်ရှားရန်

နောက်ထပ် ကုန်ပစ္စည်းများ ပေါင်းထည့်ရန် နေရာလွတ် မရှိတော့ပါ။

အလိုရှိသည်များ စာရင်း (Wish List) အတွင်းထည့်သွင်းရန် အများဆုံးသတ်မှတ်ထားသော ထုတ်ကုန်ပစ္စည်း အရေအတွက်သို့ ရောက်ရှိသွားပြီဖြစ်သည်

CU/CS-XU13AKH

Purify Around-the-Clock with nanoe™ X

Panasonic X-Premium Inverter CS-XU13AKH integrates nanoe™ X technology with nanoe X Generator Mark 3 for faster pollutant inhibition, while the improved Inside Cleaning cleans and dries the inside of the indoor unit. Built-In Easy Connect allows easier and faster Wi-Fi connectivity to Panasonic Comfort Cloud App. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control with Dry Mode and iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with Inverter technology, R32 refrigerant, and ECO Mode with A.I. Control.
  • nanoe X Generator Mark 3
  • Inside Cleaning On Demand
  • Panasonic Comfort Cloud App
  • Inverter
Zoomချဲ့ကြည့်ရန်
zoomချုံ့ကြည့်ရန်
Close

လုပ်ဆောင်ချက်

Stay Safe Indoors with 24-hour nanoe™ X Air Protection

Stay Safe Indoors with 24-hour nanoe™ X Air Protection
nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify your living spaces, providing a cleaner and comfortable space for you and your loved ones - making your home a safe haven 24/7.
*Energy consumption may vary depending on models.

Clean and Fresh Environment Every Day

New nanoe X Generator Mark 3*

Equipped with the latest nanoe X Generator Mark 3 to offer greater effectiveness in inhibiting various pollutants and deodorising odours at a faster pace compared to the previous nanoe X Generator Mark 2.
Notes:
(1) nanoe X Generator Mark 2- •Testing organisation: Panasonic Product Analysis Center •Test subject: Adhered nonenal (Body odour) •Test volume: Approximately 23m³ laboratory •Test result: Odour intensity reduced by 1.7 levels in 60 minutes •Test report No.: Y18HM059 (Difference in odour intensity from the blank is greater than 1.7 and the time until odour intensity is less than 2.6).
(2) nanoe X Generator Mark 3 -•Testing organisation : Panasonic Product Analysis Center •Test subject: Adhered nonenal (Body odour) •Test volume: Approximately 23m³ laboratory •Test result: Odour intensity reduced by 1.9 levels in 15 minutes • Test report No.: H21HM005-1
New nanoe X Generator Mark 3*

Inside Cleaning On Demand

The newly improved inside cleaning function can be activated on a need basis. It works inside of an indoor unit to remove moisture, and release nanoe™ X particles, inhibiting various pollutants while ensuring that the inside of the indoor unit is always dry and clean.
Inside Cleaning On Demand

Effective in Removing 99% of Dust Particles

Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.
*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).
Effective in Removing 99% of Dust Particles

Connect & Control Your Air Conditioners Anywhere, Anytime

Connect & Control Your Air Conditioners Anywhere, Anytime
With the built-in Wi-Fi and Panasonic Comfort Cloud App, connect and control multiple air conditioning units from anywhere, at home or away.

Connectivity and Control, Simplified

Monitor Energy Consumption

Monitoring usage of air conditioning units using comprehensive energy statistics, and identifying issues with error notifications for effortless troubleshooting.
Monitor Energy Consumption

Secured & Easier Setup with Advanced Scan Connectivity*

Scan the QR code to enable easier and faster Wi-Fi connectivity to the air conditioner.
*Complied with internal cybersecurity guidelines based on cybersecurity trends and the regulations of each country.
Note: The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Panasonic is under license. Other trademarks and trade names are those of their respective owners.
Secured & Easier Setup with Advanced Scan Connectivity*

Cost-efficient Solutions for a Greener Environment

Better Living, Together with Energy-saving and Eco-friendly Technologies

Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.
Better Living, Together with Energy-saving and Eco-friendly Technologies

Intelligently Balances Energy Savings and Comfort

Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.
Intelligently Balances Energy Savings and Comfort

Humidity Control for Better Comfort

Humidity Sensor Optimises an Ideal Indoor Environment

iAUTO-X together with built-in Humidity Sensor constantly monitors and adjusts relative humidity levels to below 60% for an optimal indoor environment, so you can enjoy comfortable cooling all day long.
Humidity Sensor Optimises an Ideal Indoor Environment

Remove Excess Moisture with Dry Mode and Humidity Sensor

Dry Mode together with built-in Humidity Sensor accurately detects and adjusts the humidity level in the room to below 55%, removing excess moisture to maintain the comfort level of its occupants.
Remove Excess Moisture with Dry Mode and Humidity Sensor

Healthy Airflow for Your Cooling Comfort

Up to 15 Meters Long Air Distance with AEROWINGS

AEROWINGS provides long air distance as far as 15 meters* by incorporating two independently controlled flaps, so you can enjoy the cooling sensation even if you are across the room.
*Tested 15 meters long airflow based on X-Premium Inverter.
Up to 15 Meters Long Air Distance with AEROWINGS

Faster Cooling with iAUTO-X

iAUTO-X provides 25%* faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh) which enables the compressor to achieve maximum frequency quickly from start-up, allowing you to relish the cooling comfort instantly, even on a scorching hot day. This feature can also be reactivated whenever the room is getting warmer due to the increase of occupants in it, keeping everyone comfortable at all times.
*Comparison of iAUTO-X mode & normal COOL mode by using 1.5HP X-Premium Inverter.
Faster Cooling with iAUTO-X

Convenient Control at Your Fingertips

Wireless Remote Controller

The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Wireless Remote Controller

Optional Wired Remote Controller

The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
Optional Wired Remote Controller

အသေးစိတ်အချက်များ

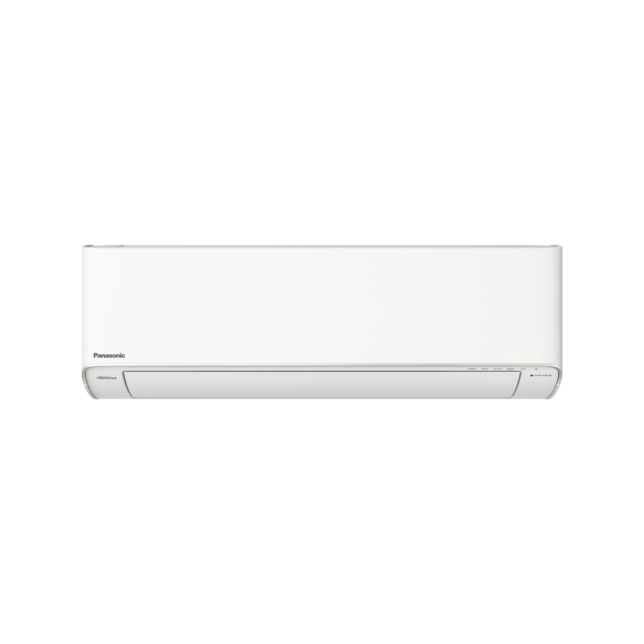

X-Premium Inverter XU Series (AKH) ၏ ဓါတ်ပုံများ

အရွယ်အစားနှင့် အလေးချိန်

အမြင့်
295mm
အကျယ်
870mm
အနက်
229mm
အလေးချိန်
10kg
  • nanoe X Generator Mark 3nanoe X Generator Mark 3
  • Inside Cleaning On DemandInside Cleaning On Demand
  • Built-In Easy ConnectBuilt-In Easy Connect
  • Dry Mode with Humidity SensorDry Mode with Humidity Sensor
  • iAUTO-X with Humidity SensoriAUTO-X with Humidity Sensor
  • nanoe-Gnanoe-G
  • AEROWINGSAEROWINGS
  • InverterInverter
  • ECO Mode with A.I. ControlECO Mode with A.I. Control
  • R32 RefrigerantR32 Refrigerant

nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours

Inside Cleaning On Demand ensures the inside of the indoor unit is pollutant-free

Manage your air conditioner using your mobile device with Comfort Cloud App

Advanced humidity control operated by Dry Mode and iAUTO-X with built-in Humidity Sensor

15 meters long air distance with AEROWINGS

Energy efficiency with ECO Mode with A.I. Control, Inverter and environmentally friendly R32 refrigerant

Cooling Capacity (min-max) (kW)

  • 3.67 (1.02-4.20) kW

Cooling Capacity (min-max) (Btu/h)

  • 12,500 (3,480-14,300) Btu/h

EER (min-max) (Btu/hW)

  • 12.50 (13.38-11.92) Btu/hW

EER (min-max) (W/W)

  • 3.67 (3.92-3.50) W/W

Voltage (V)

  • 220-240 V

Current (A)

  • 4.6-4.3 A

Power Input (min-max) (W)

  • 1,000 (260-1,200) W

Moisture Removal (L/h)

  • 2.1 L/h

Moisture Removal (Pt/h)

  • 4.4 Pt/h

Indoor Unit Air Circulation

  • 12.0 m³/min (425 ft³/min)

Indoor Unit Noise Level (H / L / Q-Lo)

  • 38/28/19 dB(A)

Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)

  • 295 mm x 870 mm x 229 mm

Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)

  • 11-5/8 inch x 34-9/32 inch x 9-1/32 inch

Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)

  • 283 mm x 952 mm x 374 mm

Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)

  • 11-5/32 inch x 37-1/2 inch x 14-3/4 inch

Indoor Unit Net Weight

  • 10 kg (22 lb)

Outdoor Unit Air Circulation

  • 30.9 m³/min (1,090 ft³/min)

Outdoor Unit Noise Level (H)

  • 48 dB(A)

Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)

  • 542 mm x 780 mm x 289 mm

Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)

  • 21-11/32 inch x 30-23/32 inch x 11-13/32 inch

Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)

  • 607 mm x 900 mm x 405 mm

Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)

  • 23-29/32 inch x 35-7/16 inch x 15-31/32 inch

Outdoor Unit Net Weight

  • 21 kg (46 lb)

Refrigerant Pipe Diameter (Liquid Side)

  • ø 6.35 mm (1/4 inch)

Refrigerant Pipe Diameter (Gas Side)

  • ø 9.52 mm (3/8 inch)

Pipe Extension (Chargeless Pipe Length)

  • 7.5 m

Pipe Extension (Maximum Pipe Length)

  • 20 m

Pipe Extension (Maximum Elevation Length)

  • 15 m

Pipe Extension (Additional Refrigerant Gas*)

  • 10 g/m

Power Supply

  • Indoor

nanoe™ X

  • Yes (Generator Mark 3)

nanoe-G

  • Yes

Inside Cleaning On Demand

  • Yes

Odour Removing Function

  • Yes

Wi-Fi

  • Built-in

24-Hour Dual ON & OFF Real Setting Timer

  • Yes

LCD Wireless Remote Control

  • Yes

Wired Remote Control

  • Optional

iAUTO-X

  • Yes

Humidity Sensor

  • Yes

Sleep Mode

  • Yes

Quiet Mode

  • Yes

Soft Dry Operation Mode

  • Yes

Personal Airflow Creation

  • Yes

Inverter Control

  • Yes

Refrigerant Type

  • R32

ECO Mode with A.I.

  • Yes

Random Auto Restart

  • Yes (32 Restart Patterns)

Blue Fin Condenser

  • Yes

Long Piping (maximum pipe length)

  • 20 m

Top Panel Maintenance Access

  • Yes

Self-Diagnostic Function

  • Yes

Note

  • *When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
    Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
