Premium Inverter U Series (AKH)
အလိုရှိသည်များ စာရင်း (Wish List) ထဲ ပေါင်းထည့်ရန်အလိုရှိသည်များ စာရင်း (Wish List) မှ ဖယ်ရှားရန်
နောက်ထပ် ကုန်ပစ္စည်းများ ပေါင်းထည့်ရန် နေရာလွတ် မရှိတော့ပါ။
အလိုရှိသည်များ စာရင်း (Wish List) အတွင်းထည့်သွင်းရန် အများဆုံးသတ်မှတ်ထားသော ထုတ်ကုန်ပစ္စည်း အရေအတွက်သို့ ရောက်ရှိသွားပြီဖြစ်သည်

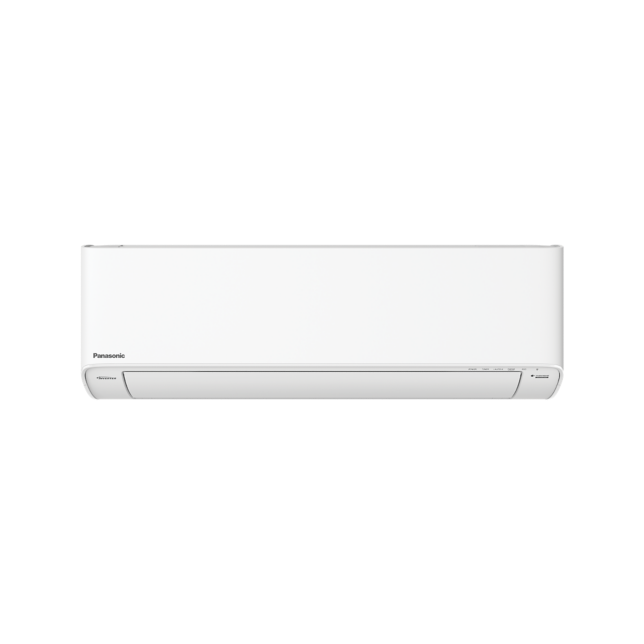

CU/CS-U10AKH
Purify Around-the-Clock with nanoe™ X
Panasonic Premium Inverter CS-U10AKH comes with nanoe™ X technology for continuous 24-hour protection. The improved Inside Cleaning cleans and dries the inside of the indoor unit. Enjoy comfortable cooling with AEROWINGS, and advanced humidity control with Dry Mode and iAUTO-X with Humidity Sensor. Achieve energy efficiency without compromising comfort with ECO Mode with A.I. Control, Inverter technology and R32 refrigerant.
လုပ်ဆောင်ချက်
Stay Safe Indoors with 24-hour nanoe™ X Air Protection
nanoe™ X technology with the benefits of hydroxyl radicals effectively inhibits adhered and airborne pollutants while reducing frequently encountered odours for clean and fresh air. nanoe™ X mode can be switched ON independently (without cooling operation) with low energy consumption at 25W/hour* to continually purify your living spaces, providing a cleaner and comfortable space for you and your loved ones - making your home a safe haven 24/7.
*Energy consumption may vary depending on models.
Clean and Fresh Environment Every Day
2x Faster Odours Reduction and Pollens Inhibition with nanoe X Generator Mark 2
Equipped with the nanoe X Generator Mark 2 to offer greater effectiveness in deodorising odours and inhibiting pollens at 2x faster pace compared to the previous nanoe X Generator Mark 1.
Notes:
(1) Deodorization Test: •Testing organisation: Panasonic Product Analysis Center •Test subject: Adhered nonenal (body odour) • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Odour intensity reduced by 1.1 levels in 60 minutes (Test report No.: Y18HM047-1) • nanoe X Generator Mark 2 test result: Odour intensity reduced by 1.1 levels in 30 minutes (Test report No.: Y18HM059)
(2) Pollen Inhibition Test: • Testing organisation: Panasonic Product Analysis Center • Test subject: Adhered cedar pollen • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Inhibited 99% in 24 hours (Test report No.: 4AA33-151001-F01) • nanoe X Generator Mark 2 test result: Inhibited 99% in 12 hours (Test report No.: L19YA009)
(1) Deodorization Test: •Testing organisation: Panasonic Product Analysis Center •Test subject: Adhered nonenal (body odour) • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Odour intensity reduced by 1.1 levels in 60 minutes (Test report No.: Y18HM047-1) • nanoe X Generator Mark 2 test result: Odour intensity reduced by 1.1 levels in 30 minutes (Test report No.: Y18HM059)
(2) Pollen Inhibition Test: • Testing organisation: Panasonic Product Analysis Center • Test subject: Adhered cedar pollen • Testing volume: Approximately 23m³ laboratory • nanoe X Generator Mark 1 test result: Inhibited 99% in 24 hours (Test report No.: 4AA33-151001-F01) • nanoe X Generator Mark 2 test result: Inhibited 99% in 12 hours (Test report No.: L19YA009)
Inside Cleaning On Demand
The newly improved inside cleaning function can be activated on a need basis. It works inside of an indoor unit to remove moisture, and release nanoe™ X particles, inhibiting various pollutants while ensuring that the inside of the indoor unit is always dry and clean. Up to 99%* of bacteria and viruses inhibited on evaporator, filter and air outlet.
*Testing Organization: Protectea,Ltd • Test subject: Bacteria (Escherichia coli NBRC3301) and Virus (Escherichia coli NBRC320012) • Tested time 2.5 hours
• Test Result: 99% inhibited (compared to non operation) • Test Report No: PR190803 (Filter & Evaporator); PR191102 (Air Outlet)
• Test Result: 99% inhibited (compared to non operation) • Test Report No: PR190803 (Filter & Evaporator); PR191102 (Air Outlet)
Effective in Removing 99% of Dust Particles
Effective in removing 99% of dust particles*, nanoe-G releases negative ions to capture dust particles as small as PM2.5, carrying them back to the filter to provide a cleaner indoor environment.
*Testing organisation: FCG Research Institute, Inc. Testing method: nanoe-G-equipped air conditioner was operated and tested in a 23m³ sized test room. Test result: Removed 99% of particles in 202 minutes (compared to the initial concentration). (25034) Not a result of experiments in an actual use environment. Results may vary based on usage, and seasonal and environmental variables (temperature and humidity).
Better Living, Together with Energy-saving and Eco-friendly Technologies
Panasonic air conditioners have excellent energy efficiency with the use of environmentally friendly R32 refrigerant and energy-saving Inverter technology. R32 refrigerant is an excellent heat transfer medium with a higher cooling capacity. Its low global warming potential helps to lower carbon footprint and reduce energy costs. Panasonic's Inverter technology uses a micro-computer with gentle yet powerful compressor to precisely control temperature, providing a balanced comfort level while consuming less energy. A smarter, greener choice with energy-saving technologies for sustainable living.
Intelligently Balances Energy Savings and Comfort
Every space has a different temperature and it varies throughout the day. ECO Mode with Artificial Intelligence (A.I.) Control learns and judges the optimal ECO level to maximise energy savings up to 20%* while providing consistent cooling comfort.
*Comparison of ECO mode & normal mode by using 1.5HP Inverter Model.
Humidity Control for Better Comfort
Humidity Sensor Optimises an Ideal Indoor Environment
iAUTO-X together with built-in Humidity Sensor constantly monitors and adjusts relative humidity levels to below 60% for an optimal indoor environment, so you can enjoy comfortable cooling all day long.
Remove Excess Moisture with Dry Mode and Humidity Sensor
Dry Mode together with built-in Humidity Sensor accurately detects and adjusts the humidity level in the room to below 55%, removing excess moisture to maintain the comfort level of its occupants.
Healthy Airflow for Your Cooling Comfort
Up to 15 Meters Long Air Distance with AEROWINGS
AEROWINGS provides long air distance as far as 15 meters* by incorporating two independently controlled flaps, so you can enjoy the cooling sensation even if you are across the room.
*Tested 15 meters long airflow based on PREMIUM INVERTER.
Faster Cooling with iAUTO-X
iAUTO-X provides 25%* faster cooling through the use of Panasonic Thermal Enhancement Technology (P-TECh) which enables the compressor to achieve maximum frequency quickly from start-up, allowing you to relish the cooling comfort instantly, even on a scorching hot day. This feature can also be reactivated whenever the room is getting warmer due to the increase of occupants in it, keeping everyone comfortable at all times.
*Comparison of iAUTO-X mode & normal COOL mode by using 1.5HP PREMIUM INVERTER Model.
Convenient Control at Your Fingertips
Wireless Remote Controller
The handheld wireless remote controller is designed for ease of operation and convenience with five quick access keys.
*A wireless remote controller is included in the same package as the indoor unit. Product design may vary by models.
Optional Wired Remote Controller
The optional wired remote controller (CZ-RD514C) provides a large display for improved visibility and a vast range of information to ease operations.
အသေးစိတ်အချက်များ
အရွယ်အစားနှင့် အလေးချိန်
- အမြင့်
- 295mm
- အကျယ်
- 870mm
- အနက်
- 229mm
- အလေးချိန်
- 10kg
nanoe X Generator Mark 2- Inside Cleaning On Demand
- Dry Mode with Humidity Sensor
- iAUTO-X with Humidity Sensor
- nanoe-G
- AEROWINGS
- Inverter
- ECO Mode with A.I. Control
- R32 Refrigerant
nanoe™ X 24-hour protection inhibits various pollutants and deodorises odours
Inside Cleaning On Demand ensures the inside of the indoor unit is pollutant-free
Advanced humidity control operated by Dry Mode and iAUTO-X with built-in Humidity Sensor
15 meters long air distance with AEROWINGS
Energy efficiency with ECO Mode with A.I. Control, Inverter and environmentally friendly R32 refrigerant
Cooling Capacity (min-max) (kW)
-
2.85 (0.92-3.40) kW
Cooling Capacity (min-max) (Btu/h)
-
9,720 (3,140-11,600) Btu/h
EER (min-max) (Btu/hW)
-
13.32 (13.96-11.26) Btu/hW
EER (min-max) (W/W)
-
3.90 (4.09-3.30) W/W
Voltage (V)
-
220-240 V
Current (A)
-
3.6-3.3 A
Power Input (min-max) (W)
-
730 (225-1,030) W
Moisture Removal (L/h)
-
1.7 L/h
Moisture Removal (Pt/h)
-
3.6 Pt/h
Indoor Unit Air Circulation
-
11.1 m³/min (390 ft³/min)
Indoor Unit Noise Level (H / L / Q-Lo)
-
36/26/19 dB(A)
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)
-
295 mm x 870 mm x 229 mm
Indoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)
-
11-5/8 inch x 34-9/32 inch x 9-1/32 inch
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)
-
283 mm x 952 mm x 374 mm
Indoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)
-
11-5/32 inch x 37-1/2 inch x 14-3/4 inch
Indoor Unit Net Weight
-
10 kg (22 lb)
Outdoor Unit Air Circulation
-
27.6 m³/min (970 ft³/min)
Outdoor Unit Noise Level (H)
-
47 dB(A)
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (mm)
-
511 mm x 650 mm x 230 mm
Outdoor Unit Installed Condition - Unit Dimensions (H x W x D) (inch)
-
20-1/8 inch x 25-19/32 inch x 9-1/16 inch
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (mm)
-
582 mm x 793 mm x 356 mm
Outdoor Unit Stacking Condition - Packaging Dimensions (H x W x D) (inch)
-
22-15/16 inch x 31-1/4 inch x 14-1/32 inch
Outdoor Unit Net Weight
-
18 kg (40 lb)
Refrigerant Pipe Diameter (Liquid Side)
-
ø 6.35 mm (1/4 inch)
Refrigerant Pipe Diameter (Gas Side)
-
ø 9.52 mm (3/8 inch)
Pipe Extension (Chargeless Pipe Length)
-
7.5 m
Pipe Extension (Maximum Pipe Length)
-
20 m
Pipe Extension (Maximum Elevation Length)
-
15 m
Pipe Extension (Additional Refrigerant Gas*)
-
10 g/m
Power Supply
-
Indoor
nanoe™ X
-
Yes (Generator Mark 2)
nanoe-G
-
Yes
Inside Cleaning On Demand
-
Yes
Odour Removing Function
-
Yes
24-Hour Dual ON & OFF Real Setting Timer
-
Yes
LCD Wireless Remote Control
-
Yes
Wired Remote Control
-
Optional
iAUTO-X
-
Yes
Humidity Sensor
-
Yes
Sleep Mode
-
Yes
Quiet Mode
-
Yes
Soft Dry Operation Mode
-
Yes
Personal Airflow Creation
-
Yes
Inverter Control
-
Yes
Refrigerant Type
-
R32
ECO Mode with A.I.
-
Yes
Random Auto Restart
-
Yes (32 Restart Patterns)
Blue Fin Condenser
-
Yes
Long Piping (maximum pipe length)
-
20 m
Top Panel Maintenance Access
-
Yes
Self-Diagnostic Function
-
Yes
Note
-
*When pipes are not extended from the chargeless pipe length, the required amount of refrigerant is already in the unit.
Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.
