LUMIX® S Lens S-R1635
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
S-R1635
LUMIX S PRO 16-35mm F4
![](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210485.jpg.pub.crop.pc.thumb.640.1200.jpg)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
Features
LUMIX S PRO Lens
![LUMIX S PRO Lens](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210292.jpg.pub.thumb.644.644.jpg)
Capturing Nature in Detail
![Capturing Nature in Detail](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210294.jpg.pub.thumb.644.644.jpg)
Dust, Splash and Freeze-resistant Design
![Dust, Splash and Freeze-resistant Design](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210297.jpg.pub.thumb.644.644.jpg)
Ideal for Video Recording
![Ideal for Video Recording](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210299.jpg.pub.thumb.644.644.jpg)

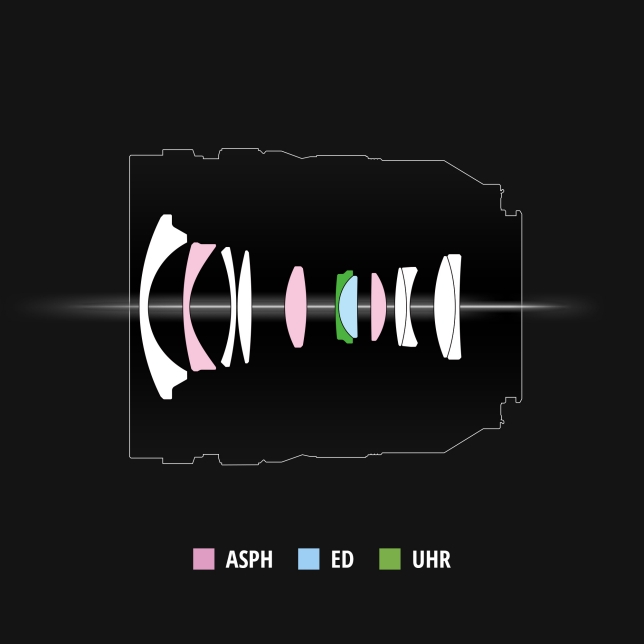

S-R1635 Lens Construction
![S-R1635 Lens Construction](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210300.jpg.pub.thumb.644.644.jpg)

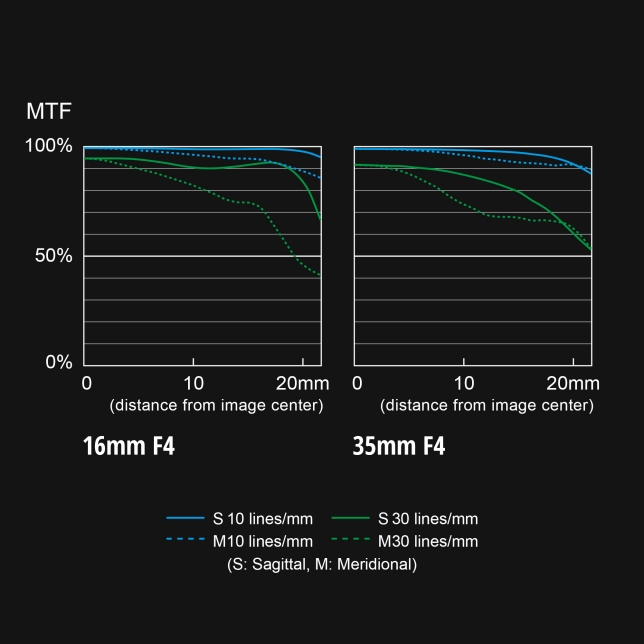

S-R1635 MTF Chart
![S-R1635 MTF Chart](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210301.jpg.pub.thumb.644.644.jpg)
Get Inspired
Specs

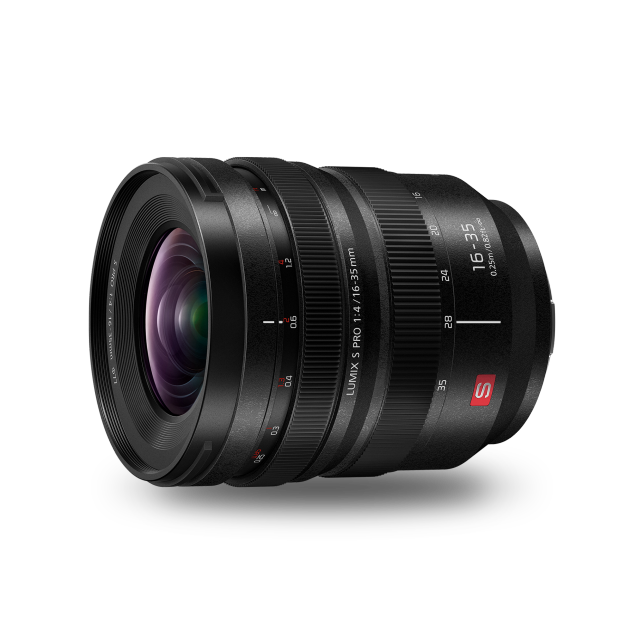

![Photo of LUMIX® S Lens S-R1635](/content/dam/pim/mi/en/S-/S-R163/S-R1635/ast-1210489.png.pub.thumb.644.644.png)
Size and Weight
- Height
- 85mm
- Width
- 85mm
- Depth
- 99.6mm
- Weight
- 500g
Approximately. Weight excluding lens cap, lens rear cap and lens hood. Length from the tip of the lens to the base side of the lens mount.
L-Mount
Dust / Splash / Freeze Resistant
16-35mm wide zoom lens with a compact, lightweight design.
Outstanding resolution and attractive bokeh effects.
Dust, splash and freeze-resistant design.
Name
-
Lens Construction
-
12 elements in 9 groups (3 aspherical lenses, 1 ED lenses, 1 UHR lens)
-
-
Mount
-
L-Mount
-
-
Optical Image Stabilizer
-
No
-
-
Focal Length
-
f=16-35mm
-
-
Aperture Type
-
9 diaphragm blades / Circular aperture diaphragm
-
-
Maximum Aperture
-
F4
-
-
Minimum Aperture
-
F22
-
-
Closest Focusing Distance
-
0.25m / 0.82ft
-
-
Maximum Magnification
-
Approx.0.23x
-
General
-
Diagonal Angle of View
-
107゜Wide) - 63゜(Tele)
-
-
Dust and Splash Resistant
-
Yes*
-
-
Recommended Operating Temperature
-
-10oC to 40oC (14oF to 104oF)
-
-
Filter Size
-
φ77mm
-
-
Max. Diameter
-
φ85mm / 3.34inch
-
-
Overall Length
-
99.6 mm / 3.92inch (from the tip of the lens to the base side of the lens mount)
-
-
Weight
-
approx.500g /17.63 oz (excluding lens cap, lens rear cap and lens hood)
-
-
Standard Accessories
-
Lens cap, Lens rear cap, Lens hood, Lens storage bag
-
NOTE
-
note
-
*Dust and Splash Resistant does not guarantee that damage will not occur if this lens is subjected to direct contact with dust and water.
-
