Counter Top Water Purifier TK-CS200

See product page

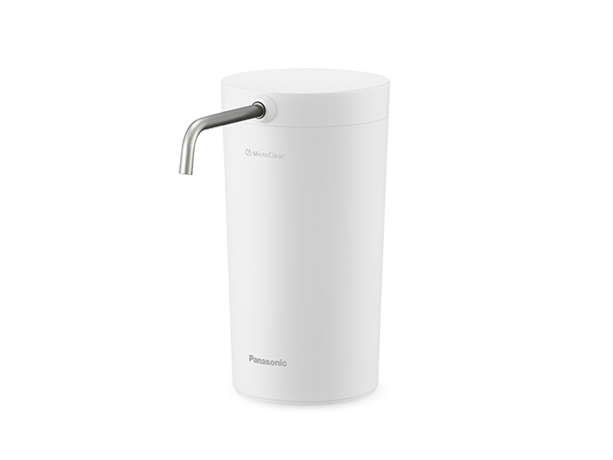

Photo of Counter Top Water Purifier TK-CS200

Main materials

  • Main unit

    • ABS resin

  • Bypass selector

    • ABS resin

  • Hose

    • Vinyl chloride

Main unit

  • Dimensions

    • About 133(W) × 145(D) × 251(H) mm

  • Weight

    • About 1 kg (about 2.6 kg when full of water)

Temperature of water used by Water Purifier

  • Under 35°C (under 80°C for bypass selector)

The lowest applicable dynamic water pressure

  • 40 kPa

Pressure of water used by Water Purifier (dynamic pressure)

  • 40 kPa to 350 kPa

Usable water service pressure (static pressure)

  • 40 kPa to 750 kPa

Filtering capacity

  • 6.0 L/min. [at 100 kPa water pressure]

Cartridge Installed In the unit

  • TK-CS200C

Purification capacity

  • Free residual chlorine 12000 L (*1)
    Turbidity 12000 L (*2)

Removable substances

  • Iron (particulate form) Can be removed (*3)

Guide for time to replace cartridge

  • About 1 year

Filter material

  • Non-woven fabric, activated carbon

Components which cannot be filtered out

  • Iron dissolved in water, heavy metals (silver, copper, etc.), salt (seawater)

Note

  • •All figures given are for a water temperature of 20°C.
    • This product cannot convert hard water into soft water.
    (*1) This value is for a removal rate of 80% based on JIS S 3201 tests
    (*2) This value is for a filtration flow volume of 50% based on JIS S 3201 tests
    (*3) This substance is for a removal rate of 80% based on specification standard tests (JWPAS B standards) stipulated by the Japan Water Purifier Association (JWPA)
    Note that it is not stipulated as part of purification capacity.
    (*4) This period applies when 30 liters of water are used a day. If 60 liters are used a day, the cartridge usage limit will be approximately 1/2. The period may also be significantly less depending on the amount of water used and on its quality and pressure.
