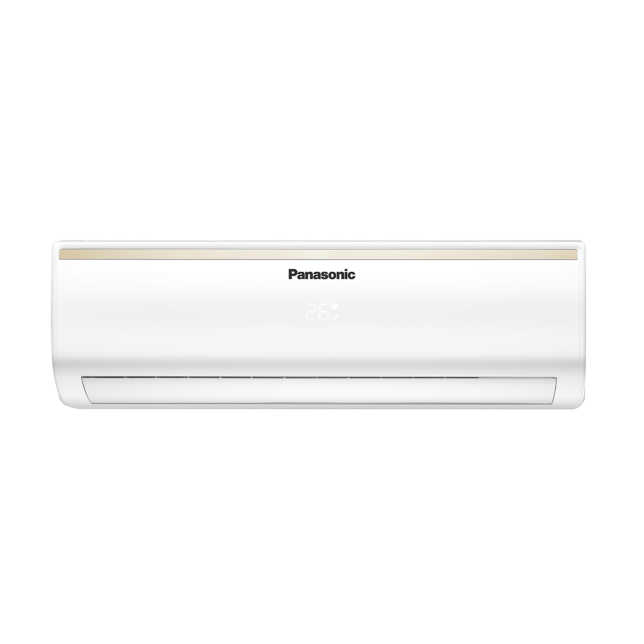

CS-YW30WKS, Split Air Conditioner
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS-YW30WKS
Efficient Cooling & Heating Air Conditioner
Experience quick, efficient climate control with our air conditioner. Its rapid temperature adjustment and energy-saving technology ensure comfort. In heating mode, it smartly adjusts the fan speed, preventing cold blasts. It’s a seamless blend of quick cooling, consistent warmth, and energy efficiency.
Features
ECO Mode
One button control to start up the mode. The Air Conditioner cools the room much faster and then operates at low frequency but keeps the desired temperature.
TURBO Mode
This function is used for fast Heating or cooling. Turbo feature activates fast cooling or heating option to bring your room to a desired temperature speedily and effectively
Powerful Cooling
Panasonic air conditioners are designed with a level of durability that delivers high performance even under the harsh environment of regions such as the Middle East. Tough specifications allow them to with stand operating temperatures up to 52ºC, and prevent the entry of sand and dust.
Anti-cold Air
In Heating mode, the indoor fan speed is controlled according to the evaporator temperature. Only when the temperature is warm enough, the fan begins to operate, preventing any cold blasting at the beginning of unit running or after defrosting period.
I Feel Mode
There is built-in with an additional temperature sensor in the remote controller to lively monitor the surrounding temperature, therefore, the aircon can adjust room temperature more accurately and provide extra comfort to users.
4- Way swing
4 Way swing enable 360-degree air flow. Delivering cool air to every corner that leaves the customers to feel ultimate cooling with comfort
Gold Fin Condenser Strong and durable anti-corrosion
The Condenser fins are coated to enhance its durability against water, air, and other types of corrosions.
60+ years of Manufacturing Experience.
Our R&D focuses on ease of use, and our history of rigorous quality control is unmatched in the industry. As a result, with more than 60+ years of experience, Panasonic has sold over 70 million air conditioner units in Japan and around the world.
Operating Test in Harsh Conditions
The operating noise of the indoor and outdoor units is measured in a high-performance anechoic chamber. The noise test verifies that the operating noise is low enough to allow the user to talk and sleep comfortably while the product is operating.
Environmental Test
An air conditioner is operated in a test room simulating a living room testing cooling speed, cooling efficiency, and temperature and humidity differences throughout the room.
Noise Test
The operating noise of the indoor and outdoor units is measured in a high-performance anechoic chamber. The noise test verifies that the operating noise is low enough to allow the user to talk and sleep comfortably while the product is operating.
Waterproof Test
Potential problems are checked by tests such as showering the unit for a predetermined amount of time. Contact sections on printed circuit boards are also resin-potted to prevent adverse effects caused by an unlikely exposure of droplets to water.
Specs
Size and Weight
- Height
- 340mm
- Width
- 1186mm
- Depth
- 258mm
- Weight
- 18kg
*Note: Indoor Unit Dimensions
Quick access with ECO mode to cools the room faster at low frequency
Turbo feature activates fast cooling to bring your room to a desired temperature speedily and effectively
4 Way swing enable 360-degree air flow
Model#
-
CS/CU-YW30WKS
Type
-
Heat & Cool
Compressor
-
Fixed Speed, Rotary
Refrigerant
-
R410
Cooling Capacity (Btu/h) (T1/T3)
-
28600/24800
Heating Capacity (W)
-
8000
EER (Btu/hW) (T1/T3)
-
12.4/8.7
Electrical Data (T1/T3)
-
Voltage (V)
-
220-240
-
-
Running current (A)
-
10.2/12.6
-
-
Power input (W)
-
2306/2851
-
Pipe Extension (m)
-
Maximum Pipe Length
-
15
-
-
Maximum Height Difference
-
5
-
Operating (Ambient) Temperature
-
52°C
Indoor air volume (Cooling/Heating)
-
m³/h
-
1500/1500
-
Connection Pipe
-
Gas (inches)
-
Φ12(1/2'')
-
-
Liquid (inches)
-
Φ6(1/4'')
-
Net Dimension (IDU / ODU) (W x H x D (mm))
-
1186 x 340 x 258 / 953 x 433 x 808
Gross Dimension (IDU / ODU) (W x H x D (mm))
-
1265 x 415 x 338 / 1020 x 475 x 845
Net / Gross Weight (Kg)
-
IDU / ODU
-
18/62 (N)
26/68 (G)
-
Stuffing Qty
-
40HQ
-
98
-
Country of Origin
-
China
