CS-YN9XKD, Split Air Conditioner

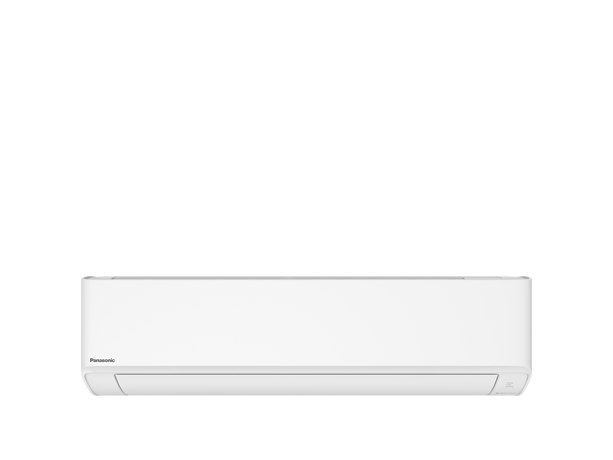

Photo of CS-YN9XKD, Split Air Conditioner

Model [50Hz]

  • CS-YN9XKD-3

Model [50Hz]: Outdoor Unit

  • CU-YN9XKD-3

INV/FIXED

  • Fixed Speed

Power Supply

  • Phase, Hz

    • Single, 50
  • V

    • 220-240

Capacity

  • kW

    • 2.65-2.7
  • Btu/h

    • 9040-9210

EER

  • W/W

    • 3.19-3.14
  • Btu/hW

    • 10.89-10.71

Running Current

  • A

    • 3.8-3.7

Input Power

  • W

    • 830-860

Indoor Noise

  • Pressure Level dB(A) (H/L)

    • 37 / 26
  • Power Level dB(A)

    • 50 / -

Outdoor Noise

  • Pressure Level dB(A) (H/L)

    • 48 / -
  • Power Level dB(A)

    • 63 / -

DimensionsIndoor [Outdoor]

  • Height

    • mm

      • 290 [511]
    • inch

      • 11-7/16 [20-1/8]
  • Width

    • mm

      • 779 [650]
    • inch

      • 30-11/16 [25-19/32]
  • Depth

    • mm

      • 209 [230]
    • inch

      • 8-1/4 [9.52-1/16]

Max Current (A)

  • A

    • 4.7

Moisture Removal

  • L/h

    • 1.6

Net Weight / Indoor [Outdoor]

  • kg

    • 9 / 21
  • lb

    • 20 / 46

Refrigerant Pipe Diameter

  • Liquid Side

    • mm

      • ø 6.35
    • inch

      • 1/4"
  • Gas Side

    • mm

      • ø 9.52
    • inch

      • 3/8"

Power Supply_1

  • Indoor

Refrigerant

  • R32
