CS-YN24YKF, Comfortable Cooling Air Conditioner

See product page

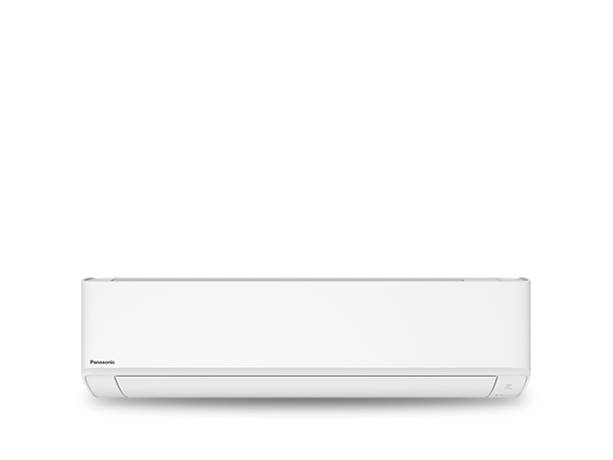

Photo of CS-YN24YKF, Comfortable Cooling Air Conditioner

Model#

  • CS/CU-YN24YKF

Type

  • Cool Only

Compressor

  • Fixed Speed, Rotary

Refrigerant

  • R32

Cooling Capacity (Btu/h) (T1/T3)

  • 24000/20500

Heating Capacity (Btu/h) (T1/T3)

  • -

Electrical Data (T1/T3)

  • Voltage (V)

    • 220-230

  • Running current (A)

    • 8.9/10.7

  • Power input (W)

    • 2000/2350

  • EER (Btu/hW) (T1/T3)

    • 12.00/8.72

Pipe Extension (m)

  • Maximum Pipe Length

    • 40

  • Maximum Height Difference

    • 30

Operating (Ambient) Temperature

  • 55°C

Net Dimension (IDU / ODU)

  • H x W x D (mm)

    • 295 x 1040 x 244/695 x 875 x 320

Gross Dimension (IDU / ODU)

  • 314 x 1148 x 383/783 x 1049 x 485

Net / Gross Weight (Kg)

  • IDU / ODU

    • 14/48 (N)
      16/53 (G)

Country of Origin

  • Malaysia
