CS-YN18YKF, Comfortable Cooling Air Conditioner

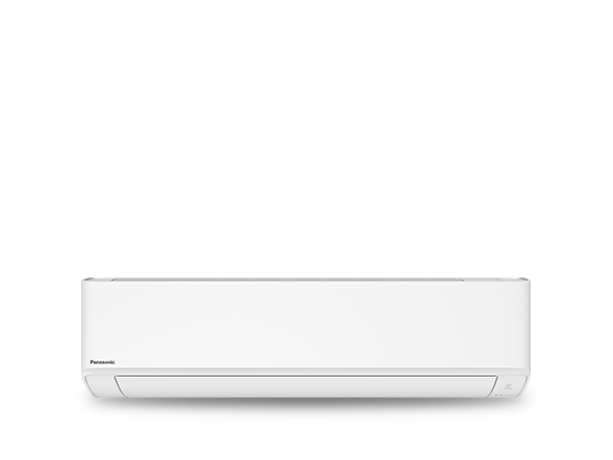

Photo of CS-YN18YKF, Comfortable Cooling Air Conditioner

Model#

  • CS/CU-YN18YKF

Type

  • Cool Only

Compressor

  • Fixed Speed, Rotary

Refrigerant

  • R32

Cooling Capacity (Btu/h) (T1/T3)

  • 18300/16000

Heating Capacity (Btu/h) (T1/T3)

  • -

Electrical Data (T1/T3)

  • Voltage (V)

    • 230-240
  • Running current (A)

    • 6.7/8.0
  • Power input (W)

    • 1510/1810
  • EER (Btu/hW) (T1/T3)

    • 12.12/8.84

Pipe Extension (m)

  • Maximum Pipe Length

    • 40
  • Maximum Height Difference

    • 30

Operating (Ambient) Temperature

  • 55°C

Net Dimension (IDU / ODU)

  • H x W x D (mm)

    • 295 x 1040 x 244/619 x 824 x 299

Gross Dimension (IDU / ODU)

  • 314 x 1148 x 383/717 x 999 x 446

Net / Gross Weight (Kg)

  • IDU / ODU

    • 12/39 (N)
      14/44 (G)

Country of Origin

  • Malaysia
