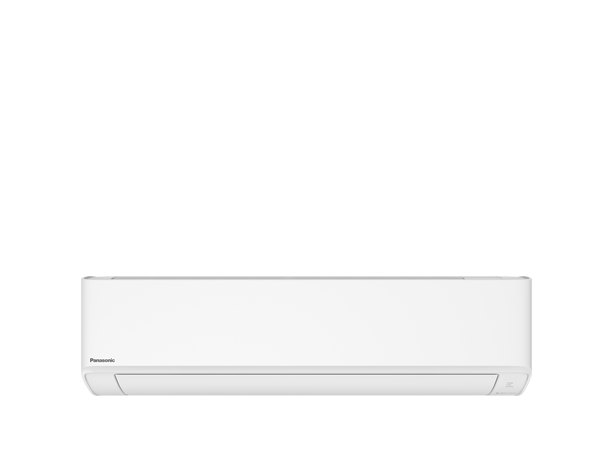

CS-YN12XKD, Split Air Conditioner
Model [50Hz]
-
CS-YN12XKD-3
Model [50Hz]: Outdoor Unit
-
CU-YN12XKD-3
INV/FIXED
-
Fixed Speed
Power Supply
-
Phase, Hz
-
Single, 50
-
-
V
-
220-240
-
Capacity
-
kW
-
3.45-3.47
-
-
Btu/h
-
11800-11800
-
EER
-
W/W
-
3.32-3.21
-
-
Btu/hW
-
11.35-10.93
-
Running Current
-
A
-
4.8-4.7
-
Input Power
-
W
-
1040-1080
-
Indoor Noise
-
Pressure Level dB(A) (H/L)
-
40 / 29
-
-
Power Level dB(A)
-
53 / -
-
Outdoor Noise
-
Pressure Level dB(A) (H/L)
-
50 / -
-
-
Power Level dB(A)
-
65 / -
-
DimensionsIndoor [Outdoor]
-
Height
-
mm
-
290 [542]
-
-
inch
-
11-7/16 [21-11/32]
-
-
-
Width
-
mm
-
779 [780]
-
-
inch
-
30-11/16 [30-23/32]
-
-
-
Depth
-
mm
-
209 [289]
-
-
inch
-
8-1/34 [11-13/32]
-
-
Max Current (A)
-
A
-
6.3
-
Moisture Removal
-
L/h
-
2.0
-
Net Weight / Indoor [Outdoor]
-
kg
-
9 / 26
-
-
lb
-
20 / 57
-
Refrigerant Pipe Diameter
-
Liquid Side
-
mm
-
ø 6.35
-
-
inch
-
1/4"
-
-
-
Gas Side
-
mm
-
ø 9.52
-
-
inch
-
3/8"
-
-
Power Supply_1
-
Indoor
Refrigerant
-
R32
