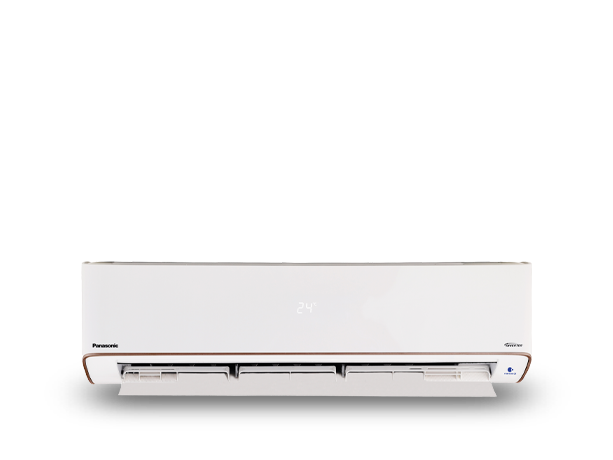

CS-UV30XKF
The Ultimate Comfort & Convenience
*Silver band for OMAN & UAE
![](/content/dam/pim/mi/en/CS/CS-UV3/CS-UV30XKF/ast-2110590.jpg.pub.crop.pc.thumb.640.1200.jpg)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-spinicon.png)
![](/etc/designs/panasonic/productpage-2-clientlibs/scene7/images/icn-pinchzoom.png)
Features
I Feel Mode
![I Feel Mode](/content/dam/pim/mi/en/CS/CS-UV3/CS-UV30XKF/ast-2097890.jpg.pub.thumb.644.644.jpg)
4-Way Swing
![4-Way Swing](/content/dam/pim/mi/en/CS/CS-UV3/CS-UV30XKF/ast-2097893.png.pub.thumb.644.644.png)
Hidden Display
![Hidden Display](/content/dam/pim/mi/en/CS/CS-UV3/CS-UV30XKF/ast-2097888.png.pub.thumb.644.644.png)
Designed for the Middle East
![Designed for the Middle East](/content/dam/pim/mi/en/CS/CS-UV3/CS-UV30XKF/ast-2097894.png.pub.thumb.644.644.png)
Gold Fin Condenser
The Condenser fins are coated to enhance its durability against water, air, and other types of corrosions.
![Gold Fin Condenser](/content/dam/pim/mi/en/CS/CS-UV3/CS-UV30XKF/ast-2097892.jpg.pub.thumb.644.644.jpg)
Specs
![Photo of CS-UV30XKF](/content/dam/pim/mi/en/CS/CS-UV3/CS-UV30XKF/ast-2110598.png.pub.thumb.644.644.png)
Size and Weight
- Height
- 271mm
- Width
- 1277mm
- Depth
- 360mm
- Weight
- 21.5kg
*Net indoor unit dimensions
*Silver band for Oman & UAE
4-way Swing
55°C Ambient
I Feel Mode
Model#
-
CS/CU-UV30XKF
Type
-
Cool Only
Compressor
-
Rotary
Refrigerant
-
R410
Cooling Capacity (T1 / T3 / T4)
-
28000 / 24500 / 23000 Btu/h
EER (T1 / T3 / T4)
-
12.1 / 8.87 / 8.12 Btu/hW
Electrical Data (T1 / T3)
-
Voltage
-
220 - 240 V
-
-
Running current
-
10.1 / 12 A
-
-
Power input
-
2312 / 2762 W
-
Pipe Extension
-
Maximum Pipe Length
-
15 m
-
-
Maximum Height Difference
-
5 m
-
Operating (Ambient) Temperature
-
55°C
Net Dimension (IDU / ODU) H x W x D
-
271 x 1277 x 360 / 803 x 978 x 421 mm
Gross Dimension (IDU / ODU) H x W x D
-
350 x 1332 × 437 / 835 x 1022 × 480 mm
Net / Gross Weight
-
IDU / ODU
-
21.5 /54 Kg (N) 27 / 62 Kg (G)
-
Country of Origin
-
China
