CS-UE24ZKF, Split Air Conditioner

See product page

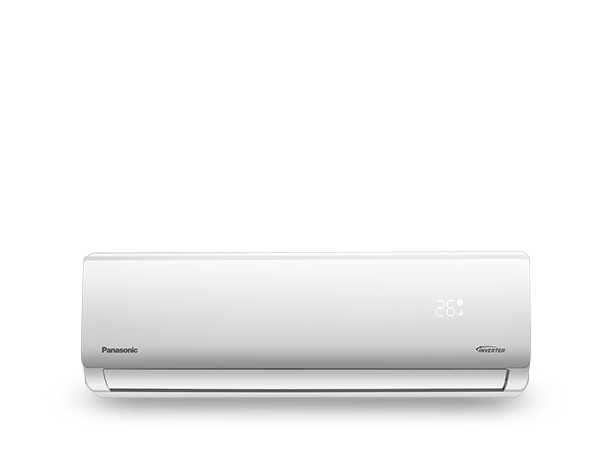

Photo of CS-UE24ZKF, Split Air Conditioner

Model#

  • CS/CU-UE24ZKF-3

Type

  • Heat & Cool

Compressor

  • Inverter

Refrigerant

  • R410

Cooling Capacity

  • 24000 Btu/h

Heating Capacity

  • 24500 Btu/h

EER Cooling

  • 10.45 Btu/hW

COP Heating

  • 11.33 Btu/hW

Electrical Data

  • Voltage

    • 150 - 265 V

  • Running current Cooling

    • 10.4 A

  • Running current Heating

    • 9.8 A

  • Power input Cooling

    • 2297 W

  • Power input Heating

    • 2162 W

Pipe Extension

  • Maximum Pipe Length

    • 15 m

  • Maximum Height Difference

    • 5 m

Operating (Ambient) Temperature

  • 55°C

Net Dimension (IDU / ODU) H x W x D

  • 220 x 1010 x 315 / 699 x 927 x 380 mm

Gross Dimension (IDU / ODU) H x W x D

  • 297 x 1096 x 390 / 732 x 960 x 430 mm

Net / Gross Weight (Kg)

  • IDU / ODU

    • 13/42 Kg (N) / 16/51 Kg (G)

Country of Origin

  • China
