CS-RU18AKD-31, Split Air Conditioner

See product page

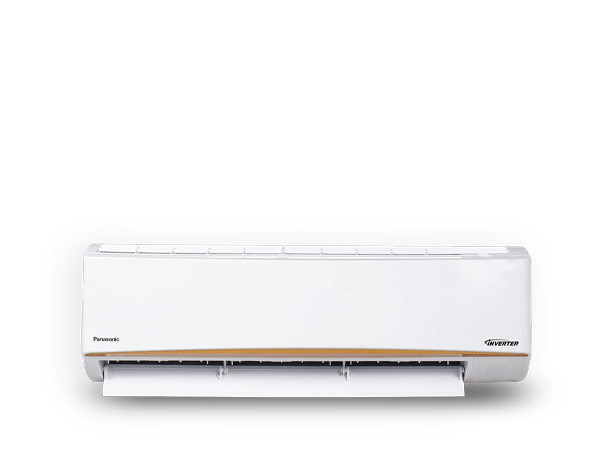

Photo of CS-RU18AKD-31, Split Air Conditioner

Type

  • Cooling Only

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 17913 [8053 - 18255]

Cooling Capacity Standard [Min. - Max.] (W)

  • 5250 [2360 - 5350]

EER (Btu/hr/w)

  • 10.96

Electrical Data

  • Voltage (V-AC)

    • 230

  • Phase (Φ)

    • Single Phase

  • Running Current (A)

    • 7.5

  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 1635 [572 - 2208 ]

Moisture Removal Rate (l/h)

  • 1.2

Moisture Removal Rate (Pt/h)

  • 2.5

Air Circulation (Indoor/Hi) (mᵌ/min)

  • 16.3

Air Circulation (Indoor/Hi) (ftᵌ/min)

  • 576

Dimensions of the Indoor Unit

  • Length x Width x Height (mm)

    • 1000x230x295

Dimensions of the Outdoor Unit

  • Length (L) (mm)

    • 781x281x555

Noise Level

  • Indoor (H/Q) [dB-A]

    • 43/37

  • Outdoor [dB-A]

    • 53

Net Weight

  • Net Weight IDU [ODU] (kg)

    • 11.5[24]

Gross Weight

  • Gross Weight IDU [ODU] (kg)

    • 13.5[25.5]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • 16 ~ 52

Operating Volt. Range（V）

  • 145-285

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635

  • Gas Side (cm)

    • Ø1.270

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5

  • Maximum Pipe Length * (m)

    • 15

  • Maximum Elevation Length * (m)

    • 10

  • Additional Refrigerant Gas * (g/m)

    • 15

Power Supply Source

  • Indoor

Note

  • * Noise Spec measured at High & Quiet
