CS-RU12AKD-31, Split Air Conditioner

See product page

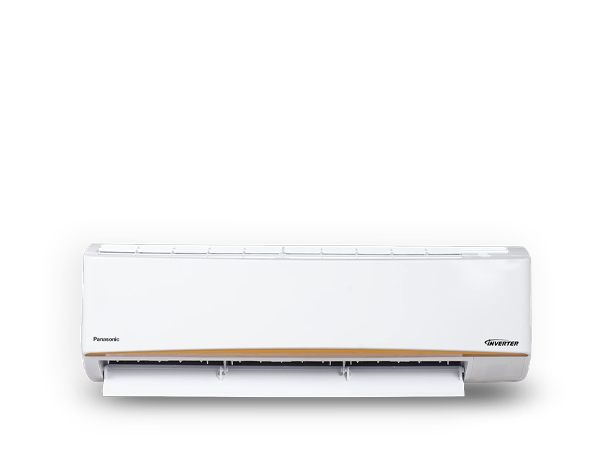

Photo of CS-RU12AKD-31, Split Air Conditioner

Type

  • Cooling Only

Cooling Capacity Standard [Min. - Max.] (Btu/h)

  • 12113 [5425- 13307]

Cooling Capacity Standard [Min. - Max.] (W)

  • 3550 [1590 - 3900]

EER (Btu/hr/w)

  • 10.40

Electrical Data

  • Voltage (V-AC)

    • 230

  • Phase (Φ)

    • Single Phase

  • Running Current (A)

    • 5.3

  • Power Input, Standard Cooling [Min. - Max.] (W)

    • 1165 [408 - 1573 ]

Moisture Removal Rate (l/h)

  • 1.0

Moisture Removal Rate (Pt/h)

  • 2.1

Air Circulation (Indoor/Hi) (mᵌ/min)

  • 12.0

Air Circulation (Indoor/Hi) (ftᵌ/min)

  • 424

Dimensions of the Indoor Unit

  • Length x Width x Height (mm)

    • 800x230x295

Dimensions of the Outdoor Unit

  • Length (L) (mm)

    • 672x240x520

Noise Level

  • Indoor (H/Q) [dB-A]

    • 40/35

  • Outdoor [dB-A]

    • 52

Net Weight

  • Net Weight IDU [ODU] (kg)

    • 9.3[20]

Gross Weight

  • Gross Weight IDU [ODU] (kg)

    • 11[22.5]

Refrigerant

  • R-32

Operating Temp. Range (℃)

  • 16 ~ 52

Operating Volt. Range（V）

  • 145-285

Refrigerant Pipe Diameter

  • Liquid Side (cm)

    • Ø0.635

  • Gas Side (cm)

    • Ø0.952

Pipe Extension

  • Chargeless Pipe Length * (m)

    • 7.5

  • Maximum Pipe Length * (m)

    • 10

  • Maximum Elevation Length * (m)

    • 5

  • Additional Refrigerant Gas * (g/m)

    • 10

Power Supply Source

  • Indoor

Note

  • * Noise Spec measured at High & Quiet
