CS-RN12AKD-31, Split Air Conditioner

See product page

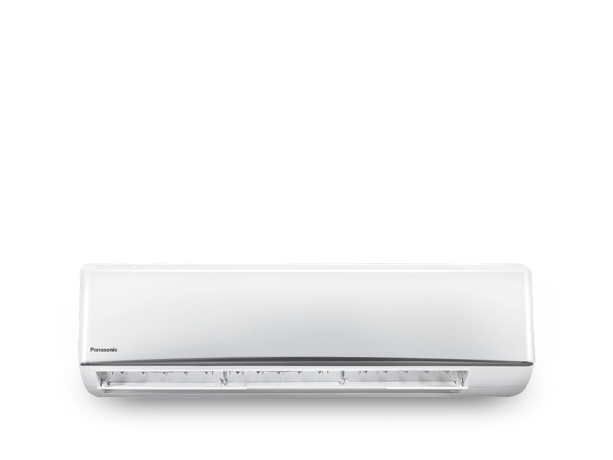

Photo of CS-RN12AKD-31, Split Air Conditioner

Model

  • CS/CU-RN12AKD-31

Type

  • Cooling Only

Cooling Capacity Standard

  • Btu/h

    • 11771

  • W

    • 3450

COP

  • 3.48

Electrical Data

  • Voltage

    • V-AC

      • 230

  • Phase

    • Φ

      • Single Phase

  • Running Current

    • A

      • 4.5

  • Power Input, Standard Cooling

    • W

      • 990

Moisture Removal Rate

  • l/h

    • 1.0

  • Pt/h

    • 2.1

Air Circulation (Indoor/Hi)

  • mᵌ/min

    • 12.5

  • ftᵌ/min

    • 441

Dimensions of the Indoor Unit (Length x Width x Height)

  • 800mm x 230mm x 295mm

Dimensions of the Outdoor Unit (Length x Width x Height)

  • 780mm x 241mm x 557mm

Noise Level

  • Indoor (H/L)

    • [dB-A]

      • 38/35

  • Outdoor

    • [dB-A]

      • 53

Net Weight (IDU [ODU])

  • 9.3 [27]kg

Gross Weight (IDU [ODU])

  • 11 [30]kg

Refrigerant

  • R-32

Operating Temp. Range

  • ℃

    • 16 ~ 50

Operating Volt. Range

  • V

    • 170 - 265*

Refrigerant Pipe Diameter

  • Liquid Side

    • cm

      • Ø0.635

  • Gas Side

    • cm

      • Ø1.270

Pipe Extension

  • Chargeless Pipe Length *

    • m

      • 7.5

  • Maximum Pipe Length *

    • m

      • 10

  • Maximum Elevation Length *

    • m

      • 5

  • Additional Refrigerant Gas *

    • g/m

      • 10

Power Supply Source

  • Indoor

Note

  • * Voltage range is as per standard testing condition, i.e. (ID: 27℃ - 19℃, ODU: 35℃ - 24℃)
    * Noise Spec measured at High & Low
