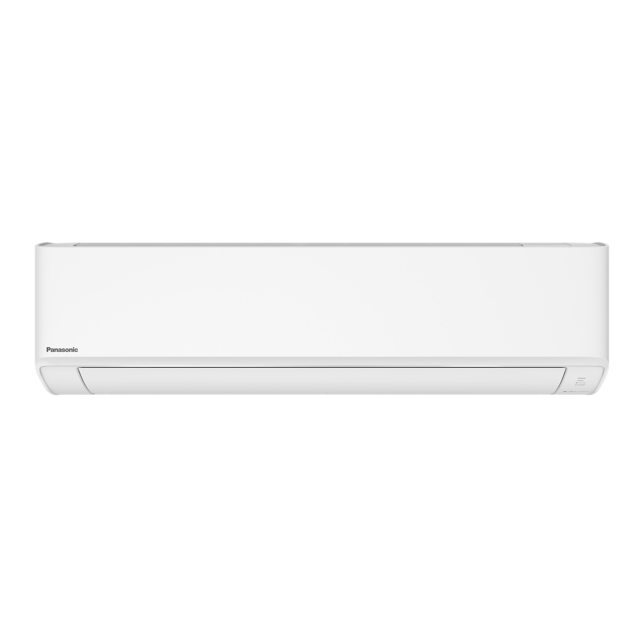

CS-PN30YKF, Nanoe X™ Technology Air Conditioner
Add to WishlistRemove from Wishlist
NO ROOM TO ADD MORE PRODUCTS
The wishlist has already reached the maximum number of products
CS-PN30YKF
Protect Health with technology
Panasonic air-conditioner comes with nanoe™ X technology for cleaner air quality. Enjoy comfortable cooling in optimal environment with Panasonic innovative solutions such as JETSTREAM,- and AEROWINGS. Achieve energy efficiency without compromising comfort with R32 refrigerant
Features
nanoe™ X
Panasonic air conditioners not only cool but also clean indoor air. With the unique nanoe™ X technology, they deodorize while inhibiting bacteria*1-3 and viruses*4-6 to improve air quality for maximum comfort.
Powerful Cooling
Panasonic has accumulated many years of air conditioner technologies aimed at providing a comfortable space and optimal room temperature for everybody, wherever they are in the room. One of these, called JETSTREAM, achieves a maximum airflow length of 25 meters. This Long Reach Airflow brings clean, comfortable air to every corner of the room.
Rapid Cooling at the click of a button
By pressing the JETSTREAM™ button on the remote control, you immediately get Rapid Cooling supported by the following three key factors
Large Air Intake
Large air intake draws in a large amount of air.
Large Diameter Fan
Large-diameter fan generates a stronger airflow.
AEROWINGS
The AEROWINGS feature combines a pair of wings to send air further.
Eco-friendly R32 Refrigerant
Panasonic air conditioners have been increasingly adopting the eco-friendly R32 refrigerant. An excellent heat transfer medium for energy efficiency and cost savings. It also has low global warming potential, making it friendlier to the environment.
Long Piping Length
Industry No. 1 long piping length. 40m maximum pipe length. 30m maximum height difference.
60+ years of Manufacturing Experience.
Our R&D focuses on ease of use, and our history of rigorous quality control is unmatched in the industry. As a result, with more than 60+ years of experience, Panasonic has sold over 70 million air conditioner units in Japan and around the world.
Operating Test in Harsh Conditions
The operating noise of the indoor and outdoor units is measured in a high-performance anechoic chamber. The noise test verifies that the operating noise is low enough to allow the user to talk and sleep comfortably while the product is operating.
Environmental Test
An air conditioner is operated in a test room simulating a living room testing cooling speed, cooling efficiency, and temperature and humidity differences throughout the room.
Noise Test
The operating noise of the indoor and outdoor units is measured in a high-performance anechoic chamber. The noise test verifies that the operating noise is low enough to allow the user to talk and sleep comfortably while the product is operating.
Waterproof Test
Potential problems are checked by tests such as showering the unit for a predetermined amount of time. Contact sections on printed circuit boards are also resin-potted to prevent adverse effects caused by an unlikely exposure of droplets to water.
*1〈Airborne bacteria (Staphylococcus aureus)〉[Testing organisation] Kitasato Research Center for Environmental Science [Testing method] The number of bacteria is measured after direct exposure in an approximately 25m3 sized airtight test room [Inhibition method] nanoe™ released [Test substance] Airborne bacteria [Test result] Inhibited by at least 99.7% in 4 hours (24_0301_1)
*2〈Adhered bacteria (O157)〉[Testing organisation] Japan Food Research Laboratories [Testing method] Measured the number of bacteria adhered to a cloth in an approximately 45L sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered bacteria [Test result] Inhibited by at least 99.99% in 1 hour (208120880_001)
*3〈Adhered bacteria (MRSA)〉[Testing organisation] Japan Food Research Laboratories [Testing method] Measured the number of bacteria adhered to a cloth in an approximately 45L sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered bacteria [Test result] Inhibited by at least 99.99% in 1 hour (208120880_002)
*4〈Airborne virus (bacteriophageΦχ174)〉[Testing organisation] Kitasato Research Center for Environmental Science [Testing method] The number of virus is measured after direct exposure in an approximately 25m3 sized airtight test room [Inhibition method] nanoe™ released [Test substance] Airborne virus [Test result] Inhibited by at least 99.7% in 6 hours (24_0300_1)
*5〈Adhered virus (Influenza virus H1N1 subtype)〉[Testing organisation] Kitasato Research Center for Environmental Science [Testing method] Measured the number of virus adhered to a cloth in an approximately 1m3 sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered virus [Test result] Inhibited by at least 99.9% in 2 hours (21_0084_1)
*6〈Adhered virus (Poliovirus type1(Lsc-2ab))〉[Testing organisation] Kitasato Research Center for Environmental Science [Testing method] Measured the number of virus adhered to a cloth in an approximately 45L sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered virus [Test result] Inhibited by at least 99.7% in 2 hours (22_0096)
*2〈Adhered bacteria (O157)〉[Testing organisation] Japan Food Research Laboratories [Testing method] Measured the number of bacteria adhered to a cloth in an approximately 45L sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered bacteria [Test result] Inhibited by at least 99.99% in 1 hour (208120880_001)
*3〈Adhered bacteria (MRSA)〉[Testing organisation] Japan Food Research Laboratories [Testing method] Measured the number of bacteria adhered to a cloth in an approximately 45L sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered bacteria [Test result] Inhibited by at least 99.99% in 1 hour (208120880_002)
*4〈Airborne virus (bacteriophageΦχ174)〉[Testing organisation] Kitasato Research Center for Environmental Science [Testing method] The number of virus is measured after direct exposure in an approximately 25m3 sized airtight test room [Inhibition method] nanoe™ released [Test substance] Airborne virus [Test result] Inhibited by at least 99.7% in 6 hours (24_0300_1)
*5〈Adhered virus (Influenza virus H1N1 subtype)〉[Testing organisation] Kitasato Research Center for Environmental Science [Testing method] Measured the number of virus adhered to a cloth in an approximately 1m3 sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered virus [Test result] Inhibited by at least 99.9% in 2 hours (21_0084_1)
*6〈Adhered virus (Poliovirus type1(Lsc-2ab))〉[Testing organisation] Kitasato Research Center for Environmental Science [Testing method] Measured the number of virus adhered to a cloth in an approximately 45L sized airtight test room [Inhibition method] nanoe™ released [Test substance] Adhered virus [Test result] Inhibited by at least 99.7% in 2 hours (22_0096)
Specs
Size and Weight
- Height
- 309mm
- Width
- 1212mm
- Depth
- 269mm
- Weight
- 16kg
*Indoor Unit Dimensions
nanoe™ X inhibits various pollutants and deodorizes odors
25 meters long air distance with JETSTREAM and the improved new AEROWINGS
Eco-friendly R32 Refrigerant
Model#
-
CS/CU-PN30YKF
Type
-
Cool Only
Compressor
-
Fixed Speed, Rotary
Refrigerant
-
R32
Cooling Capacity (Btu/h) (T1/T3)
-
28200/24400
Heating Capacity (Btu/h) (T1/T3)
-
-
Electrical Data (T1/T3)
-
Voltage (V)
-
230-240
-
-
Running current (A)
-
10.4/12.6
-
-
Power input (W)
-
2340/2800
-
-
EER (Btu/hW) (T1/T3)
-
12.05/8.71
-
Pipe Extension (m)
-
Maximum Pipe Length
-
40
-
-
Maximum Height Difference
-
30
-
Operating (Ambient) Temperature
-
55°C
Net Dimension (IDU / ODU)
-
H x W x D (mm)
-
309 x 1212 x 269/695 x 875 x 320
-
Gross Dimension (IDU / ODU)
-
352 x 1300 x 403/783 x 1049 x 485
Net / Gross Weight (Kg)
-
IDU / ODU
-
16/51 (N)
19/56 (G)
-
Country of Origin
-
Malaysia
