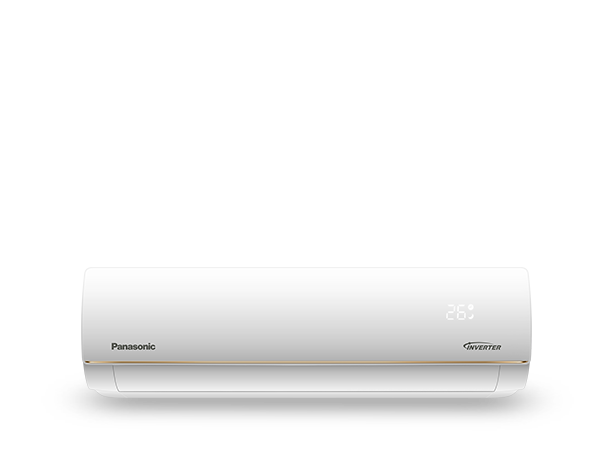

Specs - CS-FS18AKF-1 Wall Type - Panasonic Middle East

This site uses cookies to simplify and improve your usage and experience of this website. Cookies are small text files stored on the hard drive you are using to access this website. If you ignore this message and continue without changing your browser settings, we will assume that you are consenting to our use of cookies. For further information on our use of cookies, please see our Privacy Statement. OK See More

My Favorites

My Favorites

Model#

CS/CU-FS18AKF-1

Type

Inverter Cool Only

Power Supply

220-240 V/60Hz

Refrigerant

R410

Cooling Capacity (Btu/h) (T1/T3)

18400/16900

EER (Btu/hW) (T1/T3)

12.2/9

Electrical Data (T1/T3)

Rated Power Input (W)
- 1508/1878
Running current (A)
- 9.4/11.7

Operating (Ambient) Temperature

60°C

Indoor air volume

m³/h
- 1050

Indoor Noise

dB(A) (low)
- 39

Outdoor Noise

dB(A)
- 57

Connecting Pipe

Gas (inches)
- φ12(1/2")
Liquid (inches)
- Φ6(1/4'')

Net Dimension (IDU / ODU)

W x D x H (mm) 1132×332×229 / 853×349×602

Gross Dimension (IDU / ODU)

W x D x H (mm) 1202×402×302 / 890×385×628

Net Weight (Kg)

IDU / ODU 14/29

Gross Weight (Kg)

IDU / ODU 17/31
