VL-SWD272
DECT Wireless Video Intercom
Highly Expandable Series
- Highly Expandable
- DECT Wireless
- 7-inch wide colour display
- Picture recording
- Electric Lock Release Support
- Voice Changer
- Night Vision
- DECT Wireless
- 7-inch wide colour display
- Picture recording
- Electric Lock Release Support
- Voice Changer
- Night Vision
Features
Highly Expandable
Up to 6 additional monitors can be connected to the main monitor using a combination of 7-inch wired monitors and 2.2-inch wireless monitors (However, the maximum possible number of 7-inch wired monitors is 3).
Room to Room Communication
You can make intercom calls between the main monitor, sub monitor, and extension monitor.
Wireless Monitor with DECT Technology
You can use the wireless monitor to check visitors and respond promptly from the living room, kitchen and elsewhere in the home even while you are doing something else.
The max wireless range is 100 m with no obstacles. You can also add up to 2 DECT repeaters to expand the range.
The max wireless range is 100 m with no obstacles. You can also add up to 2 DECT repeaters to expand the range.
Easy Extension
The use of an optional DECT Repeater extends the communication. It can be extended with a maximum of two DECT Repeaters to reach places like garages, backyards, and gardens with stable communication.
* Signal range differs depending on factors such as the structure of rooms or the types of walls used.
* Signal range differs depending on factors such as the structure of rooms or the types of walls used.
7-inch Colour LCD
The monitor has a large, 7-inch wide screen that clearly shows each visitor’s face.
Electric Lock Release Support
The gate or door lock can be easily and quickly released using monitors from anywhere in the house.
Auto Picture recording
The main monitor and extension monitor can record doorphone images from up to 50 doorphone calls or monitoring sessions. (up to 8 still images per visitor/session)
Voice Changer
This safety function makes a woman's voice (higher keys) sound like a man's (lower keys) when speaking with visitor.
Night Vision
Door Station is equipped with LED lights (illumination lamp). It enables the colour display of visitors at a distance of about 50 cm at night.
* The above photo is a composite image.
* The above photo is a composite image.
Specs
・Highly Expandable
Up to 3 extension monitors
Up to 6 wireless monitors
(Up to 6 sub monitors in Total)
・7-inch Colour LCD Monitor
・Voice Chnger
・Picture Recording
・Electric Lock Release Support
・Night Vision
(Door Station)
H: 131 mm, W: 99 mm, D: 36.5 mm, Weight: 200 g
(Wireless Monitor)
H: 173 mm, W: 52 mm, D: 30 mm, Weight: 160 g
(Charger of Wireless Monitor)
H: 43 mm, W: 81 mm, D: 76 mm, Weight: 70 g
*Approximate size and weight.
Model composition
-

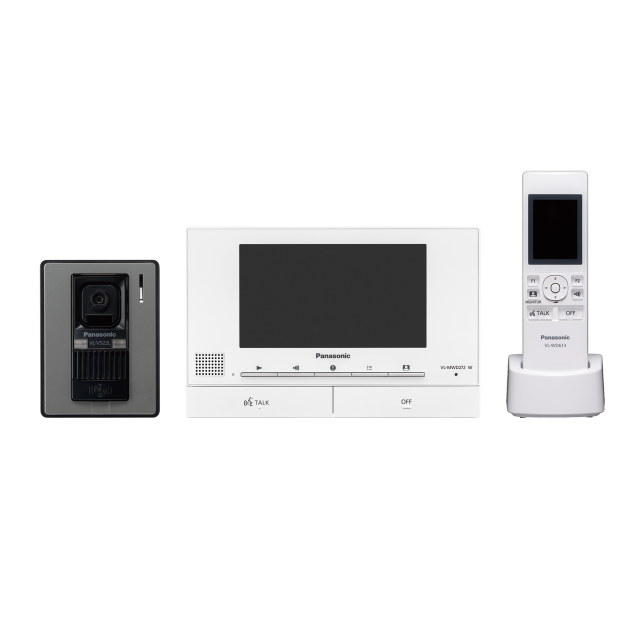

Main Monitor(VL-MWD272) x1, Door Station(VL-V522L) x1, Wireless monitor(VL-WD613) x 1
Maximum Connectable Units
-
Door Station
-
Up to 2 (1 included with VL-SWD272)
-
-
Monitor
-
Up to 3 extension monitors (not including the main monitor)
-
-
Wireless Monitor
-
Up to 6 (1 included with VL-SWD272)
*A total of up to 6 wireless sub monitors and extension monitors can be registered.
-
-
Wireless Repeater
-
Up to 2 (sold separately)
-
Connectable Devices
-
E-lock Release Support
-
Up to 2 (user supplied)
-
-
PBX
-
Only Panasonic PBX
-
Convenience
-
Picture Recording
-
Internal memory: Up to 50 visitors/sessions (up to 8 still images per visitor/session)
-
-
Night Vision
-
Yes (LED lights)
-
-
Touch Panel / Pan & Tilt
-
- / -
-
-
Voice Changer
-
Yes
-
-
Intercom call
-
Yes (between main monitor, wireless sub monitor and extension monitor)
-
Monitor
-
Power source
-
220 - 240 V AC, 50/60 Hz
-
-
Power consumption
-
Standby: Approx. 2.5W, During operation: Approx. 10W
* Measurement conditions: VL-V522L (1 pcs.) is connected to the Main Monitor
-
-
Dimensions (H x W x D)
-
Approx. 158 x 243 x 29.5 mm (excluding protruding sections)
-
-
Mass (weight)
-
Approx. 875 g (including mounting bracket & AC cable)
-
-
Operating environment
-
Ambient temperature: Approx. 0 ℃ to +40 ℃, Relative humidity (non-condensing): up to 90 %
-
-
Display size
-
7-inch wide colour / WVGA (800 x 480 pixels)
-
-
Display language
-
English, Arabic
-
-
Talking method
-
Hands-free
-
-
Frequency range
-
1.88 GHz to 1.90 GHz
-
-
Installation method
-
Wall mount (mounting bracket supplied)
-
-
External material
-
Flame retardant PC+ABS resin, Flame retardant ABS resin
-
Door Station
-
Power source
-
Power supplied by the main monitor
-
-
Dimensions (H x W x D)
-
Approx. 131 x 99 x 36.5 mm *Excluding protruding sections.
-
-
Mass (weight)
-
Approx. 200 g
-
-
Operating environment
-
Ambient temperature: Approx. -15 ℃ to +55 ℃, Relative humidity (non-condensing): up to 90 %
(tested up to -20 ℃)
-
-
Talking method
-
Hands-free
-
-
Viewing angle
-
Horizontally: Approx. 87゜, Vertically: Approx. 66゜
-
-
Image sensor/ Camera (pixel)
-
CMOS sensor (Approx. 0.3M pixels)
-
-
Minimum illuminance required
-
1 lx (within approx. 50cm from the camera lens)
-
-
Lighting method
-
LED lights
-
-
IP rating (INGRESS PROTECTION)
-
IPX3
*Water resistance is only assured if the doorphone is installed correctly according to the instructions in the Installation Guide, and appropriate water protection measures are taken.
-
-
Installation method
-
Surface mount (mounting base supplied)
-
-
External material
-
Flame retardant ABS resin
-
Wireless Monitor
-
Power source
-
Rechargeable Ni-MH (AAA x 2)
-
-
Dimensions (H x W x D)
-
Approx. 173 x 52 x 30 mm (excluding protruding sections)
-
-
Mass (weight)
-
Approx. 160 g (including the batteries)
-
-
Operating environment
-
Ambient temperature: Approx. 0 ℃ to +40 ℃, Relative humidity (non-condensing): up to 90 %
-
-
Display size
-
2.2-inch colour / QVGA (320 x 240 pixels)
-
-
Frequency range
-
1.88 GHz to 1.90 GHz
-
-
Operating time
-
Standby use: Approx.
80 hours *When used fully charged in an operating temperature of 20 ℃.
-
-
Charging time
-
Approx. 8 hours *When the operating temperature is 20 ℃. The charging time may increase when the operating temperature is lower than this.
-
-
Transmitting range
-
Approx. 100 m (line-of-sight distance from the main monitor)
-
-
External material
-
ABS resin
-
Charger
-
Power source
-
AC adaptor, Output: 5.5 V DC, 0.5 A
-
-
Power consumption
-
Standby: Approx. 0.4 W (when the sub monitor is not placed in the charger)
During charging: Approx. 1.4 W
-
-
Dimensions (H x W x D)
-
Approx. 43 x 81 x 76 mm (excluding protruding sections)
-
-
Mass (weight)
-
Approx. 70 g (excluding the AC adaptor)
-
-
Operating environment
-
Ambient temperature: Approx. 0 ℃ to +40 ℃, Relative humidity (non-condensing): up to 90 %
-
-
External material
-
ABS resin
-
